* NOTE: Image may not exactly match the product

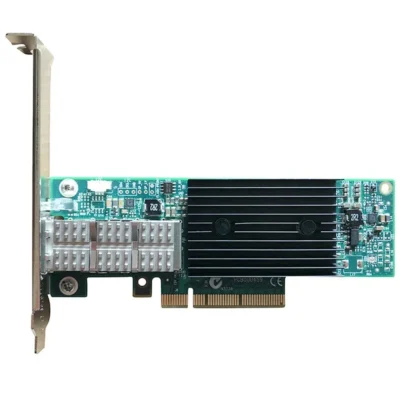

Mellanox MCX353A-FCBT ConnectX-3 VPI Network Adapter Card Single Port QSFP FDR InfiniBand 40 Gigabit

The Mellanox MCX353A-FCBT ConnectX-3 VPI is a high-performance single-port network adapter delivering 40 Gigabit FDR InfiniBand connectivity through QSFP interface. This enterprise-grade card features Virtual Protocol Interconnect (VPI) technology, enabling seamless switching between InfiniBand and Ethernet protocols on the same port. Key benefits include ultra-low latency data transmission, hardware-based transport offloads, and advanced RDMA capabilities that significantly reduce CPU overhead. The adapter excels in high-performance computing, data centers, and storage applications where maximum bandwidth and minimal latency are critical. Its unique selling points include proven Mellanox reliability, comprehensive virtualization support, and the flexibility to adapt to changing network requirements without hardware replacement, making it an ideal solution for demanding enterprise and HPC environments.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandMellanox
Products StatusNew
ApplicationServer
Part NumberMCX353A-FCBT
Host InterfacePCIe 3.0 x8

Key Features :
Device Type : Network Adapter
Form Factor : Plug-in Card
Interface (bus) Type : Pci Express 3.0 X8
Pci Specification Revision : Pcie 1.1, Pcie 2.0, Pcie 3.0

Networking :
Connectivity Technology : Wired
Data Link Protocol : 10 Gigabit Lan, Infiniband, 40 Gigabit Lan
Data Transfer Rate : 56 Gbps
Network / Transport Protocol : Tcp/ip, Udp/ip
Features : Flow Control, Auto-negotiation, Vlan Support, Virtual Protocol Interconnect (vpi), Quality Of Service (qos), Jumbo Frames Support, Infiniband Fdr Link Support
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3az, Ieee 802.3ba, Ibta 1.2.1

Expansion / Connectivity :
Interfaces :
1 X Network – Infiniband – Qsfp+
Compatible Slots :
1 X Pci Express 3.0 X8

Brand

Mellanox

Products Status

New

Application

Server

Part Number

MCX353A-FCBT

Host Interface

PCIe 3.0 x8

Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)

1-Port

Type of Expansion Slots

QSFP

Wireless Data Rate

56 Gbit/s

Media Standard

Optical Fiber

Product Type

40 Gigabit Ethernet Card

Frequency

2.4 GHz

Compliance Standards

RoHS, WEEE

Assembly Required

Yes

Eco Friendly

Yes

Technology Standard

40GBase-X

Quantity of Total Networks Ports

1
