| Brand | LSI |
|---|---|
| Products Status | New |
| Application | Server |
| Model | 9305-16e |
| Host Interface | PCI Express 3.0 x8 |
| External Connectors | 16 x SAS |
| Transfer rate | Up to 12Gb/s |
| Dimensions | 2.70" x 6.60" (H x W) |
| Part Number | 05-25704-00 |
| Form Factor | Low Profile |
| Interface Type | SAS |
* NOTE: Image may not exactly match the product

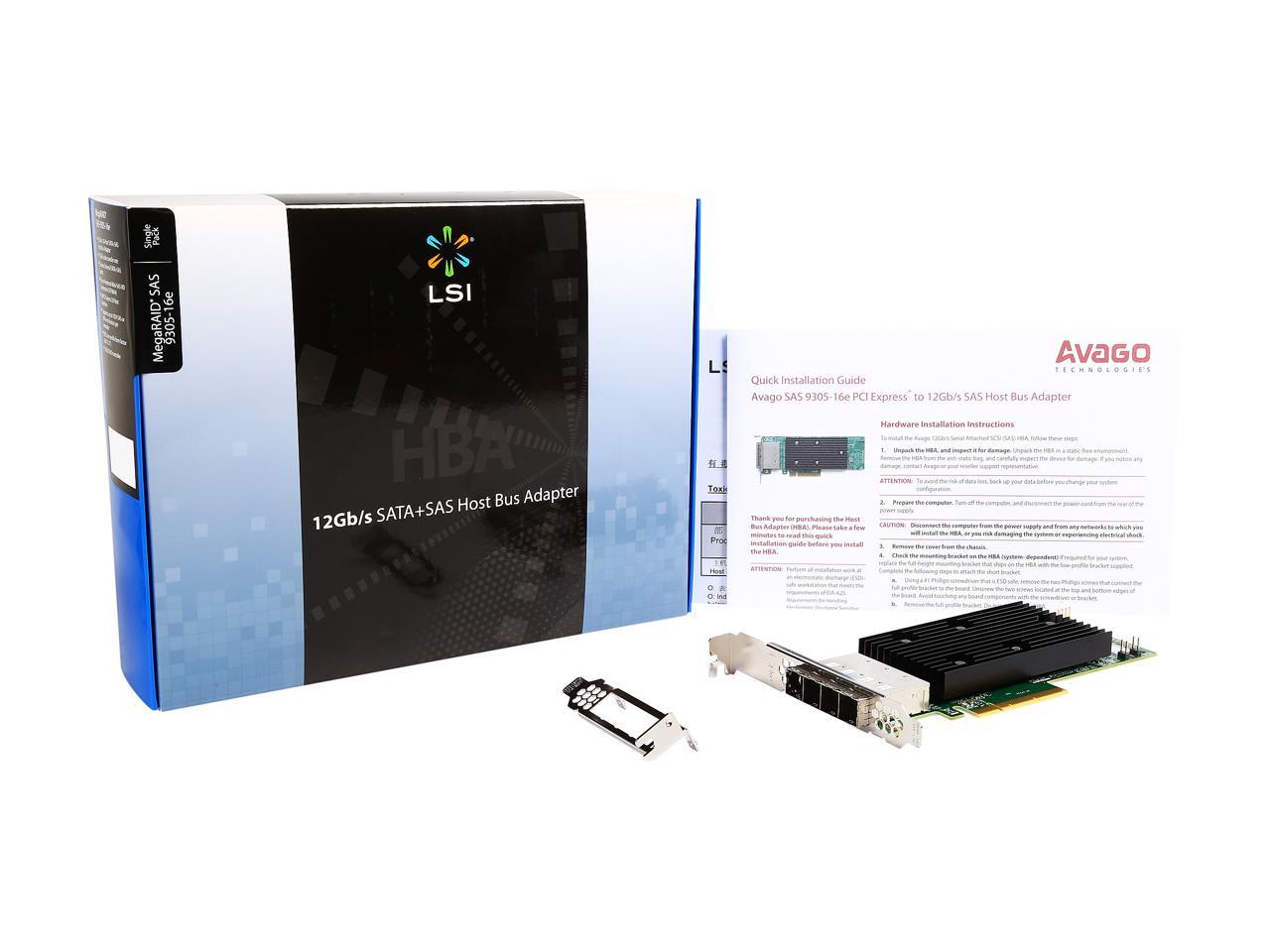

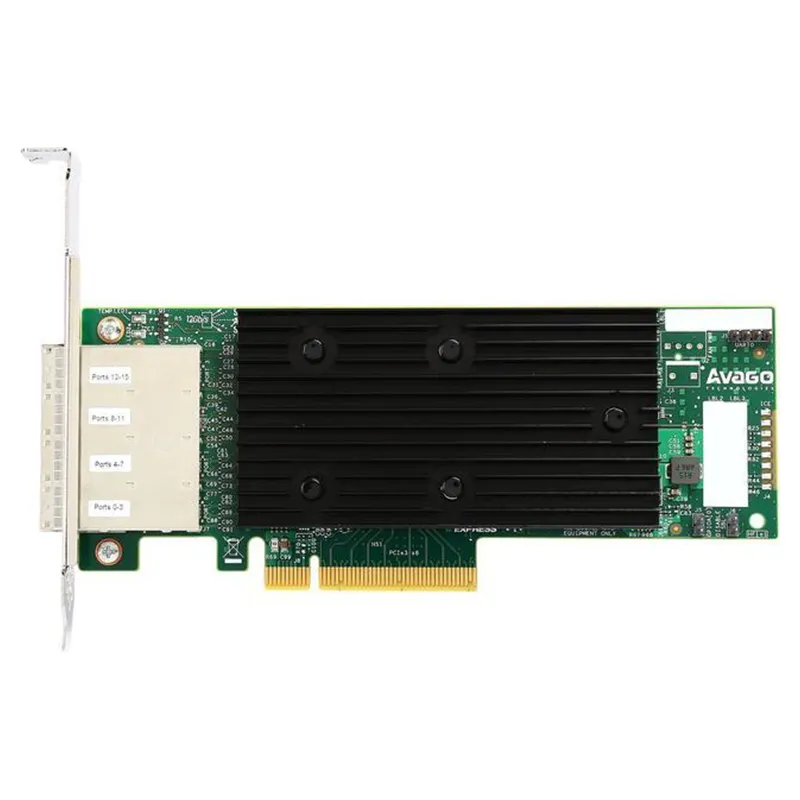

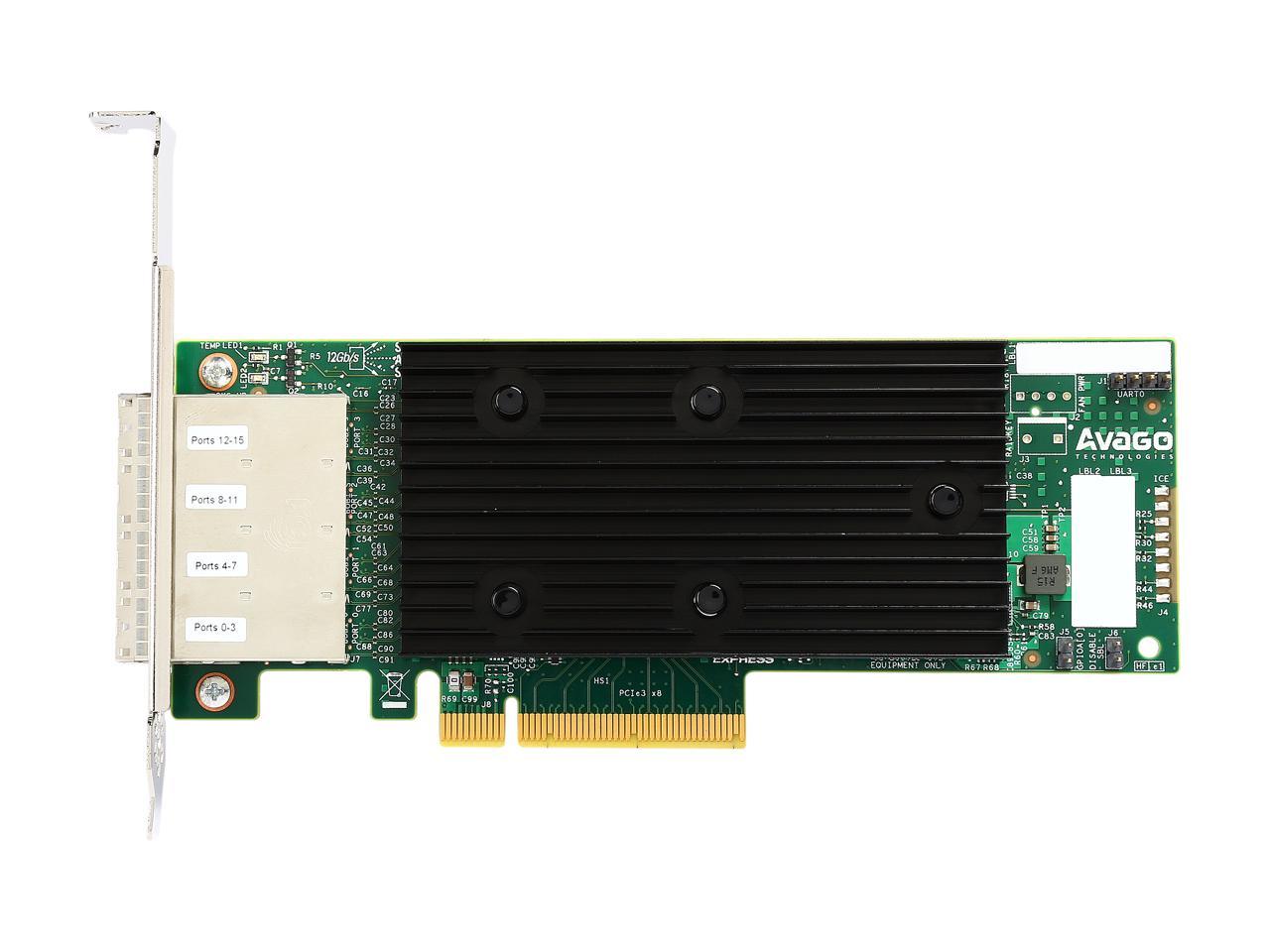

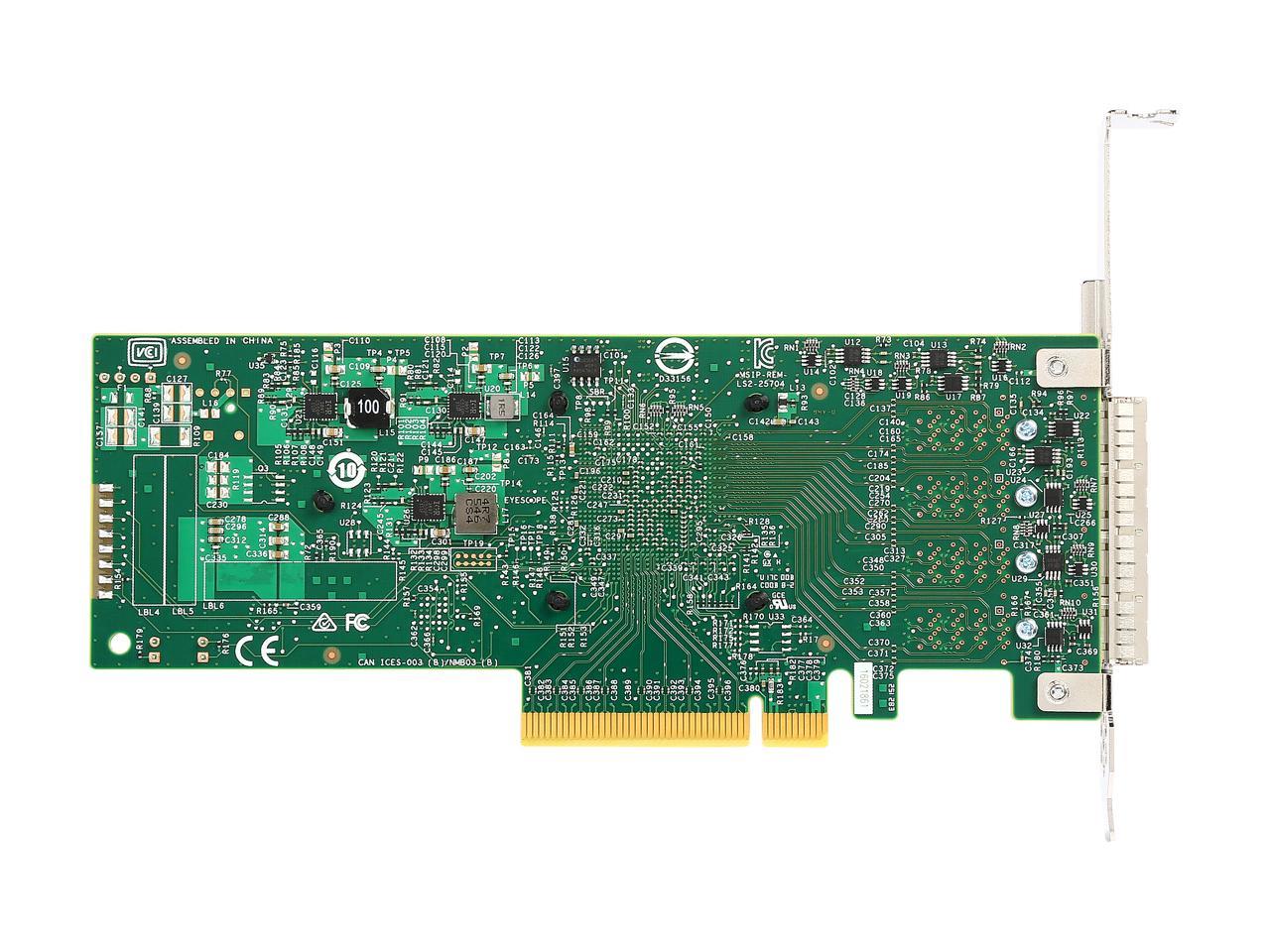

LSI 9305-16e x8 lane, PCIe 3.0 Low Profile SAS SAS 9305 12 Gb/s SAS Host Bus Adapter

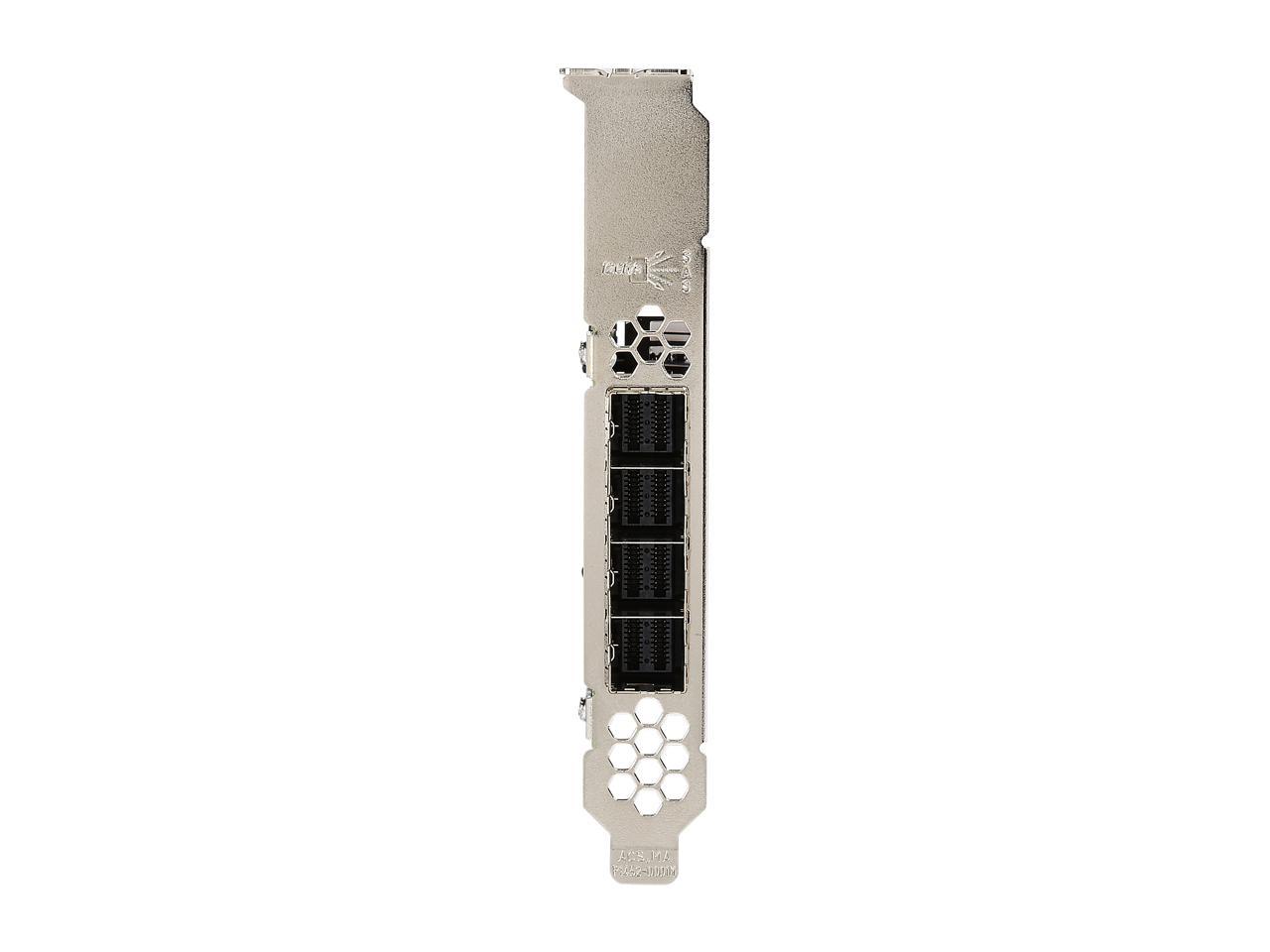

Connectors: ,Mini-SAS HD ,SFF8644 Four (x4),,Port Configurations: ,16 ea, x1 ports (individual drives),4ea, x4 wide ports,2 ea, x8 wide ports,,Cable Support: Passive Copper, Active Copper, Active Optical,,PCI Power (Nominal): 23W,,High performance with 12 Gb/s data transfer rates with full size form factor,8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
