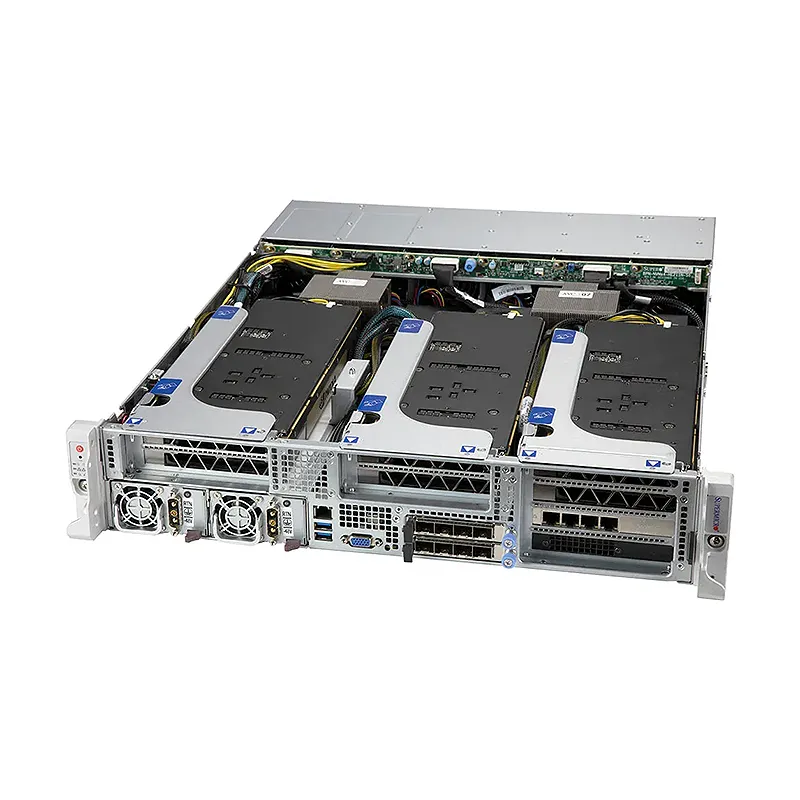

IoT SuperServer SYS-220HE-FTNRD (Complete System Only

* NOTE: Image may not exactly match the product

IoT SuperServer SYS-220HE-FTNRD (Complete System Only

The IoT SuperServer SYS-220HE-FTNRD is a purpose-built edge computing solution designed for demanding IoT and industrial applications. This compact 2U rackmount system delivers enterprise-grade performance with dual Intel Xeon processors, supporting up to 1TB of DDR4 memory for intensive data processing at the network edge. Key features include multiple high-speed networking options with 10GbE connectivity, extensive I/O expansion capabilities, and robust storage flexibility supporting both NVMe and SATA drives. The system excels in harsh environments with wide operating temperature ranges, advanced thermal management, and industrial-grade reliability. Its unique selling points include optimized power efficiency for 24/7 operation, comprehensive remote management capabilities, and pre-validated hardware integration that reduces deployment time. Ideal for AI inference, real-time analytics, and mission-critical edge applications, this complete system eliminates compatibility concerns while delivering the computational power needed for next-generation IoT workloads in manufacturing, telecommunications, and smart infrastructure deployments.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor2U
Products StatusNew
MemorySlot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-220HE-FTNRD

Motherboard

  • Super X12DHM-6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors

GPU

  • Max GPU Count
    Up to 3 double-width or 3 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: T4, A40, A100, A10
  • CPU-GPU Interconnect
    PCIe 4.0 x16 CPU-to-GPU Interconnect
  • GPU-GPU Interconnect
    PCIe

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 1GbE with Intel I350-AM2 (optional)
    4 SFP 1GbE with Intel I350-AM4 (optional)
    2 RJ45 10GBASE-T with Intel X550-AT2 (optional)
    2 SFP+ 10GbE with Intel X710-BM2 (optional)
    4 SFP+ 10GbE with Intel XL710-BM1 (optional)
    4 SFP+ 10GbE with Intel X710-TM4 (optional)
    2 SFP28 25GbE with Broadcom BCM57414 (optional)
    4 SFP28 25GbE (optional)
    2 QSFP28 100GbE with Broadcom BCM57508 (optional)
    4 RJ45 1GbE with Intel I350-AM4 (optional)

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
  • Video
    1 VGA port

Management

  • Power configurations
    ACPI Power Management
    Power-on mode for DC power recovery

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-HE211-R000NFP

Dimensions and Weight

  • Height
    3.5″ (88.9 mm)
  • Width
    17.2″ (436.88 mm)
  • Depth
    22.6″ (574 mm)
  • Package
    9.7″ (H) x 23.5″ (W) x 36.9″ (D)
  • Weight
    Gross Weight: 47.4 lbs (21.5 kg)
    Net Weight: 34.4 lbs (15.6 kg)
  • Available Color
    Silver

Front Panel

  • LED
    HDD activity LED
    LAN1 activity
    LAN2 activity
    Power Fail
    Power status LED
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 3 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 FHHL slot
    Option A 6 PCIe 4.0 x8 (in x16) FHFL slots 2 PCIe 4.0 x8 FHHL slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 6 bays 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • M.2
    2 M.2 NVMe slots (M-key 2280/22110)

System Cooling

  • Fans
    6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)

Power Supply

  • 1x 1300W
    1x 1300W Redundant power supply
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    DC Input
    108.3A Max
Brand

Supermicro
Form Factor

2U
Products Status

New
Memory

Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C621A
CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

8
Drives

6
Max GPU

2
Fans

6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)
Depth

22.6" (574 mm)
Height

3.5" (88.9 mm)
Width

17.2" (436.88 mm)
Package

9.7" (H) x 23.5" (W) x 36.9" (D)
PCI-Express (PCIe) Configuration

DefaultOption A
Weight

Gross Weight: 47.4 lbs (21.5 kg)Net Weight: 34.4 lbs (15.6 kg)
Drive Bays Configuration

Default: Total 6 bays
Video

1 VGA port
Note

Supports up to 270W TDP CPUs (Air Cooled)
Available Color

Silver
Interface

NVMe (Optional), SAS (Optional), SATA (Optional)
Buttons

Power On/OffUID button
M.2

2 M.2 NVMe slots (M-key 2280/22110)
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 2.0 ports(front)
LED

HDD activity LEDLAN1 activityLAN2 activityPower FailPower status LEDSystem information
Application

5G Core and Edge, AI Inference and Machine Learning, Cloud Computing, Network Function Virtualization, Telecom Micro Data Center
Max GPU Count

Up to 3 double-width or 3 single-width GPUs
Memory Voltage

1.2V
CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
Supported GPU

A100, A10View GPU Options, A40, NVIDIA PCIe: T4
GPU-GPU Interconnect

PCIe
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
