Brand | Intel |
---|---|
Products Status | New |
Application | Workstation |
CPU Socket Type | FCLGA2066 |
Total Threads | 28 |
Total Cores | 14 |
Cache | 19.25 MB |
TDP | 165 W |
Manufacturing Tech | 14 nm |
Processor Base Frequency | 3.30 GHz |
Memory Types | DDR4 2933 |
Series | Intel Xeon W |
Part Number | W-2275 |
Model | CD8069504393300 |
Hyper-Threading Support | Yes |
Max Memory Size | 1 TB |
Code Name | Cascade Lake |
Max Turbo Frequency | 4.60 GHz |
64-Bit Support | Yes |
Max # of Memory Channels | 4 |
Max # of PCI Express Lanes | 48 |
PCI Express Revision | 3 |
Package Size | 45mm x 52.5mm |
Embedded Options Available | No |
Scalability | 1S Only |
ECC Memory Supported | Yes |
Shipping Media | TRAY |
Max CPU Configuration | 1 |
Instruction Set | 64-bit |
PCI Express Configurations | x16, x4, x8 |
Max Memory Bandwidth | 93.85 GB/s |
Bus Speed | 8 GT/s |
Physical Address Extensions | 46-bit |

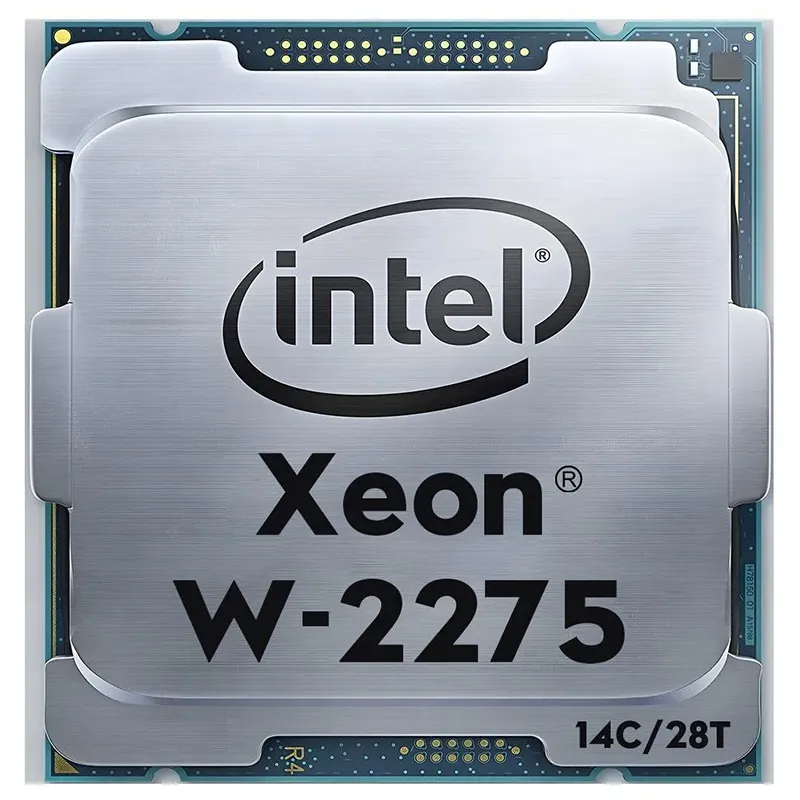

Intel Xeon W-2275 Processor (19.25M Cache, 3.30 GHz)
The Intel Xeon W-2275 is a high-performance 14-core workstation processor designed for demanding professional applications. Operating at 3.30 GHz base frequency with Turbo Boost up to 4.60 GHz, it delivers exceptional computational power backed by 19.25MB of Smart Cache for rapid data access. This processor excels in content creation, 3D rendering, CAD/CAM work, and scientific computing with support for up to 1TB of ECC memory across 6 channels, ensuring data integrity and system reliability. Key advantages include 28 PCIe 3.0 lanes for multiple high-end graphics cards and storage devices, Intel’s advanced security features, and optimized performance for multi-threaded workloads. The W-2275 represents the ideal balance of raw processing power, memory bandwidth, and professional-grade reliability for workstations requiring uncompromising performance in mission-critical environments.
