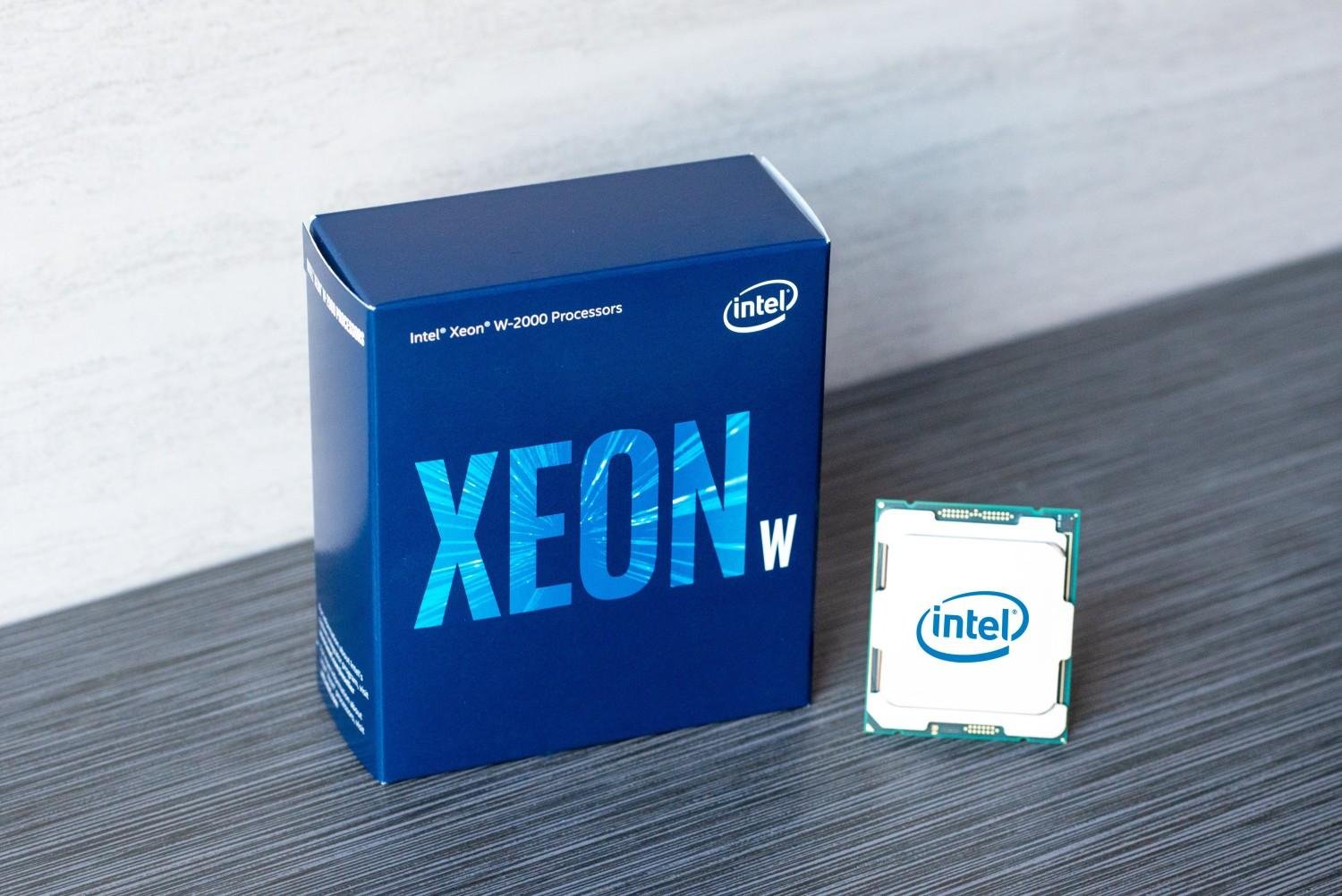

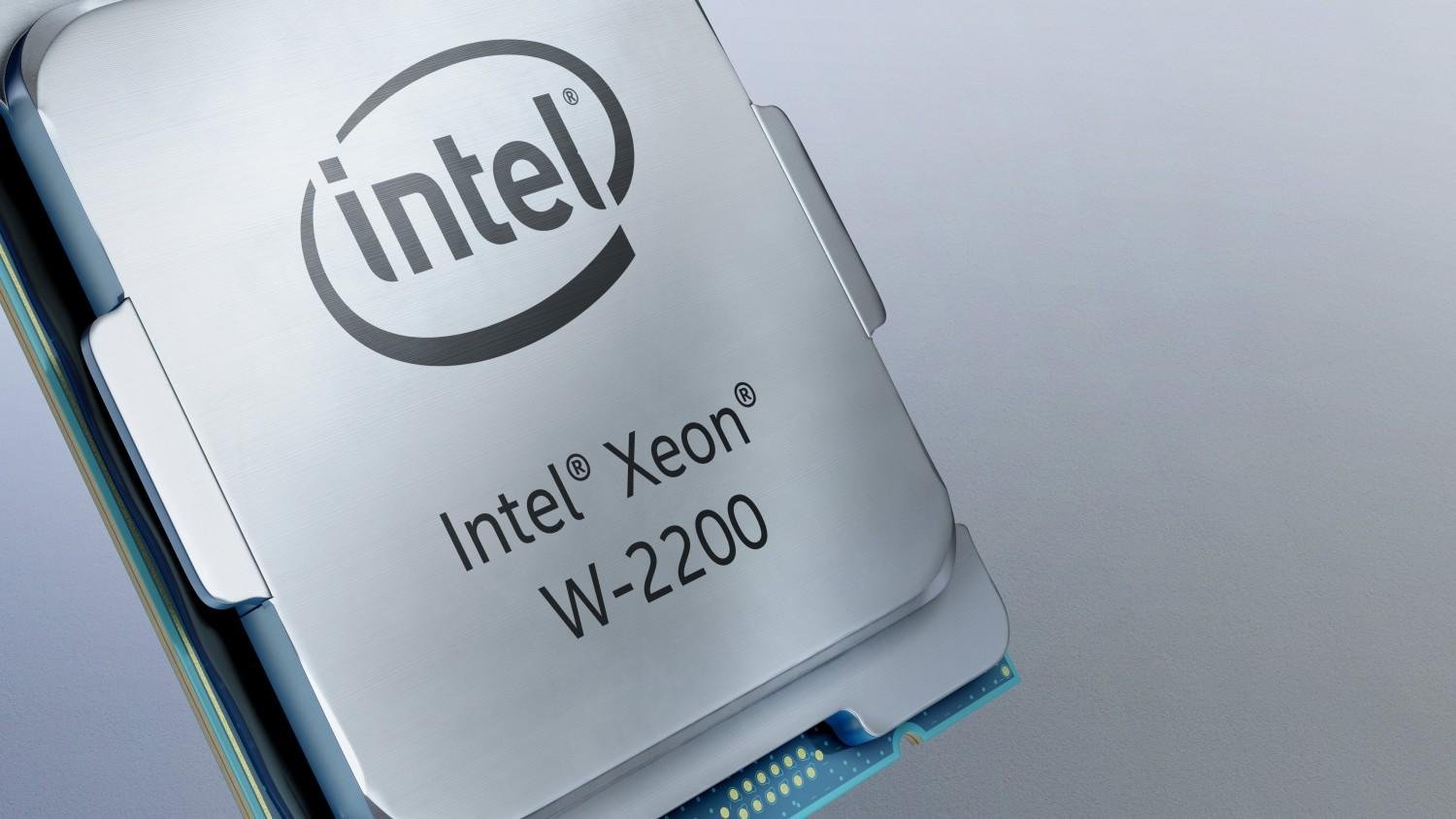

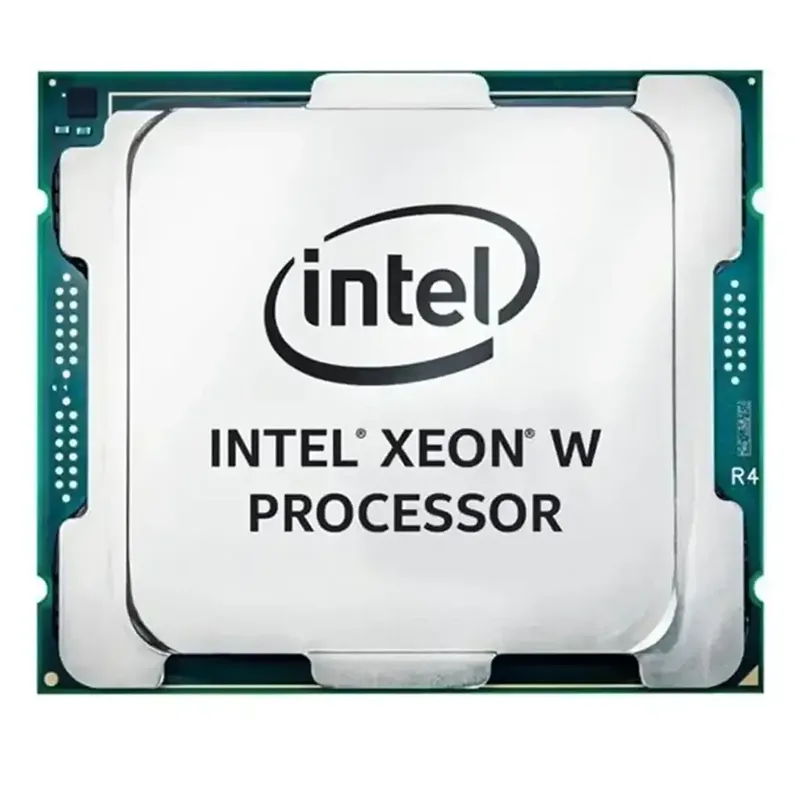

Intel Xeon W-2245 Processor (16.5M Cache, 3.90 GHz)

The Intel Xeon W-2245 is a professional-grade 8-core processor designed for demanding workstation applications. Operating at 3.90 GHz base frequency with Turbo Boost up to 4.50 GHz, it delivers exceptional single and multi-threaded performance. The processor features 16.5MB of Intel Smart Cache, supports up to 1TB of ECC memory across 6 channels, and includes 44 PCIe 3.0 lanes for extensive expansion capabilities. Built on 14nm technology with advanced security features like Intel vPro and Trusted Execution Technology, it excels in content creation, CAD/CAM, scientific computing, and virtualization workloads. The W-2245 offers enterprise-level reliability, error correction, and professional ISV certifications, making it ideal for mission-critical applications requiring both raw computational power and rock-solid stability.

$514.221 Piece(MOQ)

Premium Client Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon W
Part NumberW-2245
ModelCD8069504393801
Brand

Intel

Products Status

New

Series

Intel Xeon W

Part Number

W-2245

Model

CD8069504393801

Shipping Media

TRAY

Application

Workstation

CPU Socket Type

FCLGA2066

Code Name

Cascade Lake

Total Cores

8

Total Threads

16

Max Turbo Frequency

4.50 GHz

Processor Base Frequency

3.90 GHz

Cache

16.5 MB

Bus Speed

8 GT/s

TDP

155 W

Manufacturing Tech

14 nm

64-Bit Support

Yes

Hyper-Threading Support

Yes

Embedded Options Available

No

Max Memory Size

1 TB

Memory Types

DDR4 2933

Max # of Memory Channels

4

ECC Memory Supported

Yes

Scalability

1S Only

PCI Express Revision

3

PCI Express Configurations

x16, x4, x8

Max # of PCI Express Lanes

48

Max CPU Configuration

1

Instruction Set

64-bit

Package Size

45mm x 52.5mm

Max Memory Bandwidth

93.85 GB/s

Physical Address Extensions

46-bit
