| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA2066 |
| Total Threads | 12 |
| Total Cores | 6 |
| Cache | 8.25 MB |
| TDP | 130 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.80 GHz |
| Memory Types | DDR4 2933 |
| Series | Intel Xeon W |
| Part Number | W-2235 |
| Model | CD8069504439102 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 1 TB |
| Code Name | Cascade Lake |
| Max Turbo Frequency | 4.60 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 4 |
| Max # of PCI Express Lanes | 48 |
| PCI Express Revision | 3 |
| Package Size | 45mm x 52.5mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | x16, x4, x8 |
| Max Memory Bandwidth | 93.85 GB/s |
| Bus Speed | 8 GT/s |
| Physical Address Extensions | 46-bit |
* NOTE: Image may not exactly match the product

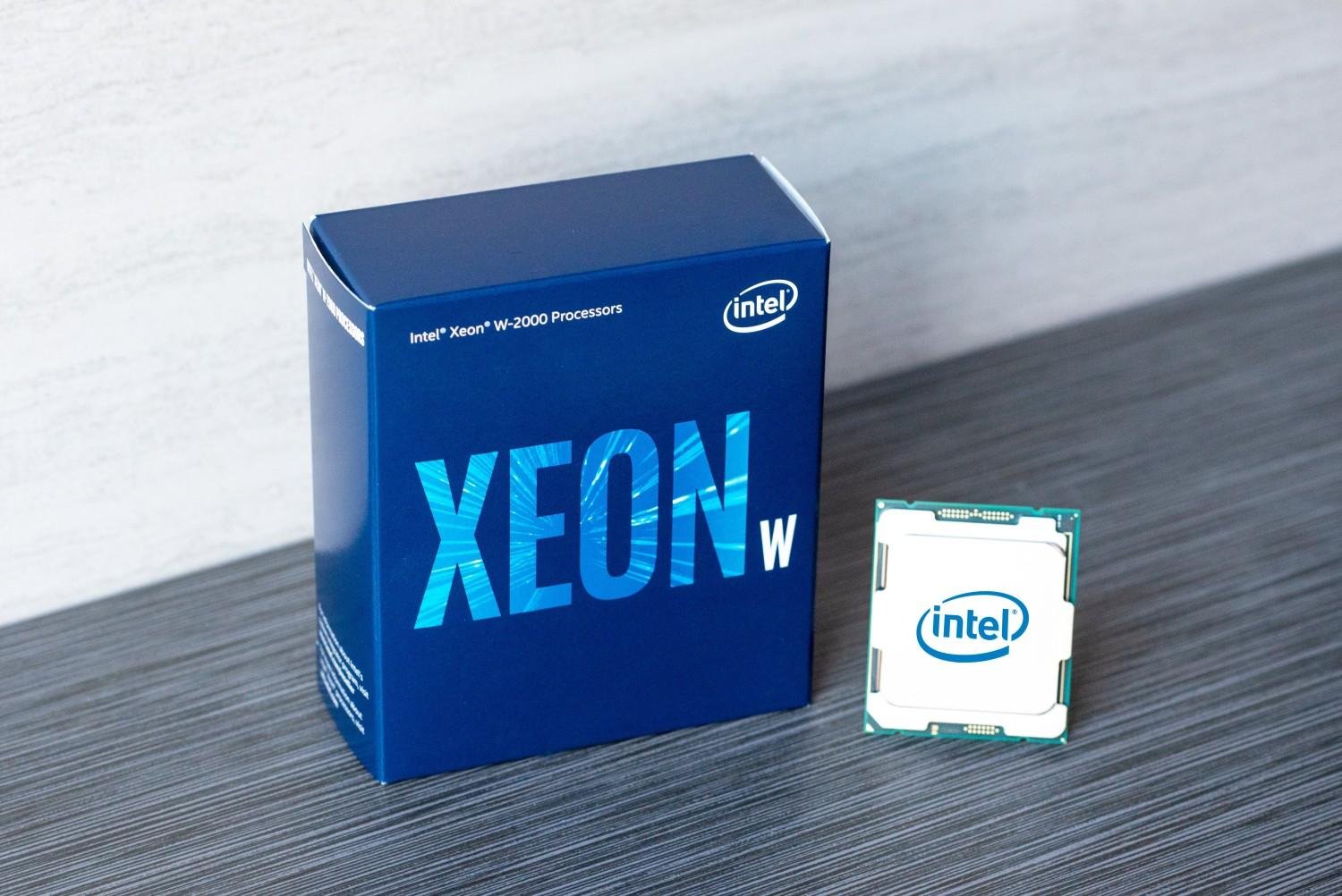

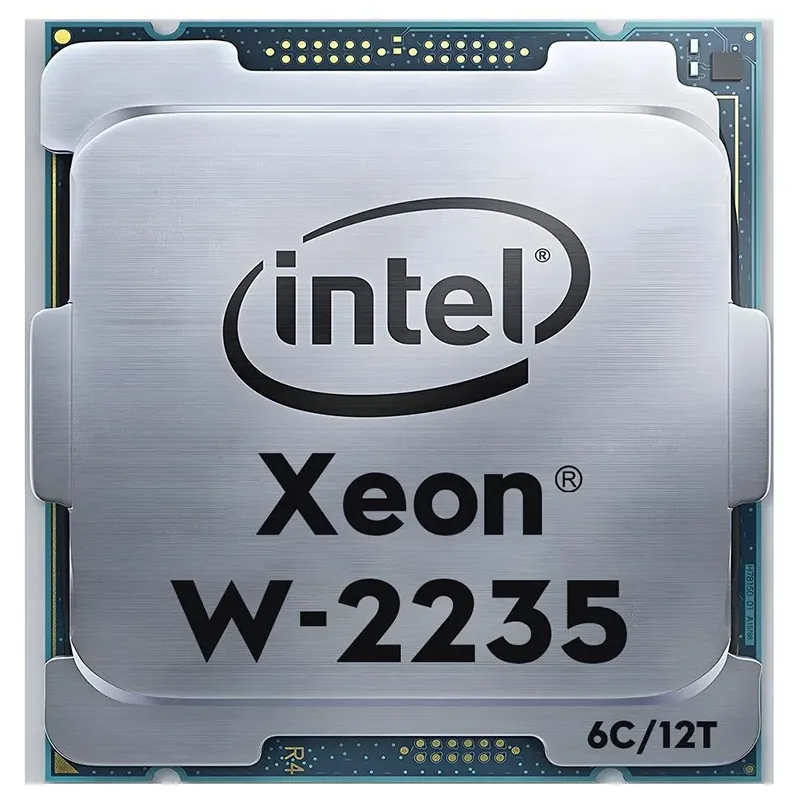

Intel Xeon W-2235 Processor (8.25M Cache, 3.80 GHz)
The Intel Xeon W-2235 is a professional-grade 6-core, 12-thread processor designed for demanding workstation applications. Operating at 3.80 GHz base frequency with Turbo Boost up to 4.60 GHz, it delivers exceptional single and multi-threaded performance. The processor features 8.25MB of Smart Cache, supports up to 1TB of quad-channel DDR4-2933 ECC memory, and provides 44 PCIe 3.0 lanes for extensive expansion capabilities. Built on Intel’s 14nm process technology, it includes advanced security features like Intel vPro and supports Intel Optane memory. Ideal for content creation, CAD/CAM, scientific computing, and professional visualization workloads, the W-2235 offers enterprise-class reliability with ECC memory support, making it perfect for mission-critical applications where data integrity and consistent performance are paramount.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA2066 |
| Total Threads | 12 |
Inquiry Now
Contact us for more discounts!
