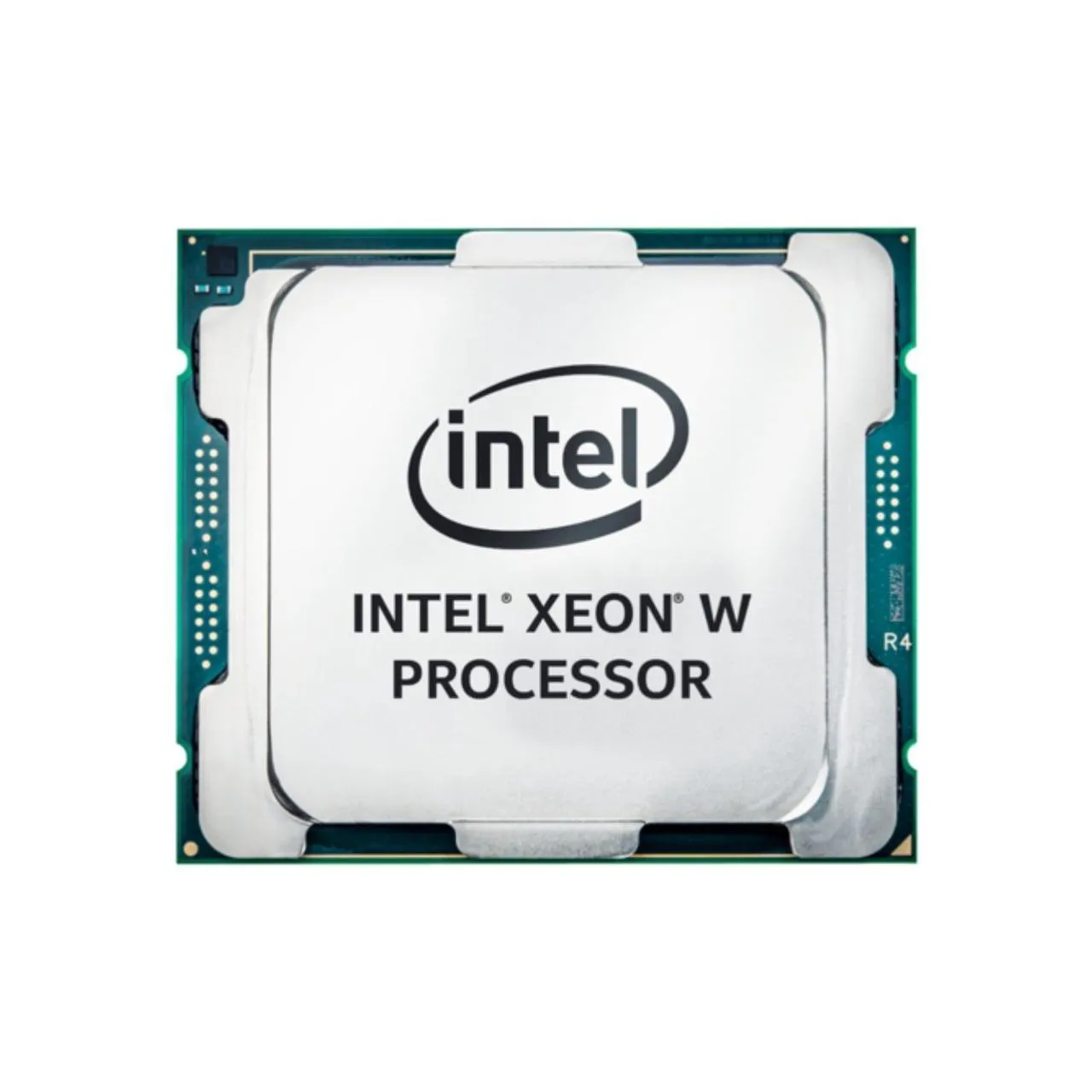

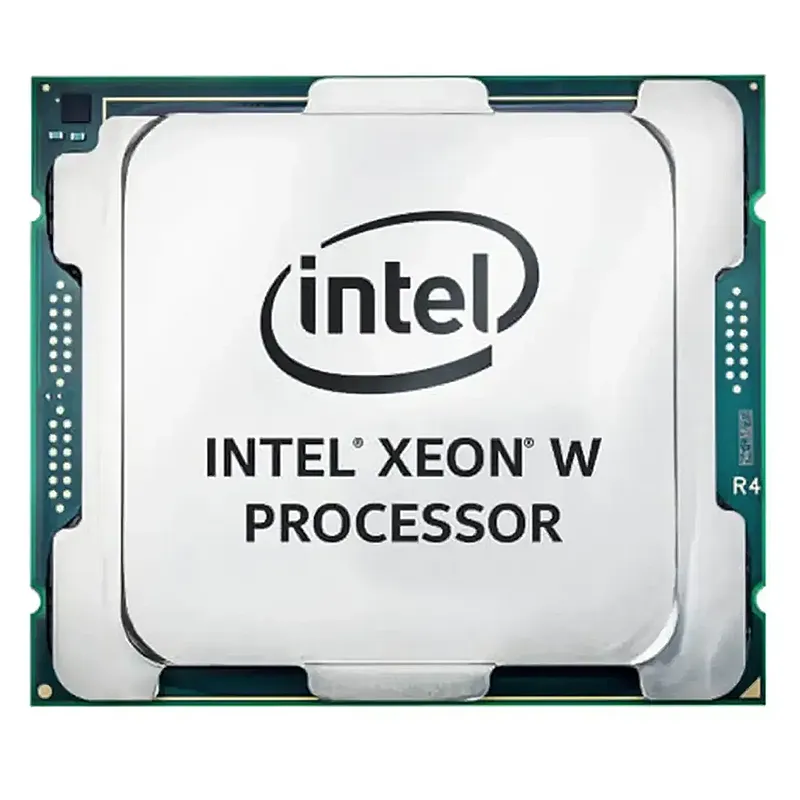

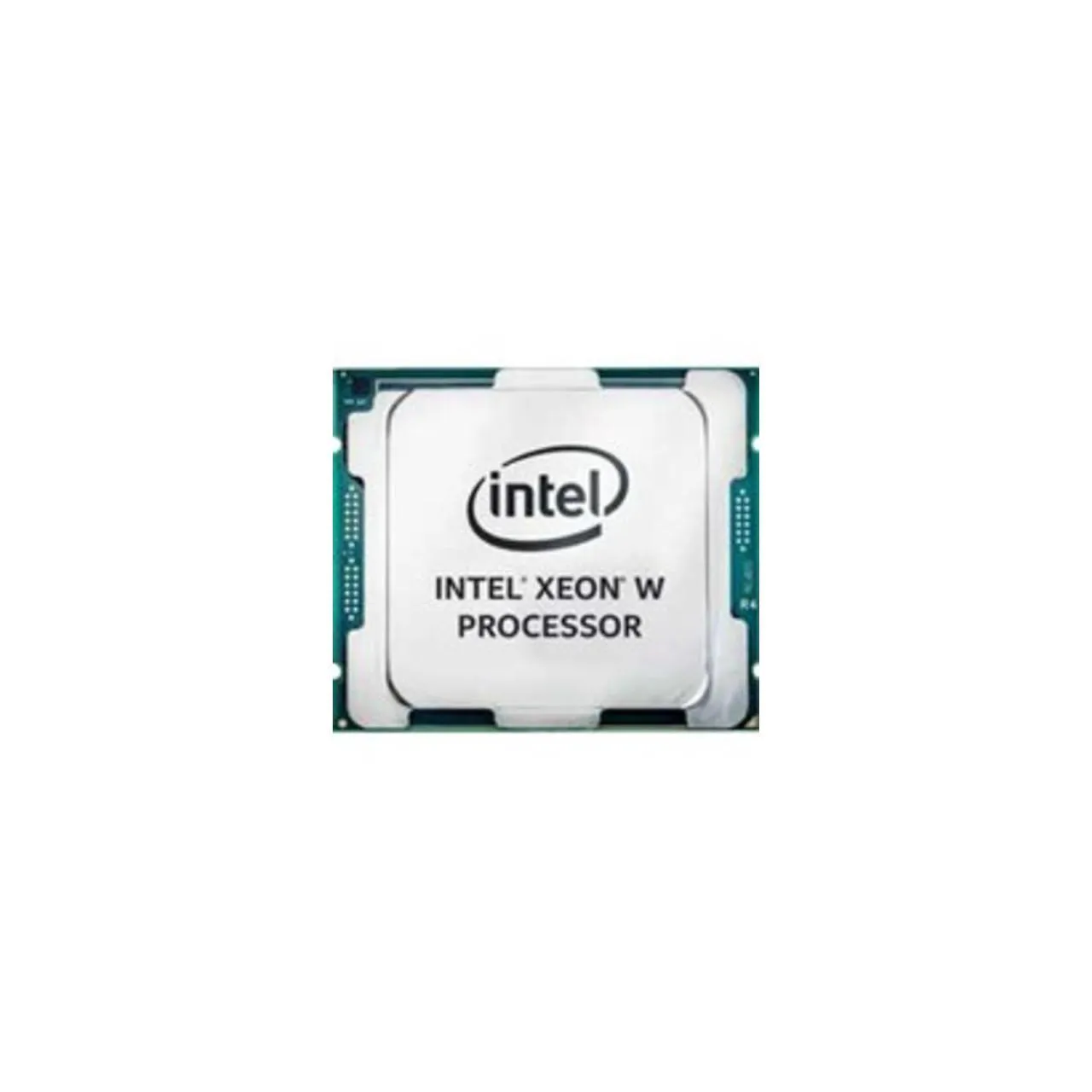

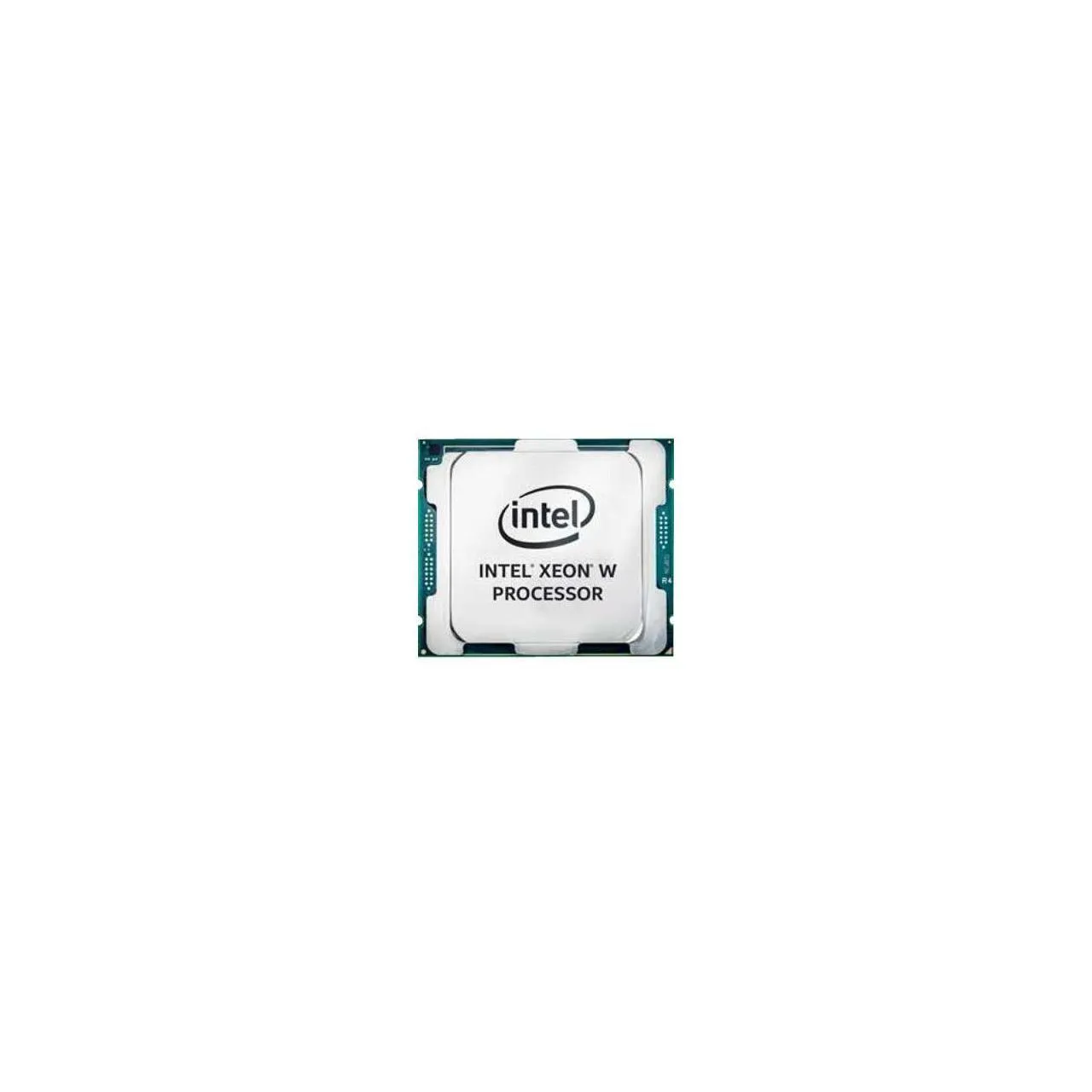

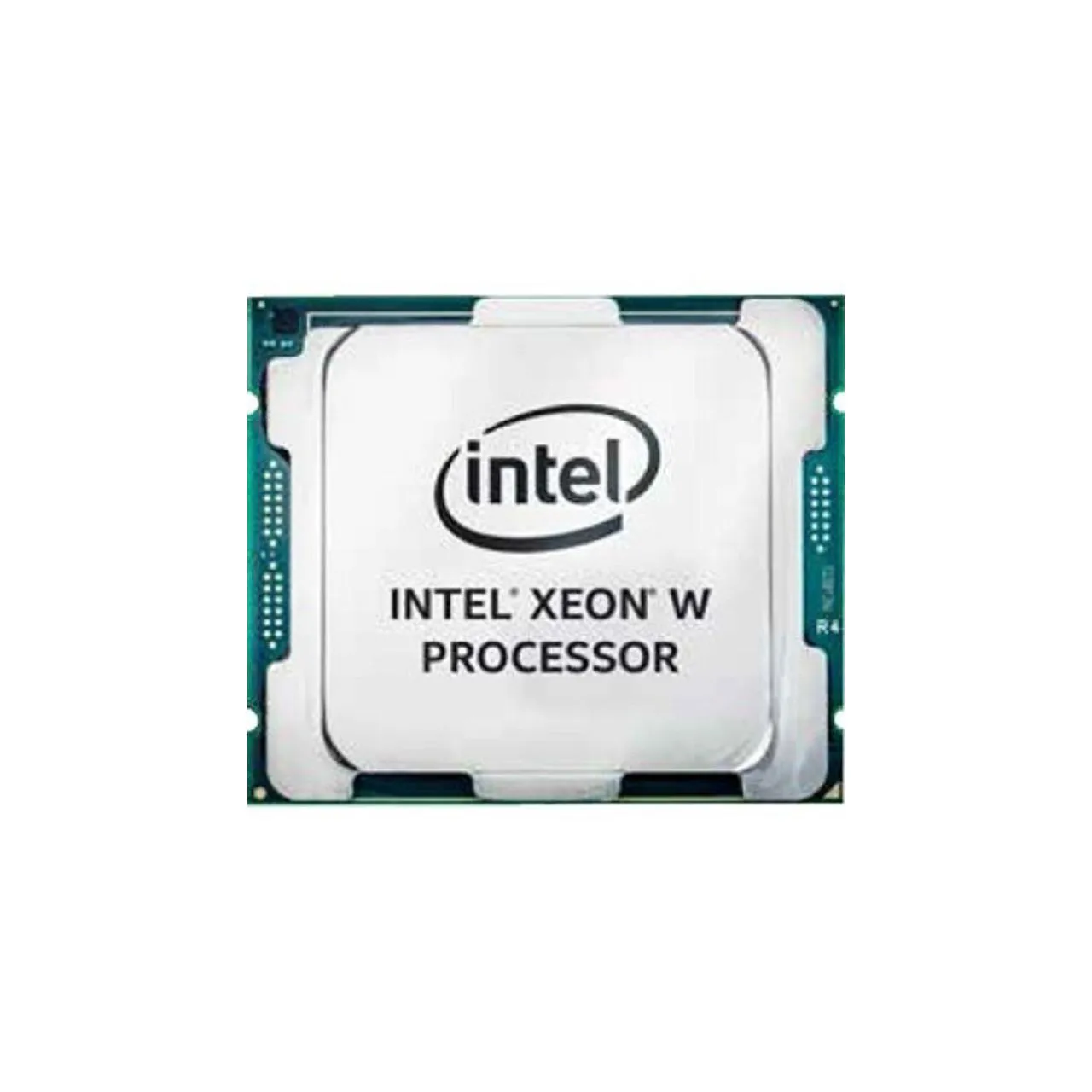

Intel Xeon W-2145 Processor (11M Cache, 3.70 GHz)

The Intel Xeon W-2145 is a professional-grade 8-core processor designed for demanding workstation applications. Operating at 3.70 GHz base frequency with Turbo Boost up to 4.50 GHz, it delivers exceptional performance for content creation, CAD, scientific computing, and virtualization. The processor features 11MB of Smart Cache, support for up to 512GB of ECC memory across quad-channel architecture, and 44 PCIe lanes for extensive expansion capabilities. Built on 14nm technology, it offers enterprise-level reliability with error-correcting memory support, advanced security features, and optimized performance for multi-threaded professional applications. This processor excels in workstations requiring sustained high performance, making it ideal for engineers, architects, video editors, and data analysts who need workstation-class computing power with server-grade reliability.

Quote1 Piece(MOQ)1 Piece(MOQ)

Premium Client Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon W
Part NumberW-2145
ModelCD8067303533601
Brand

Intel

Products Status

New

Series

Intel Xeon W

Part Number

W-2145

Model

CD8067303533601

Shipping Media

TRAY

Application

Workstation

CPU Socket Type

FCLGA2066

Code Name

Skylake

Total Cores

8

Total Threads

16

Max Turbo Frequency

4.50 GHz

Processor Base Frequency

3.70 GHz

Cache

11 MB

Bus Speed

8 GT/s

TDP

140 W

Manufacturing Tech

14 nm

64-Bit Support

Yes

Hyper-Threading Support

Yes

Embedded Options Available

No

Max Memory Size

512 GB

Memory Types

DDR4 1600/1866/2133/2400/2666

Max # of Memory Channels

4

ECC Memory Supported

Yes

Scalability

1S Only

PCI Express Revision

3

PCI Express Configurations

x16, x4, x8

Max # of PCI Express Lanes

48

Max CPU Configuration

1

Instruction Set

64-bit

Package Size

45mm x 52.5mm

Max Memory Bandwidth

85.3 GB/s

Physical Address Extensions

46-bit
