| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA2066 |
| Total Threads | 12 |
| Total Cores | 6 |
| Cache | 8.25 MB |
| TDP | 140 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.70 GHz |
| Memory Types | DDR4 1600/1866/2133/2400/2666 |
| Series | Intel Xeon W |
| Part Number | W-2135 |
| Model | CD8067303533403 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 512 GB |
| Code Name | Skylake |
| Max Turbo Frequency | 4.50 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 4 |
| Max # of PCI Express Lanes | 48 |
| PCI Express Revision | 3 |
| Package Size | 45mm x 52.5mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | x16, x4, x8 |
| Max Memory Bandwidth | 85.3 GB/s |
| Bus Speed | 8 GT/s |
| Physical Address Extensions | 46-bit |

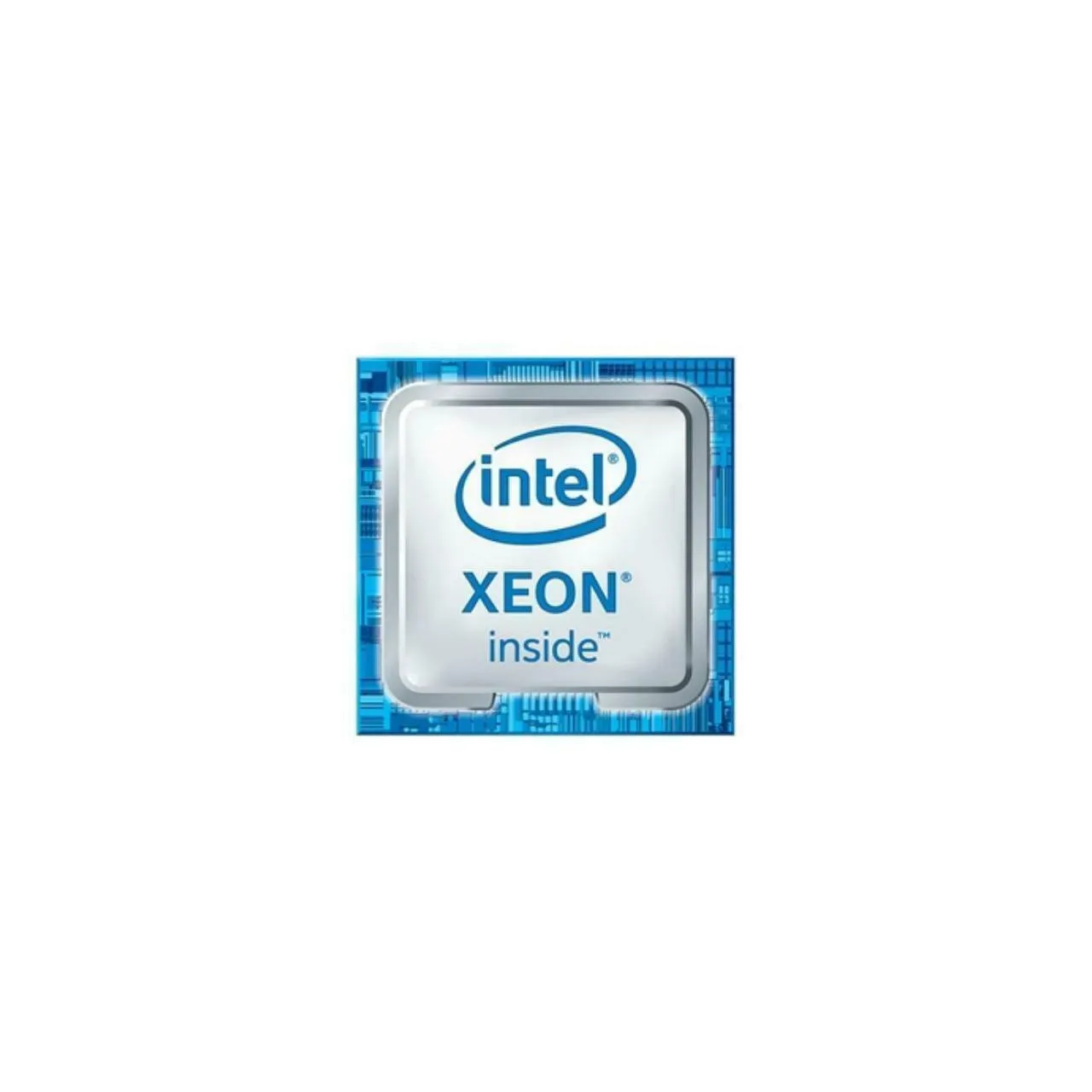

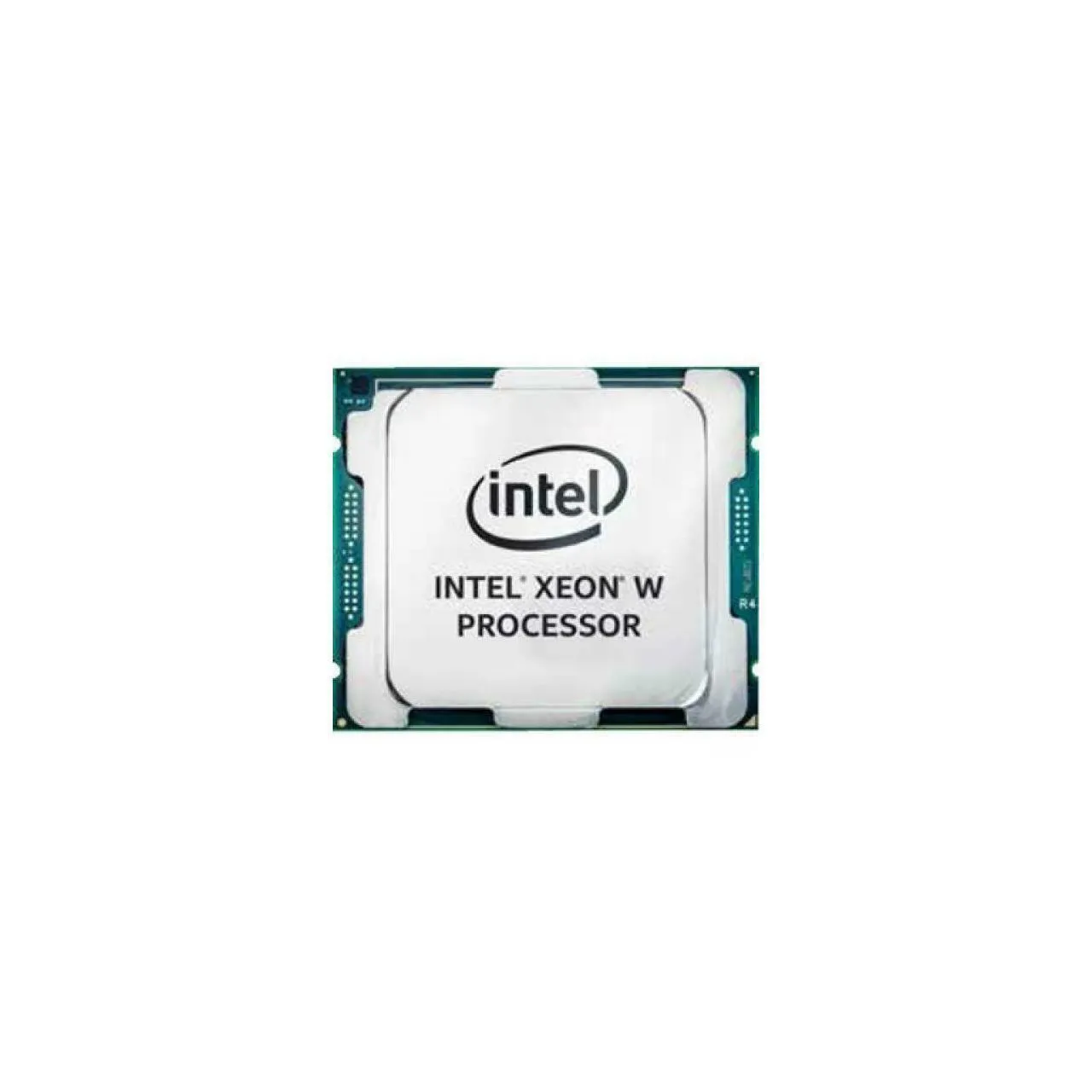

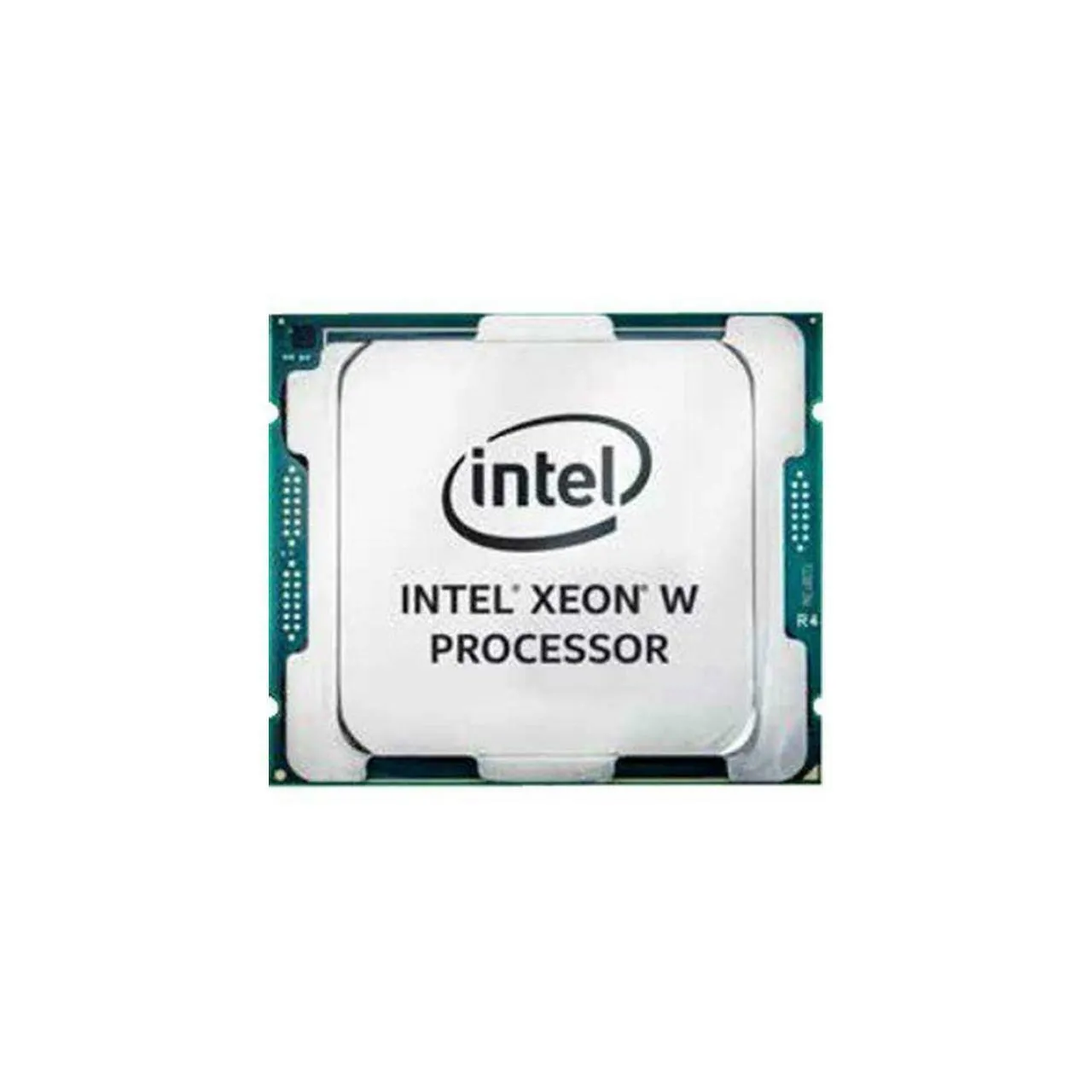

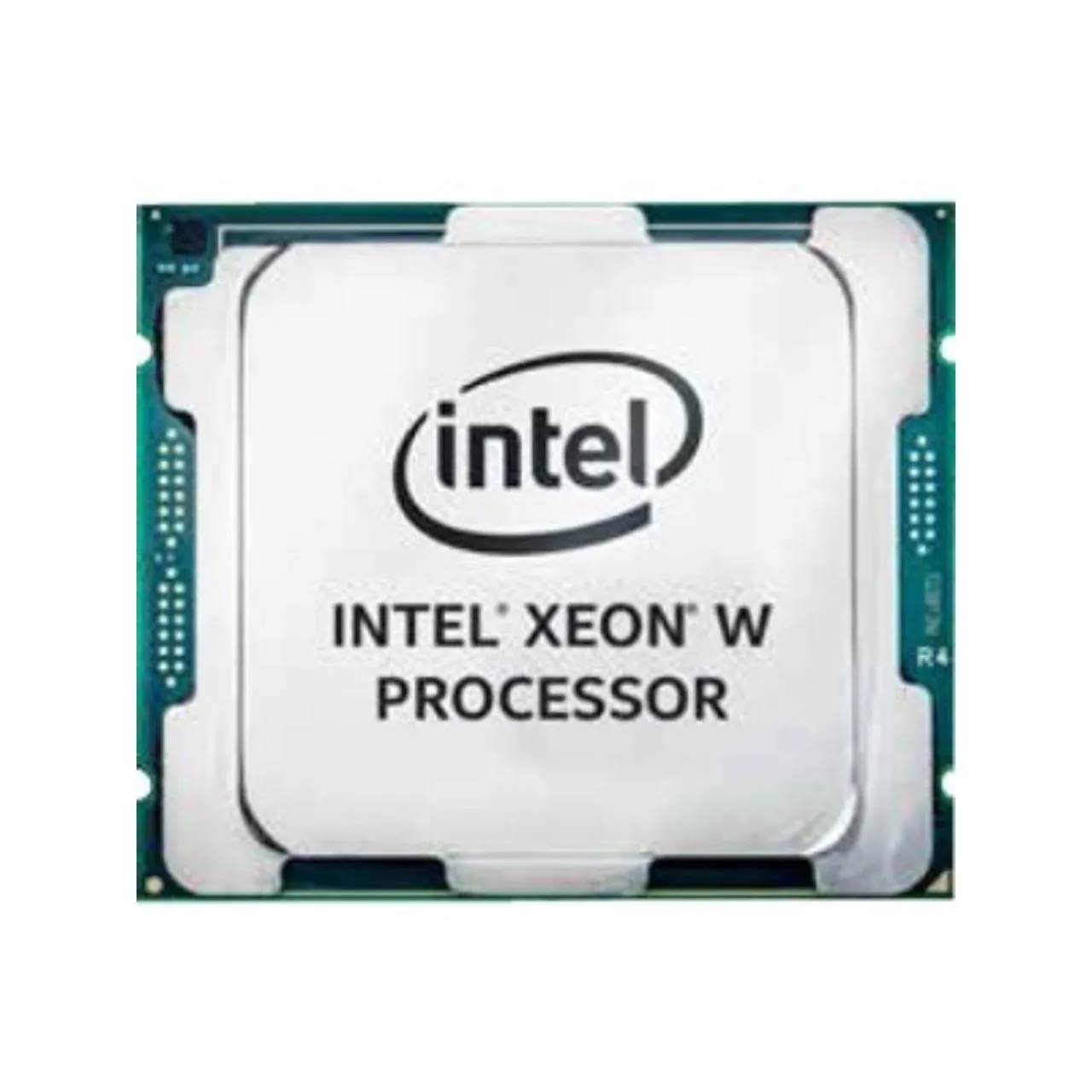

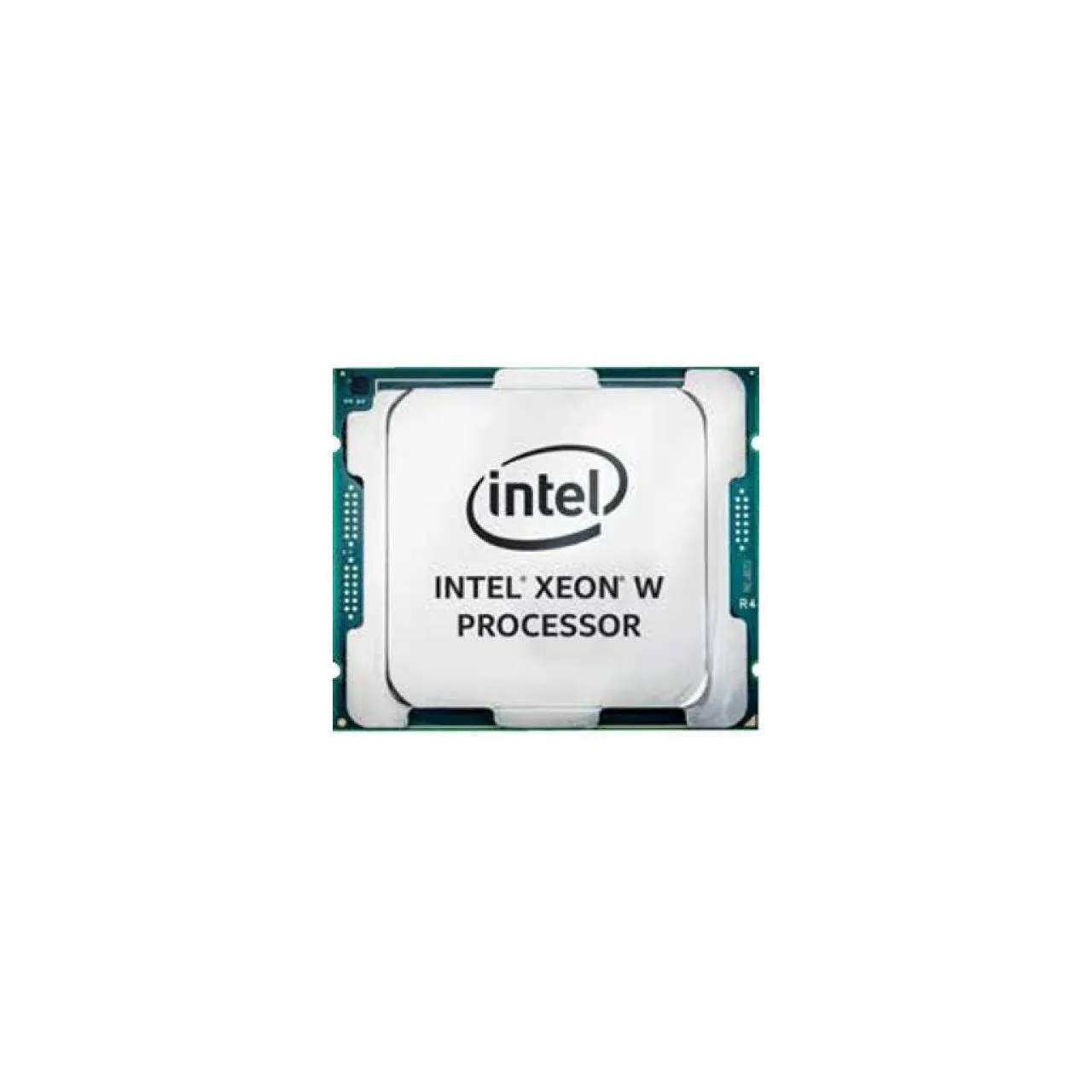

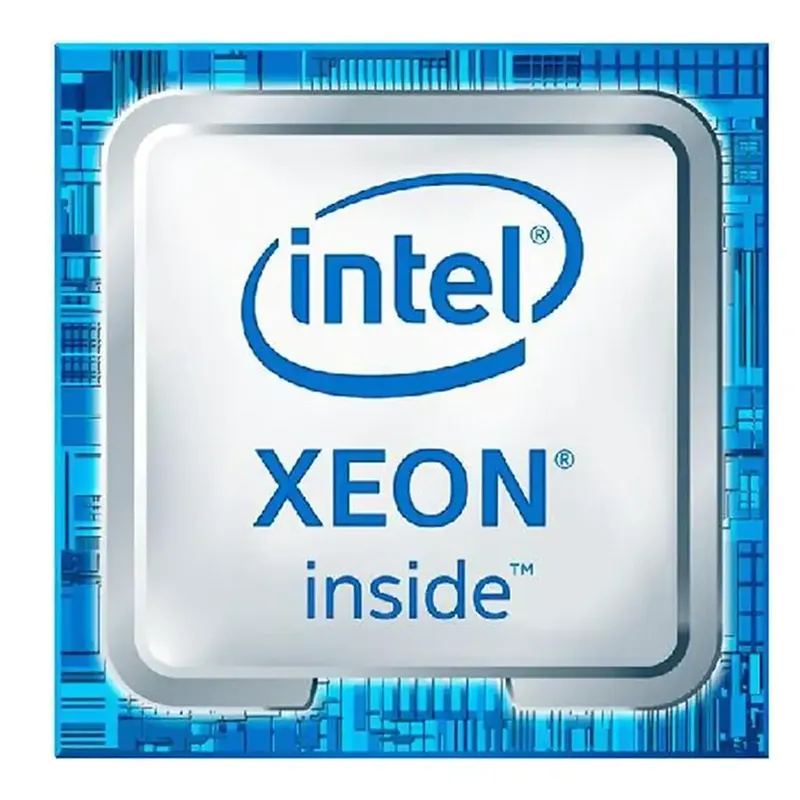

* NOTE: Image may not exactly match the product
Intel Xeon W-2135 Processor (8.25M Cache, 3.70 GHz)
The Intel Xeon W-2135 is a professional-grade 6-core, 12-thread processor designed for demanding workstation applications. Operating at 3.70 GHz base frequency with Turbo Boost up to 4.50 GHz, it delivers exceptional performance for content creation, CAD, engineering simulations, and data analysis. The processor features 8.25MB of Smart Cache, supports up to 512GB of quad-channel ECC memory, and provides 28 PCIe 3.0 lanes for multiple high-performance GPUs and storage devices. Built on Intel’s 14nm architecture, it offers enterprise-grade reliability with ECC memory support, advanced security features, and optimized performance for professional software applications. The W-2135 strikes an ideal balance between core count, clock speed, and power efficiency, making it perfect for professionals who need workstation-class performance without the cost of higher-core-count processors.
