| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E3 v6 |
| Part Number | E3-1245V6 |
| Model | CM8067702870932 |
| Application | Server |
| CPU Socket Type | FCLGA1151 |
| Code Name | Products formerly Kaby Lake |
| Total Cores | 4 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.10 GHz |
| Processor Base Frequency | 3.70 GHz |
| Cache | 8 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 73 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 64 GB |
| Memory Types | DDR3L-1866, DDR4-2400 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | 1×16, 1×8+2×4, 2×8 |
| Max # of PCI Express Lanes | 16 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Max Dynamic Frequency | 1.15 GHz |
| Graphics Output | eDP/DP/HDMI/DVI |
| DirectX* Support | 12 |
| OpenGL* Support | 4.4 |
| Intel Quick Sync Video | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x591D |
| Package Size | 37.5mm x 37.5mm |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
| Max Memory Bandwidth | 37.5 GB/s |
* NOTE: Image may not exactly match the product

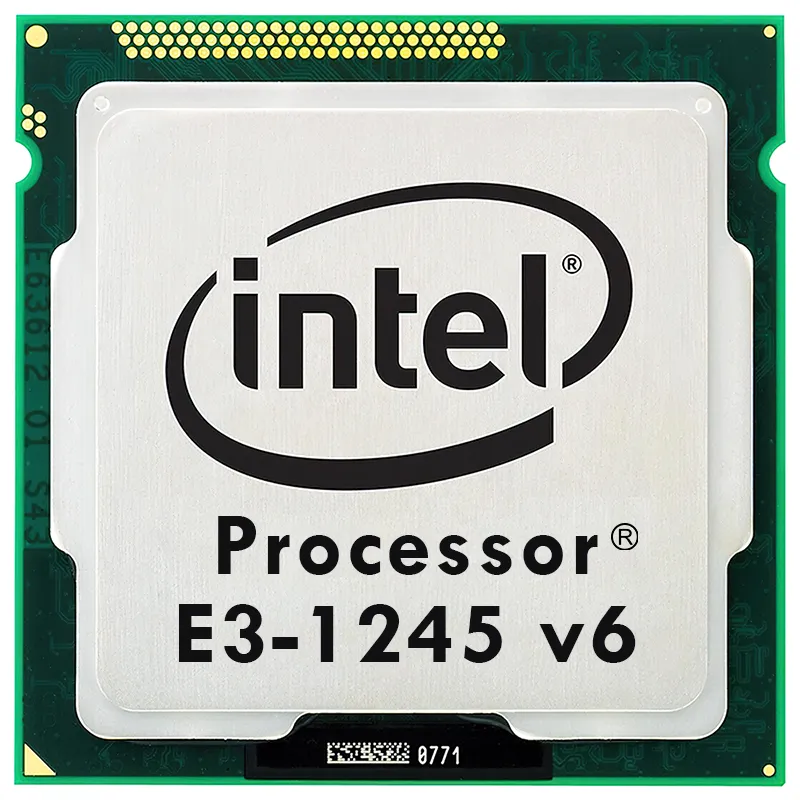

Intel Xeon Server Processor E3-1245 v6 (8M Cache, 3.70 GHz)
The Intel Xeon E3-1245 v6 is a powerful quad-core server processor delivering exceptional performance for small to medium business applications. Built on 14nm technology, it operates at 3.70 GHz base frequency with Turbo Boost up to 4.10 GHz, featuring 8MB Smart Cache and support for up to 64GB DDR4-2400 memory. This processor combines robust server-grade reliability with integrated Intel HD Graphics P630, making it ideal for workstations requiring both computational power and graphics capabilities. Key advantages include ECC memory support for enhanced data integrity, advanced security features, virtualization technology, and energy efficiency with 73W TDP. Perfect for database servers, virtualization platforms, CAD workstations, and entry-level enterprise applications requiring dependable 24/7 operation.
