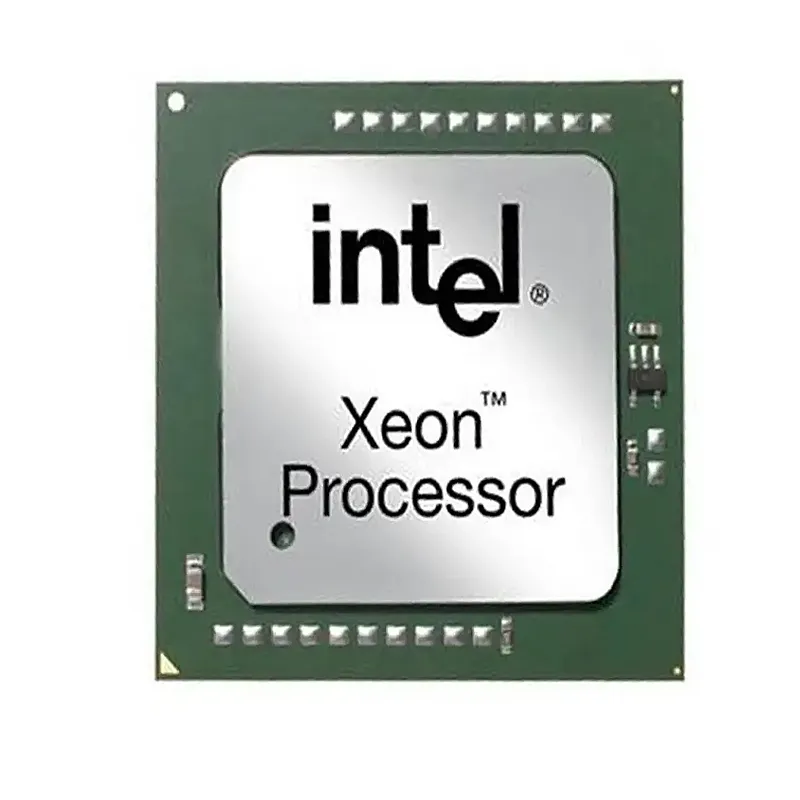

* NOTE: Image may not exactly match the product

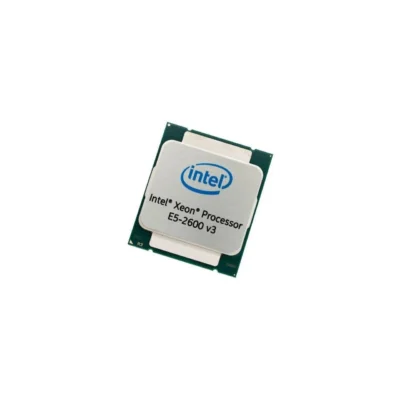

Intel Xeon E5-2680 v3 Haswell 2.5 GHz 12 x 256KB L2 Cache 30 MB L3 Cache LGA 2011-3 120W CM8064401439612 Server Processor

The Intel Xeon E5-2680 v3 is a high-performance 12-core server processor built on the advanced Haswell architecture, delivering exceptional computational power for demanding enterprise workloads. Operating at 2.5 GHz base frequency with intelligent turbo boost capabilities, this processor features 3MB of L2 cache (256KB per core) and a substantial 30MB L3 cache for superior data access speeds and reduced latency. Designed for the LGA 2011-3 socket with a 120W TDP, it offers an optimal balance of performance and energy efficiency. Key benefits include robust multi-threading capabilities for virtualization, database management, and scientific computing applications, while advanced security features and ECC memory support ensure enterprise-grade reliability. The processor’s scalable architecture supports dual-socket configurations, making it ideal for high-density server environments requiring maximum processing throughput and operational efficiency.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandIntel
Products StatusNew
ApplicationServer
CPU Socket TypeFCLGA2011
Total Threads24
Brand

Intel

Products Status

New

Application

Server

CPU Socket Type

FCLGA2011

Total Threads

24

Total Cores

12

Cache

30 MB

TDP

120 W

Manufacturing Tech

22 nm

Processor Base Frequency

2.50 GHz

Memory Types

DDR4 1600/1866/2133

Series

Intel Xeon Processor E5 v3 Family

Part Number

E5-2680V3

Model

CM8064401439612

Hyper-Threading Support

Yes

Max Memory Size

768 GB

Code Name

Haswell

Max Turbo Frequency

3.30 GHz

64-Bit Support

Yes

Max # of Memory Channels

4

Max # of PCI Express Lanes

40

PCI Express Revision

3

Package Size

52.5mm x 45mm

Embedded Options Available

Yes

Scalability

2S

ECC Memory Supported

Yes

Max CPU Configuration

2

Instruction Set

64-bit

PCI Express Configurations

x16, x4, x8

Max Memory Bandwidth

68 GB/s

Bus Speed

9.6 GT/s

Physical Address Extensions

46-bit
