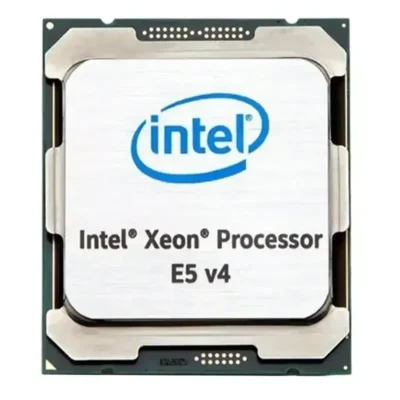

* NOTE: Image may not exactly match the product

Intel Xeon E5-2630L v4 Broadwell 1.8 GHz 10 x 256KB L2 Cache 25MB L3 Cache LGA 2011-3 55W CM8066002033202 Server Processor

The Intel Xeon E5-2630L v4 is a power-efficient 10-core server processor built on the advanced Broadwell architecture, operating at 1.8 GHz base frequency with exceptional energy efficiency at just 55W TDP. This enterprise-grade CPU features 2.5MB of L2 cache (256KB per core) and a substantial 25MB L3 cache for superior data processing and reduced memory latency. Designed for the LGA 2011-3 socket, it delivers reliable multi-threaded performance ideal for virtualization, cloud computing, and data center applications where power consumption and thermal management are critical. The processor’s low-power design enables higher server density while maintaining robust computational capabilities, making it perfect for organizations seeking to optimize performance-per-watt in mission-critical environments. Its Broadwell microarchitecture provides enhanced instruction sets and improved efficiency compared to previous generations, ensuring excellent scalability for demanding enterprise workloads.

$123.401 Piece(MOQ)

Bulk Order Discounts Available

BrandIntel
Products StatusNew
ApplicationServer
CPU Socket TypeFCLGA2011
Total Threads20
Brand

Intel

Products Status

New

Application

Server

CPU Socket Type

FCLGA2011

Total Threads

20

Total Cores

10

Cache

25 MB

TDP

55 W

Manufacturing Tech

14 nm

Processor Base Frequency

1.80 GHz

Memory Types

DDR4 1600/1866/2133

Series

Intel Xeon E5 v4

Part Number

E5-2630LV4

Model

CM8066002033202

Hyper-Threading Support

Yes

Max Memory Size

1.5 TB

Code Name

Broadwell

Max Turbo Frequency

2.90 GHz

64-Bit Support

Yes

Max # of Memory Channels

4

Max # of PCI Express Lanes

40

PCI Express Revision

3

Package Size

45mm x 52.5mm

Embedded Options Available

No

Scalability

2S

ECC Memory Supported

Yes

Max CPU Configuration

2

Instruction Set

64-bit

PCI Express Configurations

x16, x4, x8

Max Memory Bandwidth

68.3 GB/s

Bus Speed

8 GT/s

Physical Address Extensions

46-bit
