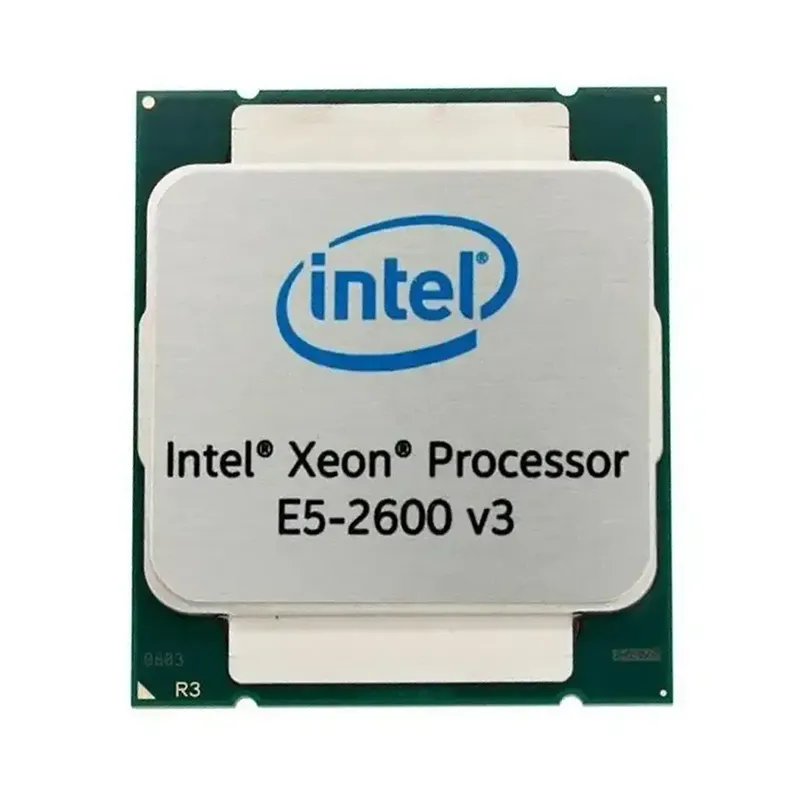

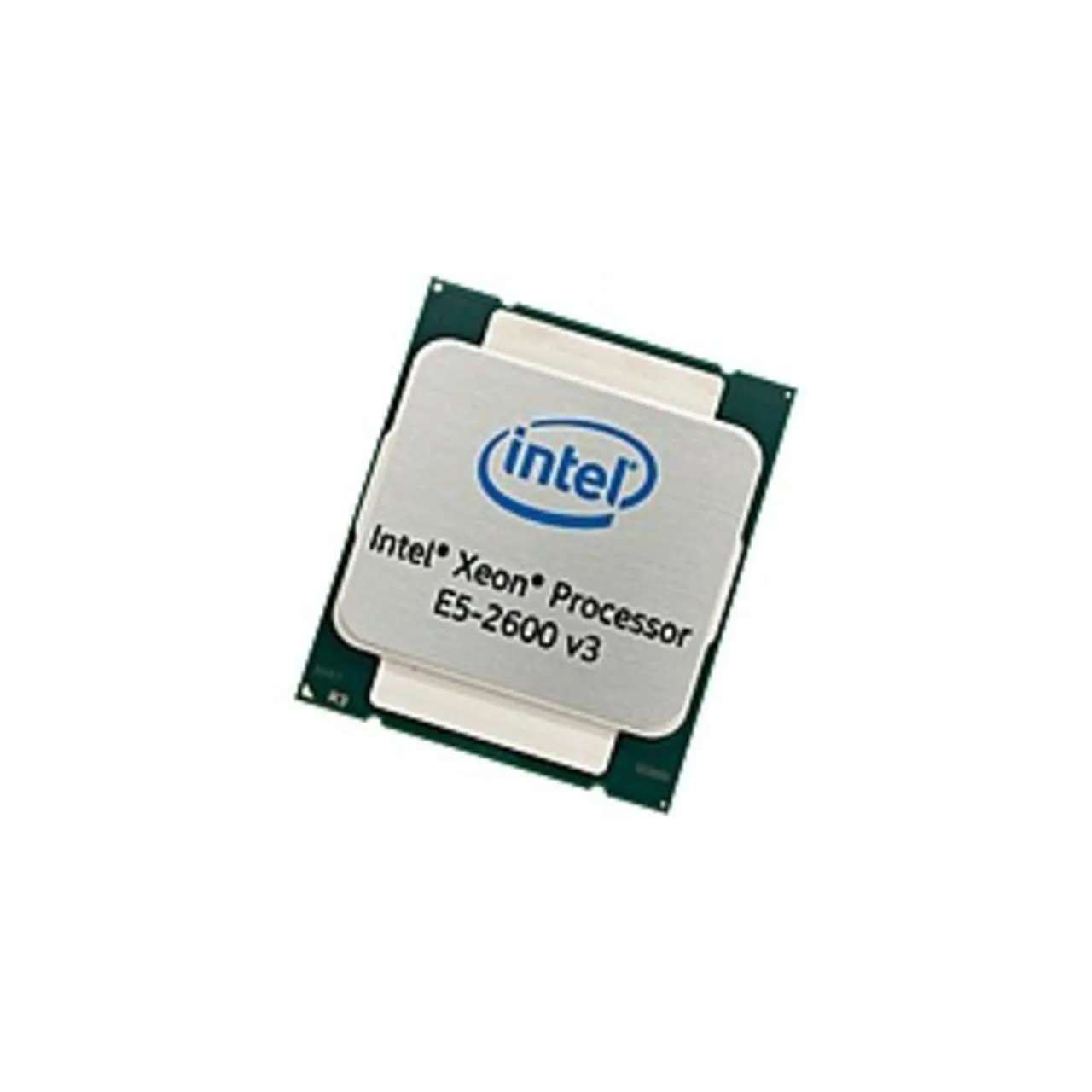

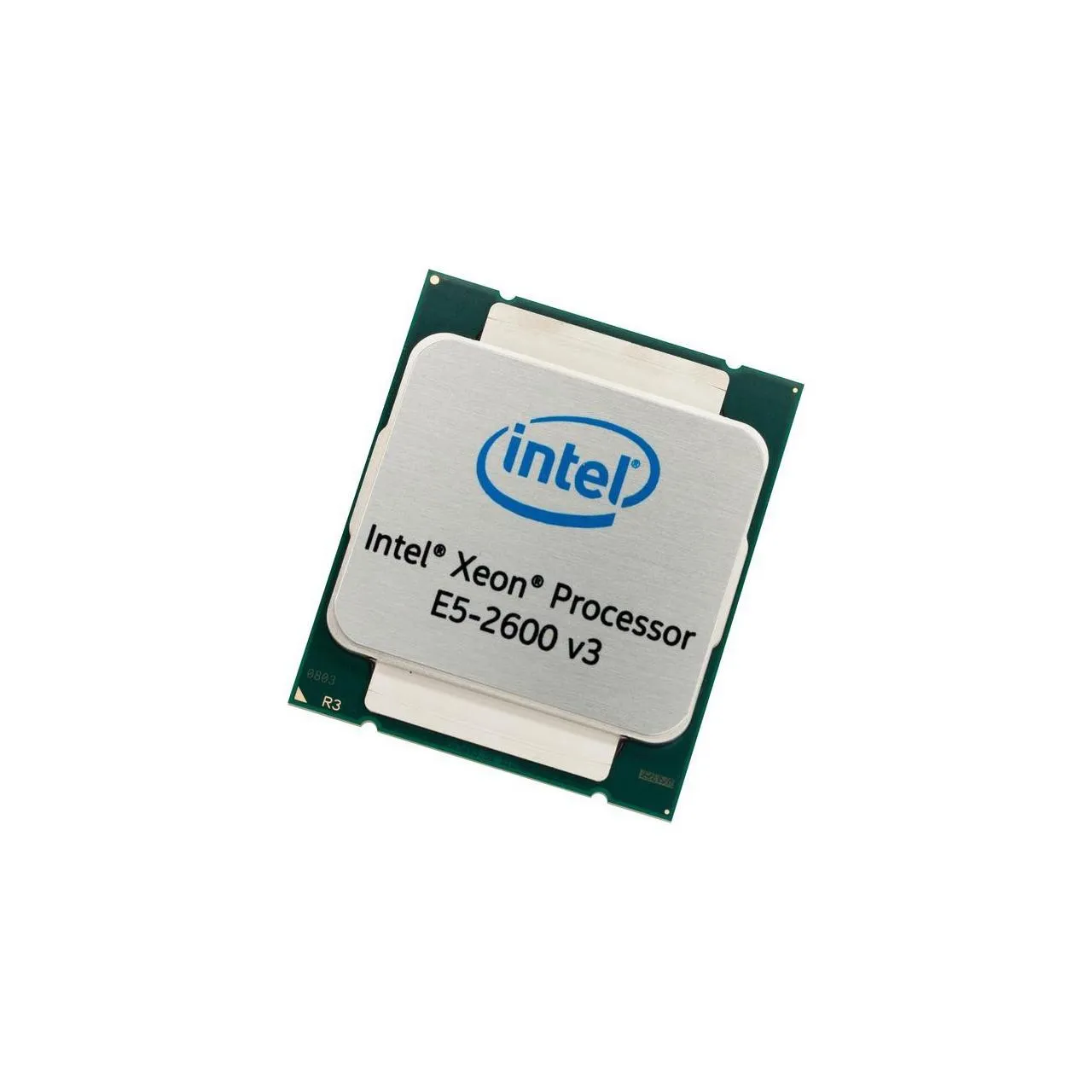

Intel Xeon E5-2609 v3 Haswell 1.9 GHz 6 x 256KB L2 Cache 15MB L3 Cache LGA 2011-3 85W CM8064401850800 Server Processor

The Intel Xeon E5-2609 v3 is a server-grade processor built on the Haswell architecture, featuring 6 cores running at 1.9 GHz with an 85W TDP for energy-efficient operation. It includes 1.5MB total L2 cache (6 x 256KB) and a substantial 15MB L3 cache for improved data access speeds. Designed for the LGA 2011-3 socket, this processor delivers reliable performance for entry-level server applications, virtualization, and workstation tasks while maintaining low power consumption. Its key advantages include enterprise-grade reliability, ECC memory support, advanced security features, and Intel’s proven server technology, making it ideal for small to medium business servers, basic virtualization environments, and cost-conscious data center deployments requiring dependable multi-core processing power.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon E5 v3
Part NumberE5-2609V3
ModelCM8064401850800
Brand

Intel

Products Status

New

Series

Intel Xeon E5 v3

Part Number

E5-2609V3

Model

CM8064401850800

Application

Server

CPU Socket Type

FCLGA2011

Code Name

Haswell

Total Cores

6

Total Threads

6

Processor Base Frequency

1.90 GHz

Cache

15 MB Intel Smart Cache

Bus Speed

6.4 GT/s

TDP

85 W

Manufacturing Tech

22 nm

64-Bit Support

Yes

Hyper-Threading Support

No

Embedded Options Available

Yes

Max Memory Size

768 GB

Memory Types

DDR4 1600

Max # of Memory Channels

4

ECC Memory Supported

Yes

Scalability

2S

PCI Express Revision

3

PCI Express Configurations

x16, x4, x8

Max # of PCI Express Lanes

40

Max CPU Configuration

2

Instruction Set

64-bit

Package Size

52.5mm x 45mm

Max Memory Bandwidth

51 GB/s

Physical Address Extensions

46-bit
