| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Server |
| CPU Socket Type | FCLGA2011 |
| Total Threads | 28 |
| Total Cores | 14 |
| Cache | 35 MB |
| TDP | 105 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 2.00 GHz |
| Memory Types | DDR4 1600/1866/2133/2400 |
| Series | Intel Xeon E5 v4 |
| Part Number | E5-2660V4 |
| Model | CM8066002031201 |
| Hyper-Threading Support | Yes |
| Code Name | Broadwell |
| Max Turbo Frequency | 3.20 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 4 |
| Max # of PCI Express Lanes | 40 |
| PCI Express Revision | 3 |
| Package Size | 45mm x 52.5mm |
| Embedded Options Available | No |
| Scalability | 2S |
| ECC Memory Supported | Yes |
| Max CPU Configuration | 2 |
| Instruction Set | 64-bit |
| PCI Express Configurations | x16, x4, x8 |
| Max Memory Bandwidth | 76.8 GB/s |
| Bus Speed | 9.6 GT/s |
| Physical Address Extensions | 46-bit |
* NOTE: Image may not exactly match the product

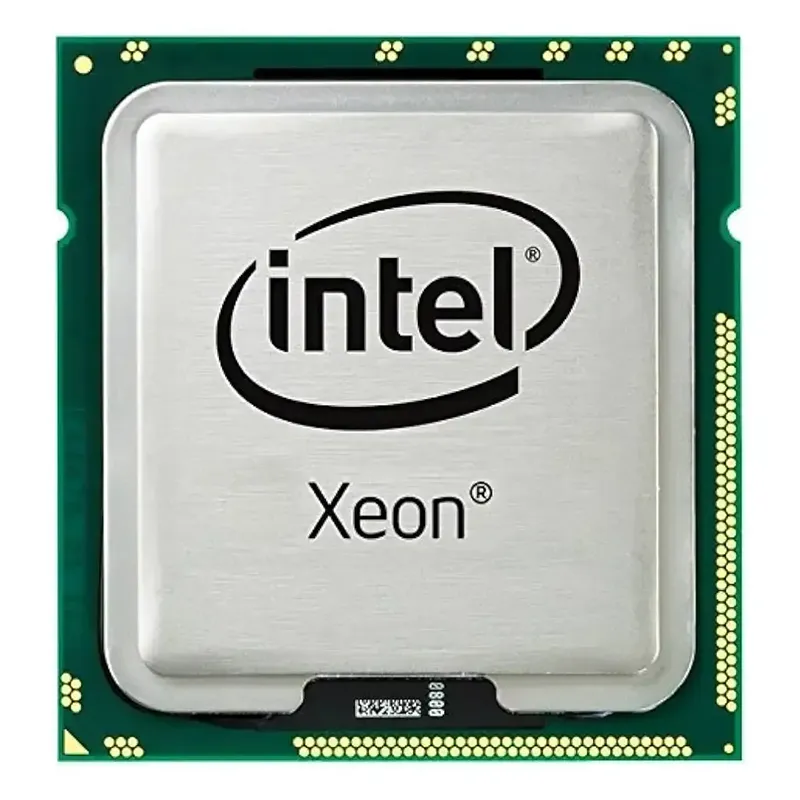

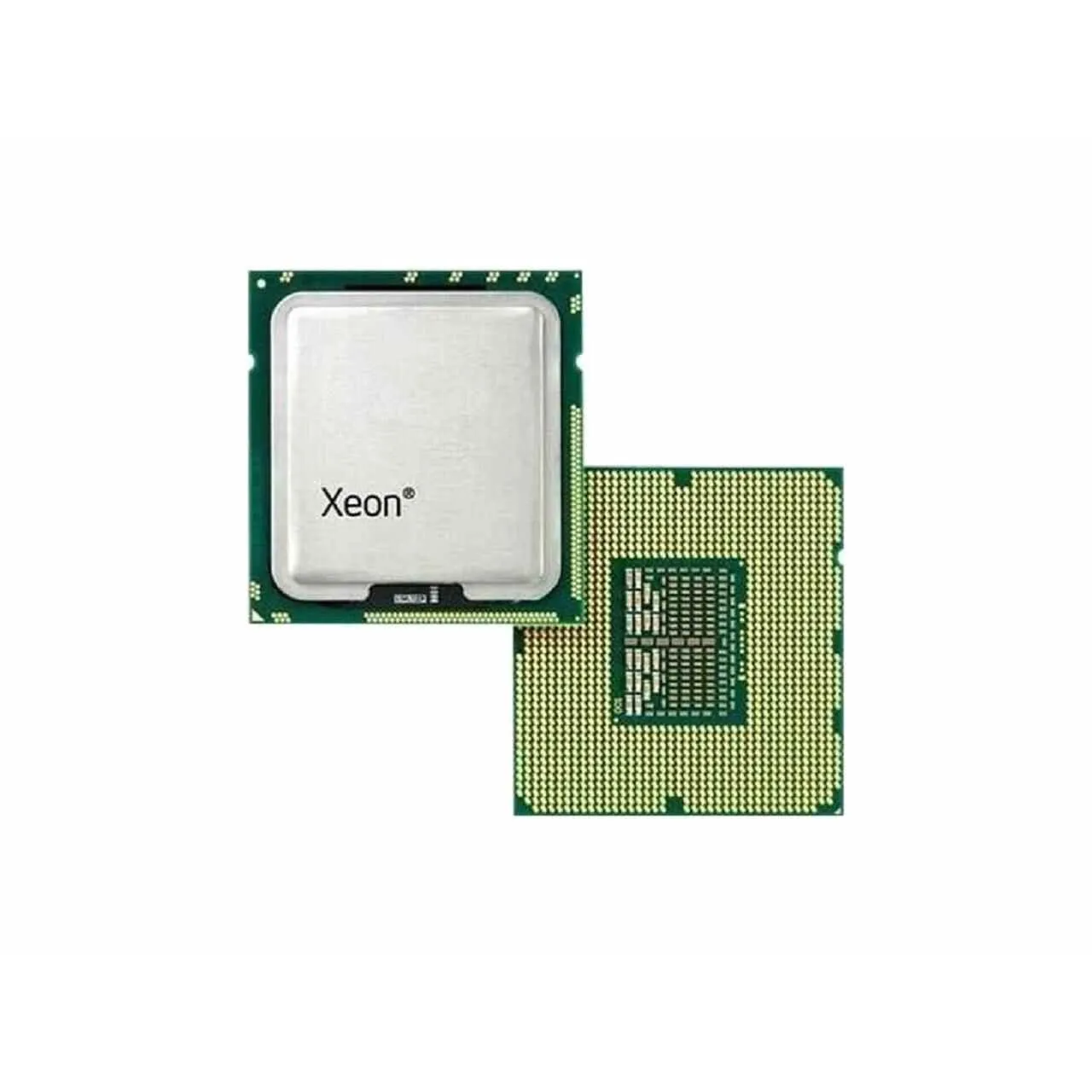

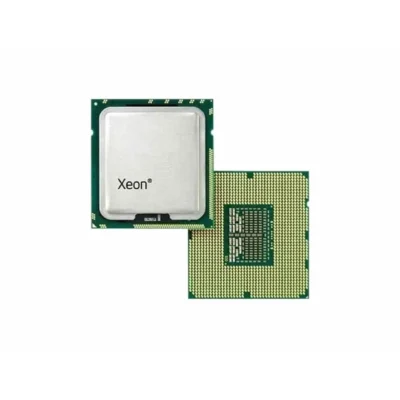

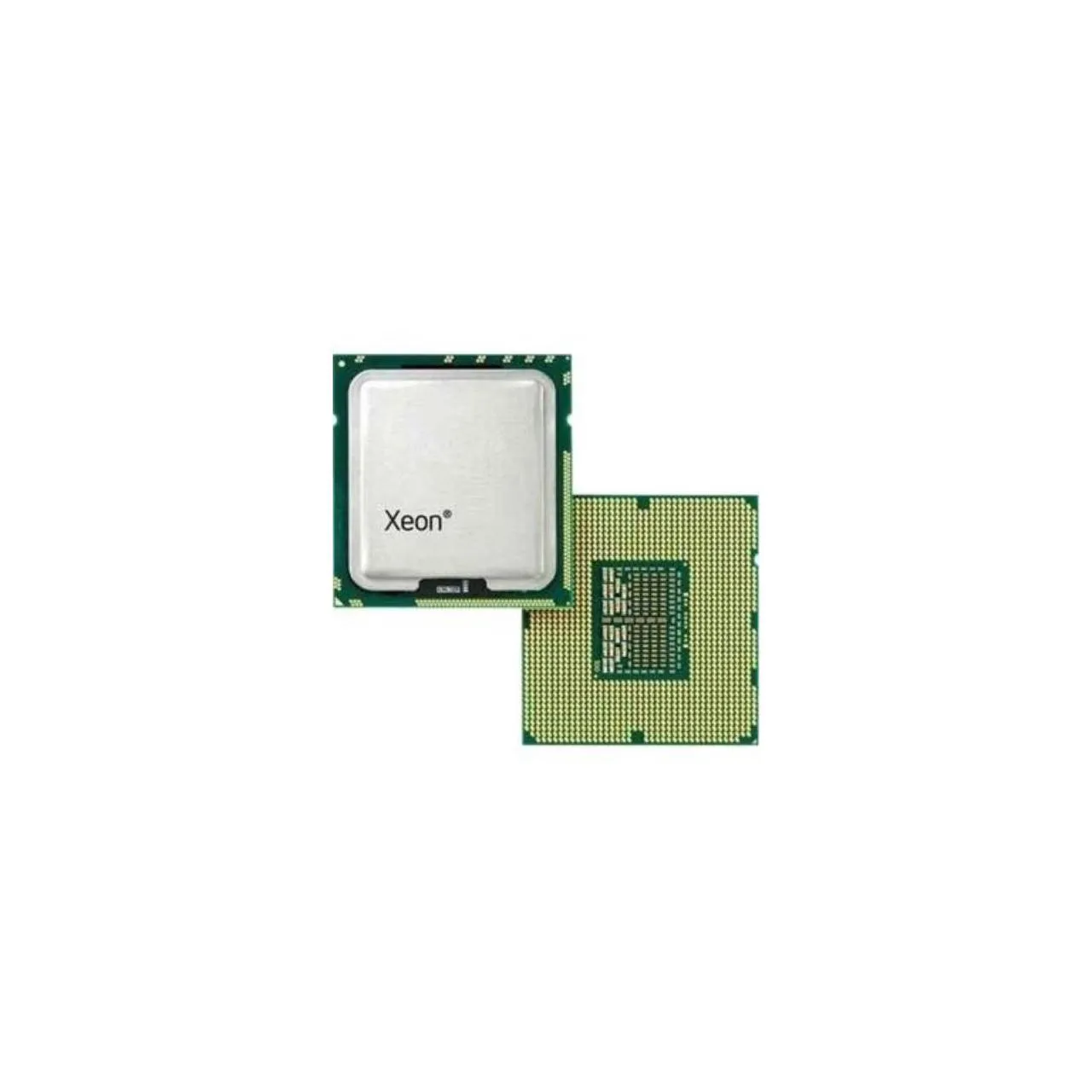

Intel Xeon E5-2600 v4 E5-2660 v4 Tetradeca-core (14 Core) 2 GHz Processor Upgrade
The Intel Xeon E5-2660 v4 is a powerful 14-core server processor operating at 2.0 GHz base frequency with Turbo Boost up to 3.2 GHz. Built on 14nm technology, it delivers exceptional multi-threaded performance for demanding enterprise workloads including virtualization, databases, and high-performance computing. Key features include 35MB Smart Cache, support for up to 768GB DDR4-2400 memory, advanced security technologies, and Intel’s reliability features for mission-critical applications. This processor upgrade provides significant performance gains over previous generations while maintaining energy efficiency, making it ideal for data centers requiring robust computational power, scalability, and 24/7 operational reliability.
