Brand | Intel |
---|---|
Products Status | New |
Application | Server |
CPU Socket Type | FCLGA3647 |
Total Threads | 48 |
Total Cores | 24 |
Cache | 33 MB |
TDP | 150 W |
Manufacturing Tech | 14 nm |
Processor Base Frequency | 2.10 GHz |
Memory Types | DDR4-2666 |
Series | Intel Xeon Platinum |
Part Number | 8160 |
Model | CD8067303405600 |
Hyper-Threading Support | Yes |
Max Memory Size | 768 GB |
Code Name | Skylake |
Max Turbo Frequency | 3.70 GHz |
64-Bit Support | Yes |
Max # of Memory Channels | 6 |
Max # of PCI Express Lanes | 48 |
PCI Express Revision | 3 |
Package Size | 76.0mm x 56.5mm |
Embedded Options Available | No |
Scalability | S8S |
ECC Memory Supported | Yes |
Shipping Media | TRAY |
Maximum Memory Speed | 2666 MHz |

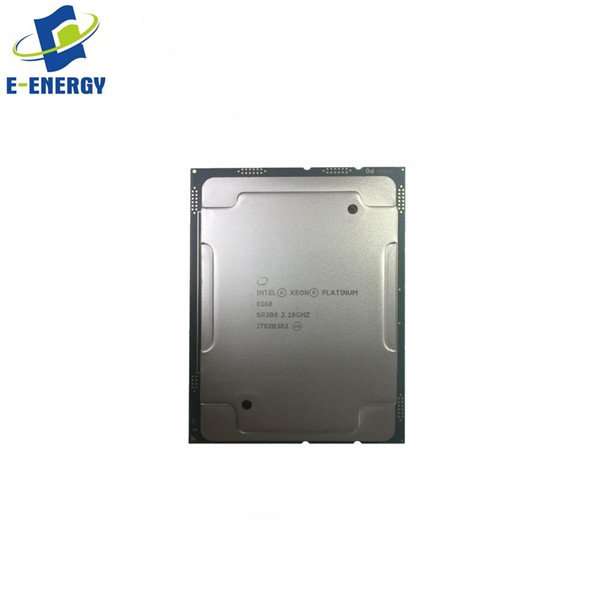

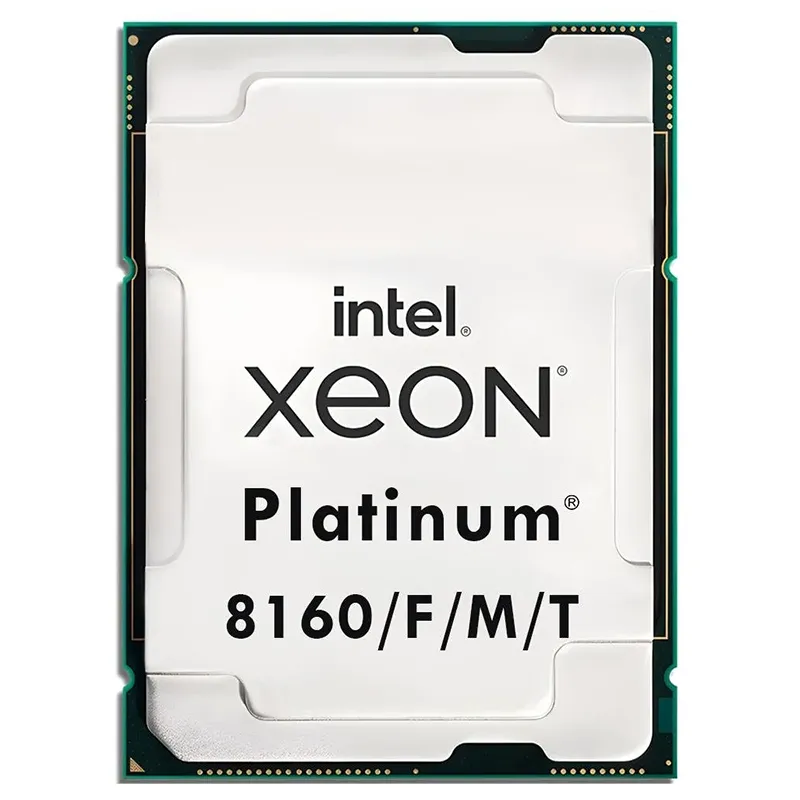

Intel Xeon CPU Platinum 8160 8160F 8160M 8160T CPU Processor
**Intel Xeon Platinum 8160 Series: Enterprise-Grade Processing Power**
The Intel Xeon Platinum 8160 series delivers exceptional performance for demanding enterprise workloads with 24 cores and 48 threads, operating at 2.1GHz base frequency with turbo boost up to 3.7GHz. Built on 14nm architecture, this processor features 33MB Intel Smart Cache and supports up to 768GB DDR4-2666 memory across 6 channels.
**Key Features:**
– 24-core/48-thread configuration for maximum parallel processing
– Intel Turbo Boost Technology 2.0 for dynamic performance scaling
– Advanced Vector Extensions 512 (AVX-512) for accelerated compute-intensive tasks
– Intel Hyper-Threading Technology for improved multitasking efficiency
– Multiple variants (8160, 8160F, 8160M, 8160T) optimized for different thermal and performance requirements
**Benefits:**
– Exceptional performance for virtualization, databases, and analytics workloads
– Enhanced security features including Intel TXT and AES-NI encryption
– Scalable architecture supporting multi-socket configurations
– Energy-efficient design balancing performance with power consumption
– Enterprise-grade reliability with Intel vPro technology support
**Unique Selling Points:**
– Premium Platinum tier positioning with highest feature set in Xeon lineup
– Optimized for AI/ML workloads and high-performance computing applications
– Comprehensive I/O capabilities with PCIe 3.0 support
– Intel Optane memory compatibility for accelerated storage performance
