| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon Gold |
| Part Number | 6254 |
| Model | CD8069504194501 |
| Shipping Media | TRAY |
| Application | Server |
| CPU Socket Type | FCLGA3647 |
| Code Name | Cascade Lake |
| Total Cores | 18 |
| Total Threads | 36 |
| Max Turbo Frequency | 4.00 GHz |
| Processor Base Frequency | 3.10 GHz |
| Cache | 24.75 MB |
| TDP | 200 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 1 TB |
| Memory Types | DDR4-2933 |
| Max # of Memory Channels | 6 |
| ECC Memory Supported | Yes |
| Scalability | 4S |
| PCI Express Revision | 3 |
| Max # of PCI Express Lanes | 48 |
| Package Size | 76.0mm x 56.5mm |
| Maximum Memory Speed | 2933 MHz |

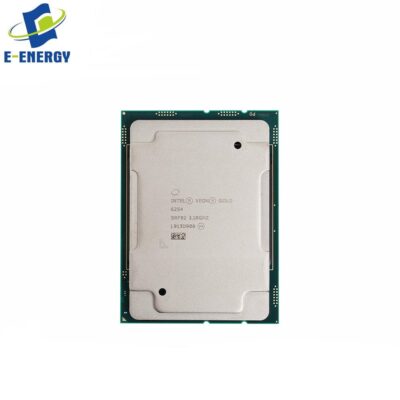

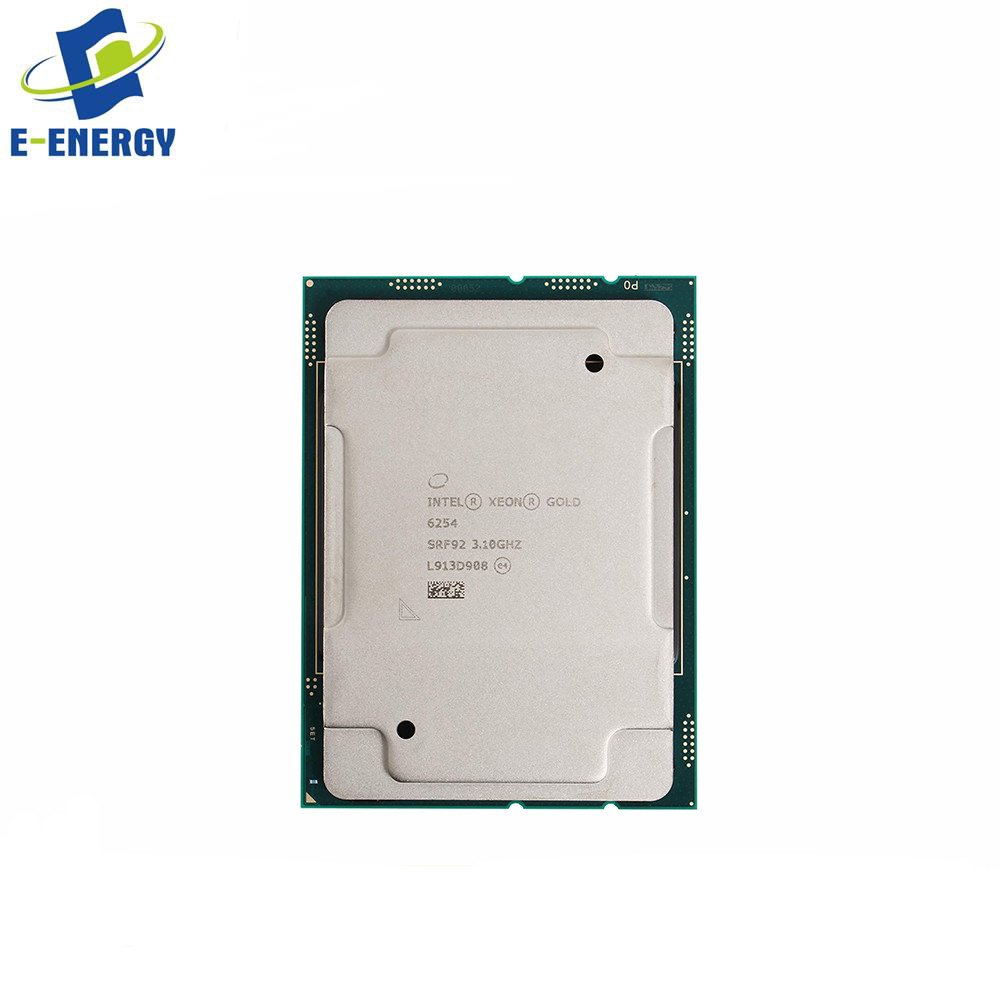

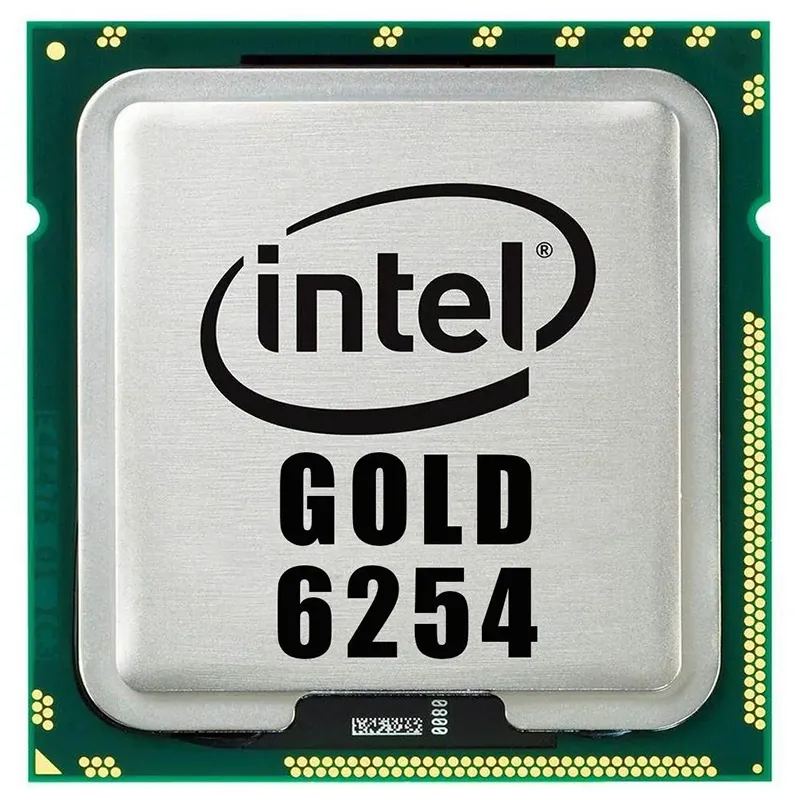

* NOTE: Image may not exactly match the product
INTEL XEON CPU Gold 6254 CPU Processor
The Intel Xeon Gold 6254 is a high-performance server processor featuring 18 cores and 36 threads with a base clock of 3.1GHz and boost speeds up to 4.0GHz. Built on 14nm architecture, it delivers exceptional computational power for demanding enterprise workloads including virtualization, databases, and cloud computing. Key advantages include support for up to 1TB of DDR4-2933 memory across 6 channels, advanced security features with Intel TXT and AES-NI encryption, and energy-efficient design optimized for 24/7 datacenter operations. The processor excels in multi-threaded applications, offers enterprise-grade reliability with ECC memory support, and provides scalable performance for mission-critical business applications requiring consistent, high-throughput processing power.
$1,250.971 Piece(MOQ)
Premium Client Discounts Available
