* NOTE: Image may not exactly match the product

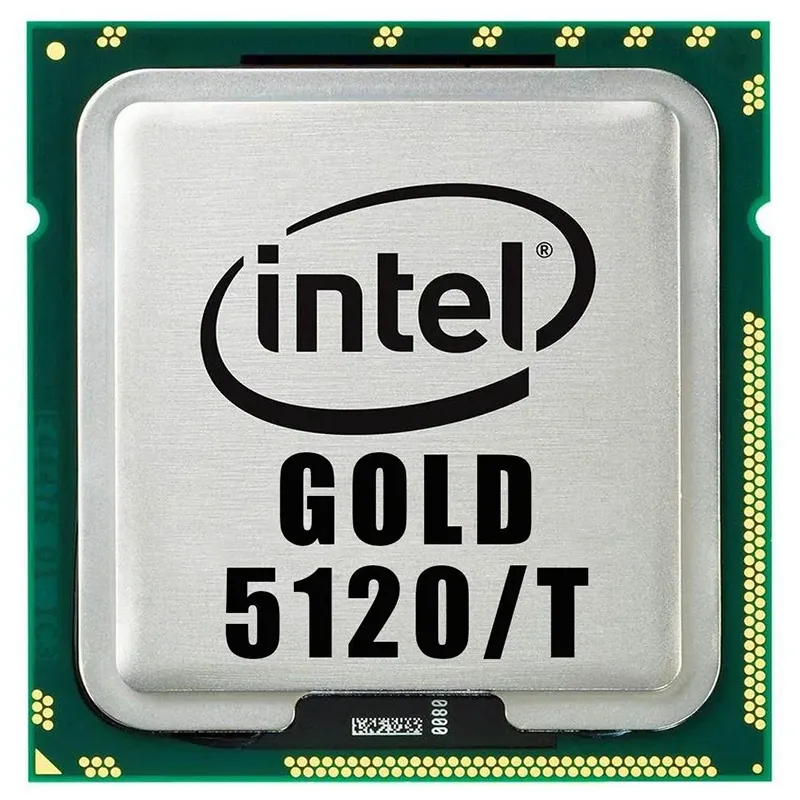

INTEL XEON CPU Gold 5120 T CPU Processor

The Intel Xeon Gold 5120T is a powerful 14-core, 28-thread server processor designed for demanding enterprise workloads. Operating at a base frequency of 2.2GHz with turbo boost up to 3.2GHz, it delivers exceptional multi-threaded performance while maintaining energy efficiency with its 105W TDP. Key features include 19.25MB of Intel Smart Cache, support for up to 768GB of DDR4-2400 memory across six channels, and advanced security technologies including Intel TXT and AES-NI encryption. The processor excels in virtualization environments, database management, cloud computing, and high-performance computing applications. Its unique value proposition lies in balancing robust computational power with lower power consumption compared to standard Xeon Gold processors, making it ideal for organizations requiring maximum performance per watt in space-constrained data centers and edge computing deployments.

Quote1 Piece(MOQ)1 Piece(MOQ)

Premium Client Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon Gold
Part Number5120T
ModelCD8067303535700
Brand

Intel

Products Status

New

Series

Intel Xeon Gold

Part Number

5120T

Model

CD8067303535700

Shipping Media

TRAY

Application

Server

CPU Socket Type

FCLGA3647

Code Name

Skylake

Total Cores

14

Total Threads

28

Max Turbo Frequency

3.20 GHz

Processor Base Frequency

2.20 GHz

Cache

19.25 MB L3 Cache

TDP

105 W

Manufacturing Tech

14 nm

64-Bit Support

Yes

Hyper-Threading Support

Yes

Embedded Options Available

Yes

Max Memory Size

768 GB

Memory Types

DDR4-2400

Max # of Memory Channels

6

ECC Memory Supported

Yes

Scalability

4S

PCI Express Revision

3

Max # of PCI Express Lanes

48

Package Size

76.0mm x 56.5mm

Maximum Memory Speed

2400 MHz
