Brand | Intel |
---|---|
Products Status | New |
Application | Server |
CPU Socket Type | FCLGA1200 |
Total Threads | 12 |
Total Cores | 6 |
Cache | 12 MB |
TDP | 95 W |
Manufacturing Tech | 14 nm |
Processor Base Frequency | 3.50 GHz |
Memory Types | DDR4-3200 |
Series | Intel Xeon E |
Part Number | E-2386G |
Model | CM8070804494716 |
Hyper-Threading Support | Yes |
Max Memory Size | 128 GB |
Code Name | Rocket Lake |
Max Turbo Frequency | 5.10 GHz |
64-Bit Support | Yes |
Max # of Memory Channels | 2 |
Max # of PCI Express Lanes | 20 |
PCI Express Revision | 4 |
Package Size | 37.5 mm x 37.5 mm |
Embedded Options Available | No |
Scalability | 1S Only |
ECC Memory Supported | Yes |
Shipping Media | TRAY |
Max CPU Configuration | 1 |
Instruction Set | 64-bit |
PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
Bus Speed | 8 GT/s |
T JUNCTION | 100 C |
# of Displays Supported | 1 |
Intel Quick Sync Video | Yes |
DirectX* Support | 12.1 |
OpenGL* Support | 4.5 |
Device ID | 0x4C9A |
Graphics Max Dynamic Frequency | 1.30 GHz |
Graphics Base Frequency | 350 MHz |
Clear Video HD Technology | Yes |
4K Support | at 60Hz, Yes |
Execution Units | 32 |
Microprocessor PCIe Revision | Gen 4 |

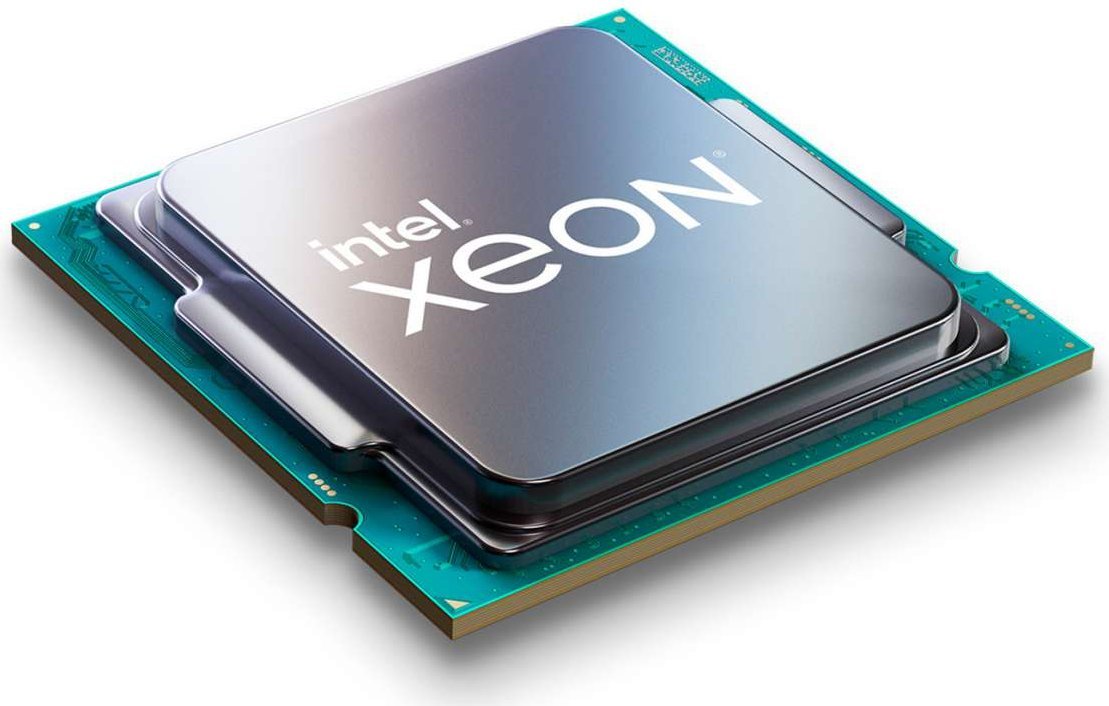

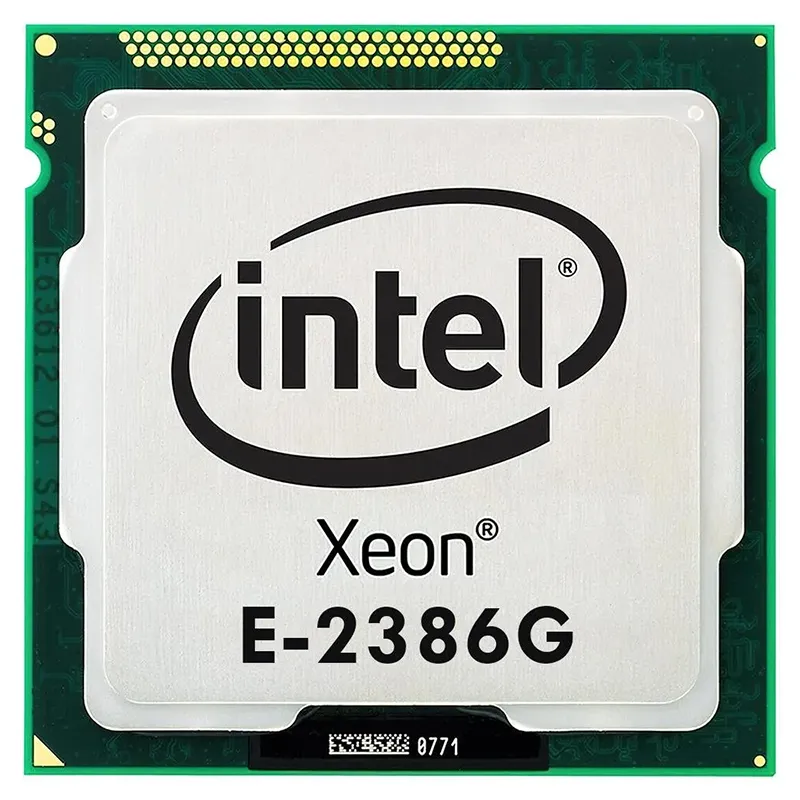

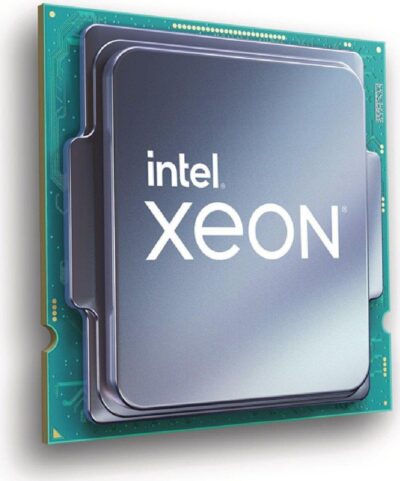

INTEL XEON CPU E-2386G Server CPU Scalable Processor
The Intel Xeon E-2386G is a powerful 6-core, 12-thread server processor designed for entry-level workstations and small business servers. Operating at a base frequency of 3.5GHz with turbo boost up to 4.7GHz, it delivers exceptional single-threaded performance while maintaining efficient multi-tasking capabilities. Built on Intel’s 14nm process technology, this processor features 12MB of Smart Cache, supports up to 128GB of ECC memory, and includes integrated Intel UHD Graphics P750 for basic display needs without requiring a dedicated graphics card. Key advantages include hardware-enhanced security features, reliable ECC memory support for data integrity, and Intel’s vPro technology for enhanced manageability. The E-2386G strikes an optimal balance between performance and power efficiency, making it ideal for small-to-medium enterprises requiring dependable server performance, virtualization capabilities, and professional workstation tasks without the complexity and cost of higher-tier server platforms.
$370.681 Piece(MOQ) Minimum Order Quantity
Bulk Order Discounts Available
