| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Server |
| CPU Socket Type | FCLGA1200 |
| Total Threads | 12 |
| Total Cores | 6 |
| Cache | 12 MB |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.20 GHz |
| Memory Types | DDR4-3200 |
| Series | Intel Xeon E |
| Part Number | E-2356G |
| Model | CM8070804495016 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 128 GB |
| Code Name | Rocket Lake |
| Max Turbo Frequency | 5.00 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 2 |
| Max # of PCI Express Lanes | 20 |
| PCI Express Revision | 4 |
| Package Size | 37.5 mm x 37.5 mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
| Bus Speed | 8 GT/s |
| T JUNCTION | 100 C |
| # of Displays Supported | 1 |
| Intel Quick Sync Video | Yes |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| Device ID | 0x4C9A |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
| Execution Units | 32 |
| Microprocessor PCIe Revision | Gen 4 |
* NOTE: Image may not exactly match the product

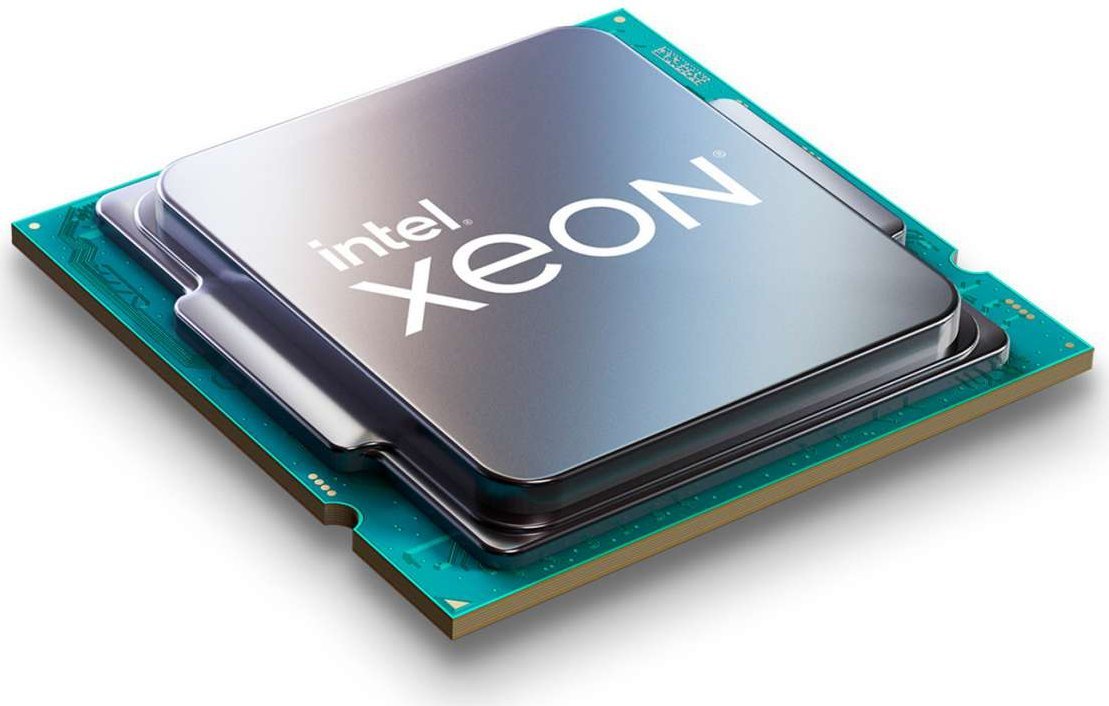

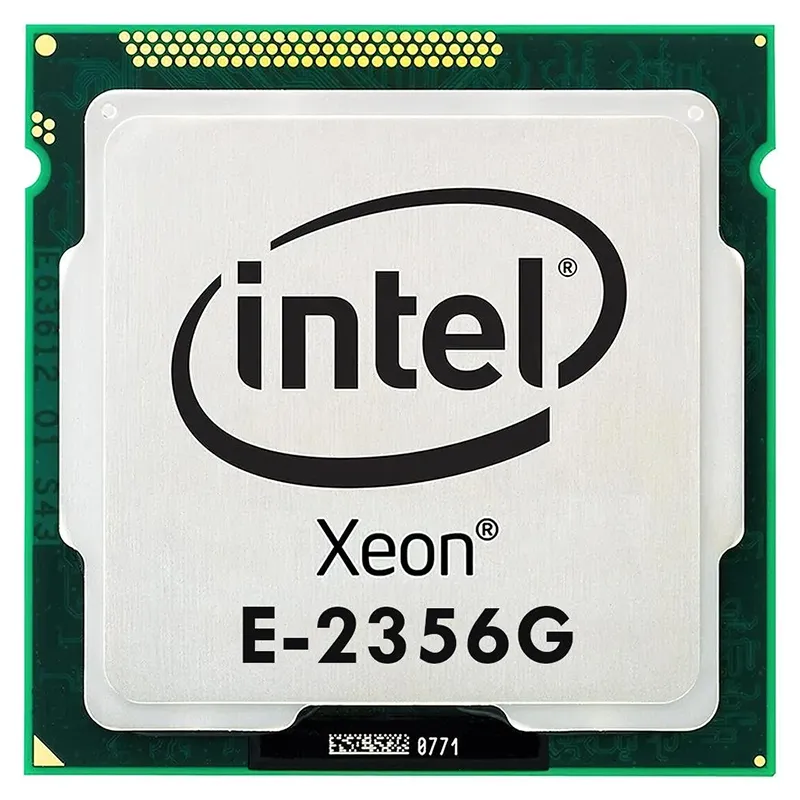

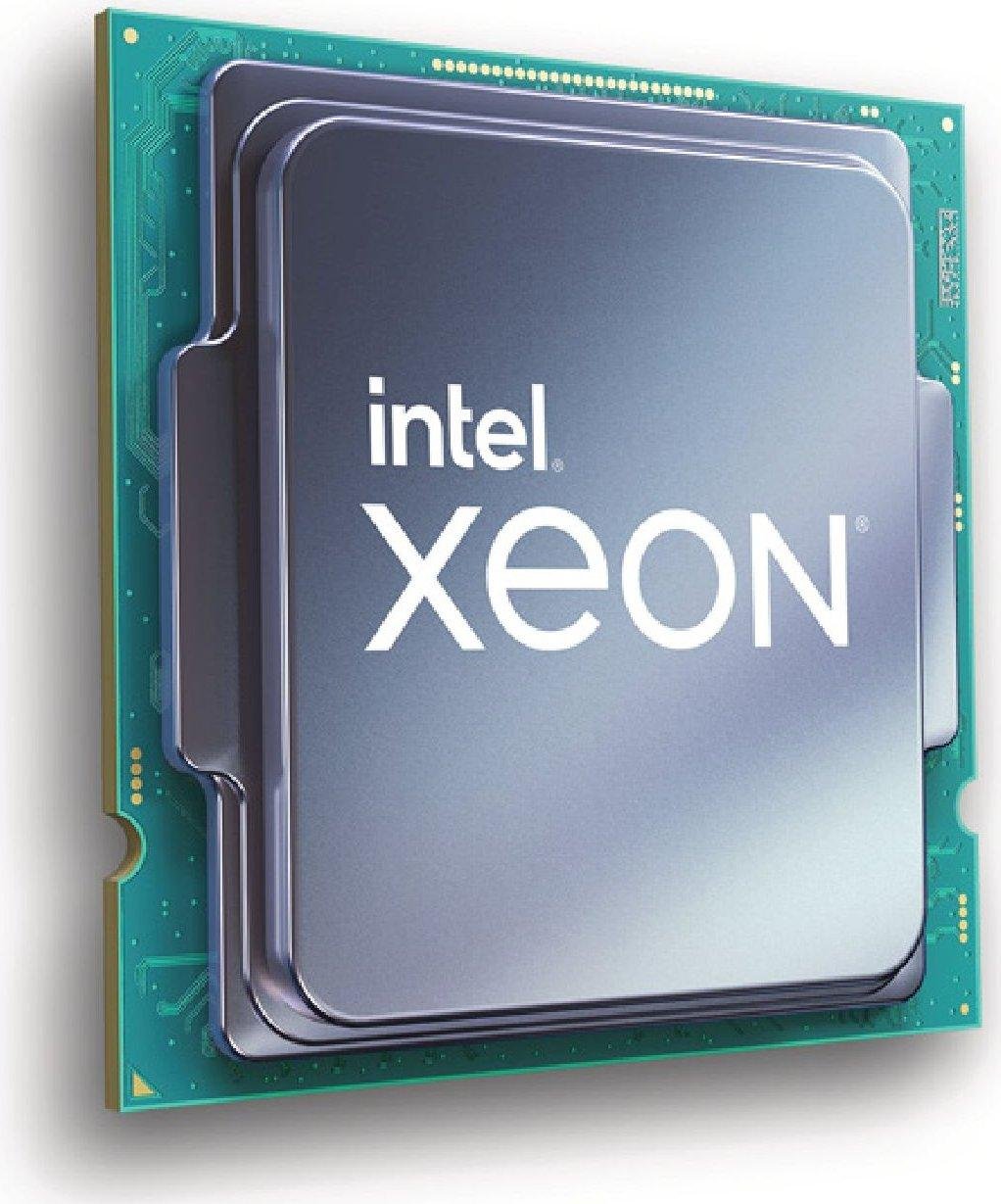

INTEL XEON CPU E-2356G Server CPU Scalable Processor
The Intel Xeon E-2356G is a powerful 6-core, 12-thread server processor designed for entry-level workstations and small business servers. Operating at a base frequency of 3.2GHz with turbo boost up to 5.0GHz, it delivers exceptional single-threaded performance while maintaining efficient multi-tasking capabilities. Built on Intel’s advanced 10nm process technology, this processor features 12MB of Smart Cache, supports up to 128GB of ECC memory, and includes integrated Intel UHD Graphics P750 for basic display needs without requiring a dedicated graphics card. Key benefits include enhanced security with Intel vPro technology, hardware-based threat detection, and support for Intel Optane memory for accelerated storage performance. The E-2356G offers an ideal balance of performance, power efficiency, and cost-effectiveness for small to medium enterprises requiring reliable server-grade computing with professional-level features like error-correcting memory support and remote management capabilities.
