Brand | Intel |
---|---|
Products Status | New |
Series | Intel Xeon E |
Part Number | E-2336 |
Model | CM8070804495816 |
Shipping Media | TRAY |
Application | Server |
CPU Socket Type | FCLGA1200 |
Code Name | Rocket Lake |
Total Cores | 6 |
Total Threads | 12 |
Max Turbo Frequency | 4.80 GHz |
Processor Base Frequency | 2.90 GHz |
Cache | 12 MB Intel Smart Cache |
Bus Speed | 8 GT/s |
TDP | 65 W |
Manufacturing Tech | 14 nm |
64-Bit Support | Yes |
Hyper-Threading Support | Yes |
Embedded Options Available | No |
Max Memory Size | 128 GB |
Memory Types | DDR4-3200 |
Max # of Memory Channels | 2 |
ECC Memory Supported | Yes |
Scalability | 1S Only |
PCI Express Revision | 4 |
Microprocessor PCIe Revision | Gen 4 |
PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
Max # of PCI Express Lanes | 20 |
Max CPU Configuration | 1 |
Instruction Set | 64-bit |
T JUNCTION | 100 C |
Package Size | 37.5 mm x 37.5 mm |

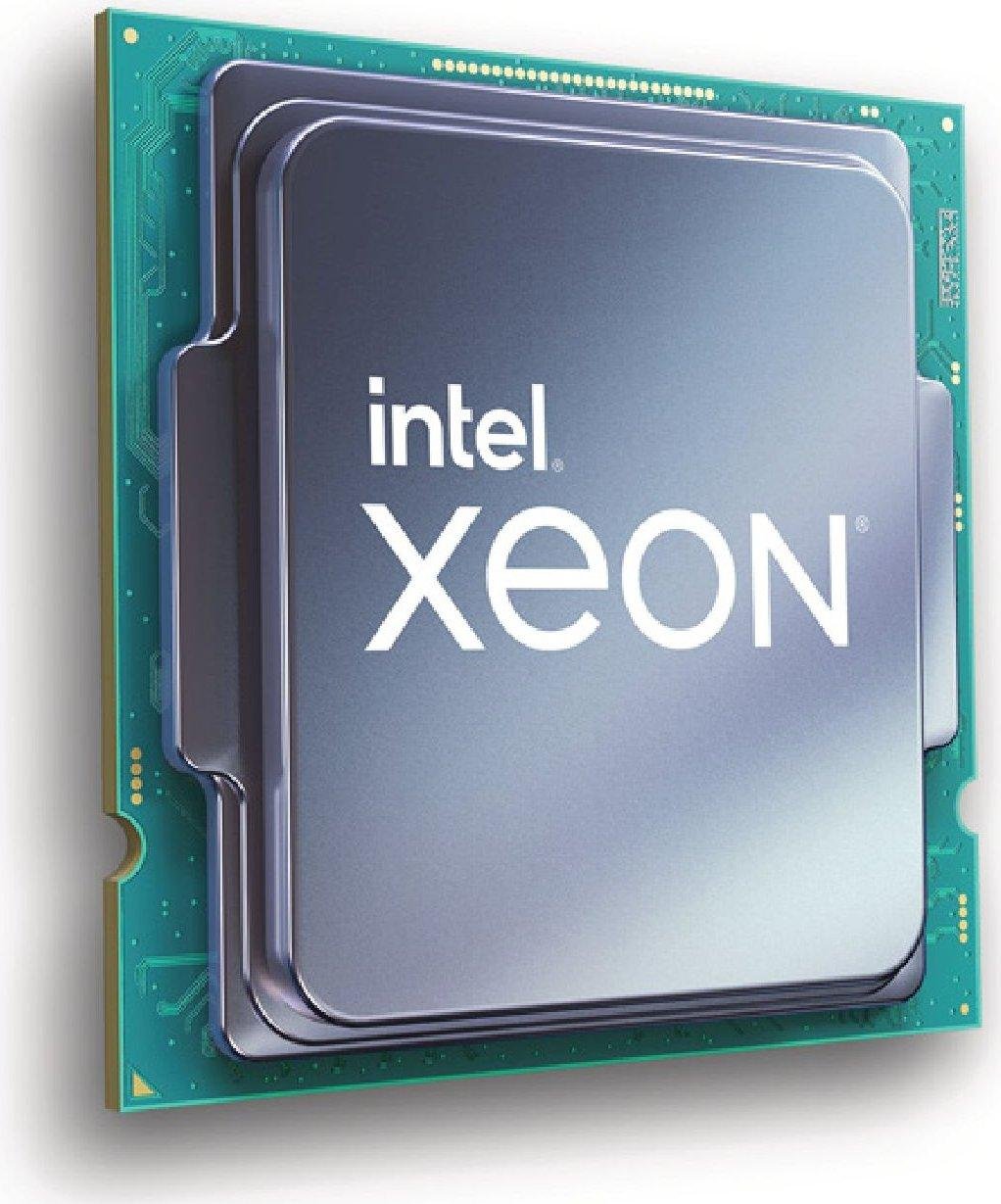

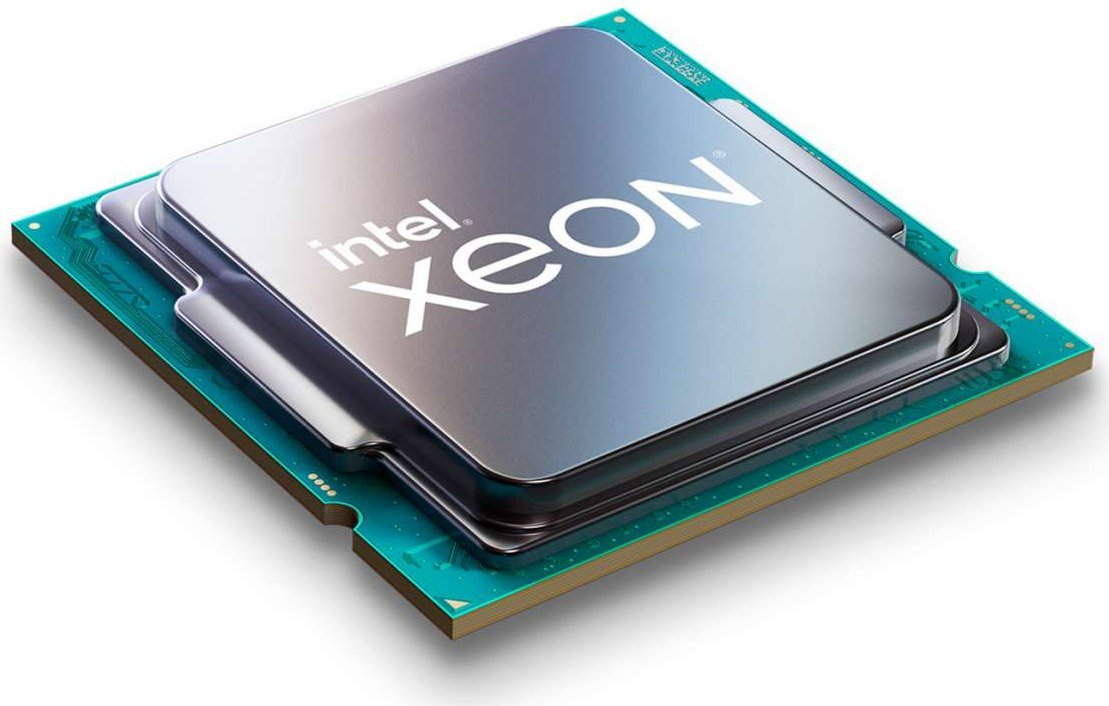

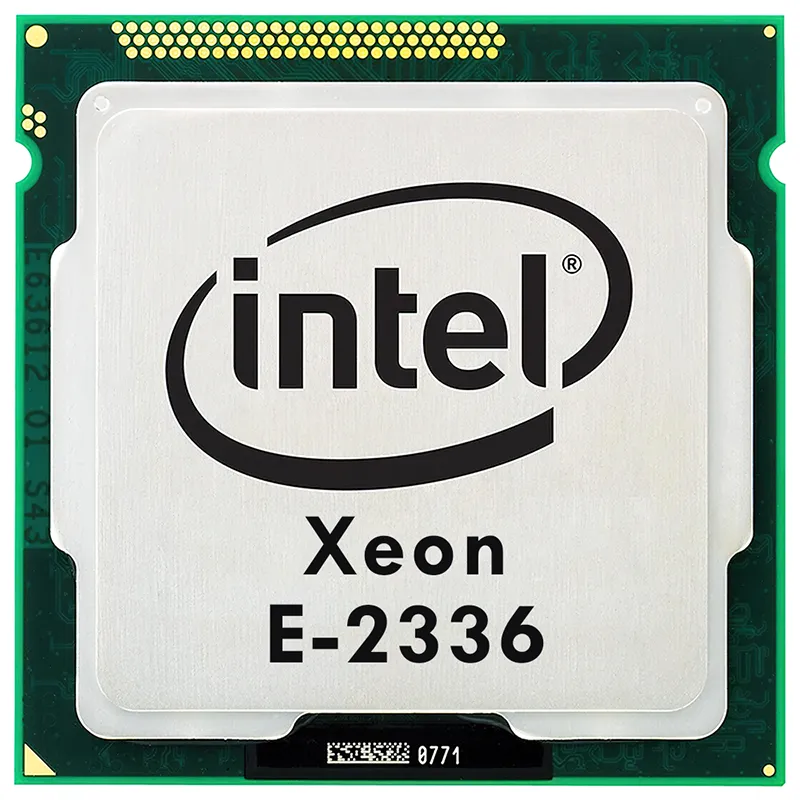

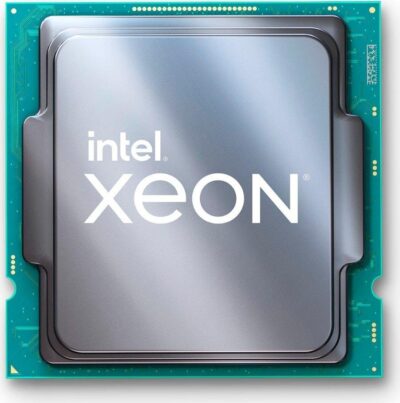

Intel Xeon E-2336 Rocket Lake 2.9 GHz 12MB L3 Cache LGA 1200 65W BX80708E2336 Server Processor
The Intel Xeon E-2336 is a powerful 6-core, 12-thread server processor built on the advanced Rocket Lake architecture, delivering reliable enterprise-grade performance at 2.9 GHz base frequency with boost capabilities up to 4.8 GHz. Featuring 12MB of L3 cache and a 65W TDP, this processor strikes an optimal balance between computational power and energy efficiency. Key advantages include support for up to 128GB of ECC memory for enhanced data integrity, integrated Intel UHD Graphics P750 for basic display needs without dedicated graphics cards, and advanced security features like Intel vPro technology. The LGA 1200 socket ensures compatibility with existing server infrastructure while providing PCIe 4.0 support for high-speed storage and expansion cards. Ideal for small to medium business servers, workstations, and edge computing applications requiring dependable performance, error correction capabilities, and enterprise-level security in a cost-effective package.
$278.251 Piece(MOQ)
Bulk Order Discounts Available
Brand | Intel |
---|---|
Products Status | New |
Series | Intel Xeon E |
Part Number | E-2336 |
Model | CM8070804495816 |
