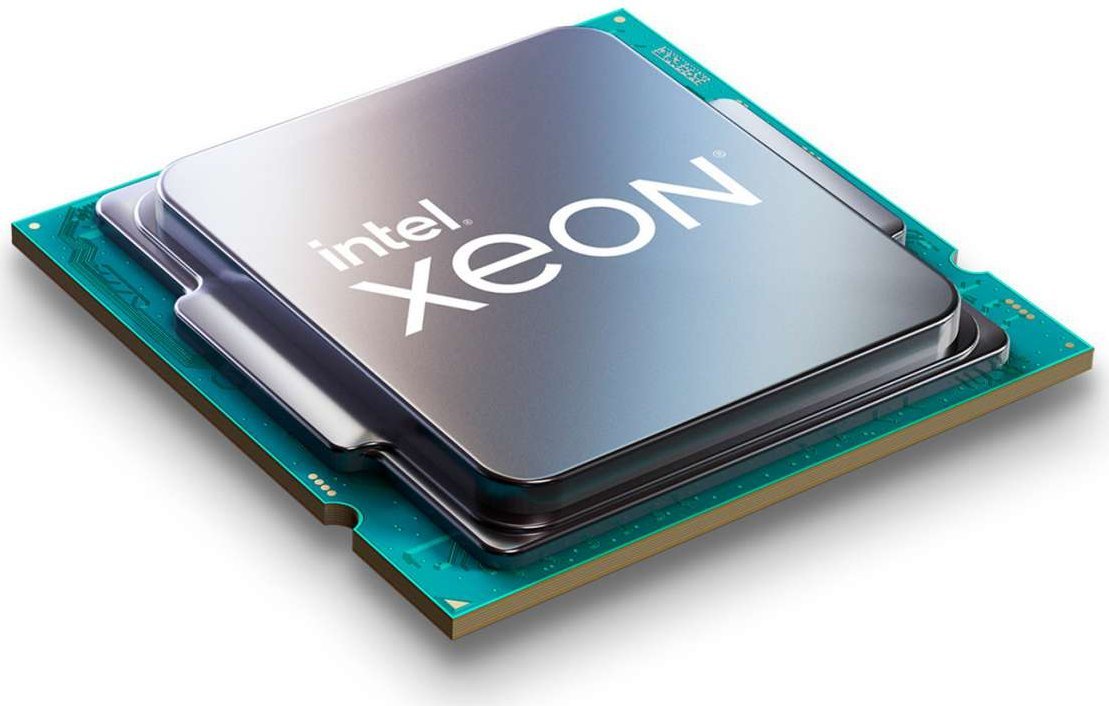

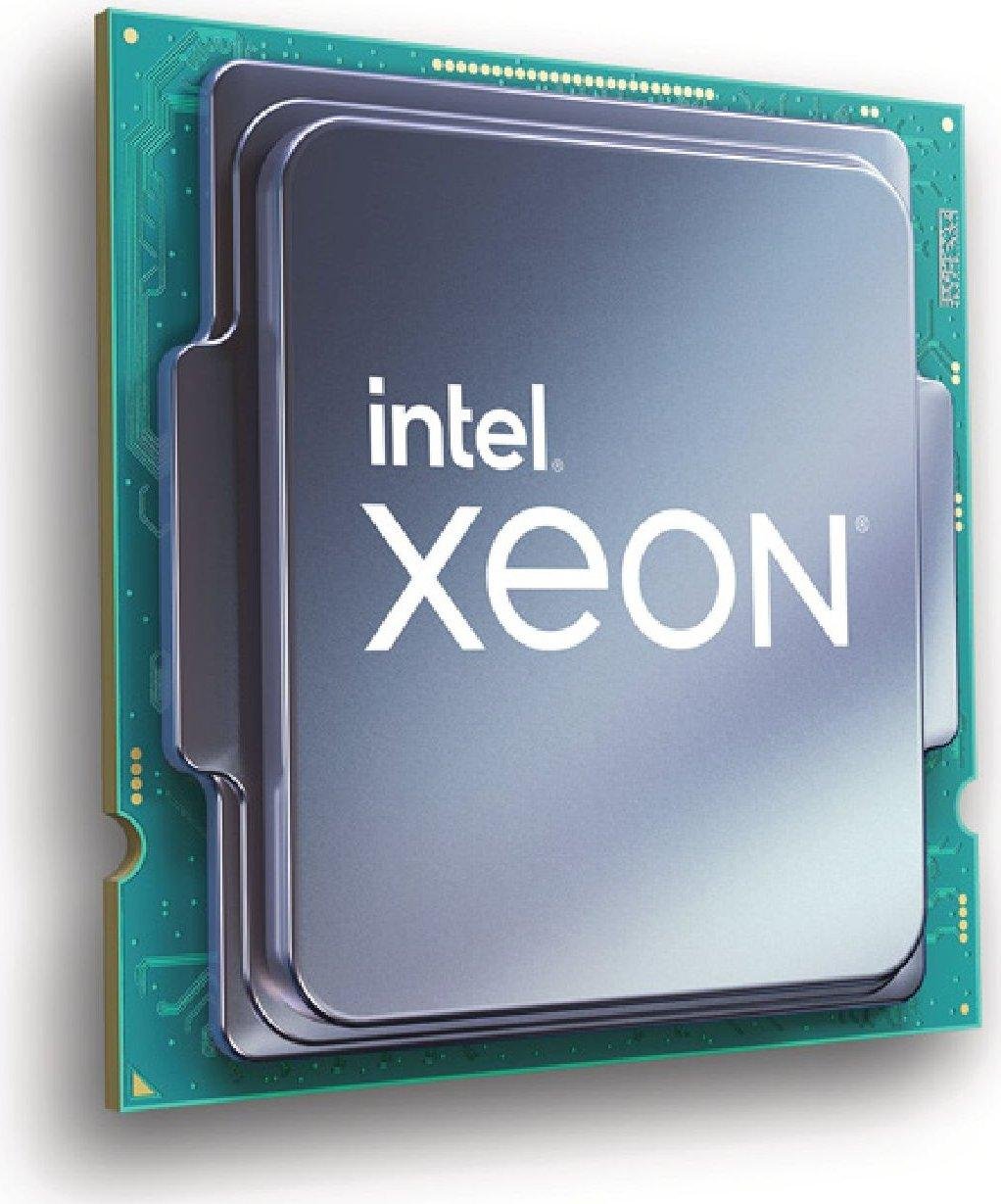

Intel Xeon E-2324G Rocket Lake 3.1 GHz 8MB L3 Cache LGA 1200 65W BX80708E2324G Server Processor

The Intel Xeon E-2324G is a powerful 4-core, 8-thread server processor built on the advanced Rocket Lake architecture, delivering reliable performance for entry-level servers and workstations. Operating at a base frequency of 3.1 GHz with Intel Turbo Boost capability, it features 8MB of L3 cache for enhanced data processing efficiency and supports up to 128GB of ECC memory for mission-critical applications. The processor’s 65W TDP ensures energy-efficient operation while maintaining robust performance, making it ideal for small businesses, edge computing, and virtualization environments. Key advantages include integrated Intel UHD Graphics P750 for display capabilities without dedicated graphics cards, advanced security features with Intel vPro technology, and compatibility with the widely-adopted LGA 1200 socket. This processor excels in file servers, database applications, and light virtualization workloads where reliability, security, and cost-effectiveness are paramount.

$269.541 Piece(MOQ)

Bulk Order Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon E
Part NumberE-2324G
ModelCM8070804496015
Brand

Intel

Products Status

New

Series

Intel Xeon E

Part Number

E-2324G

Model

CM8070804496015

Shipping Media

TRAY

Application

Server

CPU Socket Type

FCLGA1200

Code Name

Rocket Lake

Total Cores

4

Total Threads

4

Max Turbo Frequency

4.60 GHz

Processor Base Frequency

3.10 GHz

Cache

8 MB Intel Smart Cache

Bus Speed

8 GT/s

TDP

65 W

Manufacturing Tech

14 nm

64-Bit Support

Yes

Hyper-Threading Support

No

Embedded Options Available

No

Max Memory Size

128 GB

Memory Types

DDR4-3200

Max # of Memory Channels

2

ECC Memory Supported

Yes

Scalability

1S Only

PCI Express Revision

4

Microprocessor PCIe Revision

Gen 4

PCI Express Configurations

1×8+3×4, 2×8+1×4, Up to 1×16+1×4

Max # of PCI Express Lanes

20

Max CPU Configuration

1

Instruction Set

64-bit

Graphics Max Dynamic Frequency

1.30 GHz

Execution Units

32

DirectX* Support

12.1

OpenGL* Support

4.5

Intel Quick Sync Video

Yes

# of Displays Supported

1

Device ID

0x4C9A

T JUNCTION

100 C

Package Size

37.5 mm x 37.5 mm

Graphics Base Frequency

350 MHz

Clear Video HD Technology

Yes

4K Support

at 60Hz, Yes
