- 2.5″
- MLC
- SATA III
- 150GB

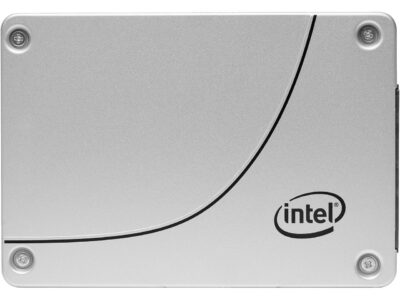

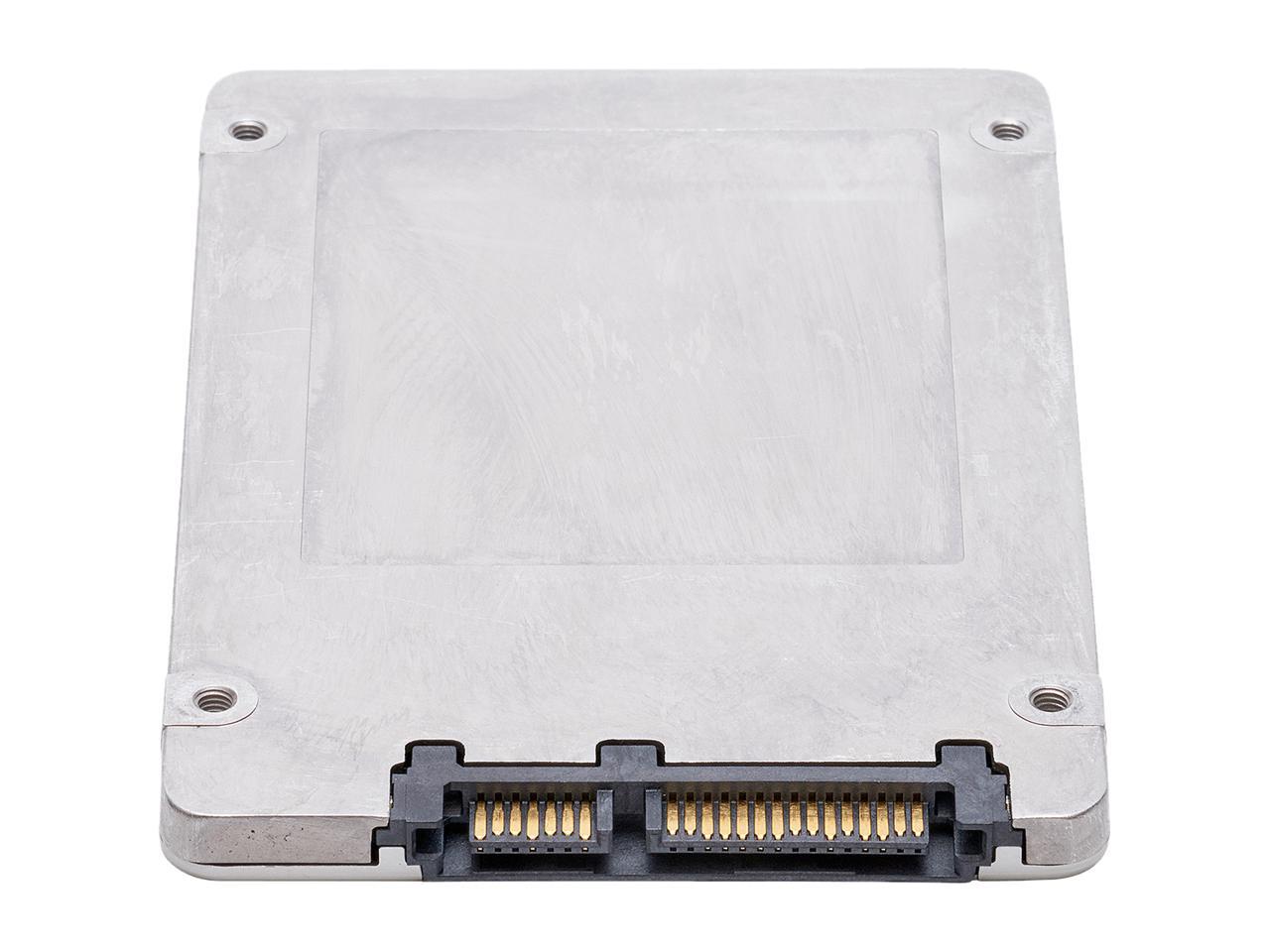

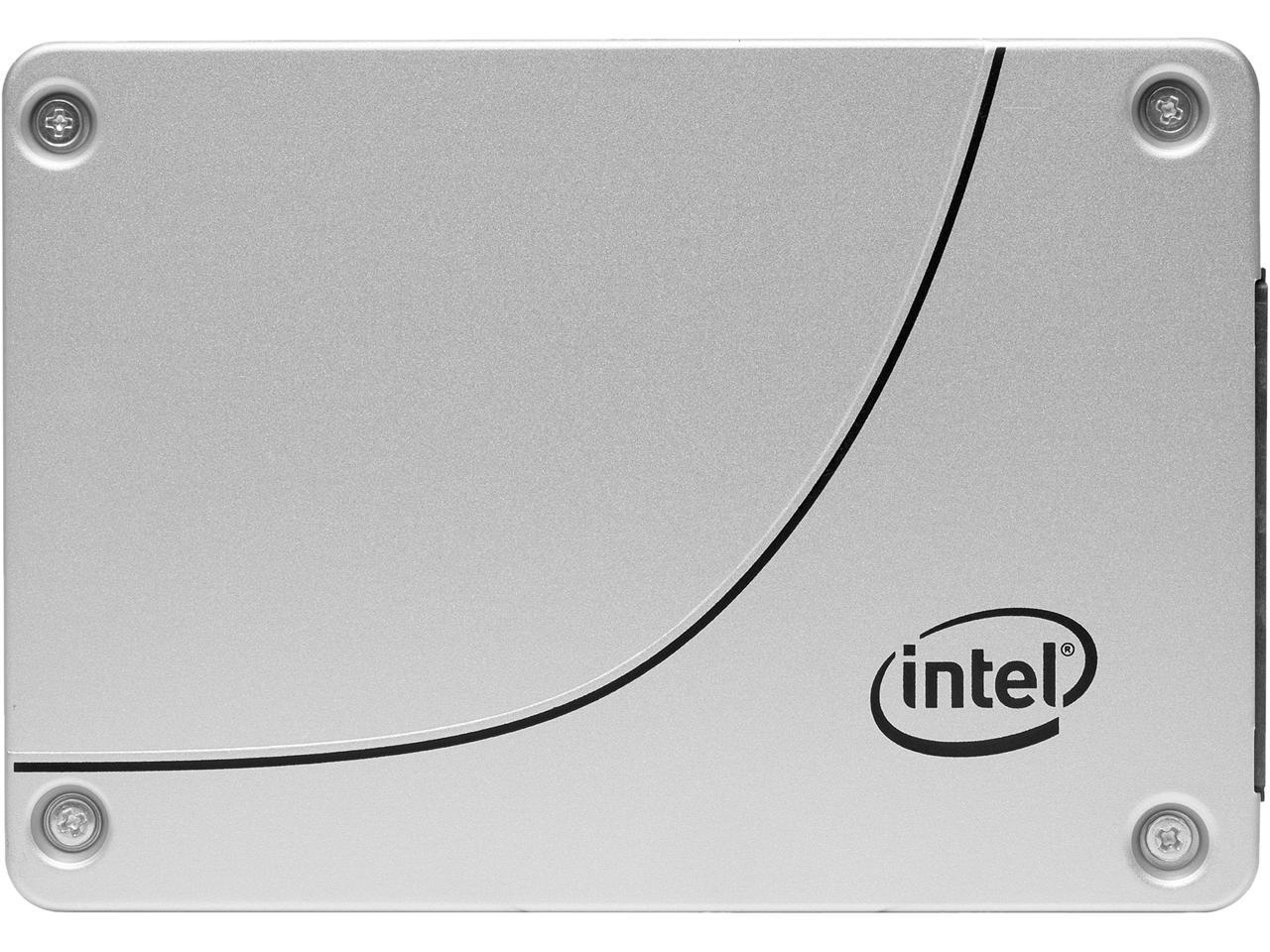

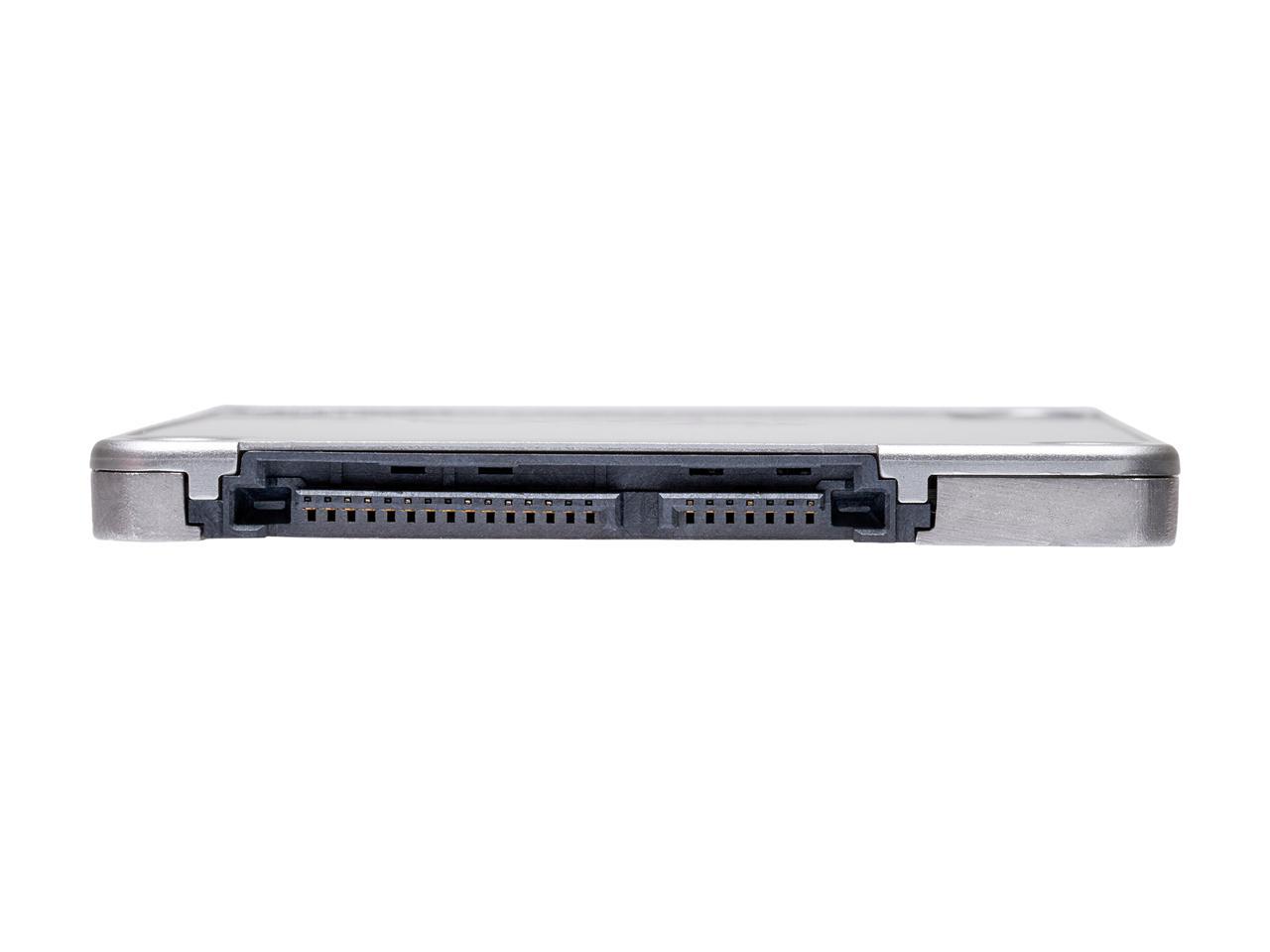

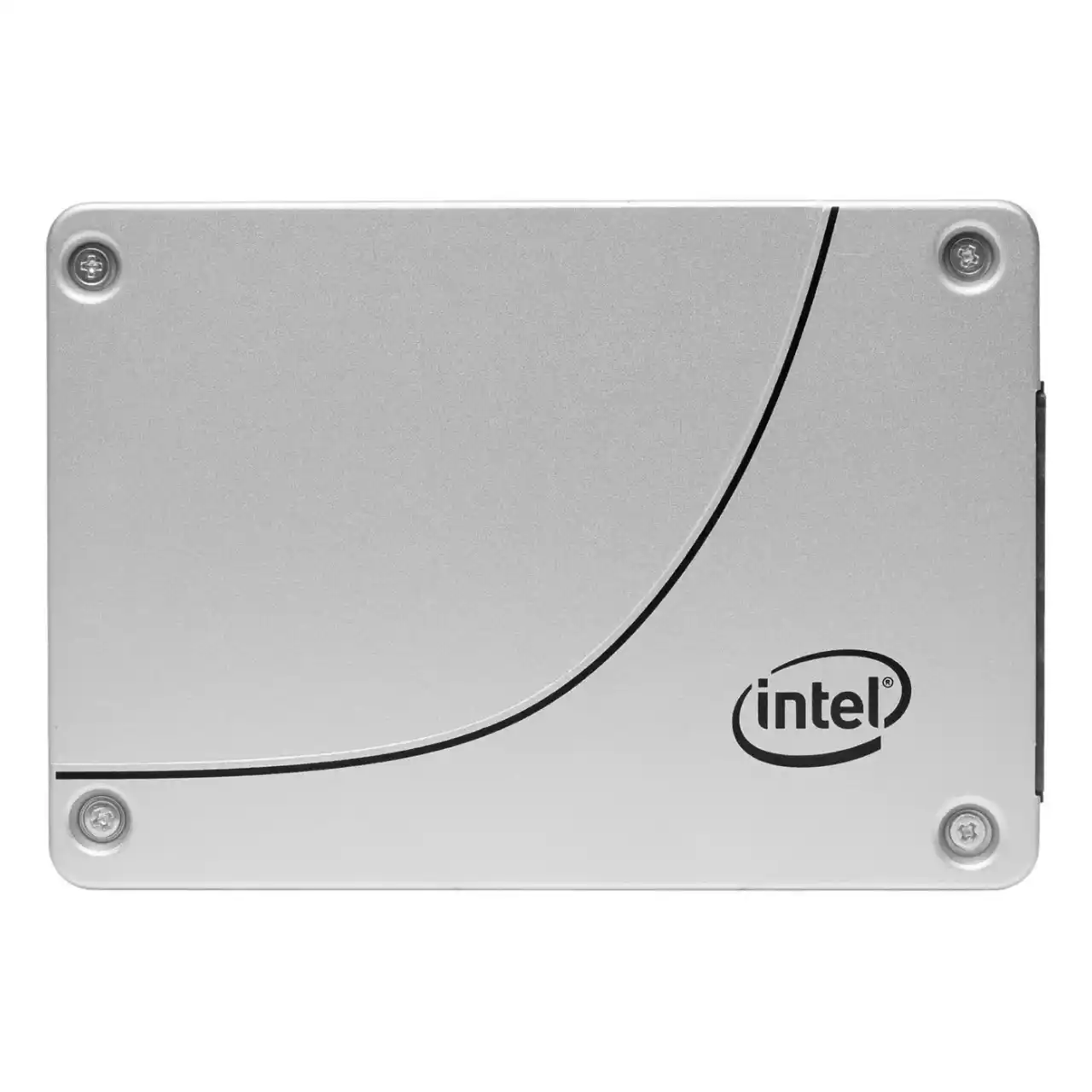

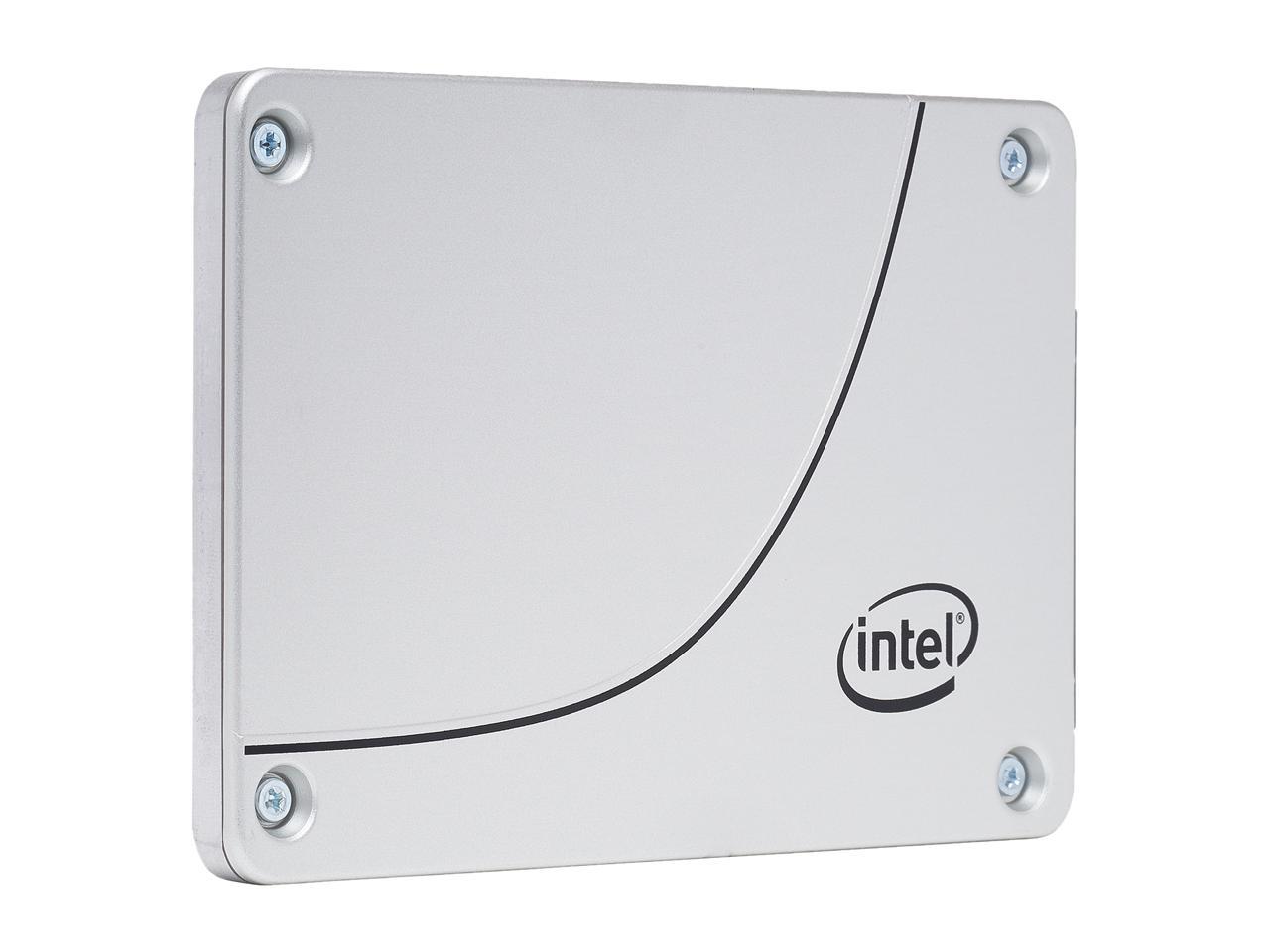

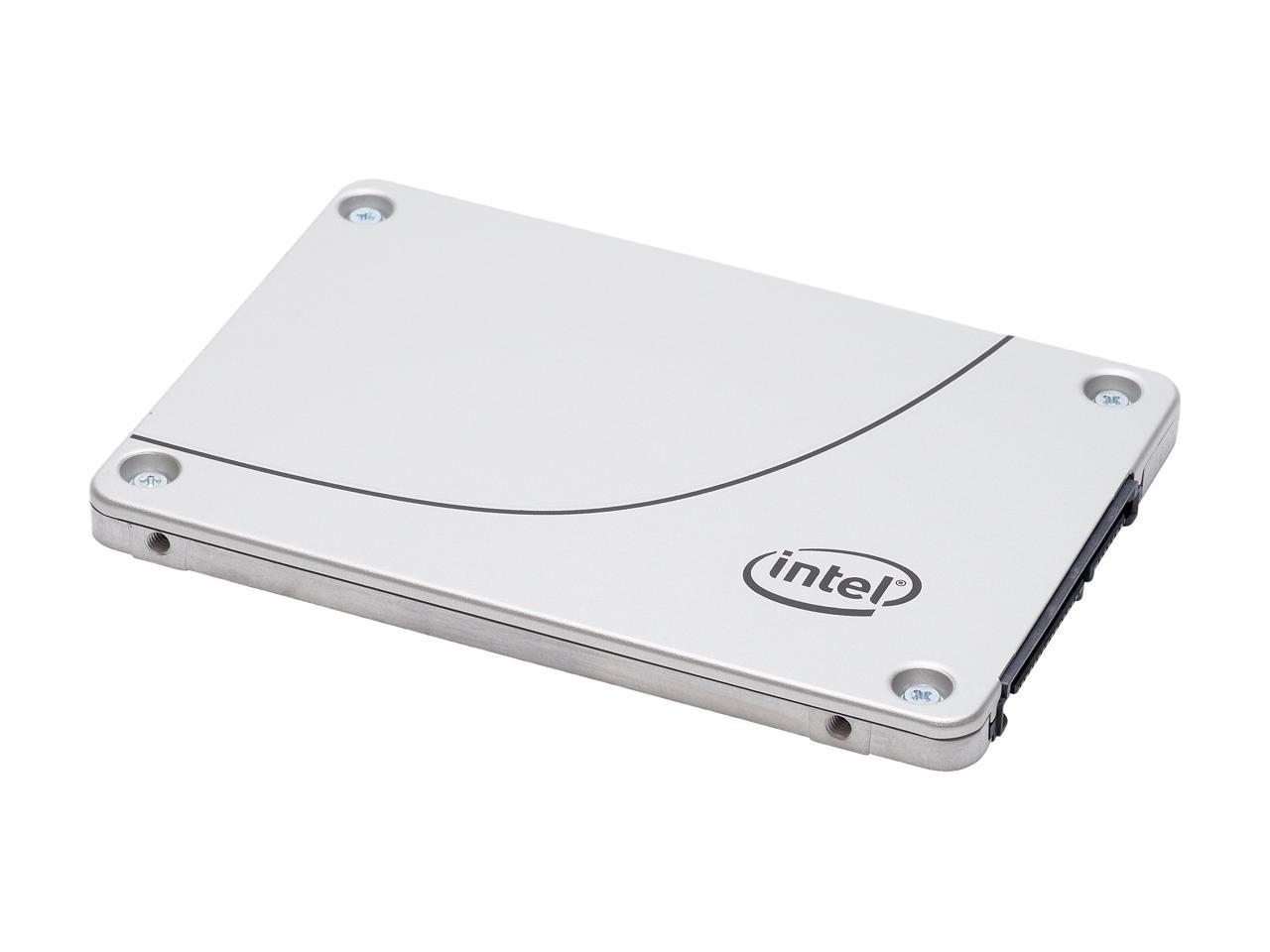

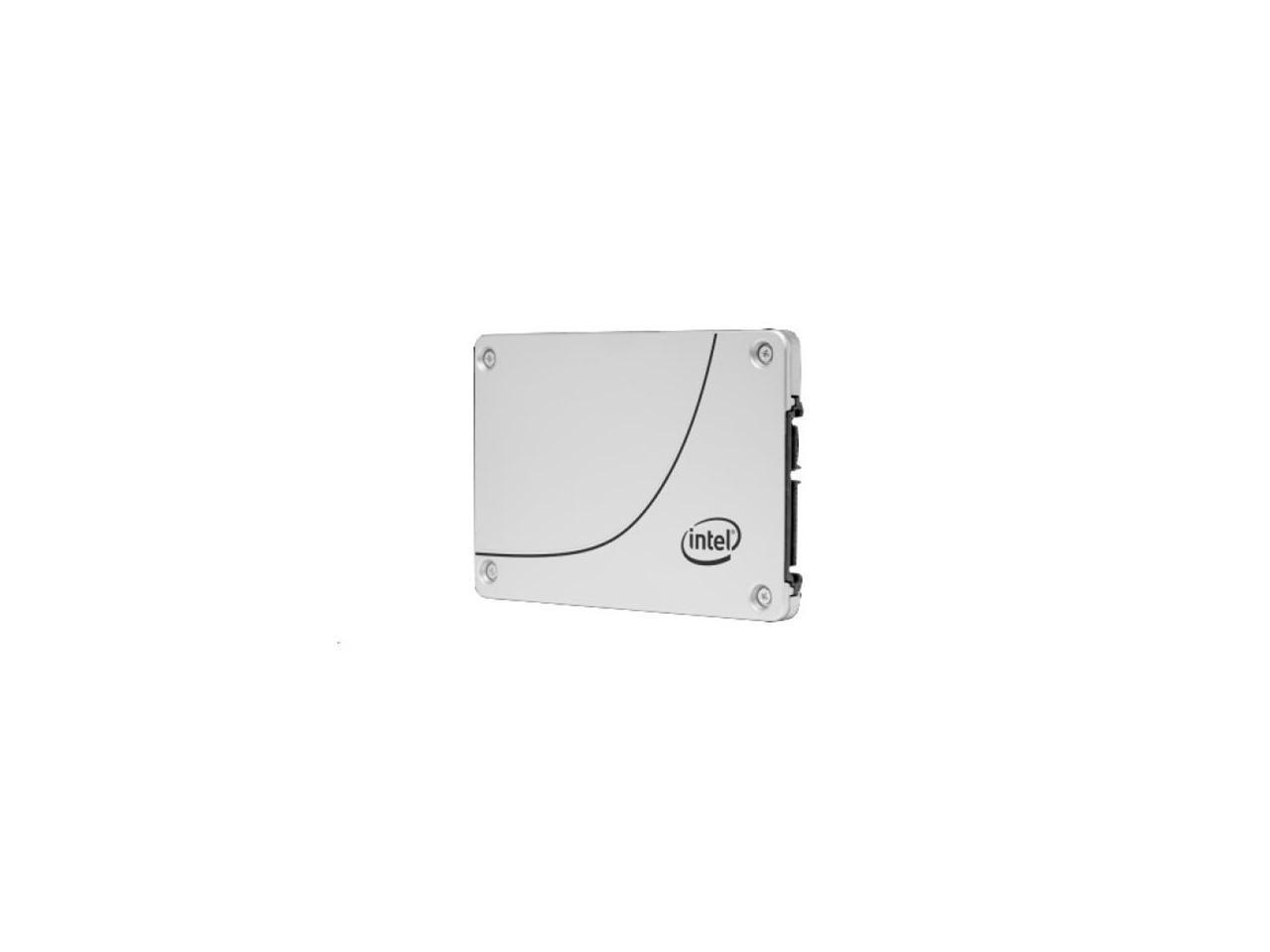

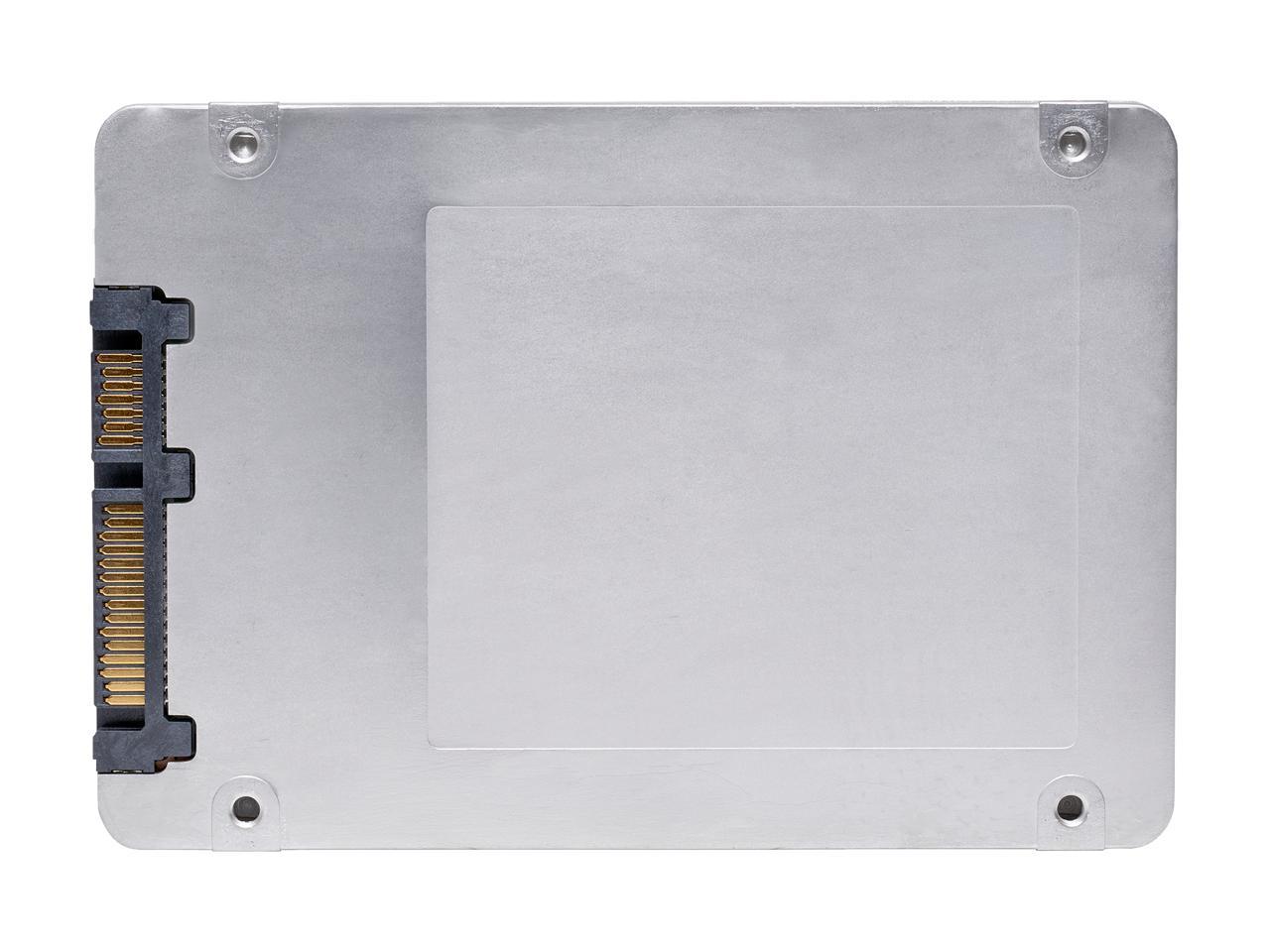

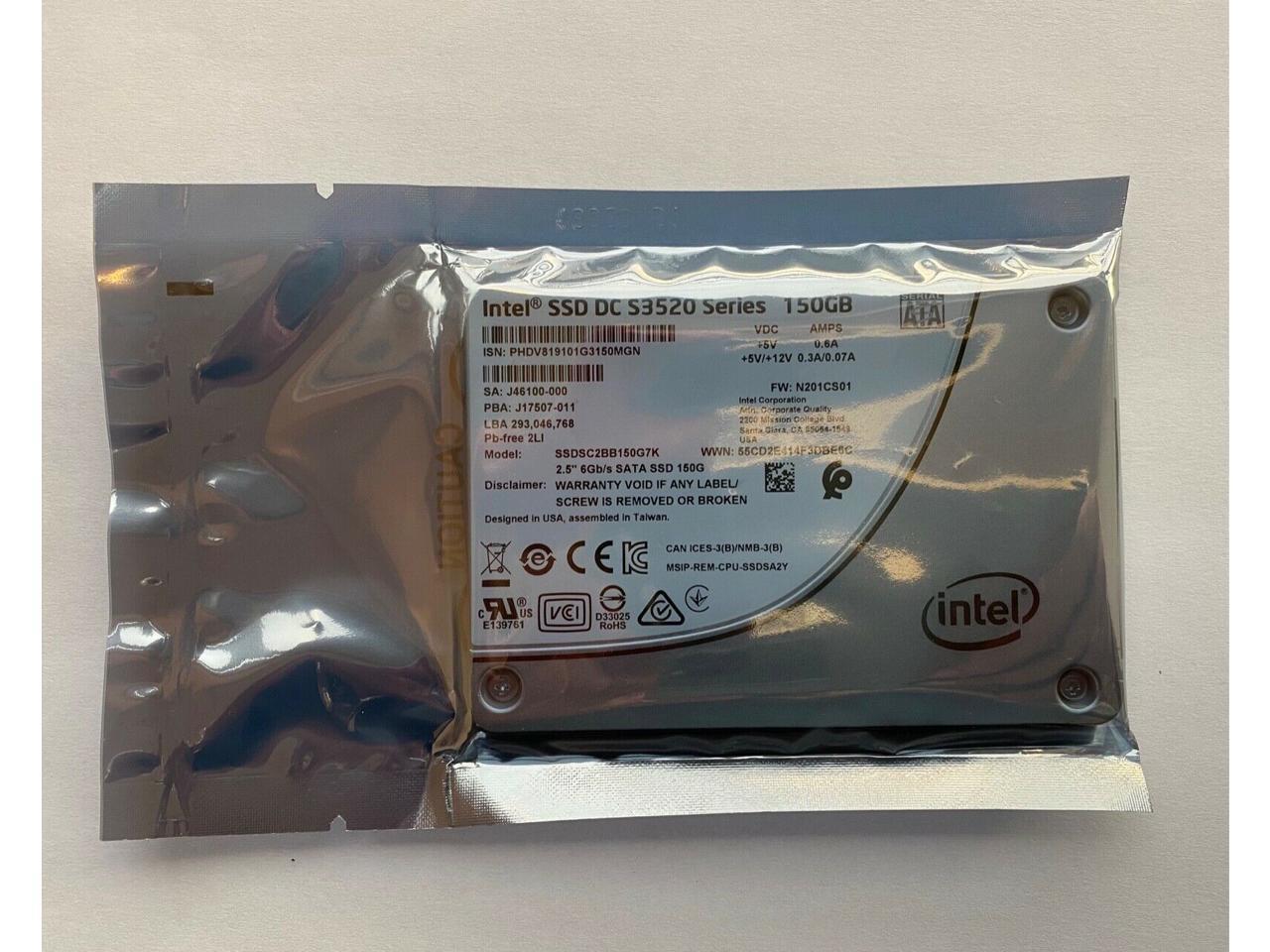

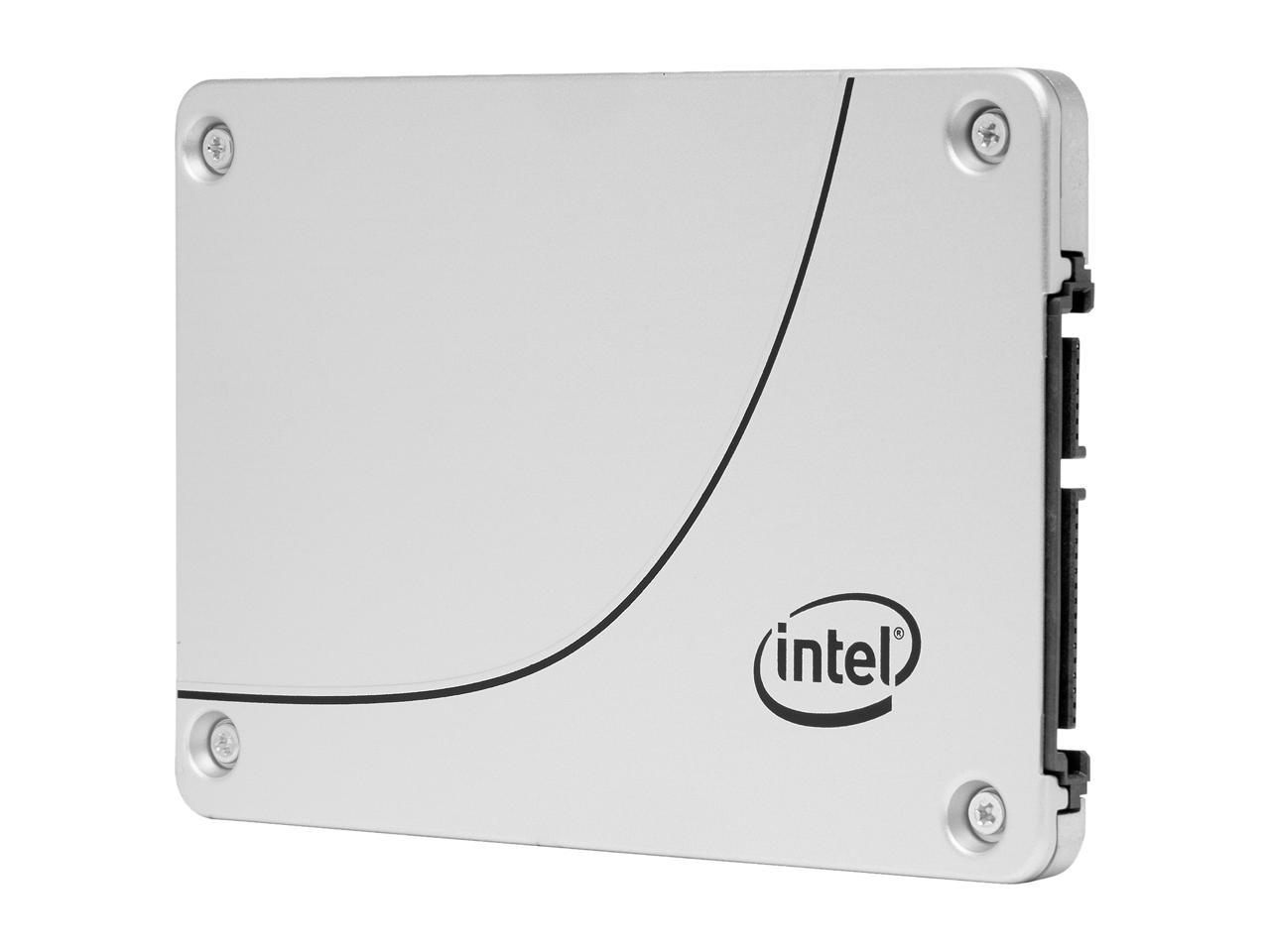

* NOTE: Image may not exactly match the product
Intel SSD DC S3520 Series (150GB, 2.5in SATA 6Gb/s, 3D1, MLC) 7mm Generic Single Pack
The Intel SSD DC S3520 Series delivers enterprise-grade reliability in a compact 150GB capacity, featuring robust MLC NAND flash memory and 3D1 technology for enhanced durability. This 2.5-inch drive operates on SATA 6Gb/s interface with a slim 7mm profile, making it ideal for space-constrained data center environments and high-density server deployments. Engineered specifically for data centers, it offers consistent performance, power efficiency, and Intel’s proven quality standards for mission-critical applications requiring dependable storage with optimized endurance for mixed workloads.
Quote5 pcs(MOQ)
Premium Client Discounts Available
| Height | 7.00mm |
|---|---|
| Brand | Intel |
| Capacity | 150GB |
| Read Latency | 30s |
| Max Shock Resistance | 1000G/0.5ms |
| Height | 7.00mm |
|---|---|
| Brand | Intel |
| Capacity | 150GB |
| Read Latency | 30s |
| Max Shock Resistance | 1000G/0.5ms |
| Products Status | New |
| Application | Server |
| Series | DC S3520 |
| Interface | SATA III |
| Max Sequential Write | Up to 165 MB/s |
| Features | – +35% performance/watt (compared to DC S3510 Series), – 15% lower idle power, – 30% lower active write power, Excellent efficiency across power states (compared to DC S3510 Series), Form factors – 2.5" and M.2 (80mm) with increased capacities, Increased endurance at 1.0 DWPD suitable for a broad range of applications, Low latency |
| Max Sequential Read | Up to 180 MB/s |
| Power Consumption (Idle) | 0.53W |
| 4KB Random Write | Up to 31 000 IOPS |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
| MTBF | 2 000 000 hours |
| Model | SSDSC2BB150G701 |
| Operating Temperature | 0C ~ +70C |
| Power Consumption (Active) | 2.2W |
| Weight | 2.12 oz. |
| Write Latency | 35s |
| Form Factor | 2.5" |
| Memory Components | MLC |
| 4KB Random Read | Up to 43 000 IOPS |
