- 2.5″
- MLC
- SATA III
- 1.2TB

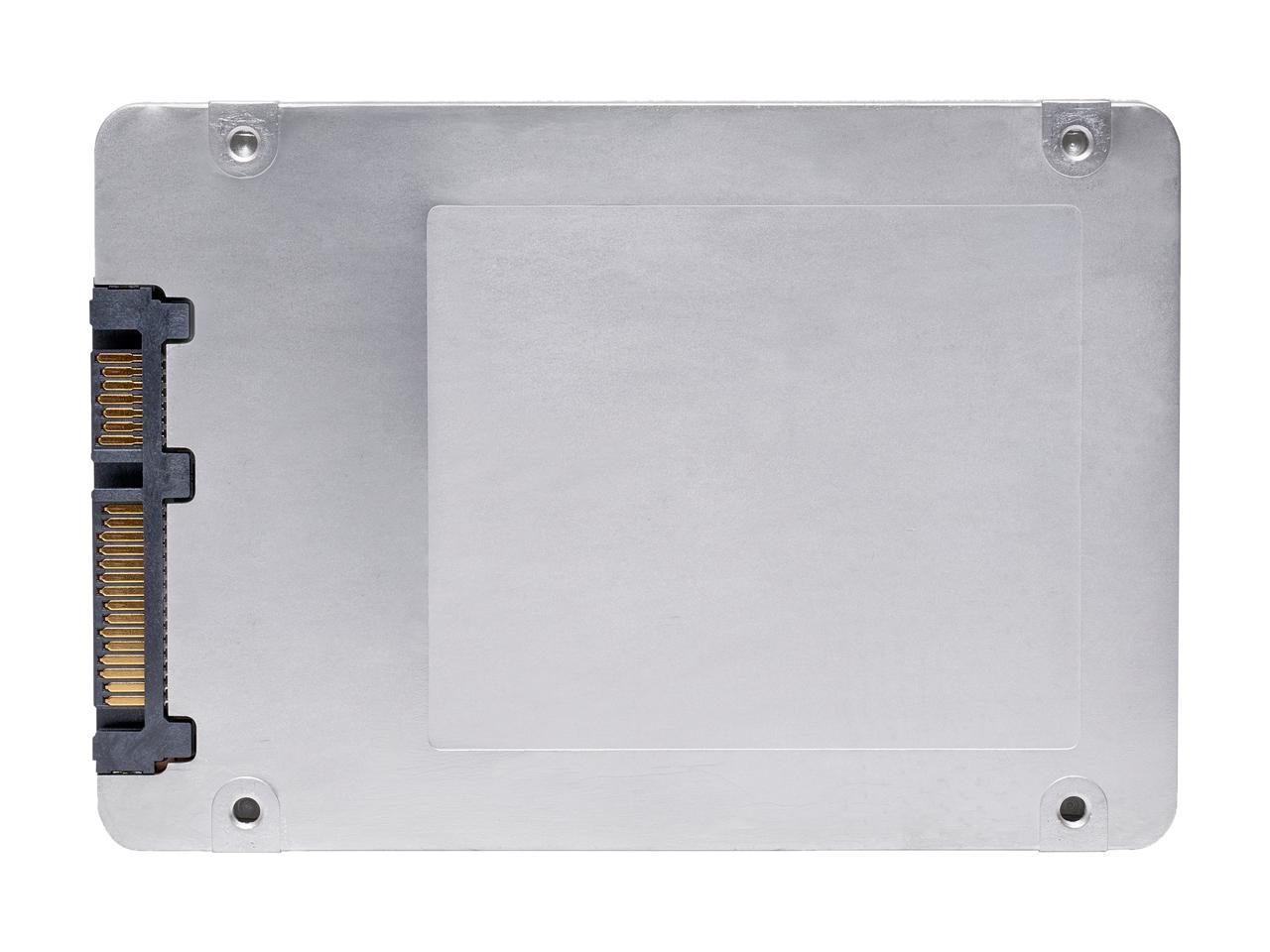

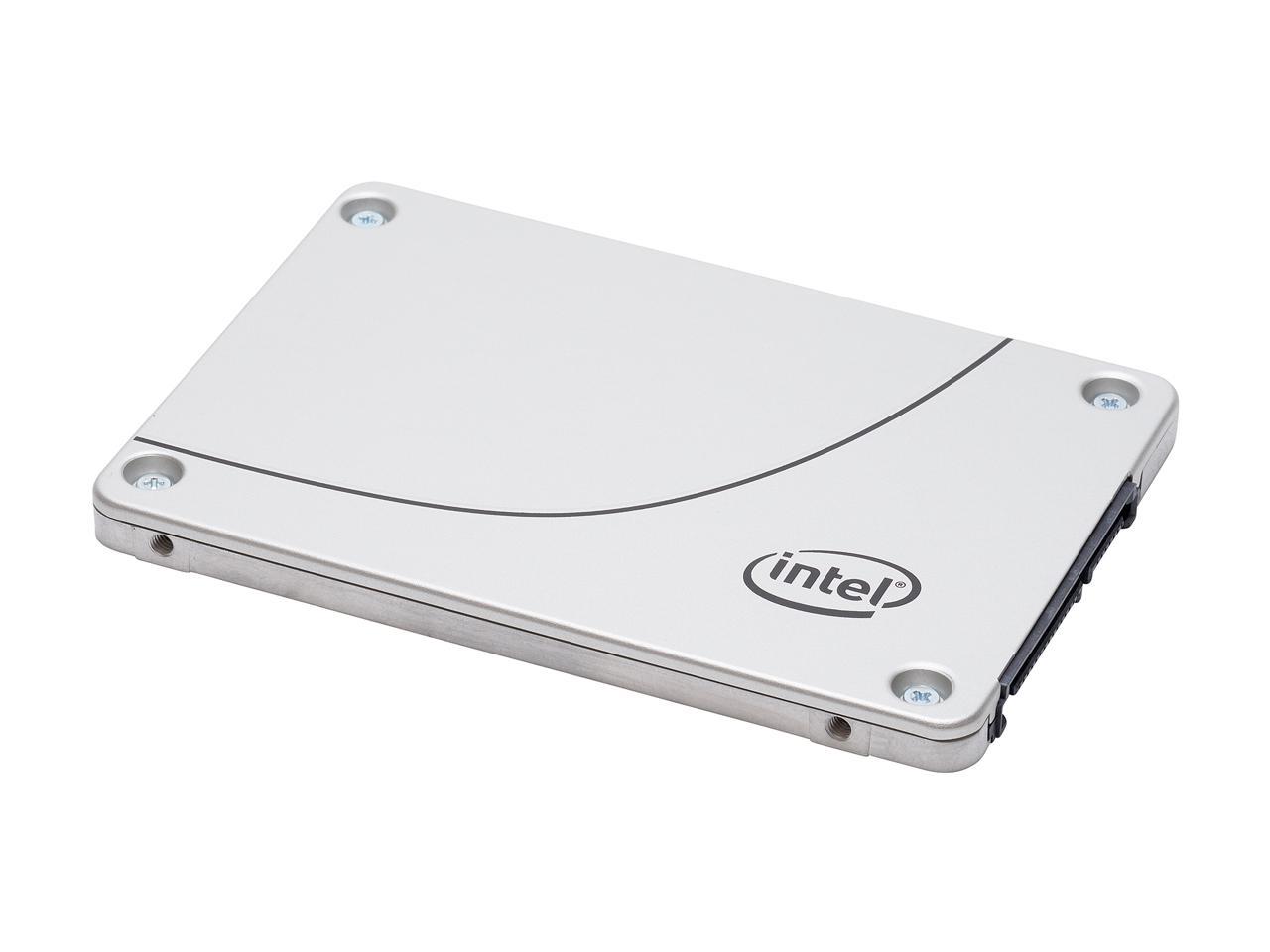

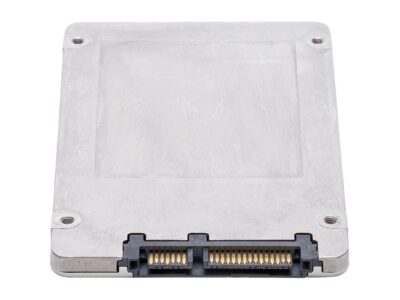

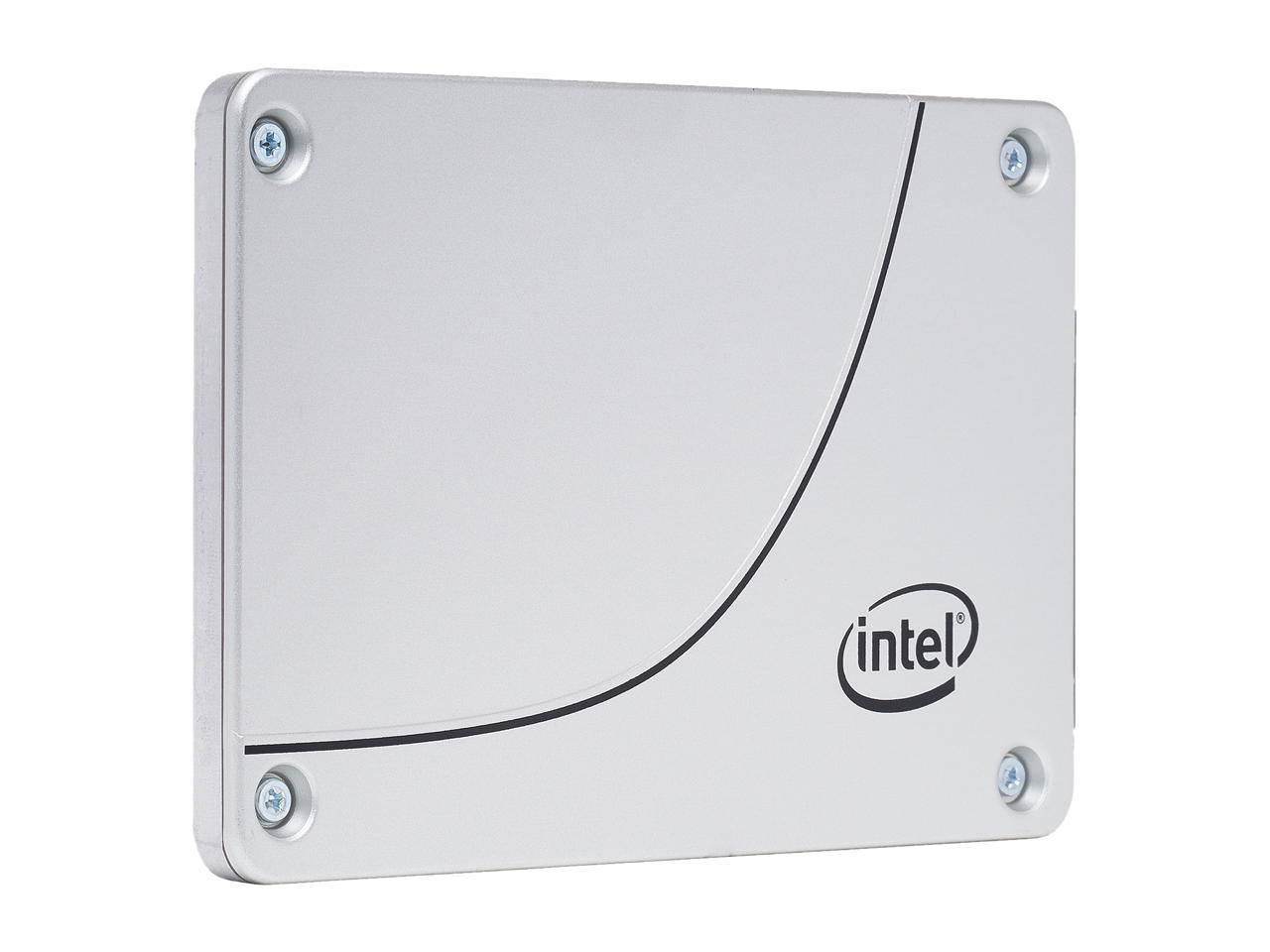

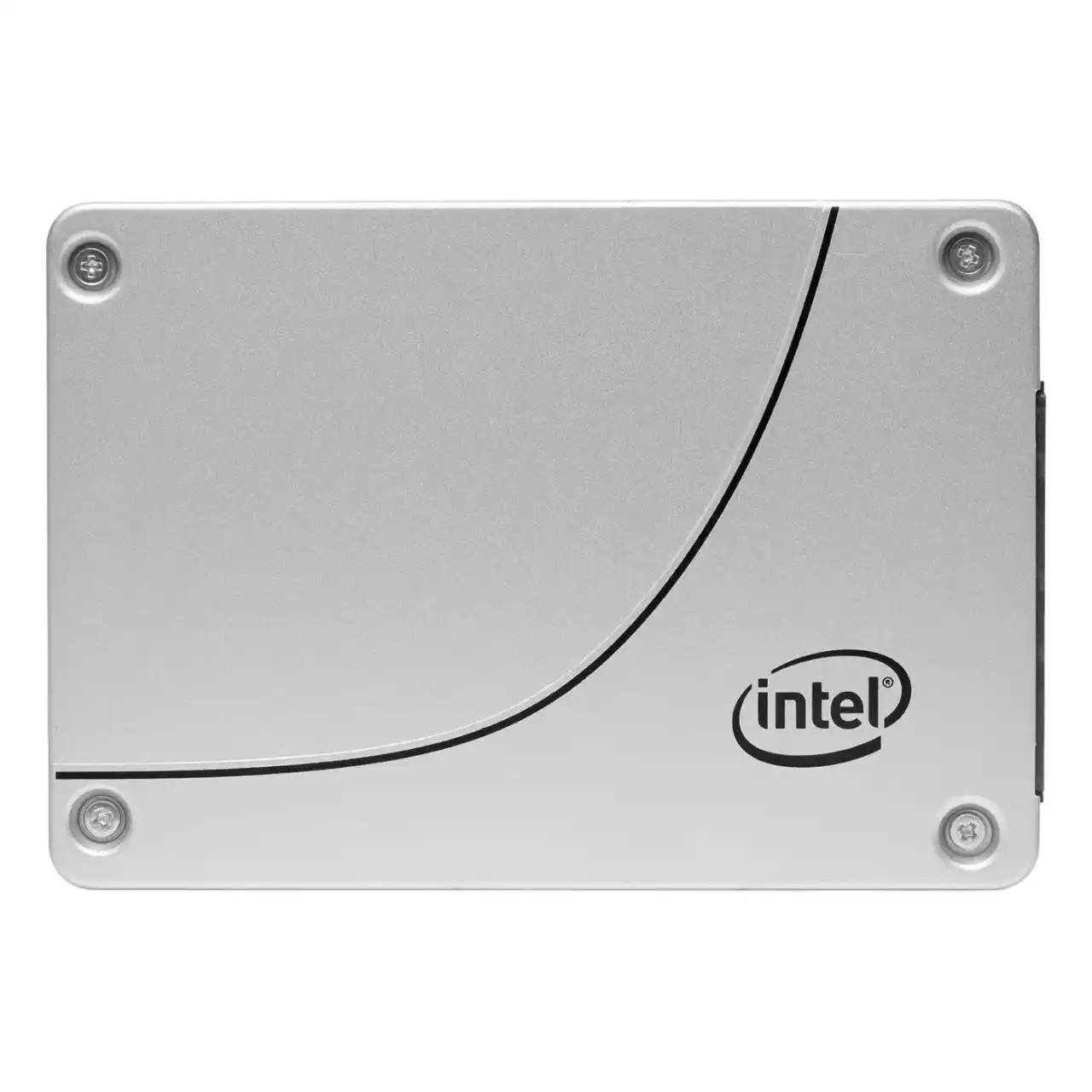

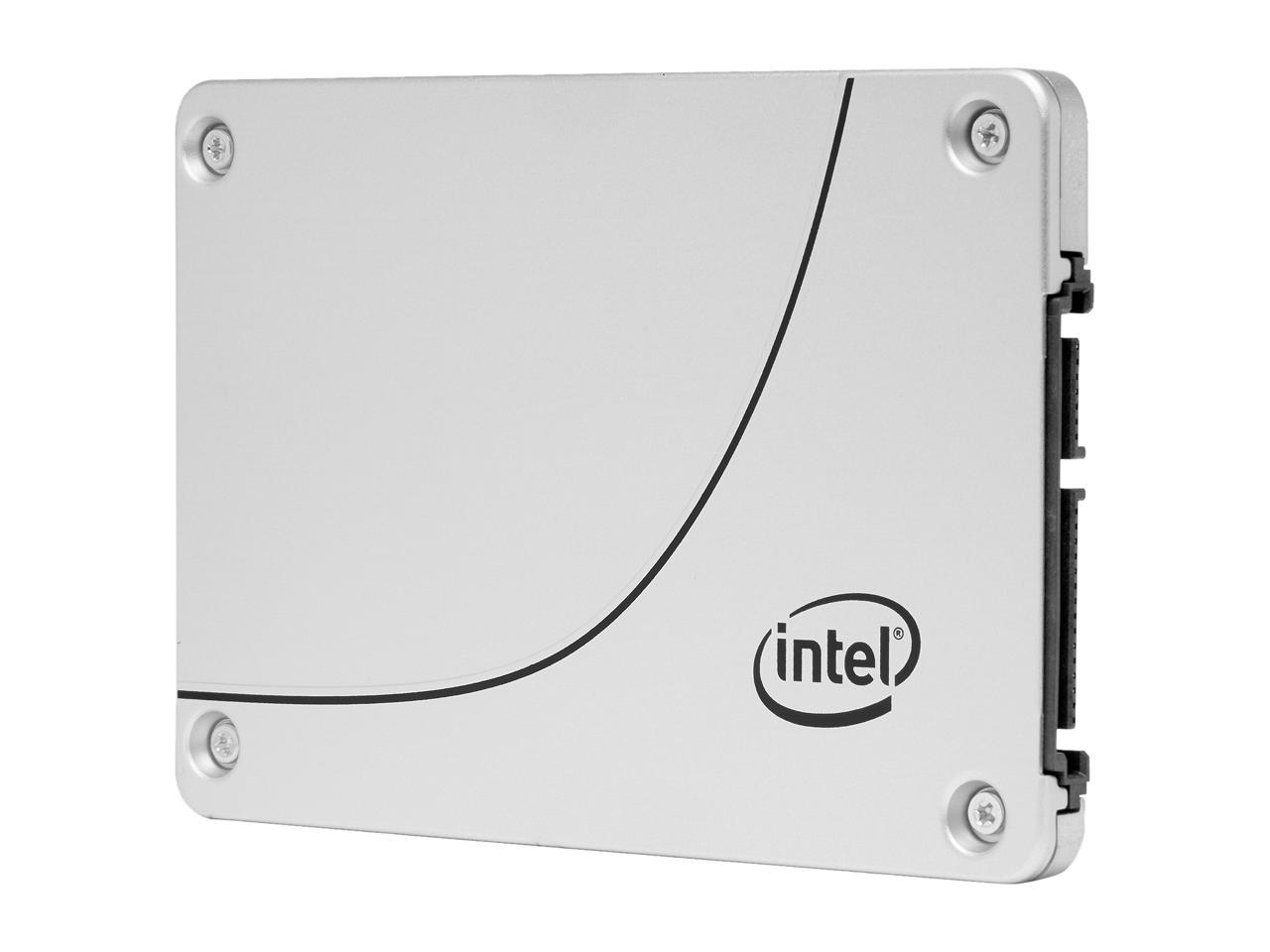

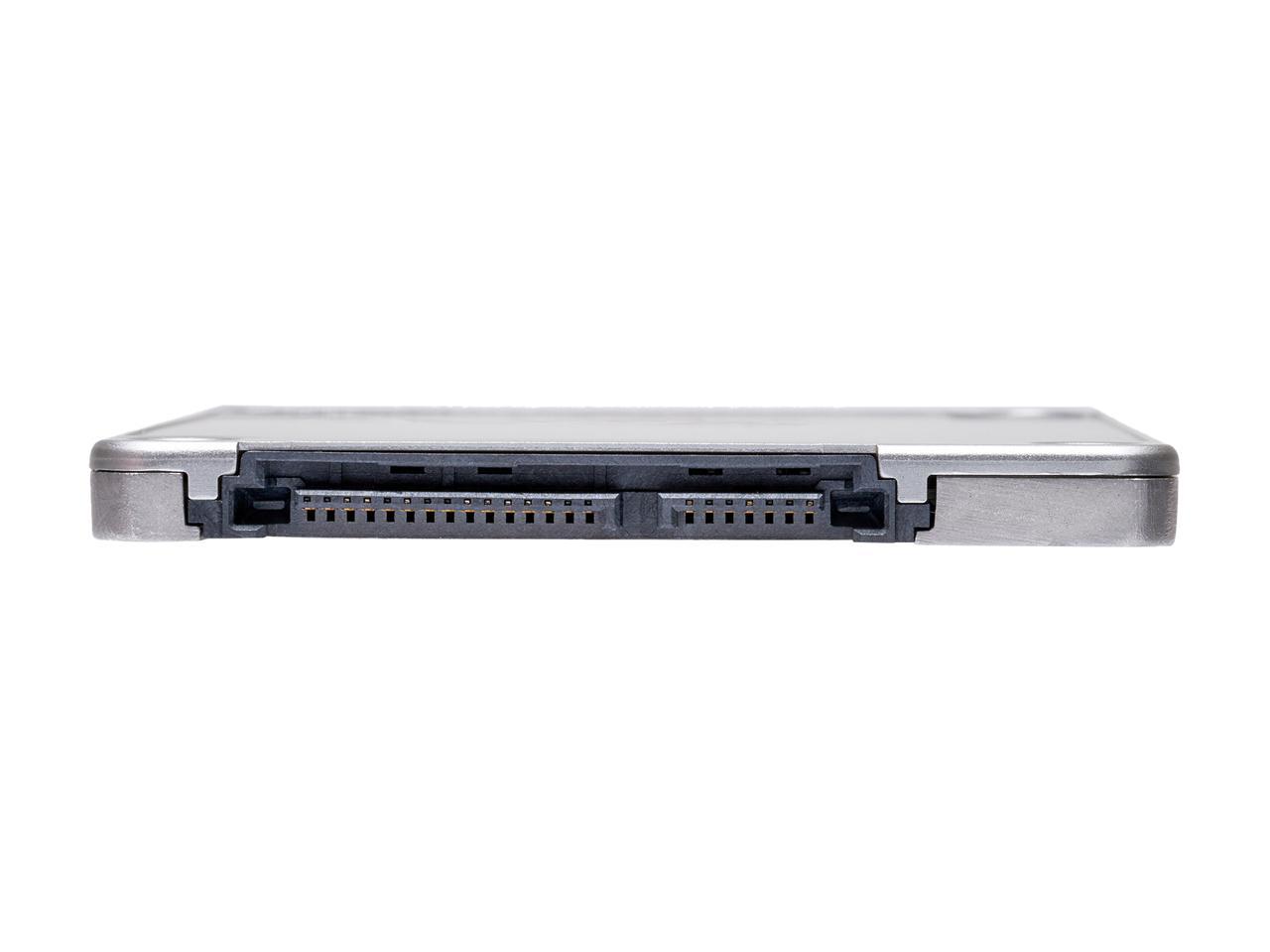

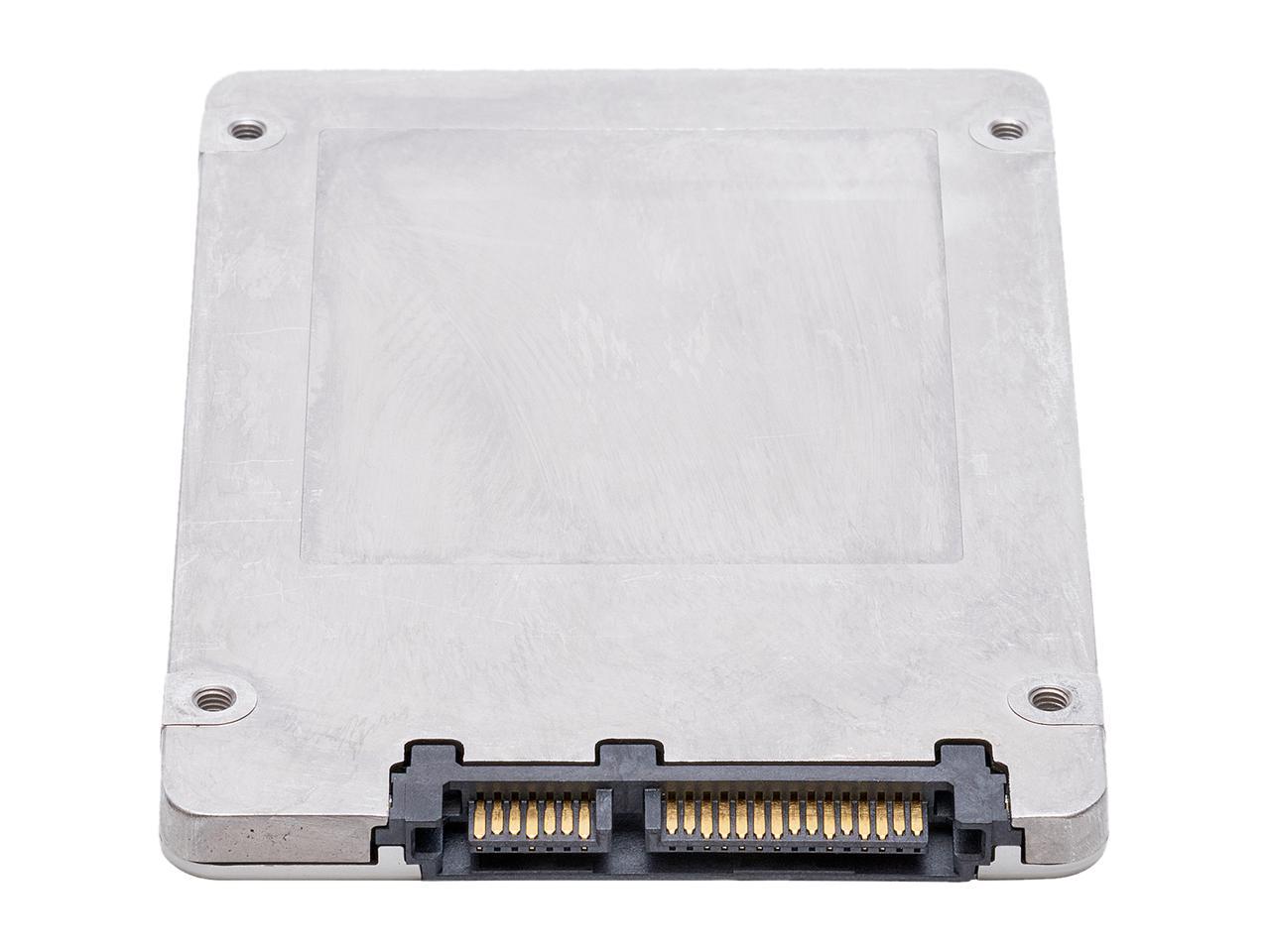

* NOTE: Image may not exactly match the product
Intel SSD DC S3520 Series (1.2TB, 2.5in SATA 6Gb/s, 3D1, MLC) 7mm Generic Single Pack
The Intel SSD DC S3520 Series delivers enterprise-grade reliability with 1.2TB of high-performance storage in a compact 2.5-inch form factor. Built with 3D1 MLC NAND technology, this drive offers exceptional endurance and data integrity for demanding datacenter applications. The SATA 6Gb/s interface ensures broad compatibility while the ultra-thin 7mm profile maximizes space efficiency in dense server environments. Key advantages include Intel’s proven enterprise SSD heritage, optimized power consumption, advanced error correction, and consistent performance under heavy workloads. Ideal for cloud computing, virtualization, and high-availability systems requiring dependable storage with superior cost-per-gigabyte value.
Quote5 pcs(MOQ)
Premium Client Discounts Available
| Height | 7.00mm |
|---|---|
| Brand | Intel |
| Capacity | 1.2TB |
| Read Latency | 40s |
| Max Shock Resistance | 1000G/0.5ms |
| Height | 7.00mm |
|---|---|
| Brand | Intel |
| Capacity | 1.2TB |
| Read Latency | 40s |
| Max Shock Resistance | 1000G/0.5ms |
| Products Status | New |
| Application | Server |
| Series | DC S3520 |
| Interface | SATA III |
| Max Sequential Write | Up to 380 MB/s |
| Features | – +35% performance/watt (compared to DC S3510 Series), – 15% lower idle power, – 30% lower active write power, Excellent efficiency across power states (compared to DC S3510 Series), Form factors – 2.5" and M.2 (80mm) with increased capacities, Increased endurance at 1.0 DWPD suitable for a broad range of applications, Low latency |
| Max Sequential Read | Up to 450 MB/s |
| Power Consumption (Idle) | 0.6W |
| 4KB Random Write | Up to 17 000 IOPS |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
| MTBF | 2 000 000 hours |
| Model | SSDSC2BB012T701 |
| Operating Temperature | 0C ~ +70C |
| Power Consumption (Active) | 3.5W |
| Weight | 2.33 oz. |
| Write Latency | 42s |
| Form Factor | 2.5" |
| Memory Components | MLC |
| 4KB Random Read | Up to 67 500 IOPS |
