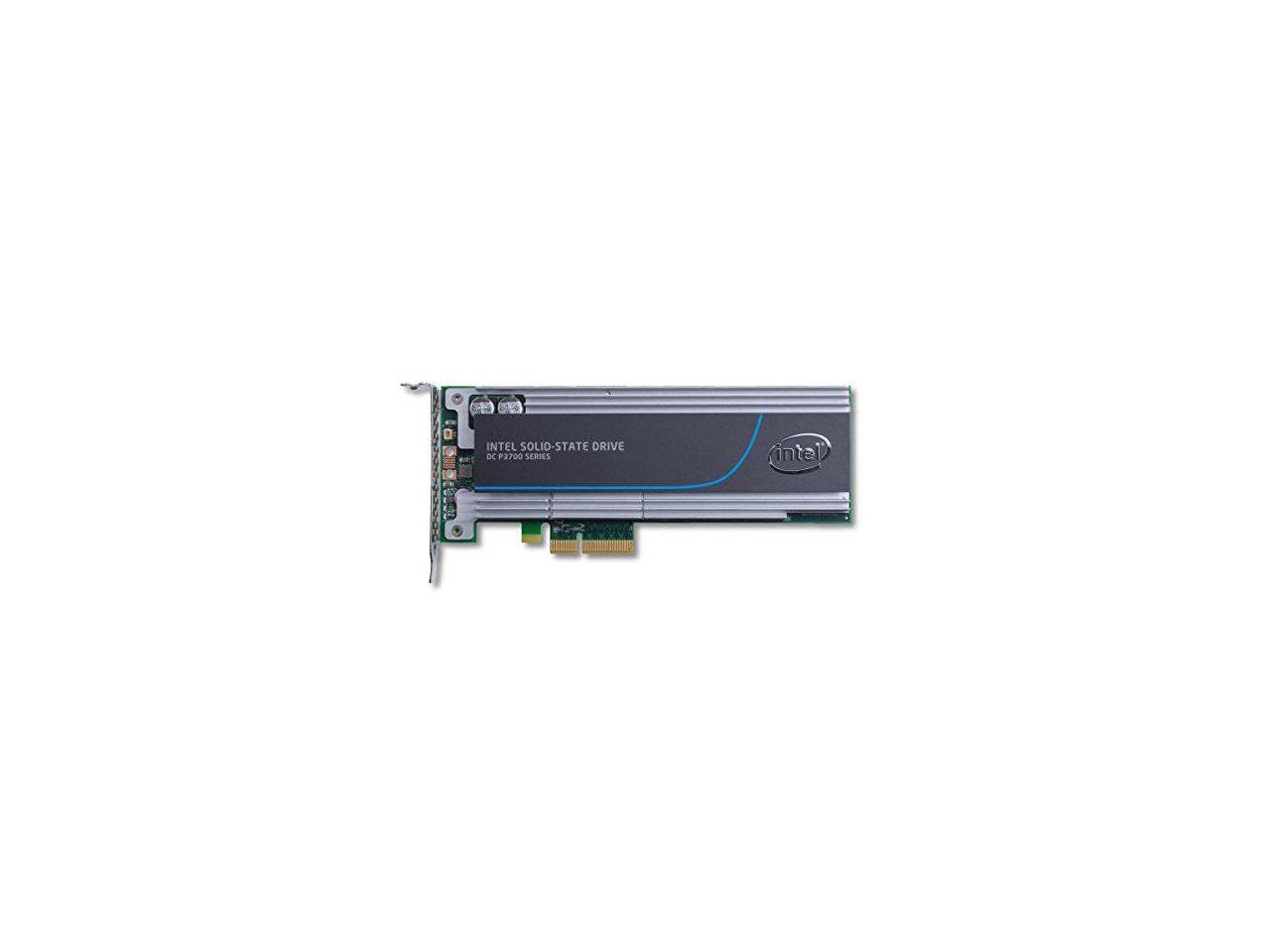

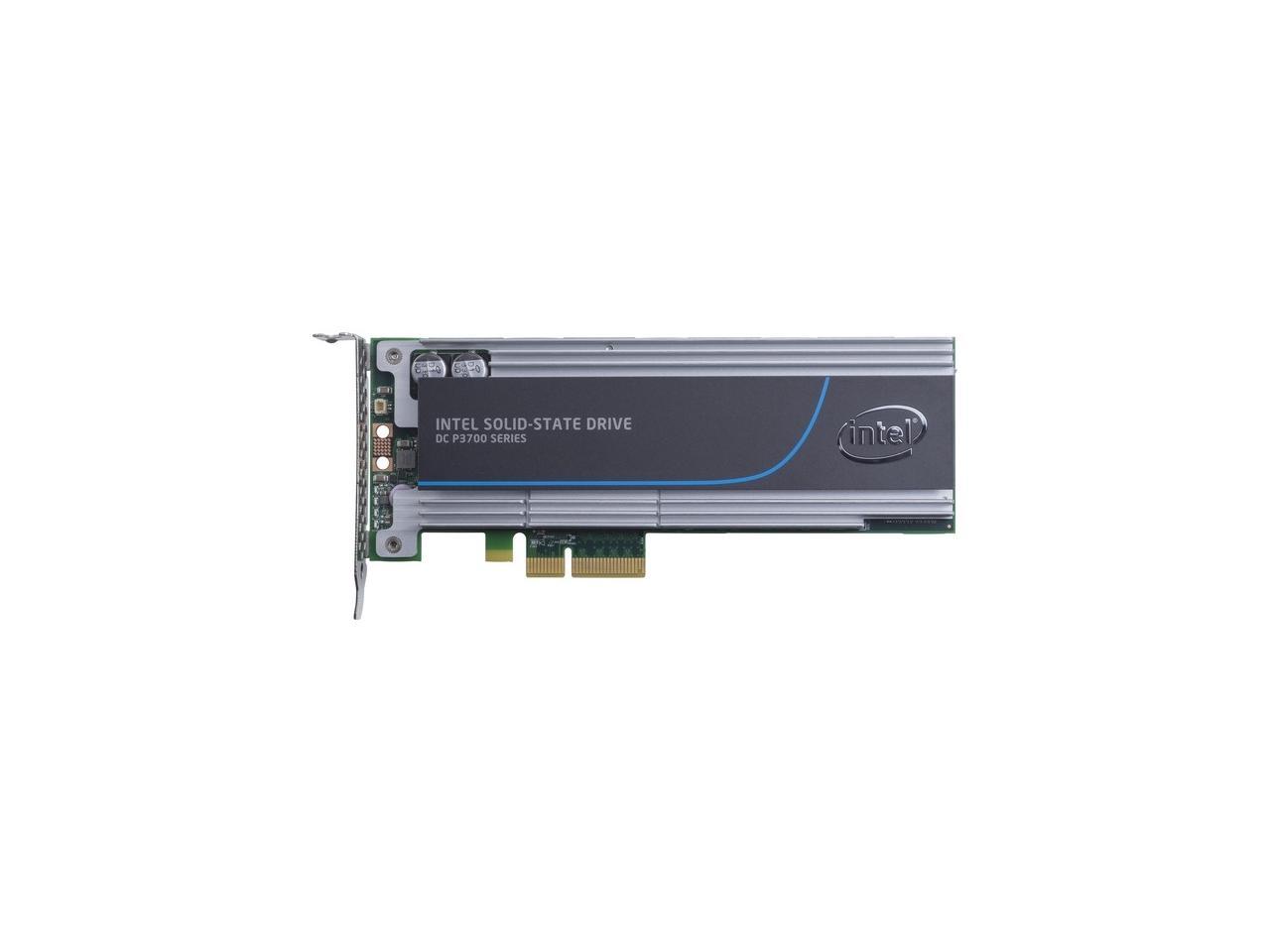

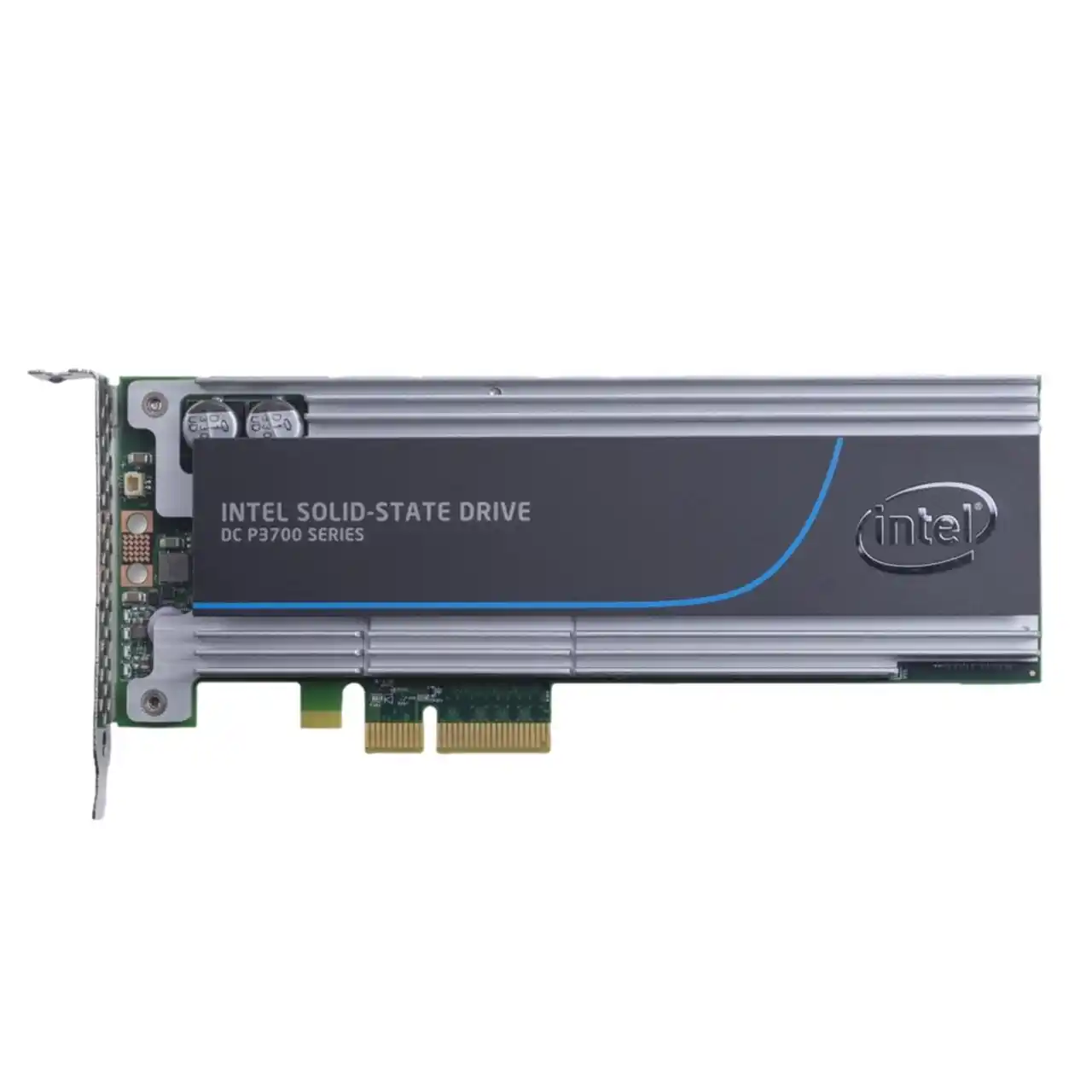

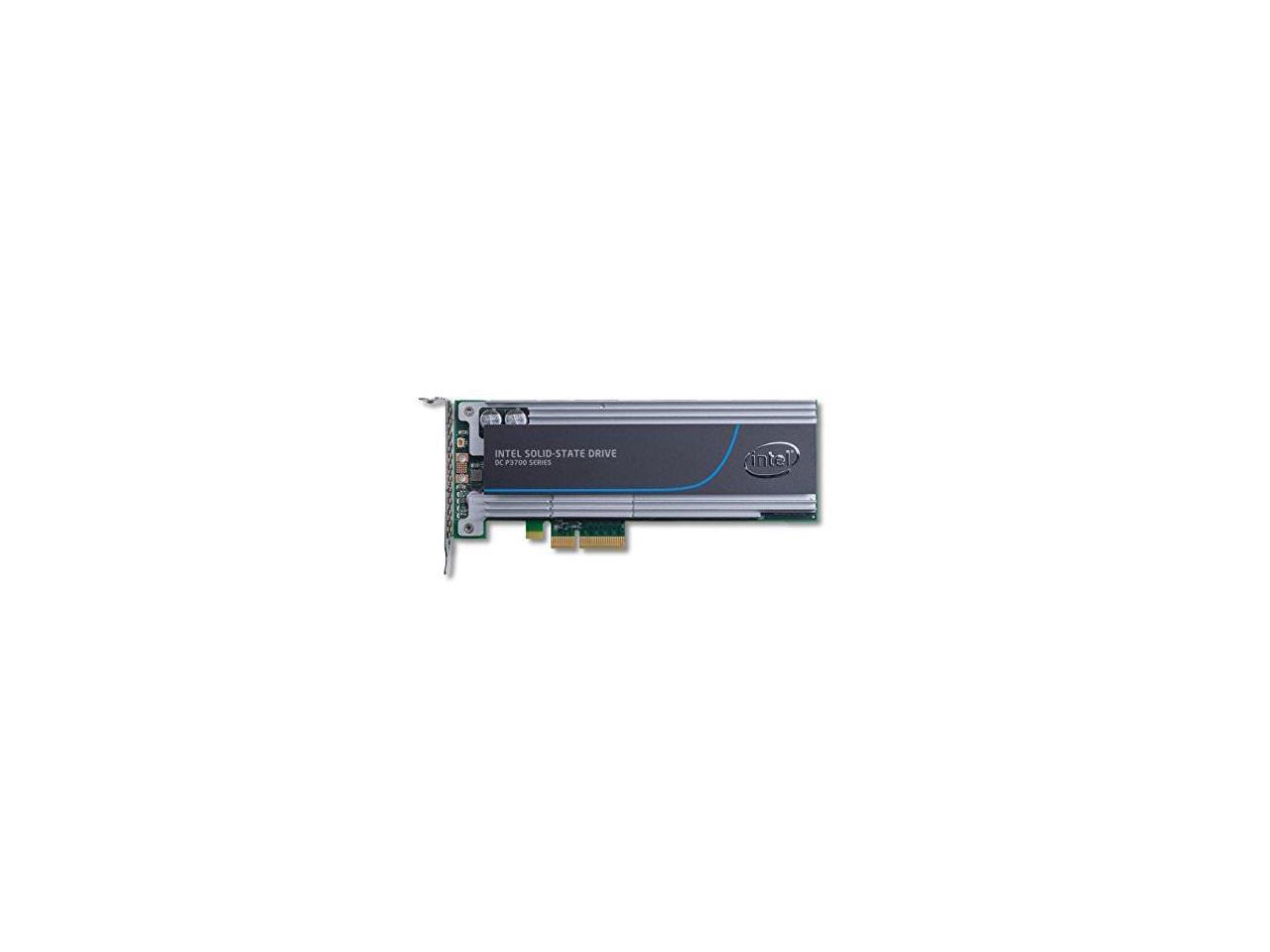

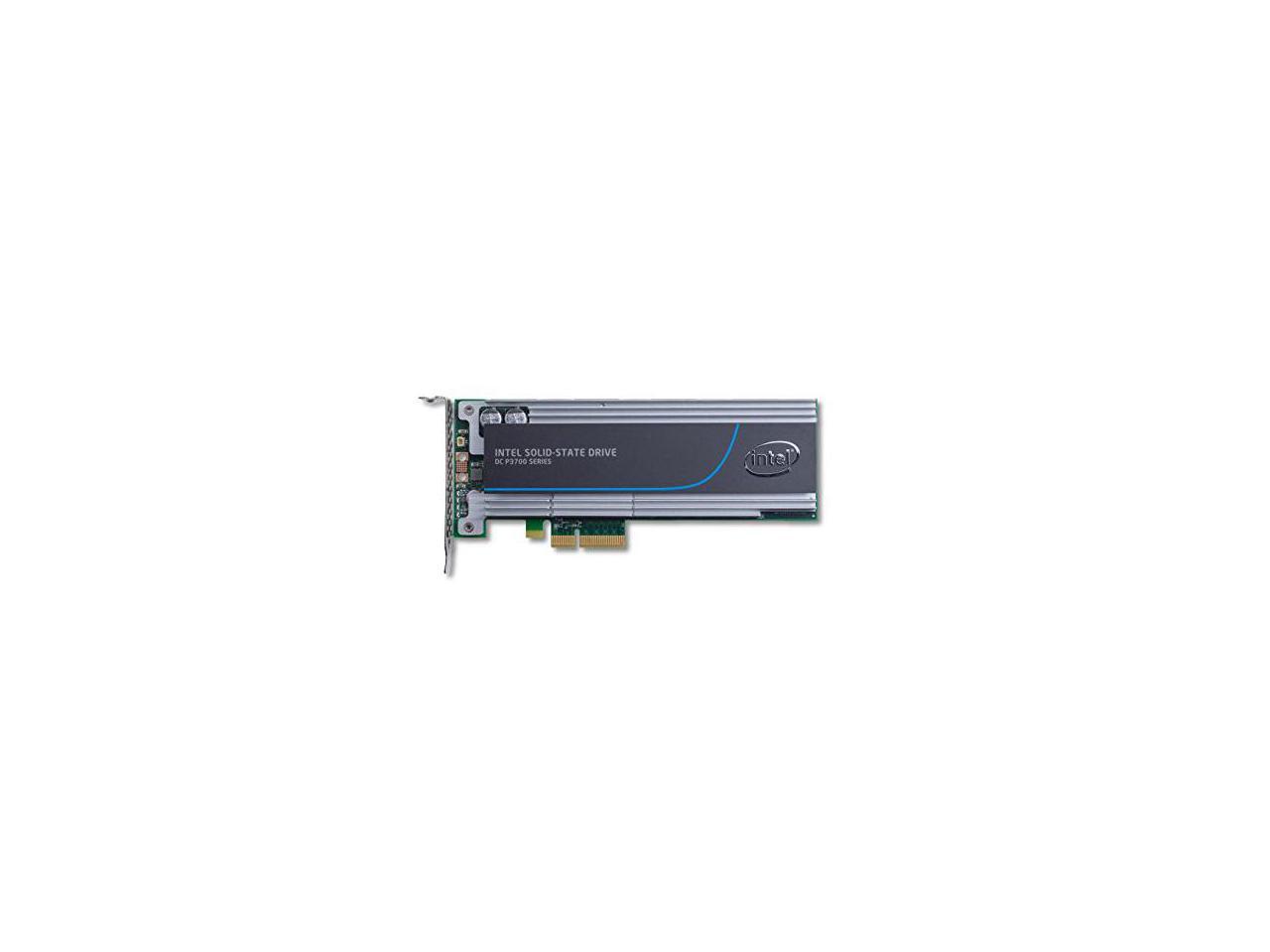

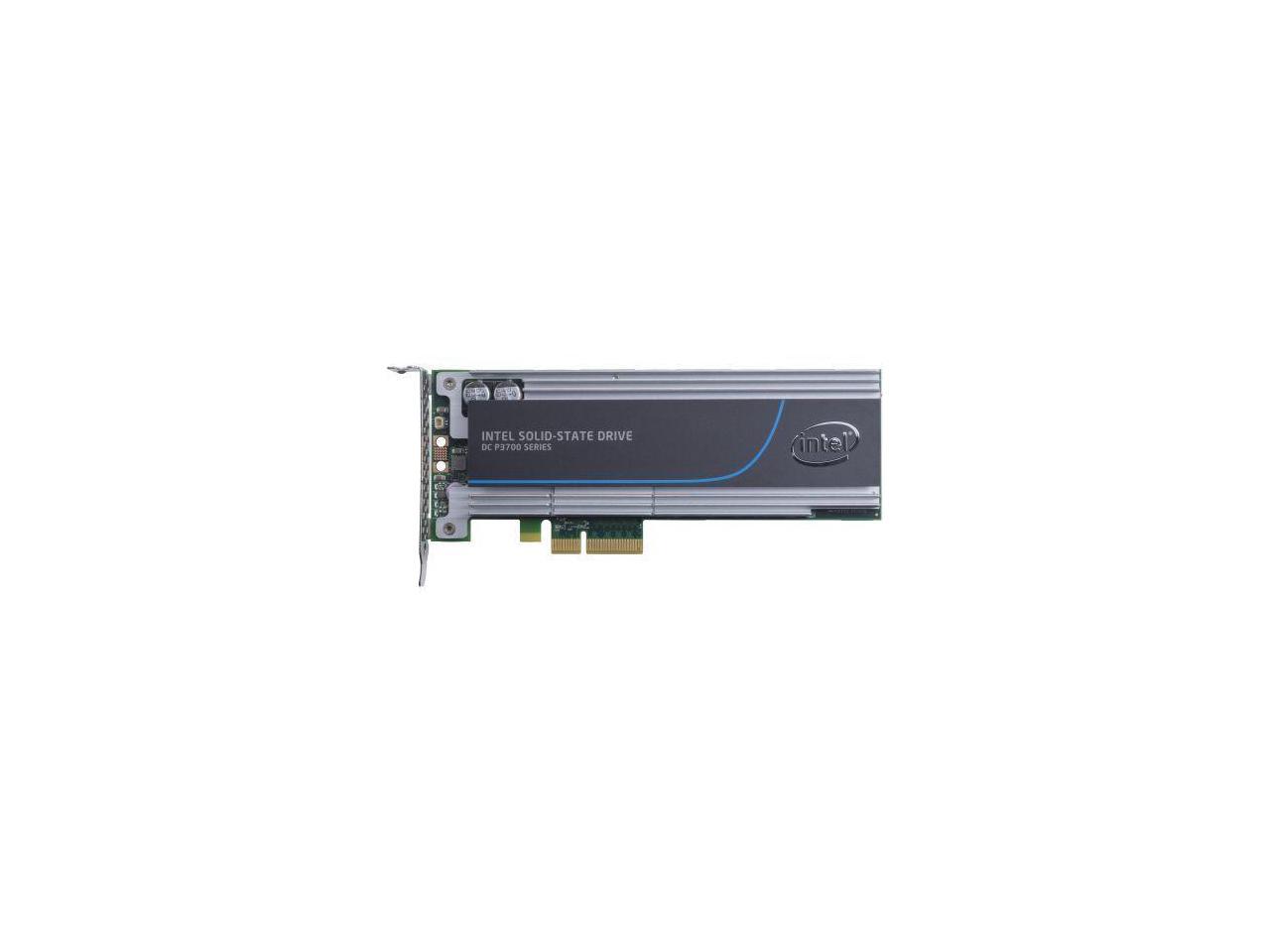

Intel DC P3700 SSDPEDMD800G401 AIC 800GB PCI-Express 3.0 x4 MLC Solid State Drive

The Intel DC P3700 is an enterprise-grade 800GB NVMe SSD designed for data center applications requiring extreme performance and reliability. This PCIe 3.0 x4 add-in card delivers exceptional sequential read speeds up to 2,800 MB/s and write speeds up to 1,700 MB/s, with outstanding random IOPS performance of 460,000 read and 175,000 write operations. Built with high-endurance MLC NAND flash, it offers superior data retention and can handle intensive workloads with up to 17 drive writes per day over five years. The drive features advanced power loss protection, end-to-end data protection, and Intel’s proprietary controller technology for consistent low-latency performance. Its AIC form factor provides easy installation and optimal cooling, making it ideal for high-performance computing, virtualization, databases, and analytics applications where speed, reliability, and endurance are critical.

Quote5 pcs(MOQ)

Premium Client Discounts Available

HeightHalf Height Half Length (HHHL)
BrandIntel
Capacity800GB
Read Latency20s
ControllerIntel
  • AIC
  • MLC
  • PCI-Express 3.0 x4
  • 800GB
Height

Half Height Half Length (HHHL)

Brand

Intel

Capacity

800GB

Read Latency

20s

Controller

Intel

Max Shock Resistance

50G Trapezoidal 170 in/s

Products Status

New

Storage Temperature

-55C ~ +95C

Application

Server

Series

DC P3700

Interface

PCIe 3.0 x4

Max Sequential Write

Up to 2000 MB/s

Max Sequential Read

Up to 2800 MB/s

Power Consumption (Idle)

4W

4KB Random Write

Up to 17 500 IOPS

Max Vibration Resistance

Non-Operating: 3.13 GRMS (5-800Hz), Operating: 2.17 GRMS (5-700Hz)

MTBF

2 000 000 hours

Model

SSDPEDMD800G401

Operating Temperature

0C ~ +55C

Power Consumption (Active)

<25W (Write) / <11W (Read)

Weight

185.00g

Write Latency

20s

Form Factor

AIC

Memory Components

MLC

4KB Random Read

Up to 460 000 IOPS
