- M.2 2280
- 1TB
- PCIe NVMe 3.1 x4

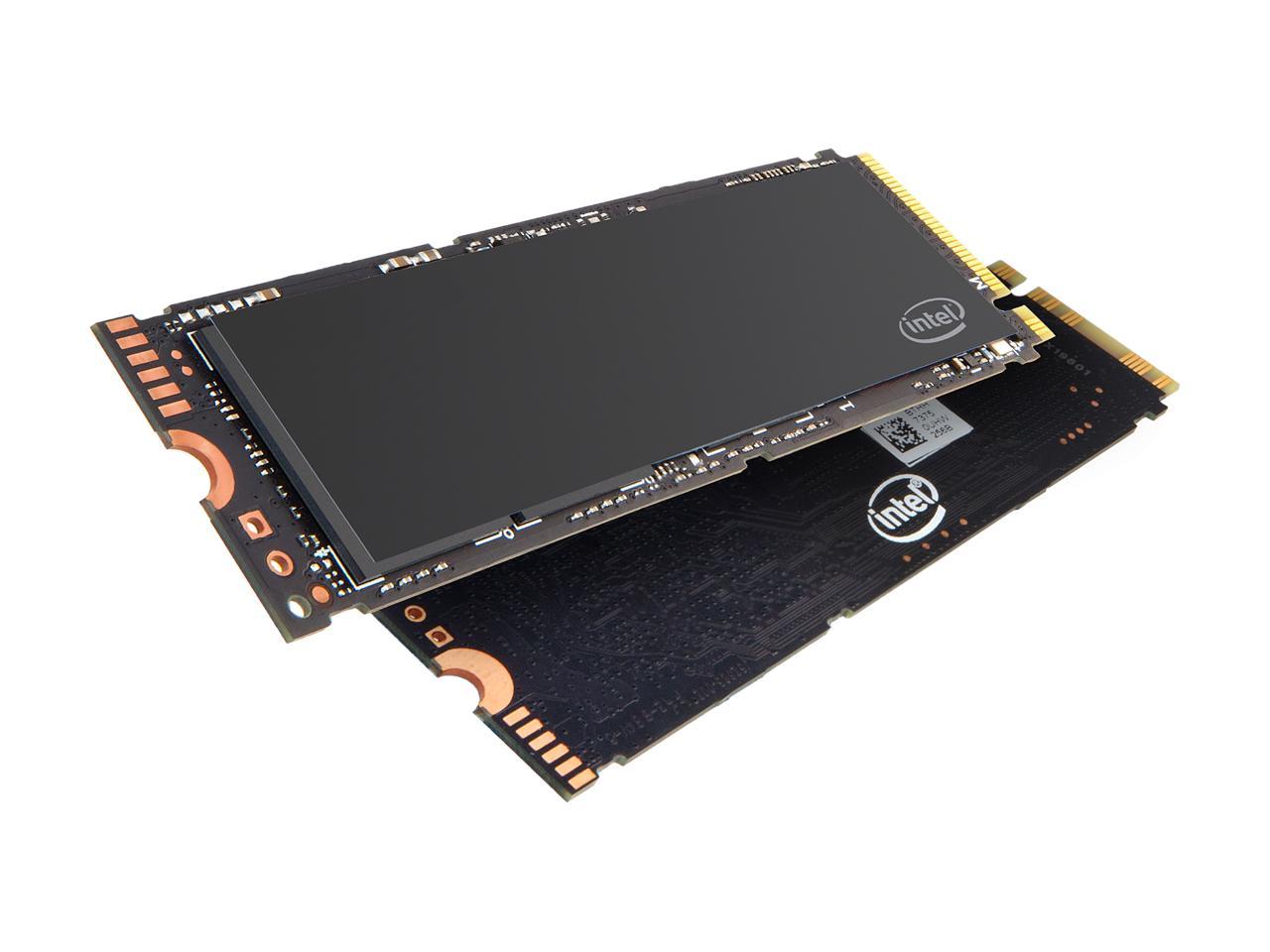

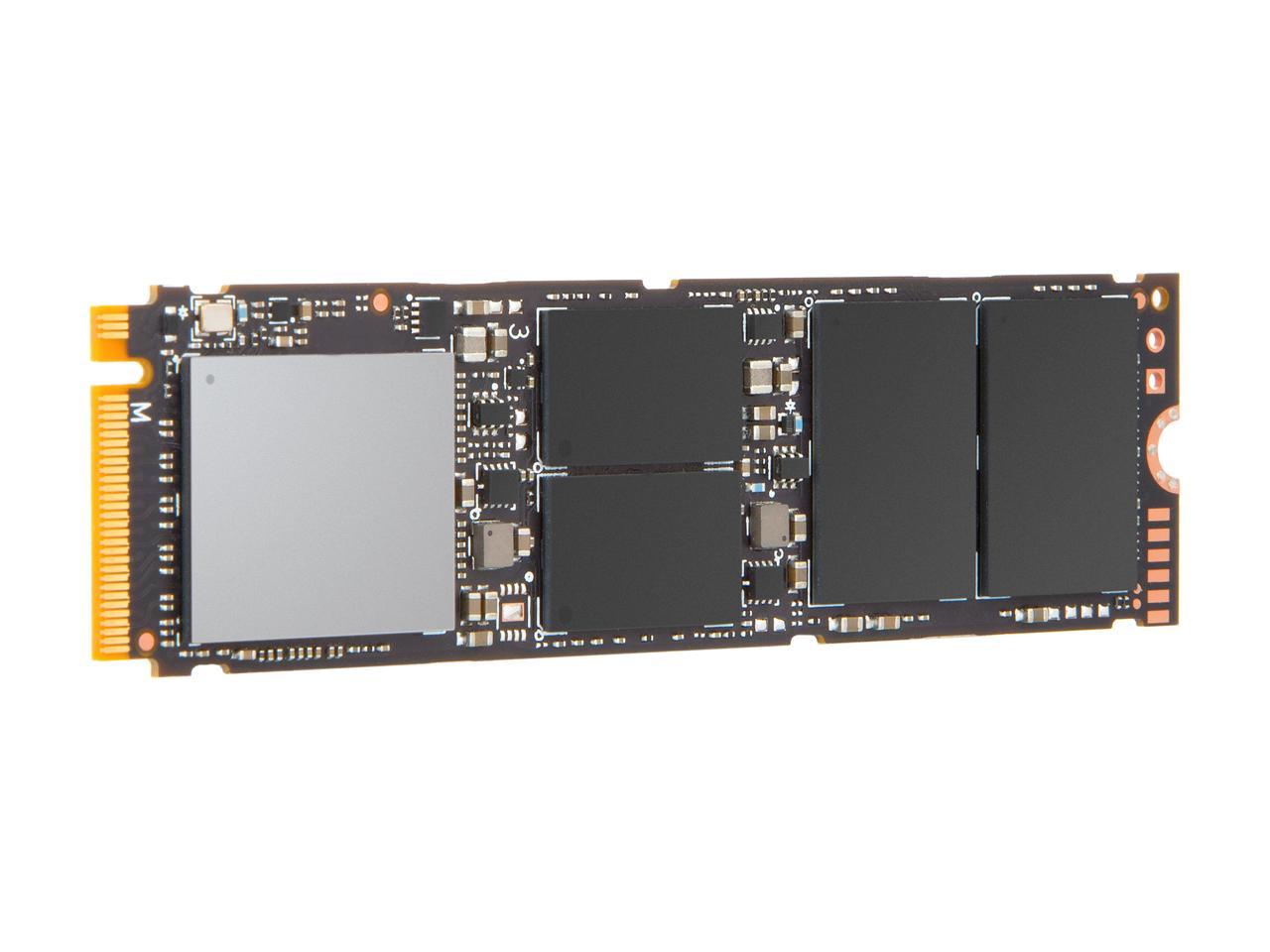

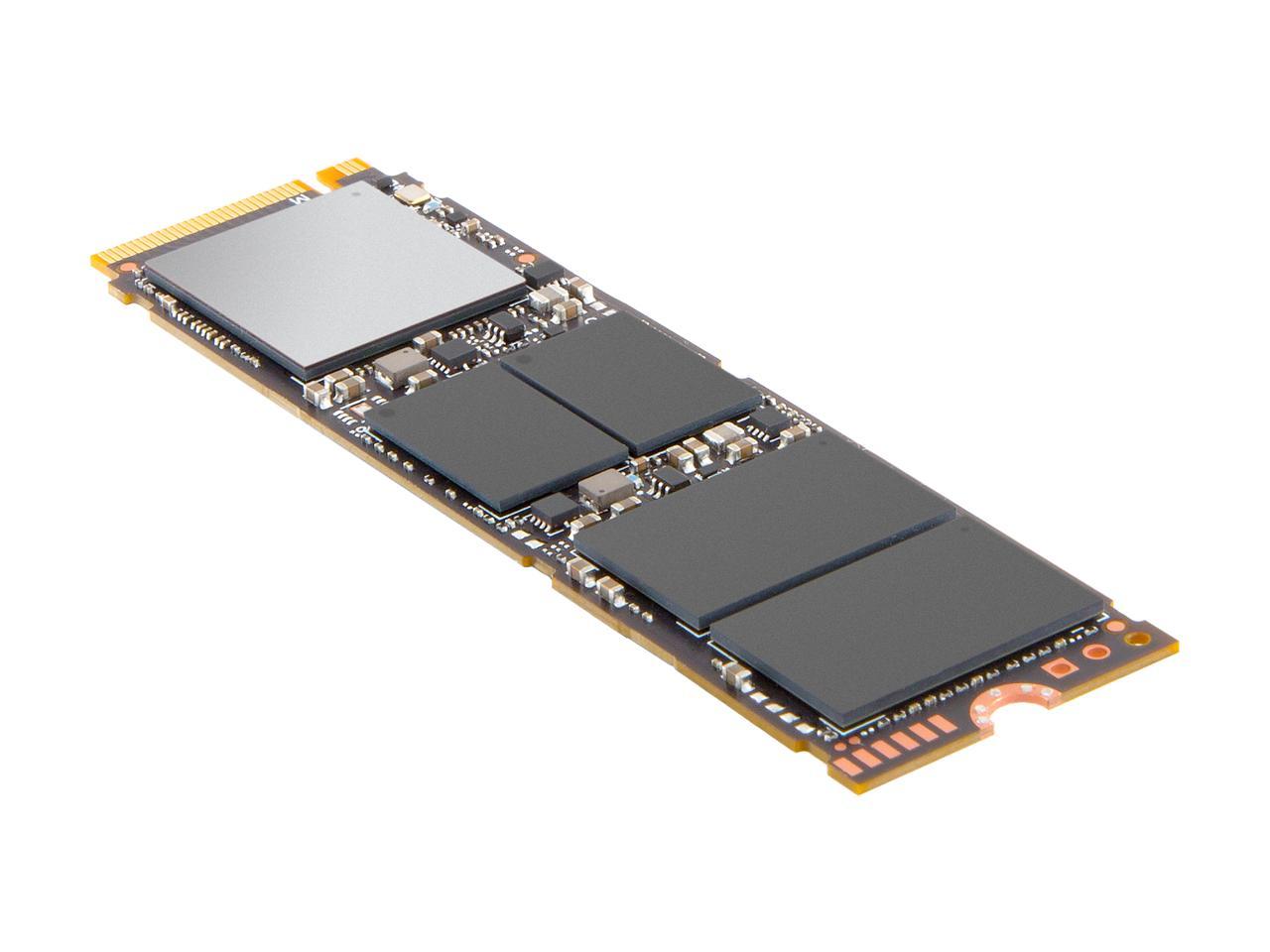

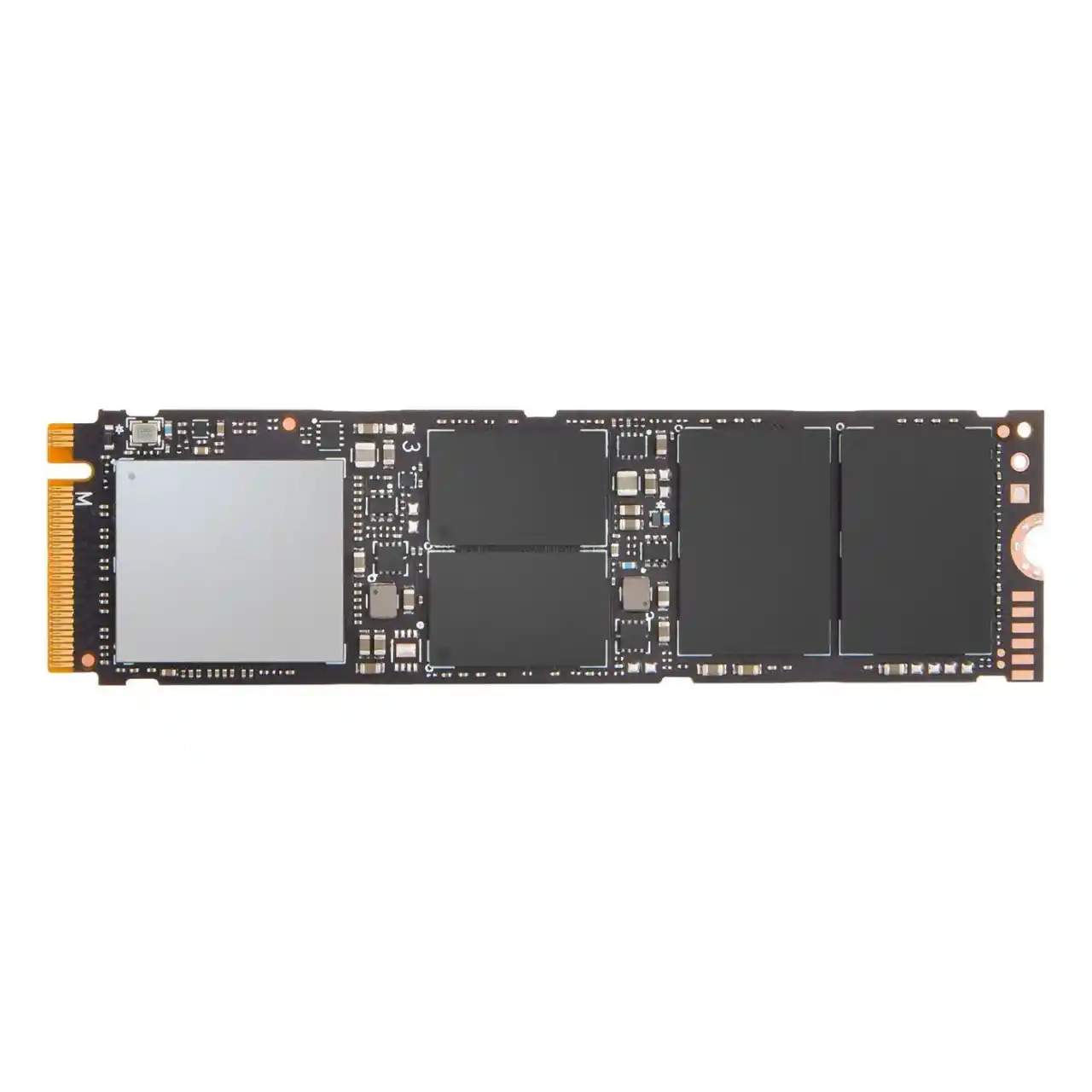

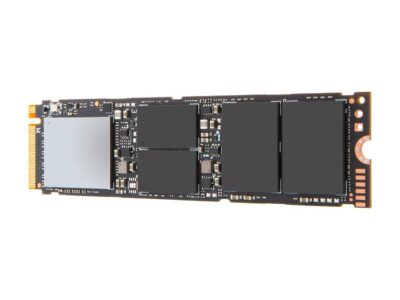

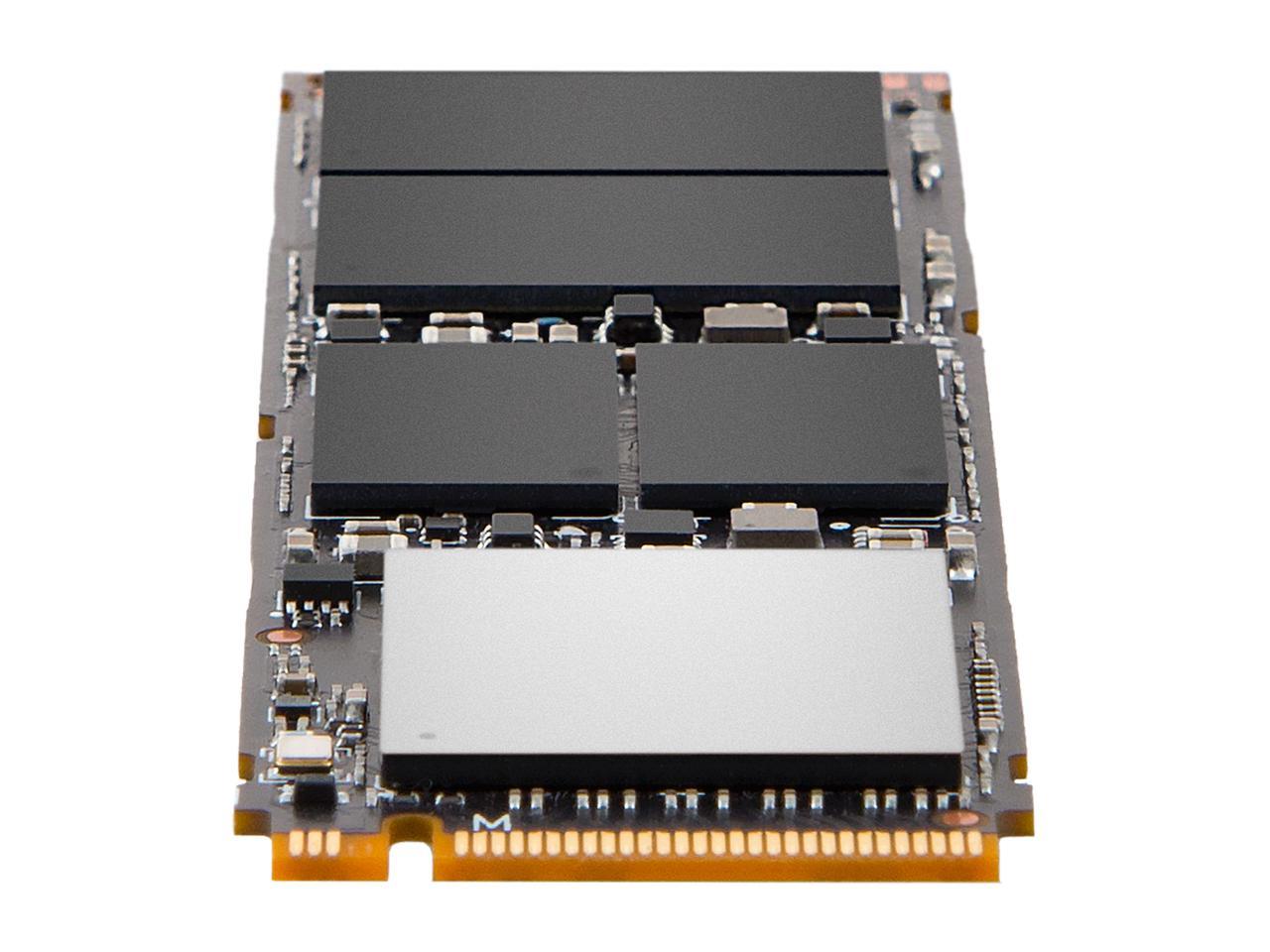

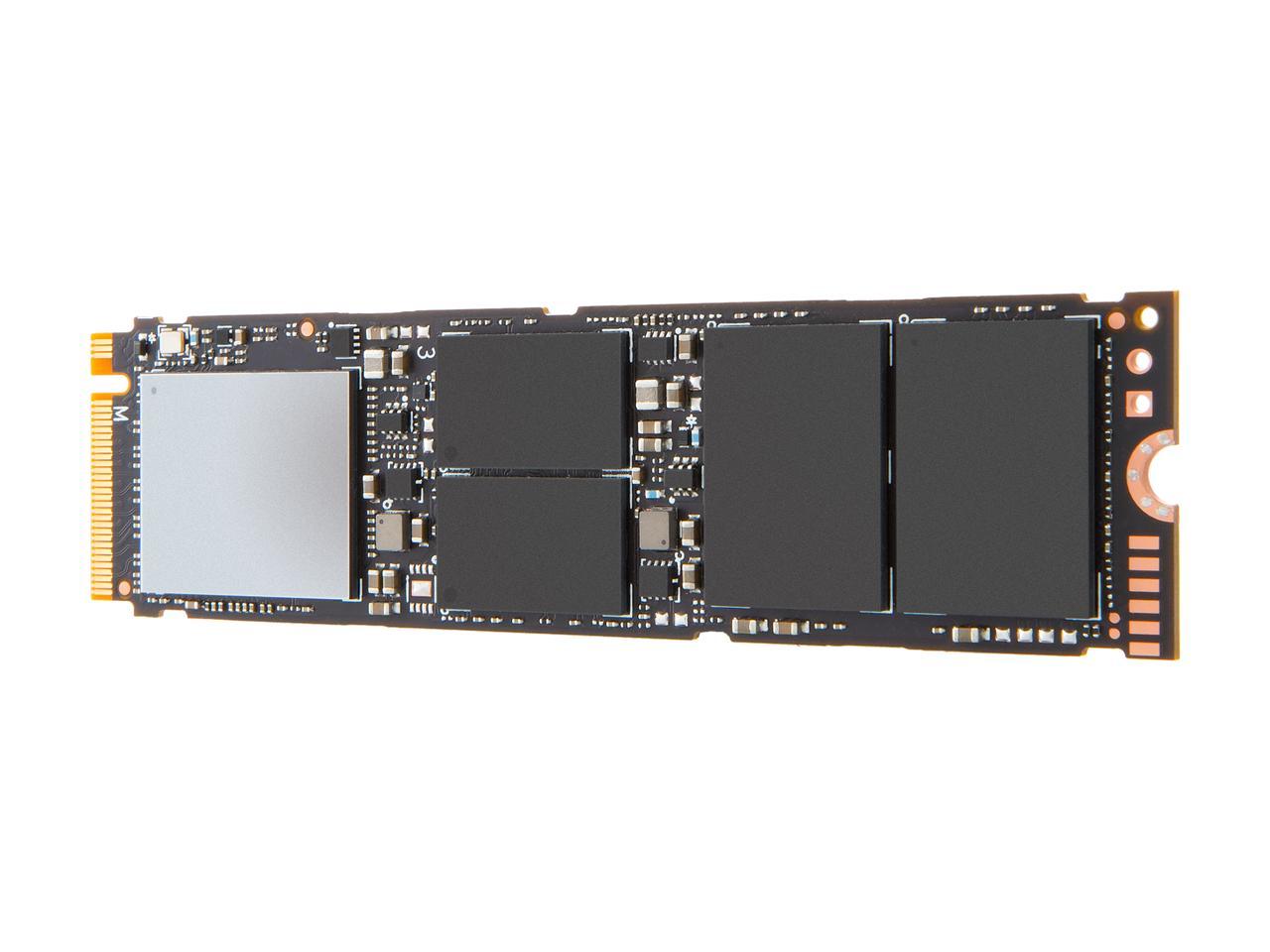

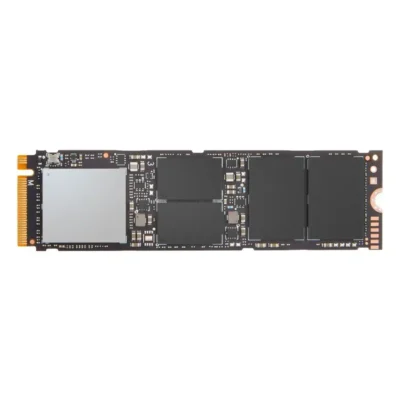

Intel 760p Series M.2 2280 1TB PCIe NVMe 3.1 x4 3D2 TLC Internal Solid State Drive (SSD) SSDPEKKW010T8X1
The Intel 760p Series is a high-performance 1TB M.2 NVMe SSD that delivers exceptional speed and reliability for demanding computing tasks. Featuring PCIe 3.1 x4 interface and 3D2 TLC NAND technology, it offers sequential read speeds up to 3,230 MB/s and write speeds up to 1,625 MB/s—dramatically faster than traditional SATA drives. The compact M.2 2280 form factor saves space while providing enterprise-grade endurance with up to 288 TBW (terabytes written). Intel’s advanced controller technology ensures consistent performance, low power consumption, and enhanced data protection. Ideal for content creators, gamers, and professionals requiring rapid boot times, faster file transfers, and responsive system performance. Backed by Intel’s reputation for quality and a 5-year limited warranty, the 760p Series represents an excellent balance of performance, capacity, and value for modern computing needs.
Quote5 pcs(MOQ)
Premium Client Discounts Available
Height | 2.38mm |
---|---|
Width | 22.00mm |
Used For | Consumer |
Device Type | Internal Solid State Drive (SSD) |
Brand | Intel |
Height | 2.38mm |
---|---|
Width | 22.00mm |
Used For | Consumer |
Device Type | Internal Solid State Drive (SSD) |
Brand | Intel |
Capacity | 1TB |
Max Shock Resistance | 1000G |
Products Status | New |
Depth | 80.00mm |
Application | Desktop |
Series | Intel 760p |
Interface | PCIe NVMe 3.1 x4 |
Max Sequential Write | Up to 1625 MB/s |
Features | Endurance Rating (Lifetime Writes): 576 TBW |
Max Sequential Read | Up to 3230 MB/s |
Power Consumption (Idle) | 25 mW |
4KB Random Write | Up to 275 000 IOPS |
Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
MTBF | 1 600 000 hours |
Model | SSDPEKKW010T8X1 |
Operating Temperature | 0C ~ +70C |
Power Consumption (Active) | 50 mW |
Weight | < 10.00g |
Form Factor | M.2 2280 |
Memory Components | 3D2 TLC |
4KB Random Read | Up to 340 000 IOPS |
