- Form Factor: M.2 22 x 80mm
- Interface: PCI Express NVMe 3.0 x4
- Performance: Sequential Read (up to) 1500 MB/s, Random Read (8GB Span): Up to 90,000 IOPS. Sequential Write (up to) 1000 MB/s, Random Write (8GB Span): Up to 220,000 IOPS
- PCIe Performance at an Affordable Price – Empowered by Intel’s innovative Intel QLC Technology, the Intel SSD 660p offers higher capacities at a lower cost than TLC-based options. With PCIe, the new SSD 660p skips SATA and its limitations to offer up to 2TB in one drive
- Twice the Capacity in Identical Footprints – These client SSDs pack more data than TLC-based storage, allowing up to 2x more capacity in identical footprints. The thin M.2 80mm form factor makes it perfect for notebooks, desktops, and mobile devices that need storage for everyday computing
- Performance and Price That Matters – The SSD 660p hits the marks that matter for client SSDs
* NOTE: Image may not exactly match the product

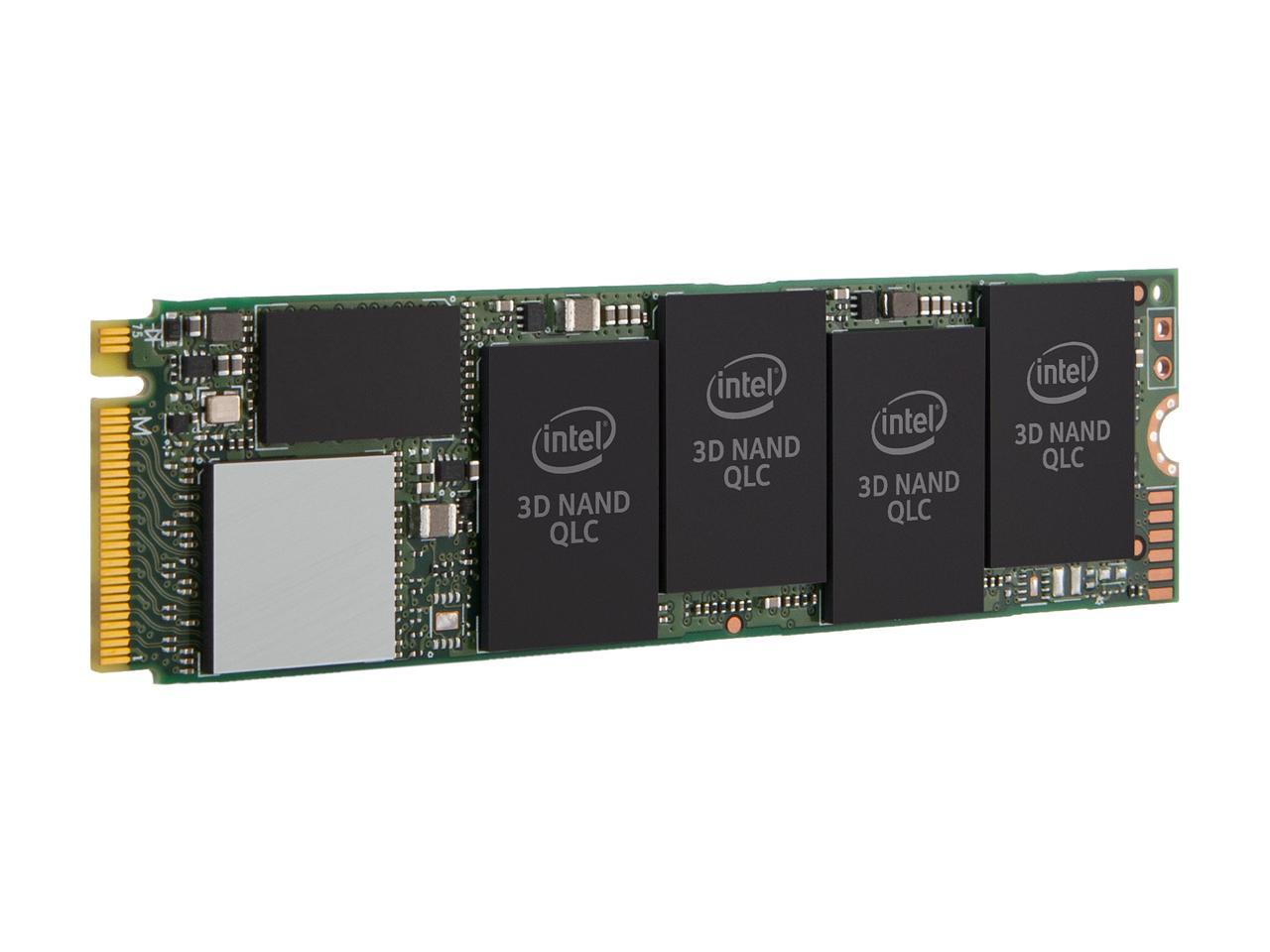

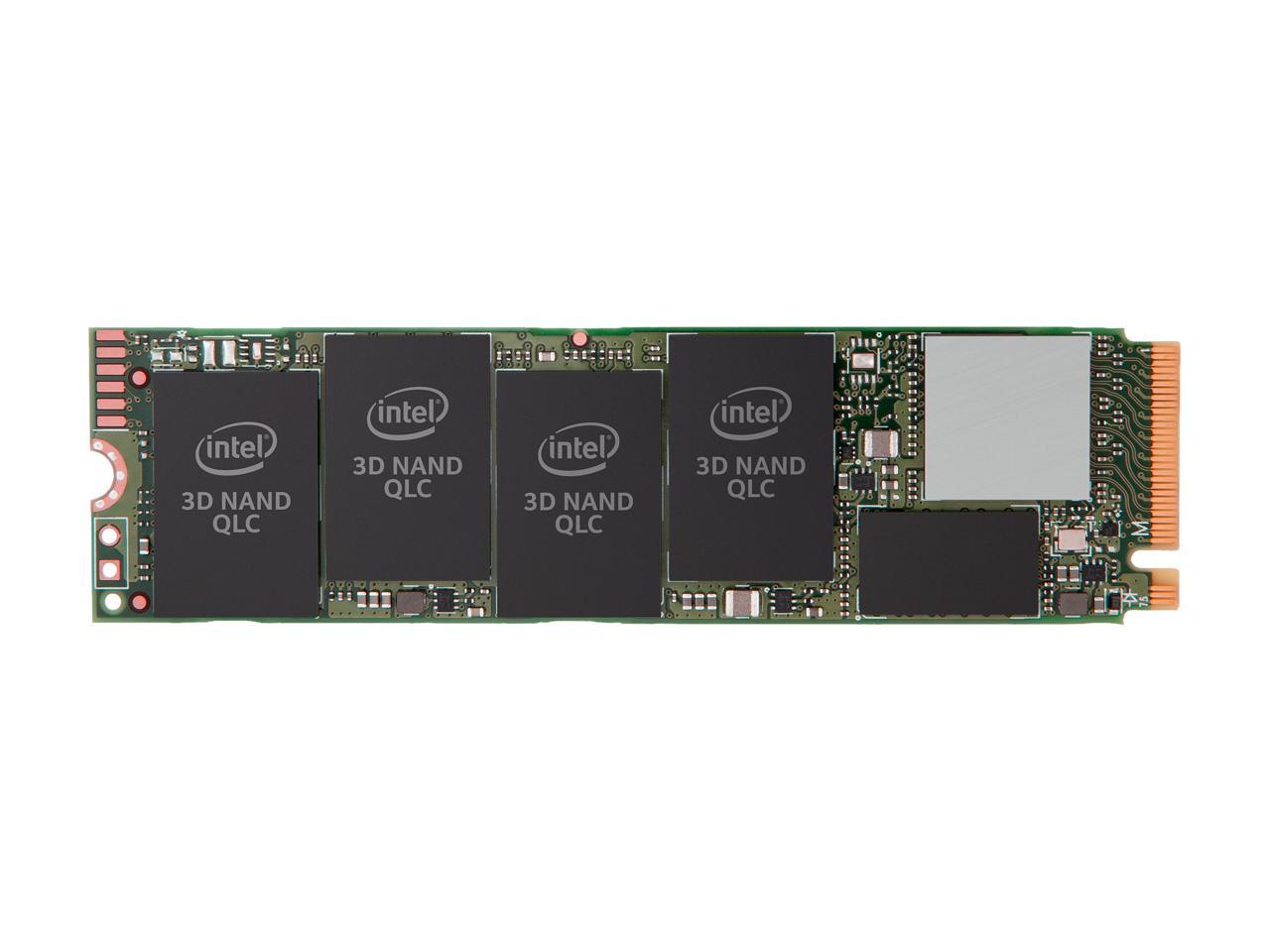

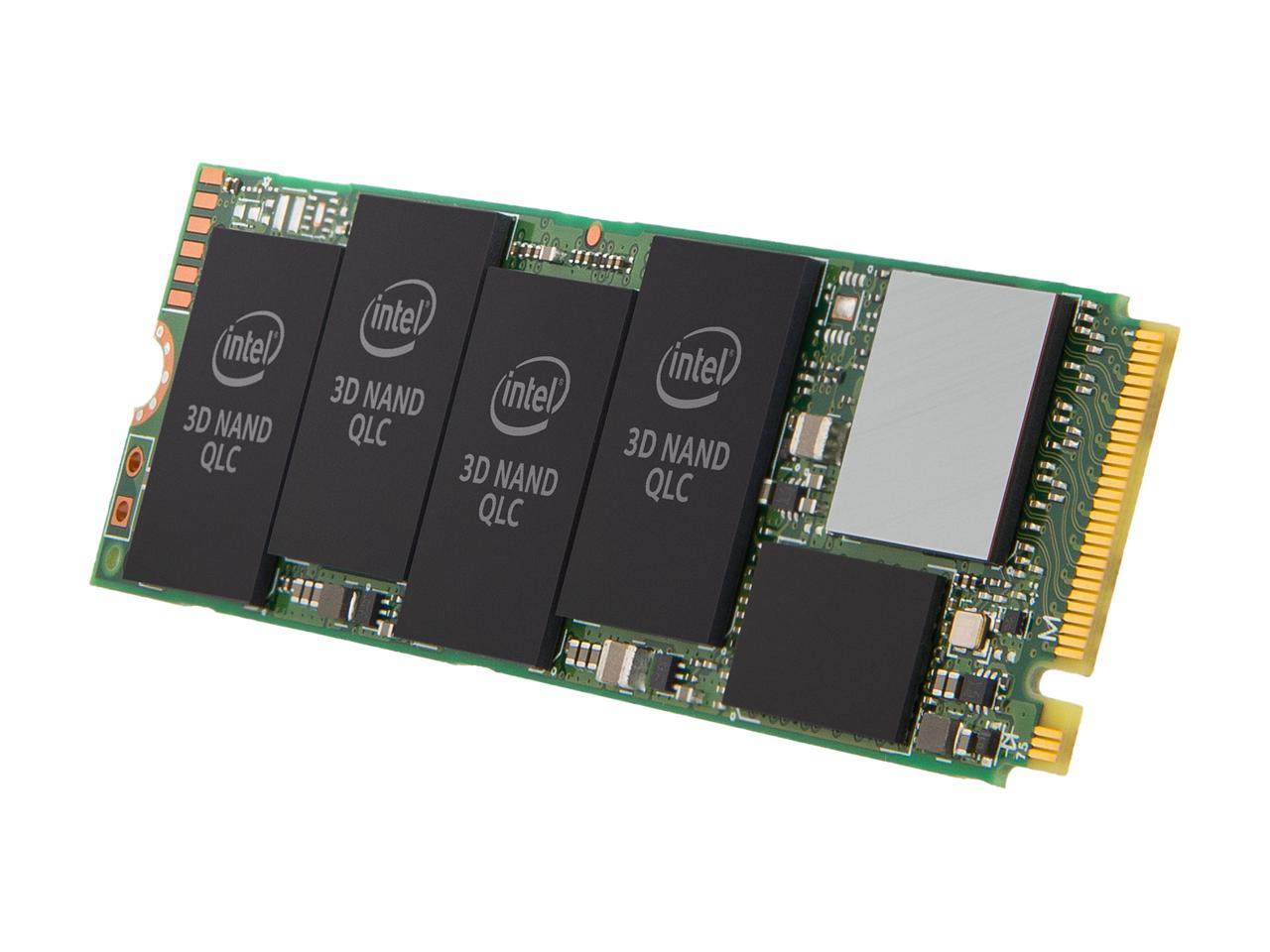

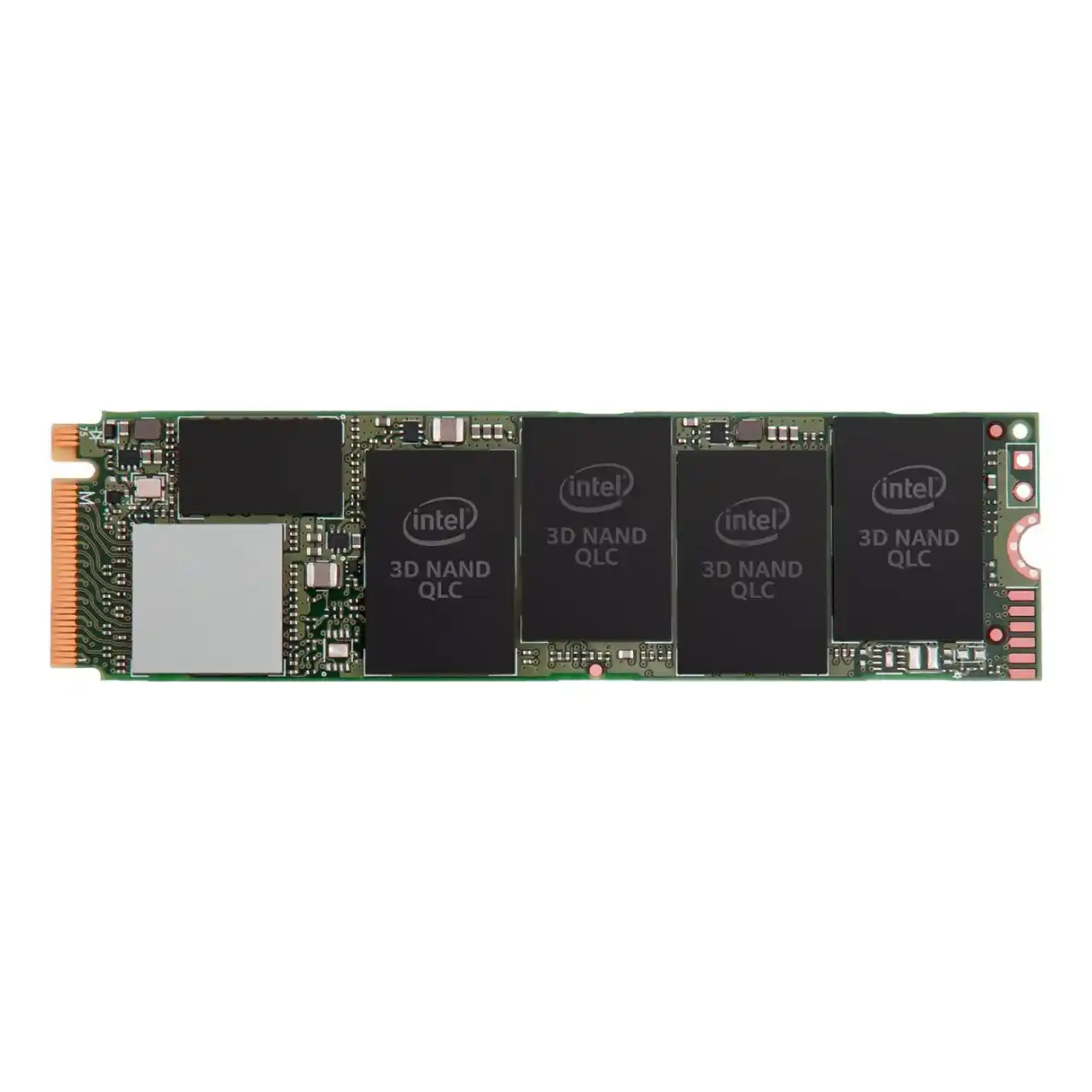

Intel 660p Series M.2 2280 512GB PCIe 3.0 x4, NVMe 3D2 QLC Internal Solid State Drive (SSD) SSDPEKNW512G8X1
The Intel 660p Series M.2 SSD delivers exceptional value with 512GB of high-speed NVMe storage in a compact 2280 form factor. Featuring 3D2 QLC NAND technology and PCIe 3.0 x4 interface, it provides sequential read speeds up to 1,800 MB/s and write speeds up to 1,800 MB/s – dramatically faster than traditional SATA drives. The drive offers excellent power efficiency for laptops, Intel’s proven reliability and 5-year warranty, and seamless compatibility with modern motherboards. Its QLC technology maximizes storage density while maintaining competitive performance, making it ideal for everyday computing, gaming, and content creation at an affordable price point compared to premium TLC alternatives.
Quote5 pcs(MOQ)
Premium Client Discounts Available
| Height | 2.38mm |
|---|---|
| Terabytes Written (TBW) | 100TB |
| Width | 22.00mm |
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Height | 2.38mm |
|---|---|
| Terabytes Written (TBW) | 100TB |
| Width | 22.00mm |
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Brand | Intel |
| Capacity | 512GB |
| Max Shock Resistance | 1000G |
| Products Status | New |
| Depth | 80.00mm |
| Storage Temperature | -55C ~ +95C |
| Application | Desktop |
| Series | Intel 660p |
| Interface | PCIe 3.0 x4 NVMe |
| Max Sequential Write | Up to 1000 MB/s |
| Features | Compared to TLC's capacity Intel 3D NAND QLC technology stores more bits per cell allowing for higher capacity faster read performance and lower power consumption per drive., Empowered by Intel's innovative Intel's 3D NAND QLC technology this SSD offers higher capacities at a lower cost than TLC-based storages., Endurance Rating (Lifetime Writes): 100 TBW, This technology makes the most of small spaces by expanding capacities up to 2TB of storage on small M.2 form factor. |
| Operating Humidity | 5-95% |
| Max Sequential Read | Up to 1500 MB/s |
| Power Consumption (Idle) | 40 mW |
| 4KB Random Write | Up to 220 000 IOPS |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
| MTBF | 1 600 000 hours |
| Model | SSDPEKNW512G8X1 |
| Operating Temperature | 0C ~ +70C |
| Power Consumption (Active) | 100 mW |
| Weight | < 10.00g |
| Form Factor | M.2 2280 |
| Memory Components | 3D2 QLC |
| 4KB Random Read | Up to 90 000 IOPS |
