- Form Factor: M.2 22 x 80mm
- Interface: PCI Express NVMe 3.0 x4
- Performance: Sequential Read (up to) 1800 MB/s, Random Read (8GB Span): Up to 150,000 IOPS. Sequential Write (up to) 1800 MB/s, Random Write (8GB Span): Up to 220,000 IOPS
- PCIe Performance at an Affordable Price – Empowered by Intel’s innovative Intel QLC Technology, the Intel SSD 660p offers higher capacities at a lower cost than TLC-based options. With PCIe, the new SSD 660p skips SATA and its limitations to offer up to 2TB in one drive
- Twice the Capacity in Identical Footprints – These client SSDs pack more data than TLC-based storage, allowing up to 2x more capacity in identical footprints. The thin M.2 80mm form factor makes it perfect for notebooks, desktops, and mobile devices that need storage for everyday computing
- Performance and Price That Matters – The SSD 660p hits the marks that matter for client SSDs
* NOTE: Image may not exactly match the product

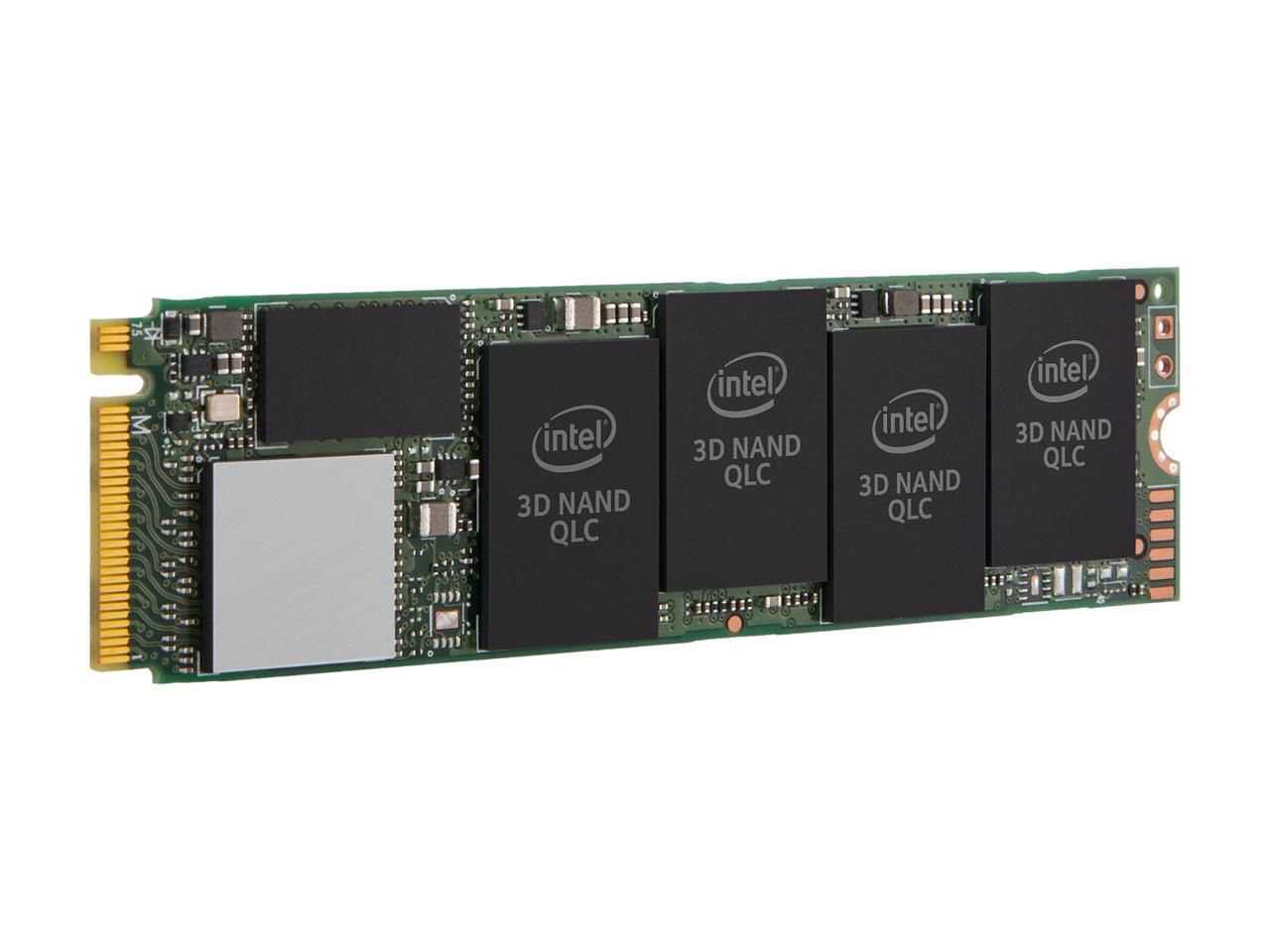

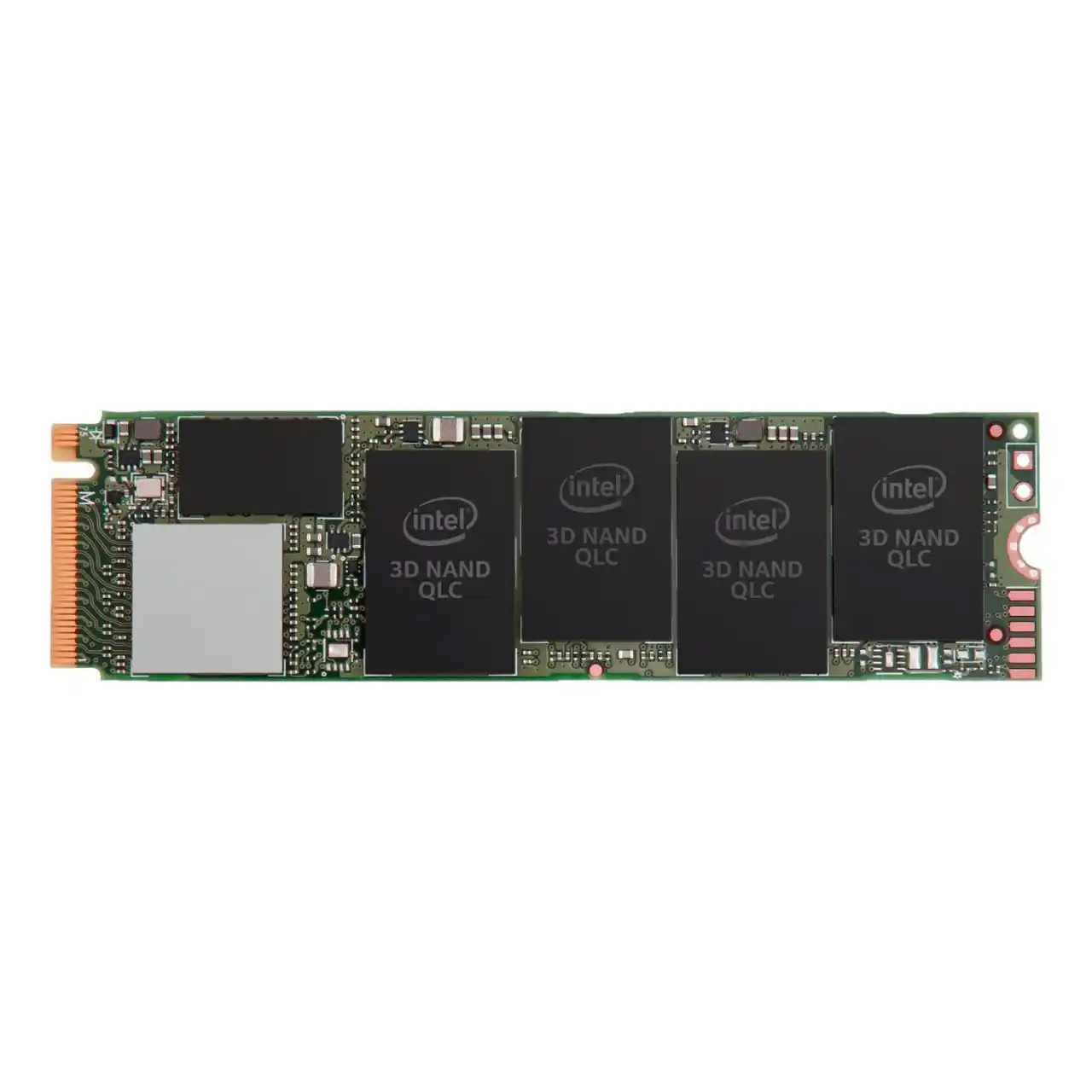

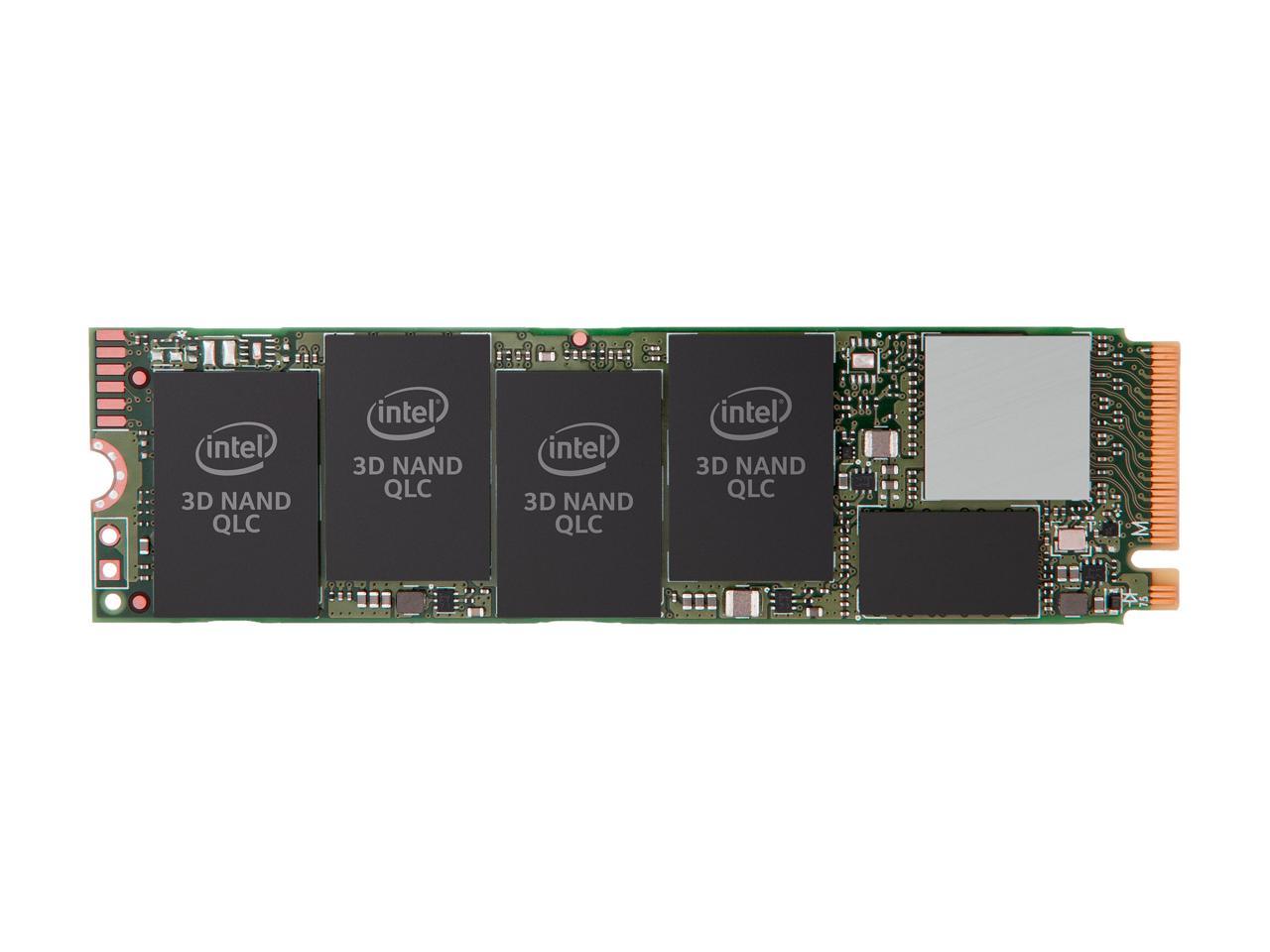

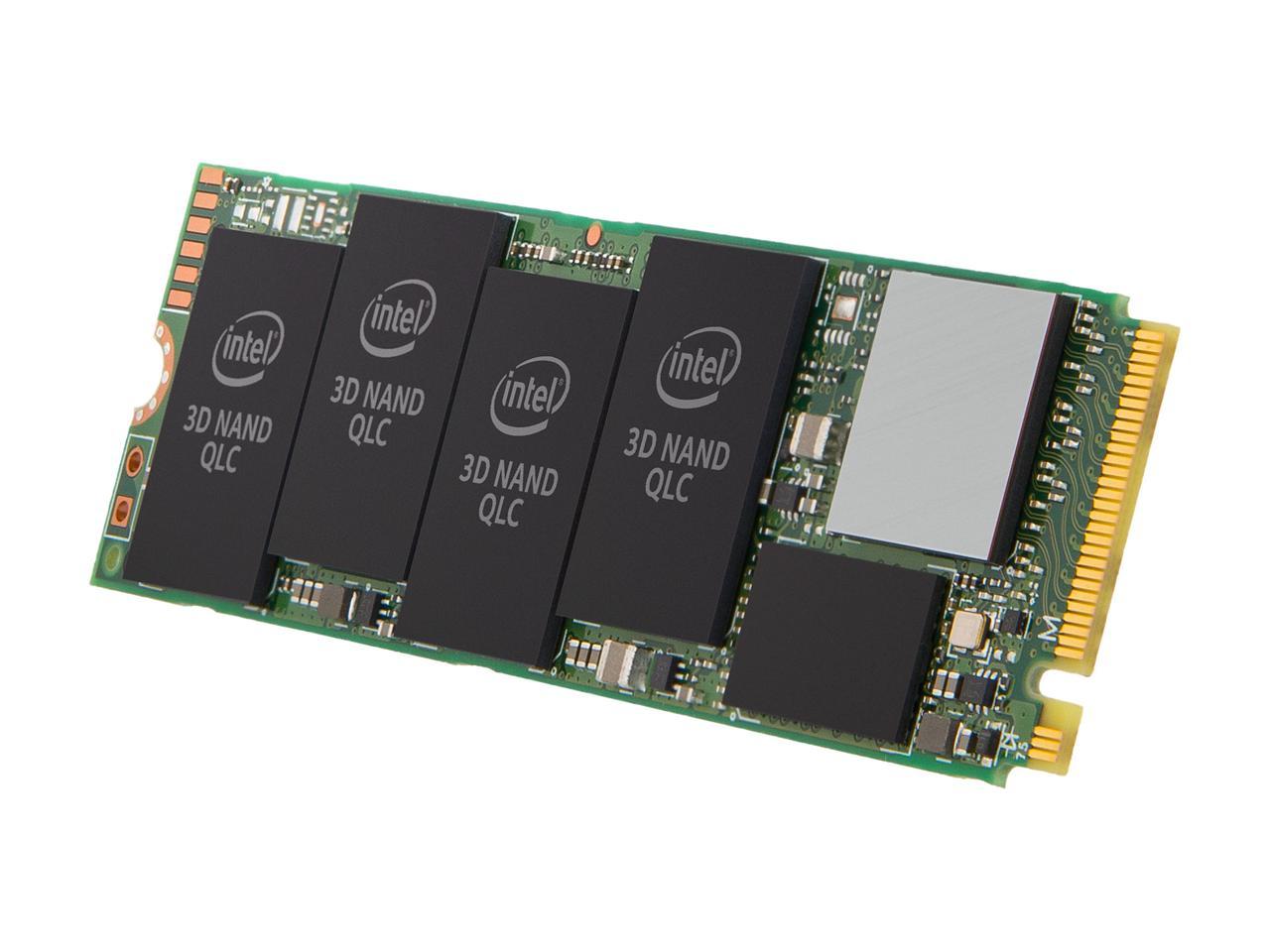

Intel 660p Series M.2 2280 1TB PCIe NVMe 3.0 x4 3D2, QLC Internal Solid State Drive (SSD) SSDPEKNW010T8X1
The Intel 660p Series is a high-performance 1TB NVMe SSD that delivers exceptional speed and reliability for modern computing needs. Featuring PCIe 3.0 x4 interface and 3D QLC NAND technology, it offers sequential read speeds up to 1,800 MB/s and write speeds up to 1,800 MB/s, dramatically reducing boot times and file transfers compared to traditional hard drives. The compact M.2 2280 form factor makes it ideal for ultrabooks, desktops, and space-constrained builds. With Intel’s proven reliability, advanced wear leveling, and power efficiency that extends battery life in laptops, the 660p provides an affordable entry point into NVMe storage without sacrificing performance. Its 1TB capacity offers ample space for operating systems, applications, and files while maintaining consistent performance through Intel’s intelligent caching technology.
Quote5 pcs(MOQ)
Premium Client Discounts Available
| Height | 2.38mm |
|---|---|
| Terabytes Written (TBW) | 200TB |
| Width | 22.00mm |
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Height | 2.38mm |
|---|---|
| Terabytes Written (TBW) | 200TB |
| Width | 22.00mm |
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Brand | Intel |
| Capacity | 1TB |
| Max Shock Resistance | Non-Operating: 1500G / 0.5 ms, Operating: 1000G / 0.5 ms |
| Products Status | New |
| Depth | 80.00mm |
| Storage Temperature | -55C ~ +95C |
| Application | Desktop |
| Series | Intel 660p |
| Interface | PCIe NVMe 3.0 x4 |
| Max Sequential Write | Up to 1800 MB/s |
| Features | Compared to TLC's capacity Intel 3D NAND QLC technology stores more bits per cell allowing for higher capacity faster read performance and lower power consumption per drive., Empowered by Intel's innovative Intel's 3D NAND QLC technology this SSD offers higher capacities at a lower cost than TLC-based storages., This technology makes the most of small spaces by expanding capacities up to 2TB of storage on small M.2 form factor. |
| Operating Humidity | 5-95% |
| Max Sequential Read | Up to 1800 MB/s |
| Power Consumption (Idle) | 40 mW |
| 4KB Random Write | Up to 220 000 IOPS |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
| MTBF | 1 600 000 hours |
| Model | SSDPEKNW010T8X1 |
| Operating Temperature | 0C ~ +70C |
| Power Consumption (Active) | 100 mW |
| Weight | < 10.00g |
| Form Factor | M.2 2280 |
| Memory Components | 3D2 QLC |
| 4KB Random Read | Up to 150 000 IOPS |
