- mSATA
- 120GB
- SATA III
* NOTE: Image may not exactly match the product

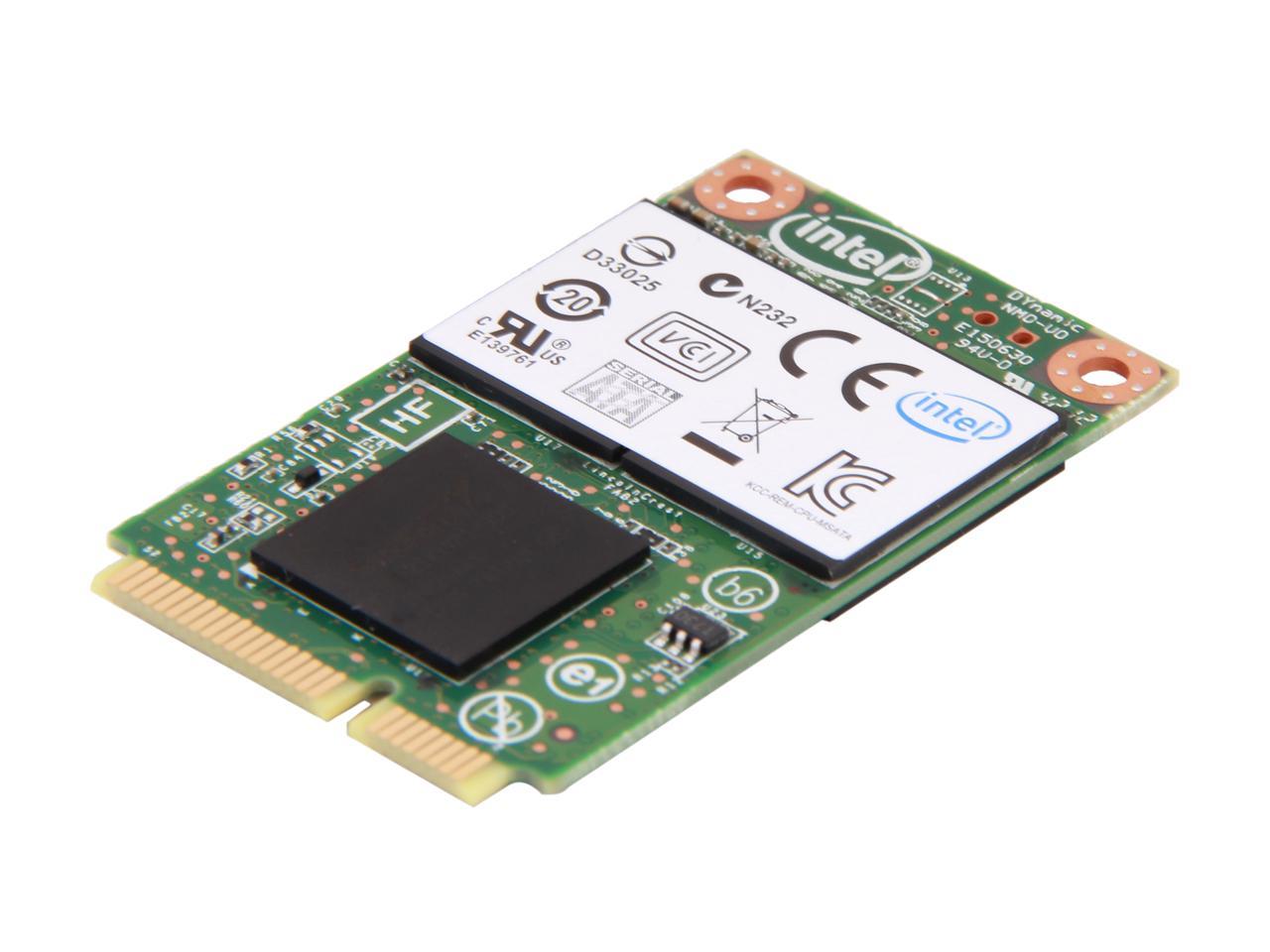

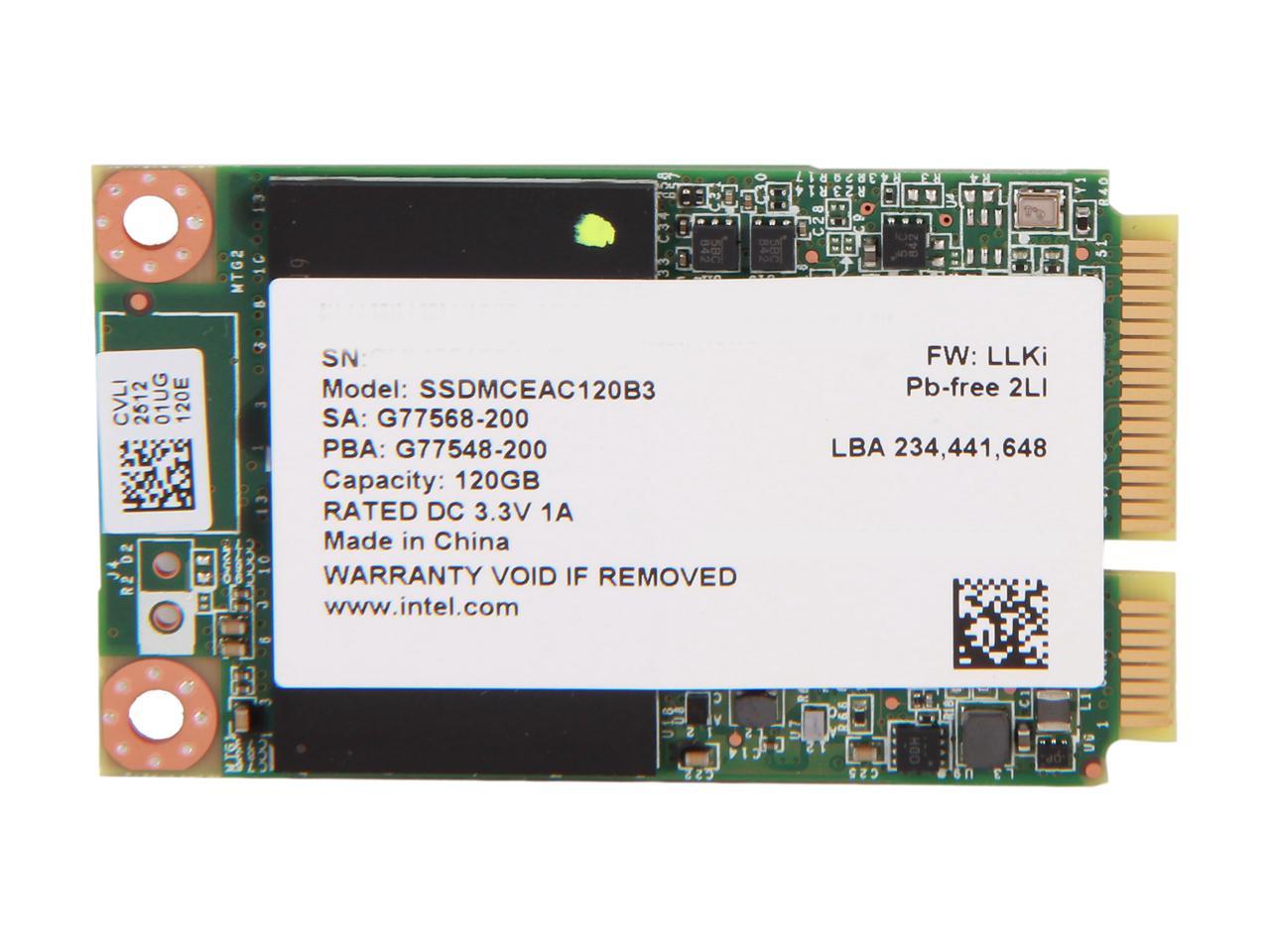

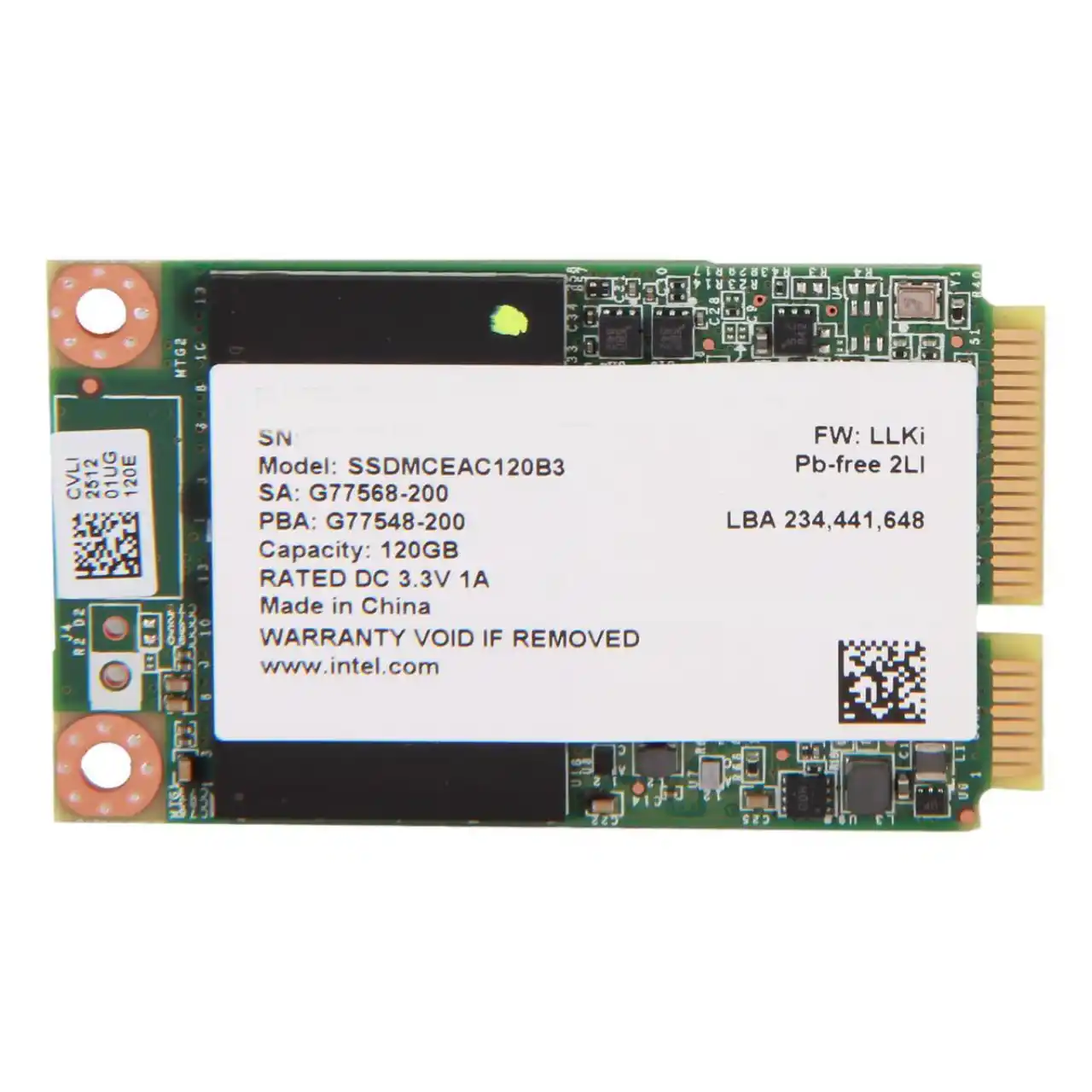

Intel 525 Series Lincoln Crest SSDMCEAC120B301 mSATA 120GB SATA III MLC Internal Solid State Drive (SSD)
The Intel 525 Series Lincoln Crest SSDMCEAC120B301 is a compact 120GB mSATA solid state drive engineered for ultrabooks and space-constrained systems. Built with reliable MLC NAND flash memory and SATA III interface, it delivers significantly faster boot times, application loading, and file transfers compared to traditional hard drives. The mSATA form factor makes it ideal for thin laptops and mini PCs where standard 2.5″ drives won’t fit. Intel’s proven SSD technology ensures enhanced durability with no moving parts, reduced power consumption for extended battery life, and silent operation. This drive offers an excellent balance of performance, reliability, and compact design for users seeking to upgrade older systems or build efficient, high-performance mobile computing solutions.
Quote5 pcs(MOQ)
Premium Client Discounts Available
| Height | 3.7mm |
|---|---|
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Brand | Intel |
| Capacity | 120GB |
| Height | 3.7mm |
|---|---|
| Used For | Consumer |
| Device Type | Internal Solid State Drive (SSD) |
| Brand | Intel |
| Capacity | 120GB |
| Max Shock Resistance | 1000G |
| Products Status | New |
| Storage Temperature | -55C ~ +95C |
| Application | Desktop |
| Series | Intel 525 |
| Interface | Mini-SATA (mSATA) |
| Max Sequential Write | Up to 500 MB/s |
| Features | Advanced Encryption Standard (AES) 128-bit Encryption, Data Compression, End-to-End Data Protection, Enhanced ruggedness, High I/O and throughput performance, High reliability, Increased system responsiveness, Low power, Minimum weight, Small form-factor |
| Operating Humidity | 5% to 95% RH |
| Max Sequential Read | Up to 550 MB/s |
| Power Consumption (Idle) | 275 mW |
| 4KB Random Write | Up to 80 000 IOPS |
| Max Vibration Resistance | Non-operating: 3.13 G (5-800 Hz), Operating: 2.17 G (5-700 Hz) |
| MTBF | 1 200 000 hours |
| Model | SSDMCEAC120B301 |
| Operating Temperature | 0C ~ +70C |
| Power Consumption (Active) | 350 mW |
| Weight | <10 g |
| Form Factor | 1.8" |
| Memory Components | MLC |
| 4KB Random Read | Up to 50 000 IOPS |
