| PN | 02353AJW |
|---|---|
| Model | S6730-S24X6Q |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the?display version?command. |
| Mean time between failures (MTBF) | 62.27 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) |
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports), Any 40GE QSFP+ ports (a maximum of 6 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 249 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 135 W |
| Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

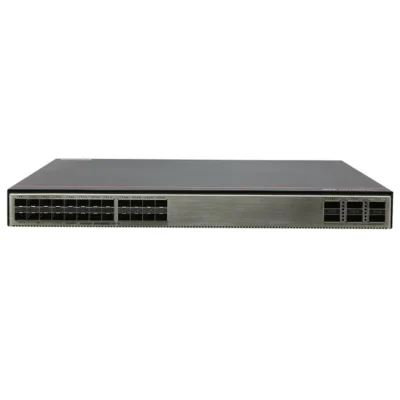

Huawei S6730-S24X6Q (24 x 10 Gig SFP+/6 x 40 Gig QSFP/Dual pluggable power modules, 600W AC)
The Huawei S6730-S24X6Q is a high-performance enterprise switch delivering exceptional network density and reliability. Featuring 24 x 10 Gigabit SFP+ ports and 6 x 40 Gigabit QSFP+ ports, it provides massive bandwidth capacity for data centers and campus networks. The dual hot-swappable 600W AC power modules ensure zero-downtime operations with redundant power protection. This switch excels in virtualized environments with advanced traffic management, low latency performance, and comprehensive security features. Its modular design enables flexible deployment while supporting future network expansion. Ideal for organizations requiring robust, scalable connectivity with enterprise-grade reliability and simplified management through Huawei’s intelligent network platform.
