| PN | 02354HHT |
|---|---|
| Model | S6730-H48X6C-V2 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 9.2 (20.28) |
| Weight without packaging | 5.84 (12.87) |
| Maximum power consumption [W] | 291 |
| Typical power consumption [W] | 165 |
| Maximum heat dissipation [BTU/h] | 992.92 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 563 |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | – AC input: 90?C290 V AC; 45?C65 Hz, – High-voltage DC input: 190 V DC to 290 V DC, – DC input: -38.4 V DC to -72 V DC |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC; 50/60 Hz, – High-voltage DC input: 240 V DC, – DC input: ?C48 V DC to ?C60 V DC |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Number of power slots | 2 |
| Number of card slots | 0 |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together in the same switch. |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic pressure) | 52 |
| Noise at normal temperature (acoustic power) | 65 |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| Long-term operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| MTBF [year] | 56.87 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 54 |
| Maximum number of 100GE ports | 6 (license required) |
| Maximum number of 40GE ports | 6 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 48 |
| Maximum number of GE ports | 48 |
| Maximum number of FE ports | 0 |
| 10GE optical interface | 48 |
| 40G optical interface | 6 |
| 100G optical interface | 6 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Service port surge protection | – |
| Power supply surge protection | – AC power module configured: ??6 kV in differential mode, ??6 kV in common mode, – DC power module configured: ??2 kV in differential mode, ??4 kV in common mode |
| RPS input | Not supported |
| PoE | Not supported |
* NOTE: Image may not exactly match the product

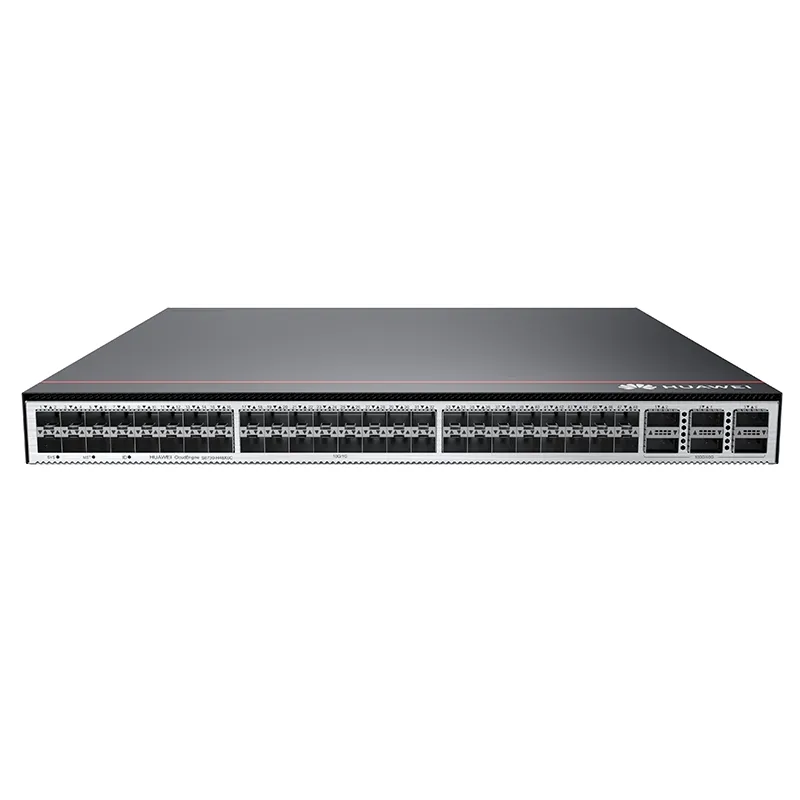

Huawei S6730-H48X6C-V2 (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28)
The Huawei S6730-H48X6C-V2 is a high-performance data center switch delivering exceptional connectivity with 48 x 10GE SFP+ ports and 6 x 40GE QSFP28 ports. Its standout feature is the optional license upgrade capability that transforms the 40GE ports to 100GE QSFP28, providing future-proof scalability without hardware replacement. This switch offers enterprise-grade reliability, advanced Layer 2/3 switching capabilities, and comprehensive network management features. The flexible port configuration supports diverse deployment scenarios from server access to spine-leaf architectures, while the upgrade path protects infrastructure investments by enabling seamless bandwidth expansion as network demands grow. Ideal for data centers requiring high-density 10GE connectivity with built-in growth potential to 100GE speeds.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| PN | 02354HHT |
|---|---|
| Model | S6730-H48X6C-V2 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
