| PN | 02352FSF |
|---|---|
| Model | S6730-H48X6C |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight (with packaging) | 9.2 kg (20.28 lb) |
| Ports | 48*10GE SFP+ ports 6*40GE/100GE QSFP28 optical ports |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 56.87 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Maximum power consumption (100% throughput, full speed of fans) | 291 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 165 W |
| Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports), Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) |
| Products Status | New |
* NOTE: Image may not exactly match the product

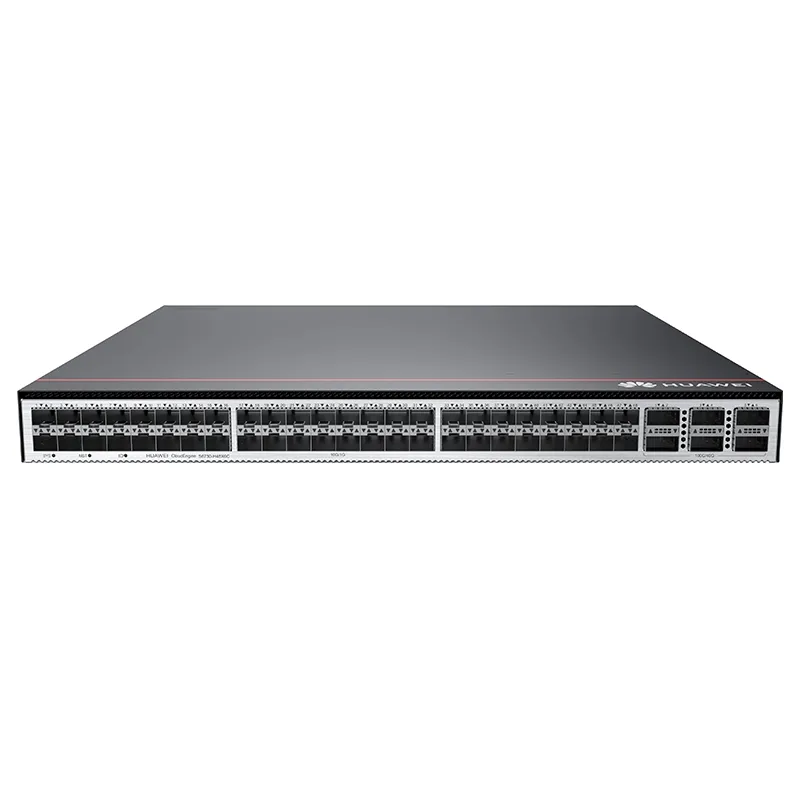

Huawei S6730-H48X6C (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28)
The Huawei S6730-H48X6C is a high-performance data center switch delivering exceptional connectivity with 48 x 10GE SFP ports and 6 x 40GE QSFP28 ports. Its standout feature is the optional license upgrade capability that transforms the 40GE ports to 100GE QSFP28, providing future-proof scalability without hardware replacement. This switch offers enterprise-grade reliability, advanced traffic management, and comprehensive security features, making it ideal for demanding data center environments, campus networks, and cloud infrastructure. The flexible port configuration and upgrade path deliver superior ROI by allowing organizations to scale bandwidth as needs grow, while the robust design ensures consistent performance for mission-critical applications and high-density server connectivity.
