| PN | 02353LGV |
|---|---|
| Model | S6730-H28Y4C |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115 mm ?? 545 mm ?? 360 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption [W] | 116 W |
| MTBF [years] | 54.68 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 51.7 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together in the same switch. |
| Long-term operating temperature [??C(??F)] | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz, High-voltage DC input: 240 V DC, DC input: ?C48 V DC to ?C60 V DC |
| Input voltage range [V] | AC input: 90?C290 V AC; 45?C65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | – |
| Power supply surge protection [kV] | AC power module configured: ??6 kV in differential mode, ??6 kV in common mode, DC power module configured: ??2 kV in differential mode, ??4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |

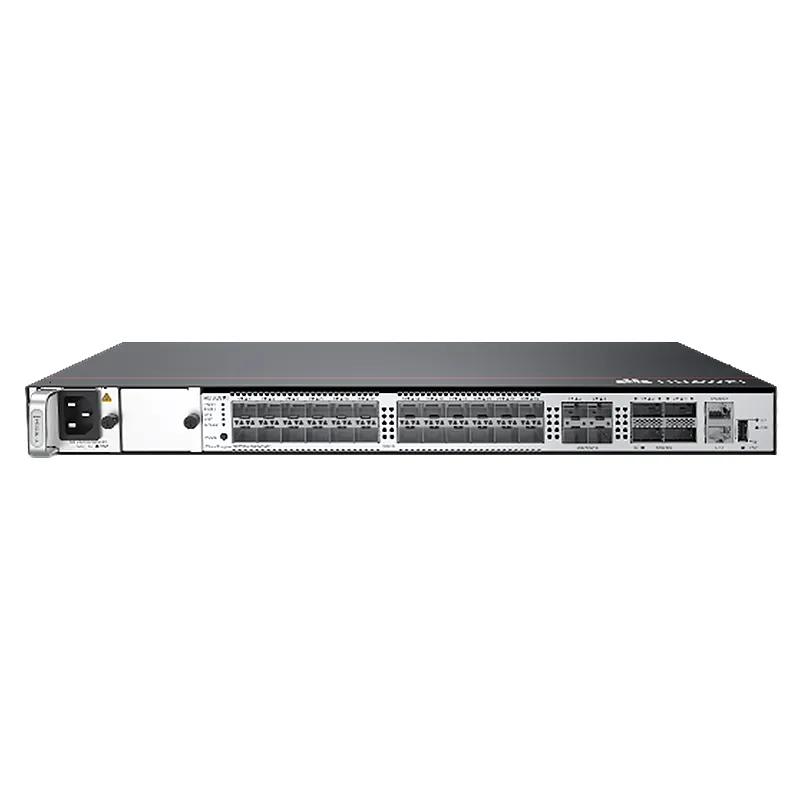

* NOTE: Image may not exactly match the product
Huawei S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)
The Huawei S6730-H28Y4C is a high-performance data center switch delivering exceptional 25G/100G connectivity with 28 SFP28 ports for 25GE connections and 4 QSFP28 ports for 100GE uplinks. This modular design features a flexible power architecture (power module sold separately), enabling customized deployment and redundancy options. Key benefits include ultra-low latency for demanding applications, advanced traffic management capabilities, and comprehensive network virtualization support. The switch offers superior port density in a compact form factor, making it ideal for spine-leaf architectures, high-frequency trading environments, and cloud data centers requiring maximum throughput and minimal latency. Its intelligent buffering technology and advanced QoS ensure consistent performance under heavy loads, while supporting modern protocols like VXLAN and EVPN for software-defined networking implementations.
