| PN | 02353NRD |
|---|---|
| Model | S6730-H24X4Y4C |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115 mm ?? 545 mm ?? 360 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption [W] | 116 W |
| MTBF [years] | 54.68 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 51.7 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together in the same switch. |
| Long-term operating temperature [??C(??F)] | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz, High-voltage DC input: 240 V DC, DC input: ?C48 V DC to ?C60 V DC |
| Input voltage range [V] | AC input: 90?C290 V AC; 45?C65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | – |
| Power supply surge protection [kV] | AC power module configured: ??6 kV in differential mode, ??6 kV in common mode, DC power module configured: ??2 kV in differential mode, ??4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

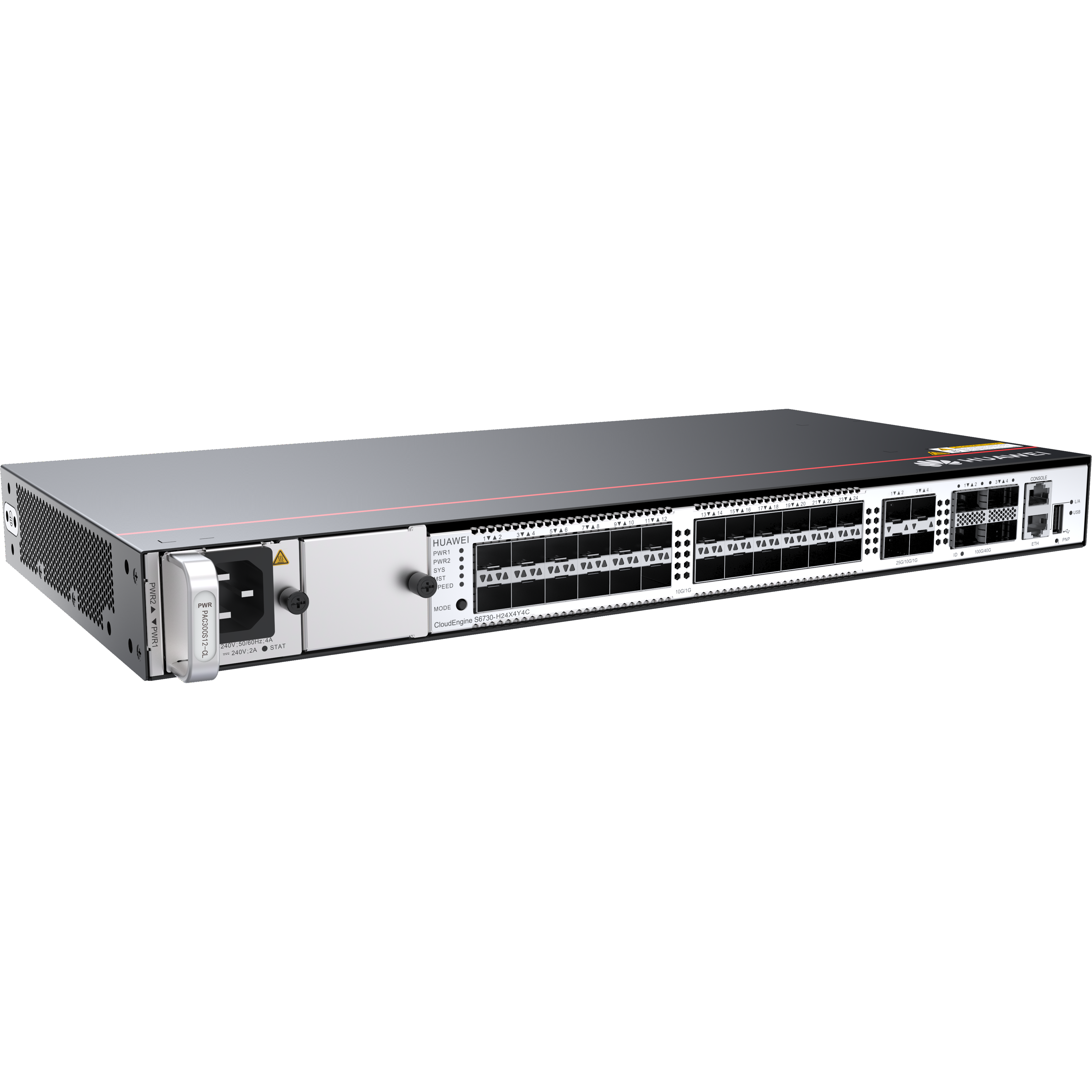

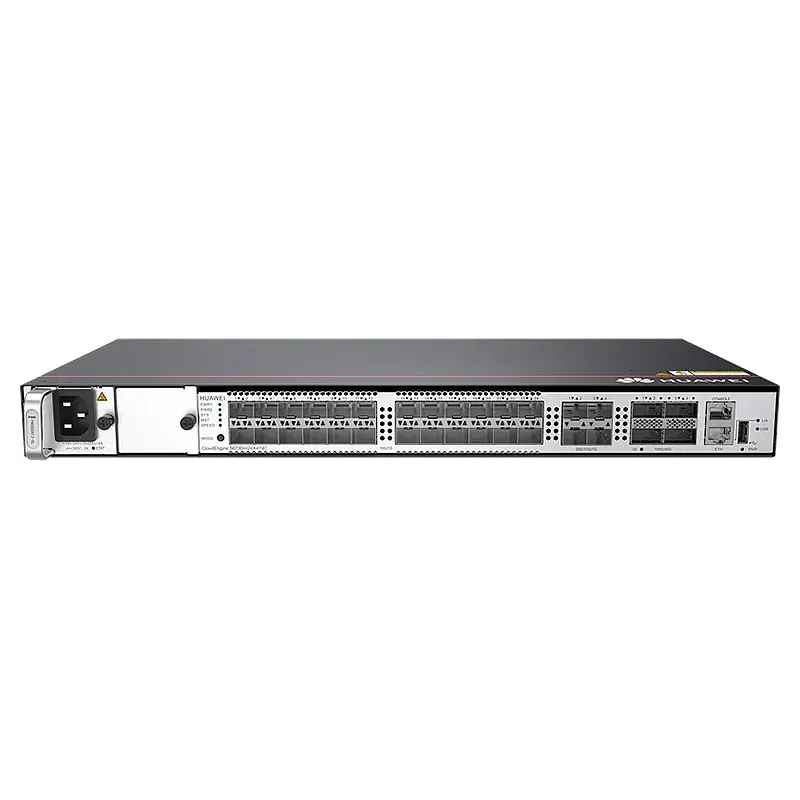

Huawei S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)
The Huawei S6730-H24X4Y4C is a high-performance enterprise switch delivering exceptional network density and flexibility. Featuring 24 x 10GE SFP ports for standard connectivity, 4 x 25GE SFP28 ports for enhanced throughput, and 4 x 100GE QSFP28 ports for ultra-high-speed backbone connections, this switch provides comprehensive multi-speed networking in a single unit. The modular design without an integrated power module allows for customized power configurations to meet specific deployment requirements. Key benefits include future-proof scalability with mixed-speed port options, reduced infrastructure complexity through consolidated connectivity, and enterprise-grade reliability backed by Huawei’s advanced switching technology. Ideal for data centers, campus cores, and high-bandwidth applications requiring seamless integration of legacy and next-generation network speeds.
