| PN | 98010931 |
|---|---|
| Model | S5735-S32ST4X |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Weight (with packaging) | 7.47 kg (16.47 lb) |
| Fixed port | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the?display version?command. |
| Mean time between failures (MTBF) | 68.59 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??7 kV |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Maximum power consumption (100% throughput, full speed of fans) | 66 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 47 W |
| Operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 59.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Stack ports | Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.) |
| Products Status | New |
* NOTE: Image may not exactly match the product

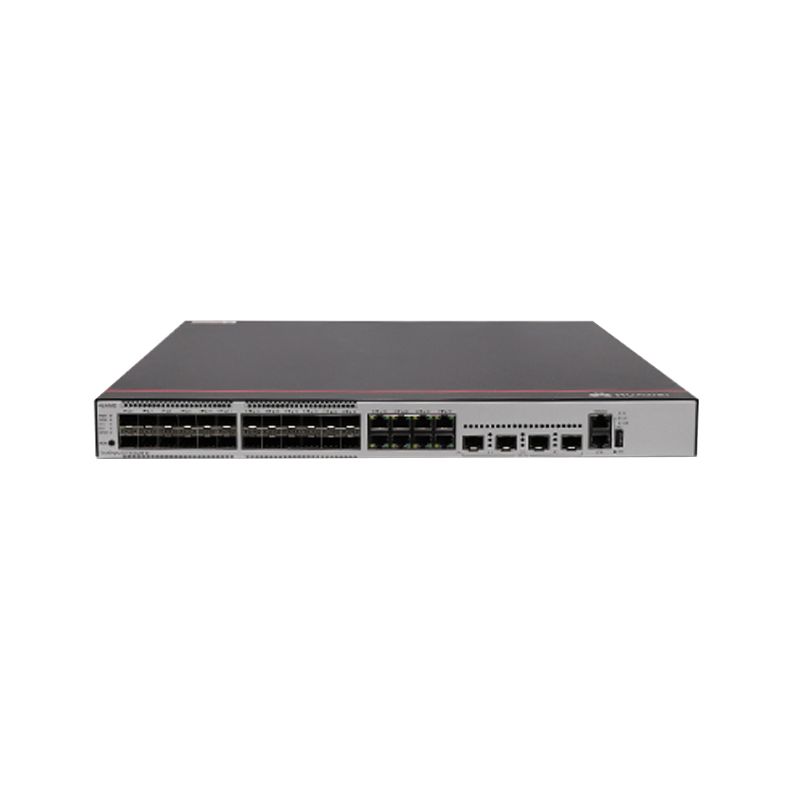

Huawei S5735-S32ST4X (24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power module)
The Huawei S5735-S32ST4X is a high-performance enterprise switch delivering exceptional network flexibility with 24 Gigabit SFP ports for fiber connectivity, 8 copper Gigabit ports for local devices, and 4 10-Gigabit SFP+ uplink ports for backbone connections. This modular design enables scalable power options while supporting advanced features like VLAN management, QoS prioritization, and comprehensive security protocols. Ideal for medium to large enterprises, it offers superior port density, reliable performance, and cost-effective network expansion with Huawei’s proven switching technology and centralized management capabilities.
