| Brand | Huawei |
|---|---|
| Model | S5735-S24T4X-I |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
| PN | 98010960 |
| Availability | >0.99999 |
| RTC | Supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode, Using DC power modules: 2 kV" differential mode, 4 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC, DC"put: -48 V DC to -60 V DC |
| Maximum voltage range | AC"put: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC"put: 190 V DC to 290 V DC, DC"put: -38.4 V DC to -72 V DC |
| Operating temperature | -40C to +65C (-40F to +149F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable" V200R020C00 and later versions) |
| Noise under normal temperature (27C, sound power) | < 49.5 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum Power | 55.2W |
| Weight (with packaging) | 7.02 kg (15.48 lb) |
| Short-term operating temperature | -40C to +70C (-40F to 158F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 65C (149F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 65C (149F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 65C (149F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The maximum distance of optical modules used" these conditions cannot exceed 10 km. |
* NOTE: Image may not exactly match the product

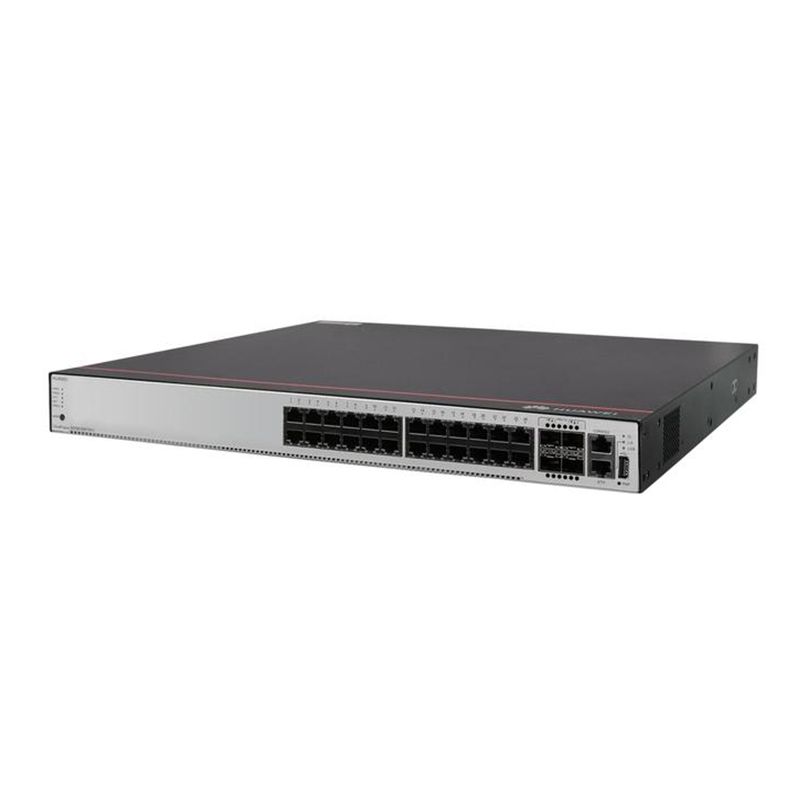

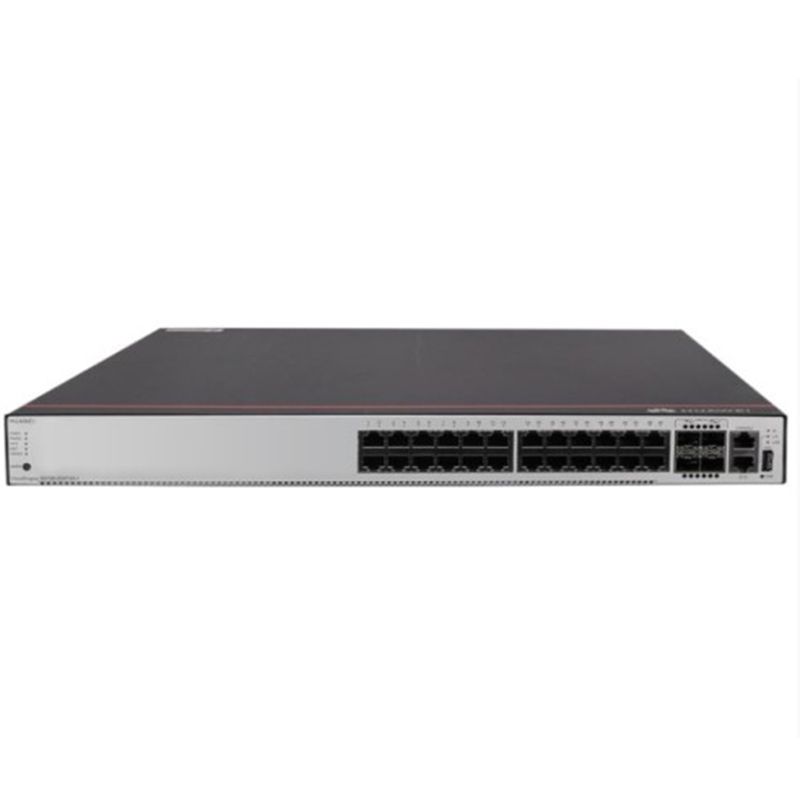

Huawei S5735-S24T4X-I (24 x 10/100/1000BASE-T ports and 4 x 10 GE SFP+ ports)
The Huawei S5735-S24T4X-I is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports plus 4 10GE SFP+ uplink ports for superior network connectivity. This managed Layer 3 switch features advanced security with comprehensive access control, robust QoS capabilities for traffic prioritization, and energy-efficient design reducing power consumption by up to 30%. Key benefits include simplified network management through Huawei’s eSight platform, flexible deployment options for campus and data center environments, and future-proof 10G uplinks ensuring scalable bandwidth growth. The switch supports advanced features like VLAN segmentation, link aggregation, and redundancy protocols, making it ideal for medium to large enterprises requiring reliable, secure, and high-performance network infrastructure with exceptional price-to-performance ratio.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-S24T4X-I |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
