| Brand | Huawei |
|---|---|
| Model | S5735-S24T4X |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
| PN | 98010938 |
| Availability | >0.99999 |
| RTC | Supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode, Using DC power modules: 2 kV" differential mode, 4 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC, DC"put: -48 V DC to -60 V DC |
| Maximum voltage range | AC"put: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC"put: 190 V DC to 290 V DC, DC"put: -38.4 V DC to -72 V DC |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable" V200R019C10 and later versions) |
| Noise under normal temperature (27C, sound power) | < 58.9 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum Power | 46W |
| Weight (with packaging) | 7.21 kg (15.9 lb) |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45C (113F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 45C (113F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 45C (113F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |
* NOTE: Image may not exactly match the product

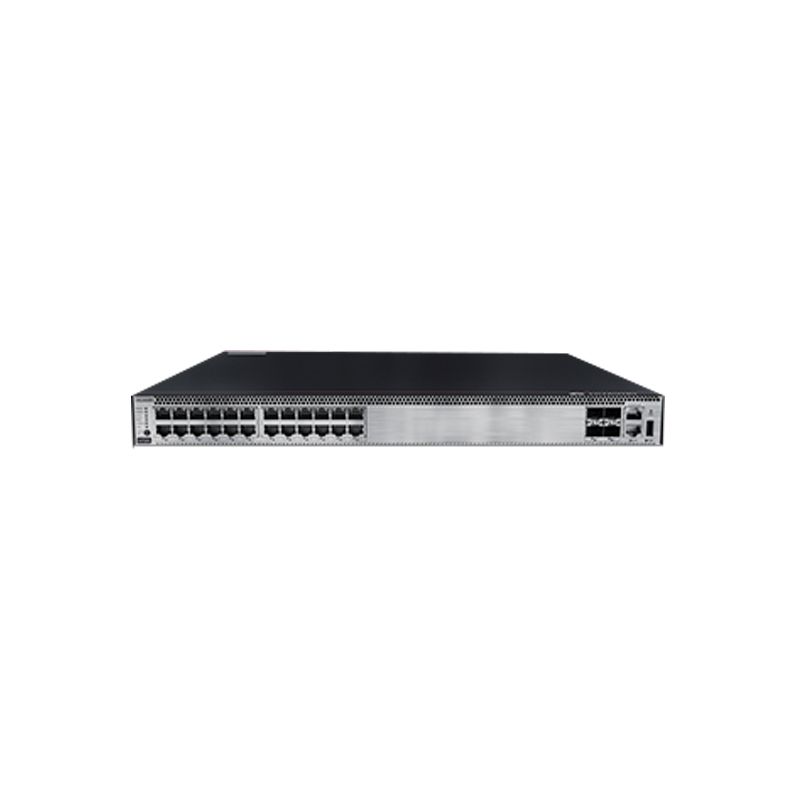

Huawei S5735-S24T4X 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power module
The Huawei S5735-S24T4X is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports for superior network connectivity. This stackable Layer 3 switch features advanced security protocols, comprehensive QoS capabilities, and energy-efficient design with fanless operation for quiet environments. Key benefits include seamless network expansion through stacking technology, robust traffic management for mission-critical applications, and flexible deployment options with modular power supply compatibility. Its unique selling points are the combination of high port density with 10GE uplinks at an competitive price point, making it ideal for medium to large enterprises requiring reliable, scalable network infrastructure with future-proof 10 Gigabit connectivity.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-S24T4X |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
Inquiry Now
Contact us for more discounts!
