| PN | 98010940 |
|---|---|
| Model | S5735-S24P4X |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.7 mm |
| Depth [mm] | 420.1mm |
| Wide [mm] | 442.1mm |
| Chassis height [U] | 1 |
| Weight (with packaging) | 7.39 kg (16.29 lb) |
| Fixed port | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the?display version?command. |
| Mean time between failures (MTBF) | 59.88 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??7 kV |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 65 W, 100% PoE loads: 847 W (PoE: 720 W) |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 51 W |
| Operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 58.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.) |
| Products Status | New |
* NOTE: Image may not exactly match the product

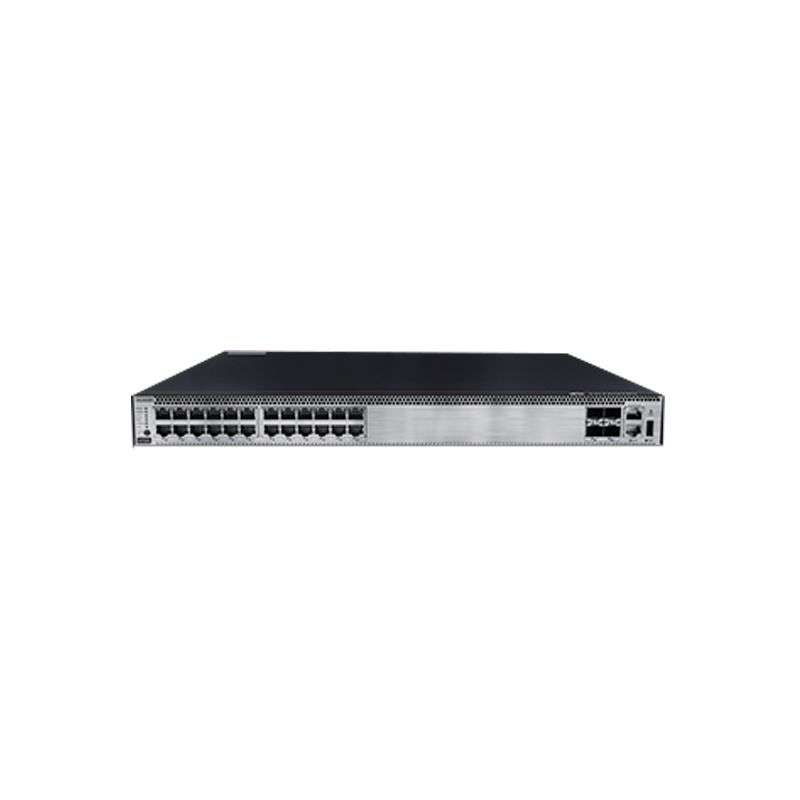

Huawei S5735-S24P4X (24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, without power module)
The Huawei S5735-S24P4X is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE+) capability and 4 dedicated 10GE SFP+ uplink ports. This versatile switch provides up to 370W PoE power budget to support IP phones, wireless access points, and IoT devices without requiring separate power supplies. Key features include advanced Layer 2/3 switching, comprehensive security protocols, intelligent traffic management, and energy-efficient design. The 10GE uplinks ensure high-bandwidth connectivity to core networks, while the fanless design enables quiet operation in office environments. Ideal for small to medium enterprises, this switch offers enterprise-grade reliability, simplified network management through Huawei’s eSight platform, and future-ready scalability at a competitive price point. The modular power design allows flexible deployment options while maintaining redundancy for mission-critical applications.
