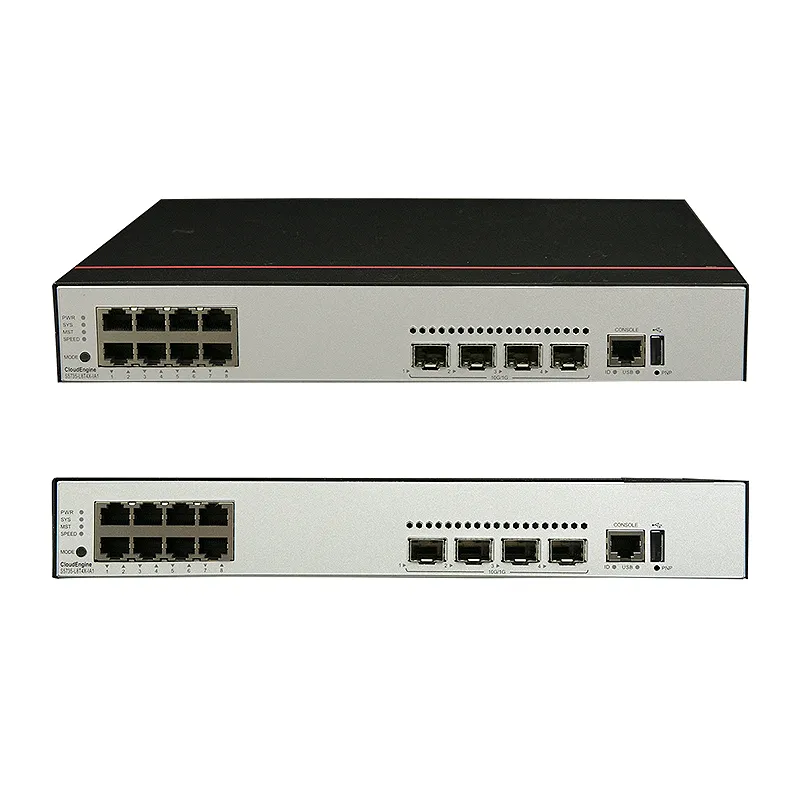

Huawei S5735-L8T4X-IA1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

The Huawei S5735-L8T4X-IA1 is a high-performance enterprise switch delivering exceptional network connectivity with 8 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports. This compact yet powerful switch provides 176 Gbps switching capacity and supports advanced features including VLAN, QoS, and comprehensive security protocols. Key benefits include simplified network management through Huawei’s eSight platform, energy-efficient design with AC power supply, and flexible deployment options for small to medium enterprises. Its unique selling points are the combination of high-density 10GE uplinks in a compact form factor, robust Layer 2/3 switching capabilities, and Huawei’s proven reliability in enterprise networking, making it ideal for businesses requiring scalable, future-ready network infrastructure with superior price-performance ratio.

Quote1 Piece(MOQ)

Premium Client Discounts Available

PN98011581
ModelS5735-L8T4X-IA1
BrandHuawei
Warranty1 Year
Products StatusNew
PN

98011581

Model

S5735-L8T4X-IA1

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

220.0mm

Wide [mm]

300.0mm

Chassis height [U]

1

Dimensions with packaging (H x W x D) [mm(in.)]

110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)

Weight without packaging [kg(lb)]

1.97 kg (4.34 lb)

Weight with packaging [kg(lb)]

2.78 kg (6.13 lb)

Typical power consumption [W]

23.5 W

Typical heat dissipation [BTU/hour]

80.18 BTU/hour

Maximum power consumption [W]

30 W

Maximum heat dissipation [BTU/hour]

102.36 BTU/hour

Static power consumption [W]

15.4 W

MTBF [year]

67.07 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

43 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

31.5 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

1

Redundant power supply

Not supported

Long-term operating temperature [??C(??F)]

?C40??C to +65??C (?C40??F to +149??F) at an altitude of 0?C1800 m (0?C5906 ft.) NOTE: ?C40??C to ?C30??C (?C40??F to ?C22??F): Stable port performance can be achieved only when at least two Ethernet electrical ports go Up.

Short-term operating temperature [??C(??F)]

?C40??C to +70??C (?C40??F to +158??F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [??C(??F)]

?C40??C to +75??C (?C40??F to +167??F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Maximum input current [A]

2 A

Memory

512 MB

Flash memory

512 MB

Console port

RJ45

Eth Management port

Not supported

USB

Supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ??7 kV

Power supply surge protection [kV]

??6 kV in differential mode, ??6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification, Safety certification, Manufacturing certification
