| PN | 98011551 |
|---|---|
| Model | S5735-L8T4S-QA1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 210.0mm |
| Wide [mm] | 320.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
| Weight without packaging [kg(lb)] | 2.30 kg (5.07 lb) |
| Weight with packaging [kg(lb)] | 3.10 kg (6.83 lb) |
| Typical power consumption [W] | 20.5 W |
| Typical heat dissipation [BTU/hour] | 69.95 BTU/hour |
| Maximum power consumption [W] | 22 W |
| Maximum heat dissipation [BTU/hour] | 75.07 BTU/hour |
| Static power consumption [W] | 13.0 W |
| MTBF [year] | 71.82 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | ?C5??C to +45??C (23??F to 113??F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
| Storage temperature [??C(??F)] | ?C40??C to +70??C (?C40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

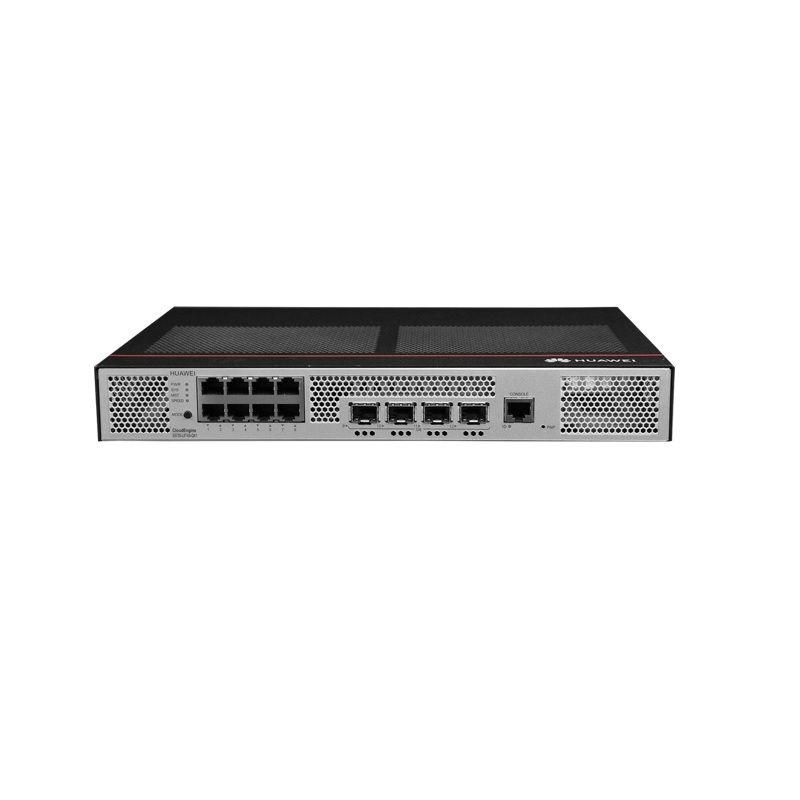

Huawei S5735-L8T4S-QA1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power, Fanless)
The Huawei S5735-L8T4S-QA1 is a compact, fanless enterprise switch designed for small to medium businesses requiring reliable network connectivity with minimal noise. This energy-efficient switch features 8 Gigabit Ethernet copper ports and 4 SFP fiber ports, delivering flexible connectivity options for both copper and fiber infrastructure. Its fanless design ensures silent operation, making it ideal for office environments, while the AC power supply provides standard deployment convenience. Key benefits include reduced operational costs through low power consumption, enhanced network reliability with dual connectivity options, and simplified management through Huawei’s intelligent network management features. The switch supports advanced Layer 2+ switching capabilities, VLAN management, and quality of service controls, making it perfect for organizations seeking professional-grade networking performance in a quiet, space-efficient form factor.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| PN | 98011551 |
|---|---|
| Model | S5735-L8T4S-QA1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
Inquiry Now
Contact us for more discounts!
