| PN | 98011284 |
|---|---|
| Model | S5735-L8T4S-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 180.0mm |
| Wide [mm] | 250.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) |
| Weight without packaging [kg(lb)] | 1.38 kg (3.04 lb) |
| Weight with packaging [kg(lb)] | 2.02 kg (4.45 lb) |
| Typical power consumption [W] | 21.2 W |
| Typical heat dissipation [BTU/hour] | 72.34 BTU/hour |
| Maximum power consumption [W] | 26.3 W |
| Maximum heat dissipation [BTU/hour] | 89.74 BTU/hour |
| Static power consumption [W] | 14.8 W |
| MTBF [year] | 71.82 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 43 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) (0 m to 1800 m altitude, non-industrial optical modules),-5??C to +55??C (23??F to 131??F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

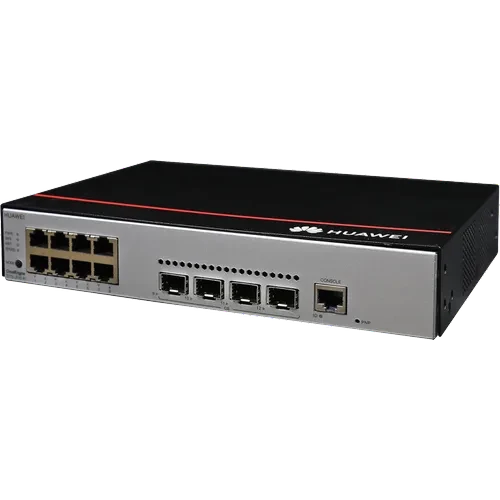

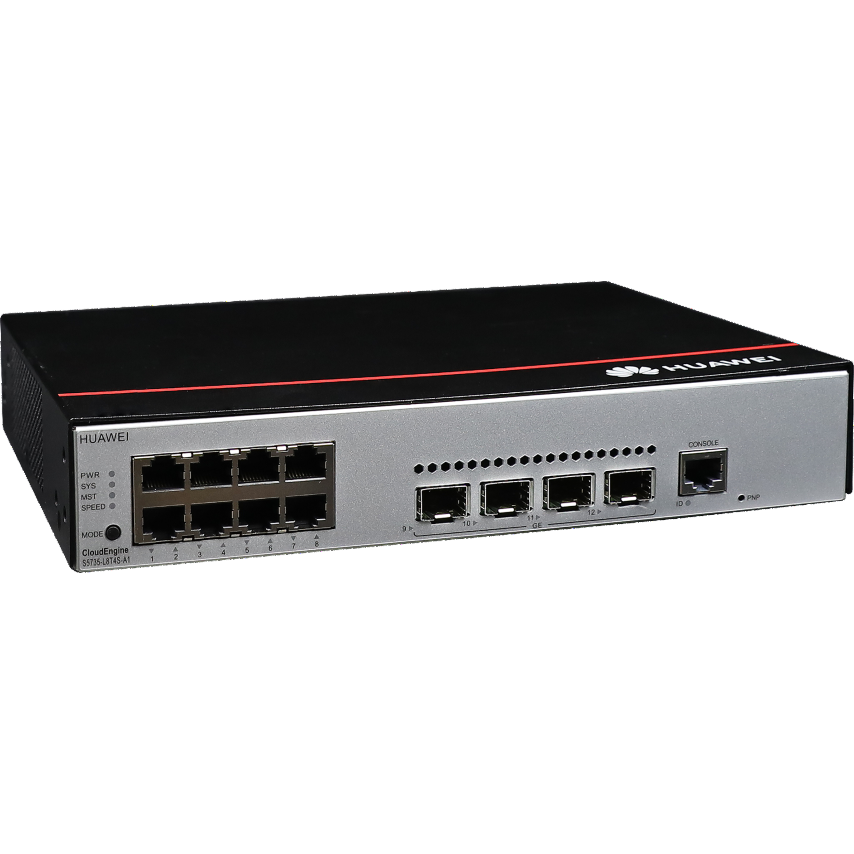

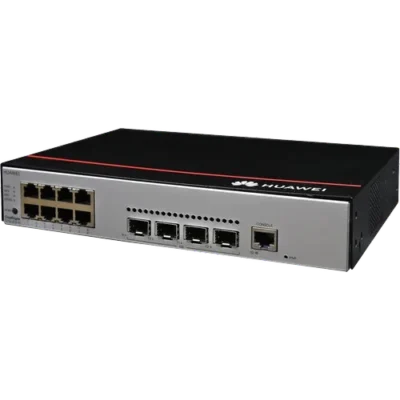

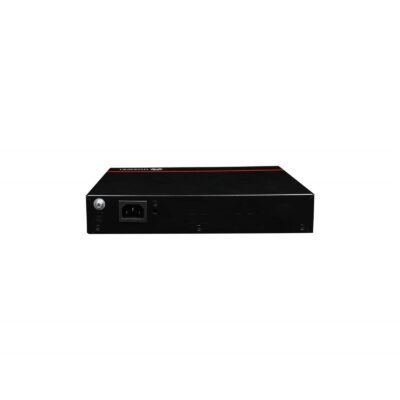

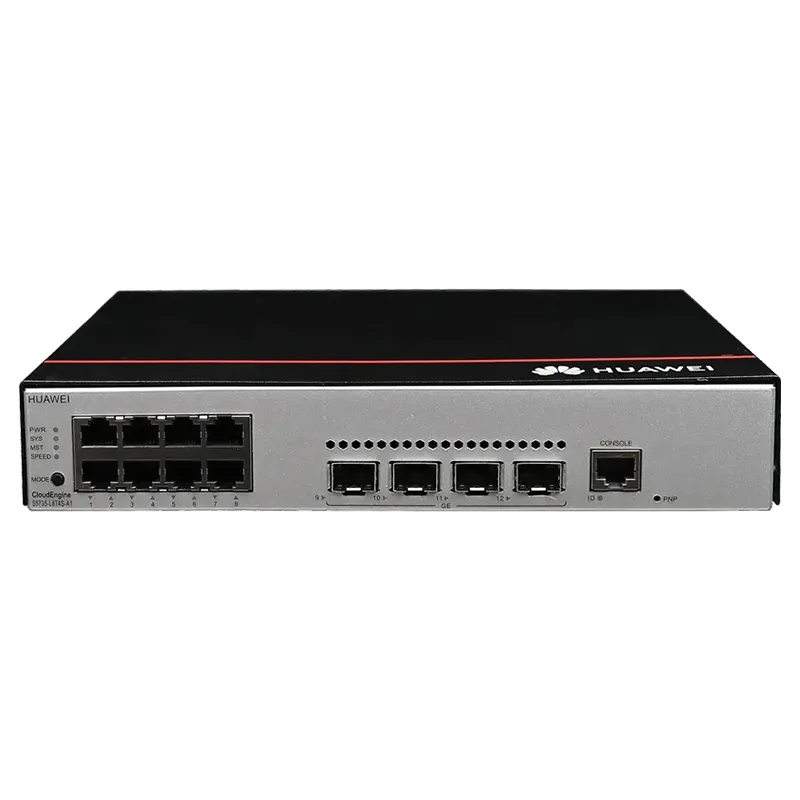

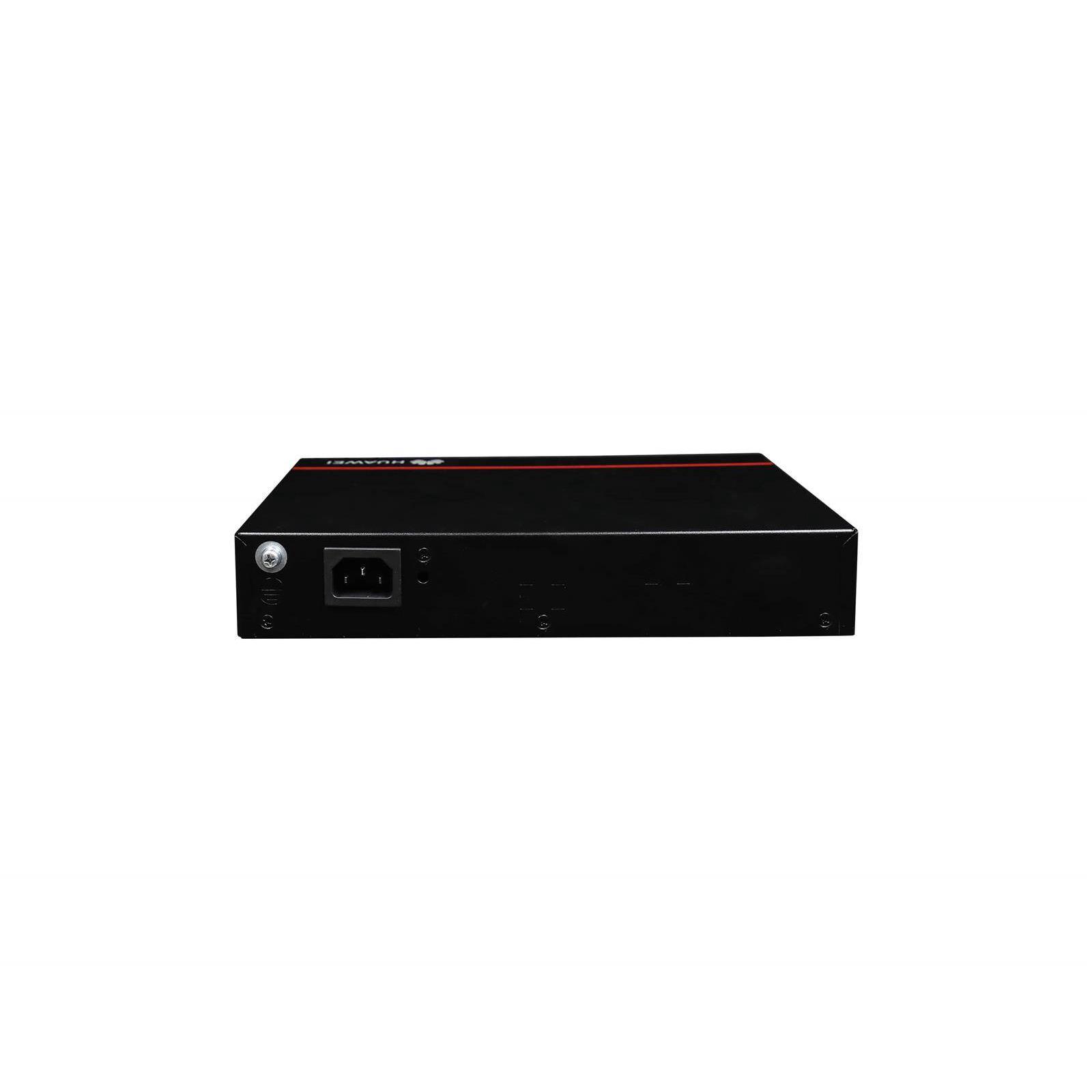

Huawei S5735-L8T4S-A1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
The Huawei S5735-L8T4S-A1 is a high-performance enterprise switch delivering 8 Gigabit Ethernet copper ports and 4 SFP fiber ports for flexible network connectivity. This AC-powered switch features advanced Layer 2/3 switching capabilities, comprehensive security protocols, and energy-efficient design. Key benefits include simplified network management through Huawei’s eSight platform, robust QoS for traffic prioritization, and stackable architecture supporting up to 9 units for scalable deployment. Its fanless design ensures silent operation ideal for office environments, while supporting advanced features like VLAN, link aggregation, and IPv6. The switch offers exceptional value with enterprise-grade reliability, easy deployment, and future-proof networking capabilities perfect for small to medium businesses requiring dependable, high-speed connectivity with room for growth.
