| PN | 98011579 |
|---|---|
| Model | S5735-L8P4X-IA1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 300.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.23 kg (4.92 lb) |
| Weight with packaging [kg(lb)] | 3.04 kg (6.7 lb) |
| Typical power consumption [W] | 26.2 W |
| Typical heat dissipation [BTU/hour] | 89.40 BTU/hour |
| Maximum power consumption [W] | Without PoE: 33 W, Full PoE load: 178 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | Without PoE: 112.60, Full PoE load: 607.35 |
| Static power consumption [W] | 18.7 W |
| MTBF [year] | 62.46 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 42.2 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 30.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | ?C40??C to +65??C (?C40??F to +149??F) at an altitude of 0?C1800 m (0?C5906 ft.), NOTE: ?C40??C to ?C30??C (?C40??F to ?C22??F): Stable port performance can be achieved only when at least two Ethernet electrical ports go Up. |
| Short-term operating temperature [??C(??F)] | ?C40??C to +70??C (?C40??F to +158??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | ?C40??C to +75??C (?C40??F to +167??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 3 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

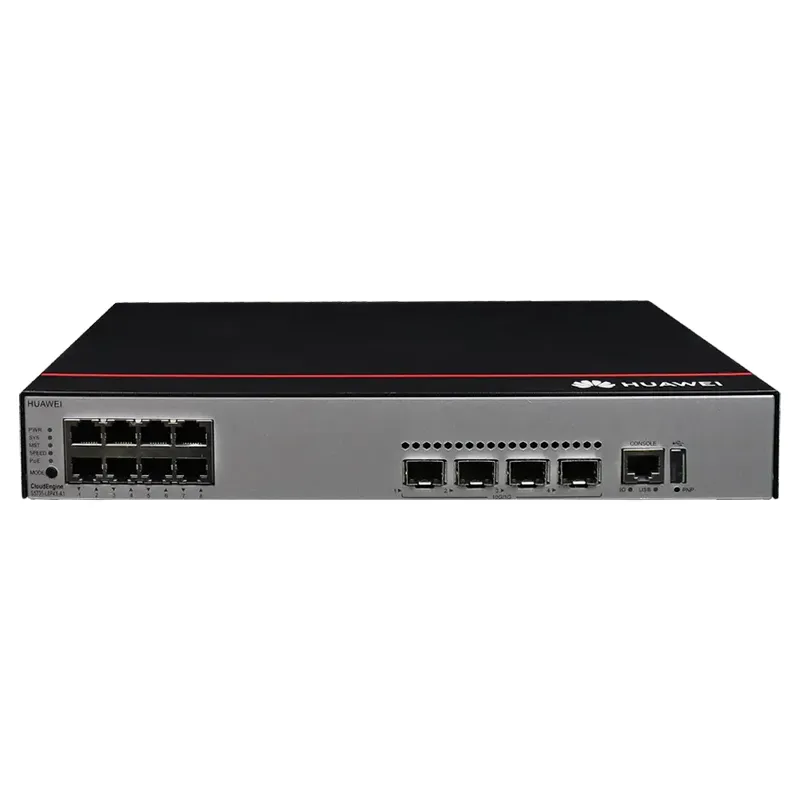

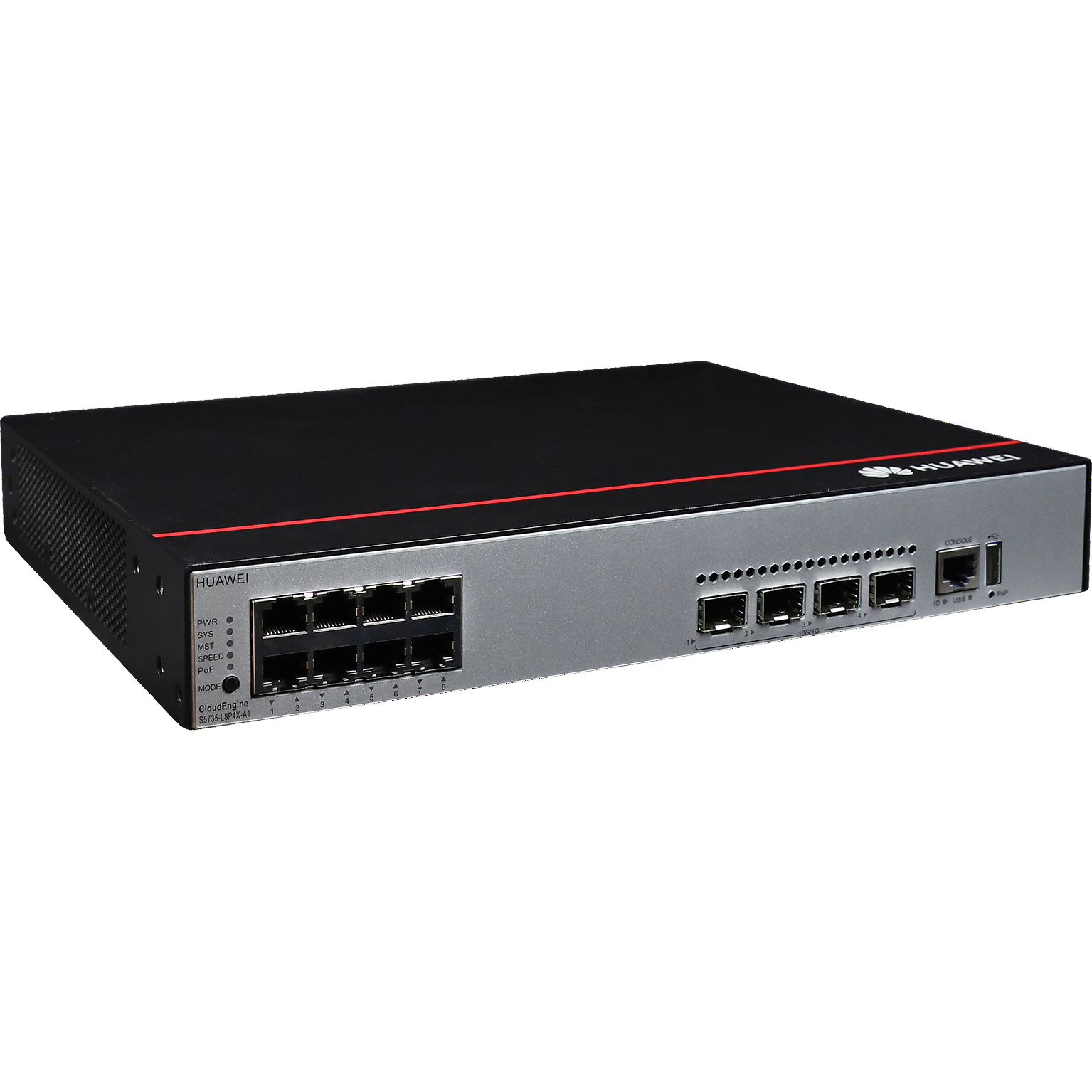

Huawei S5735-L8P4X-IA1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
The Huawei S5735-L8P4X-IA1 is a high-performance enterprise switch delivering exceptional connectivity and power efficiency. This compact powerhouse features 8 Gigabit Ethernet ports for standard device connections and 4 high-speed 10GE SFP+ ports for fiber uplinks and server connections. Built-in PoE+ capability eliminates the need for separate power adapters, directly powering IP phones, wireless access points, and security cameras through Ethernet cables. The switch offers enterprise-grade reliability with advanced Layer 2/3 switching capabilities, comprehensive security features, and intelligent traffic management. Its fanless design ensures silent operation ideal for office environments, while the AC power supply provides plug-and-play simplicity. Perfect for small to medium businesses requiring robust network infrastructure with future-ready 10Gb uplink capacity, centralized device power management, and Huawei’s proven networking reliability at a competitive price point.
