| PN | 98011332 |
|---|---|
| Model | S5735-L48T4X-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 3.79 kg (8.36 lb) |
| Weight without packaging | 2.81 kg (6.2 lb) |
| Maximum power consumption [W] | 51.9 |
| Typical power consumption [W] | 43.2 |
| Maximum heat dissipation [BTU/h] | 177.09 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 147.4 |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input current [A] | 2 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Noise at normal temperature (acoustic pressure) | 36.2 |
| Noise at normal temperature (acoustic power) | 48 |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Long-term operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Short-term operating temperature | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| MTBF [year] | 53.67 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 52 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 4 |
| Maximum number of GE ports | 52 |
| Maximum number of FE ports | 48 |
| 10GE optical interface | 4 |
| 1000M electrical interface | 48 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| RPS input | Not supported |
| PoE | Not supported |

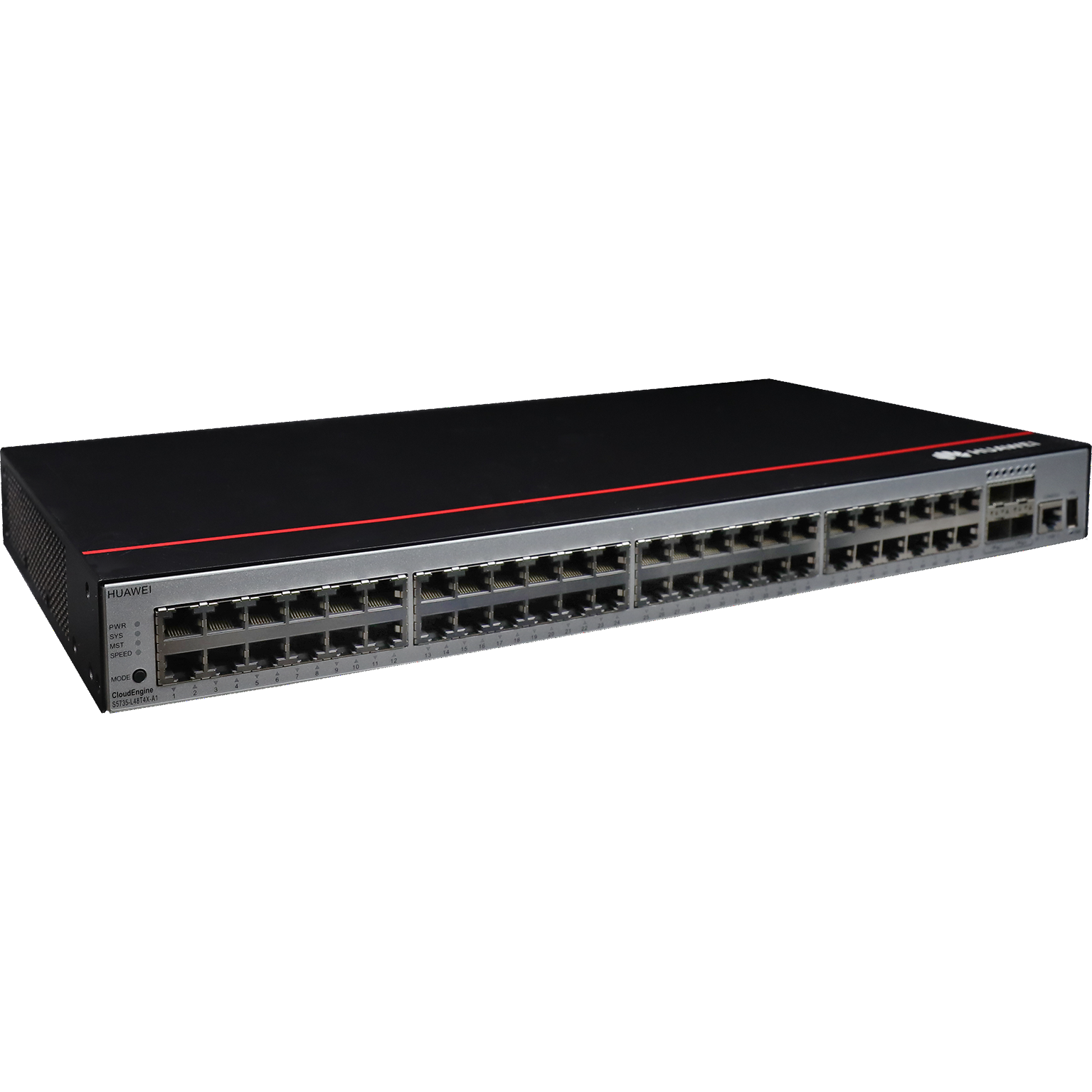

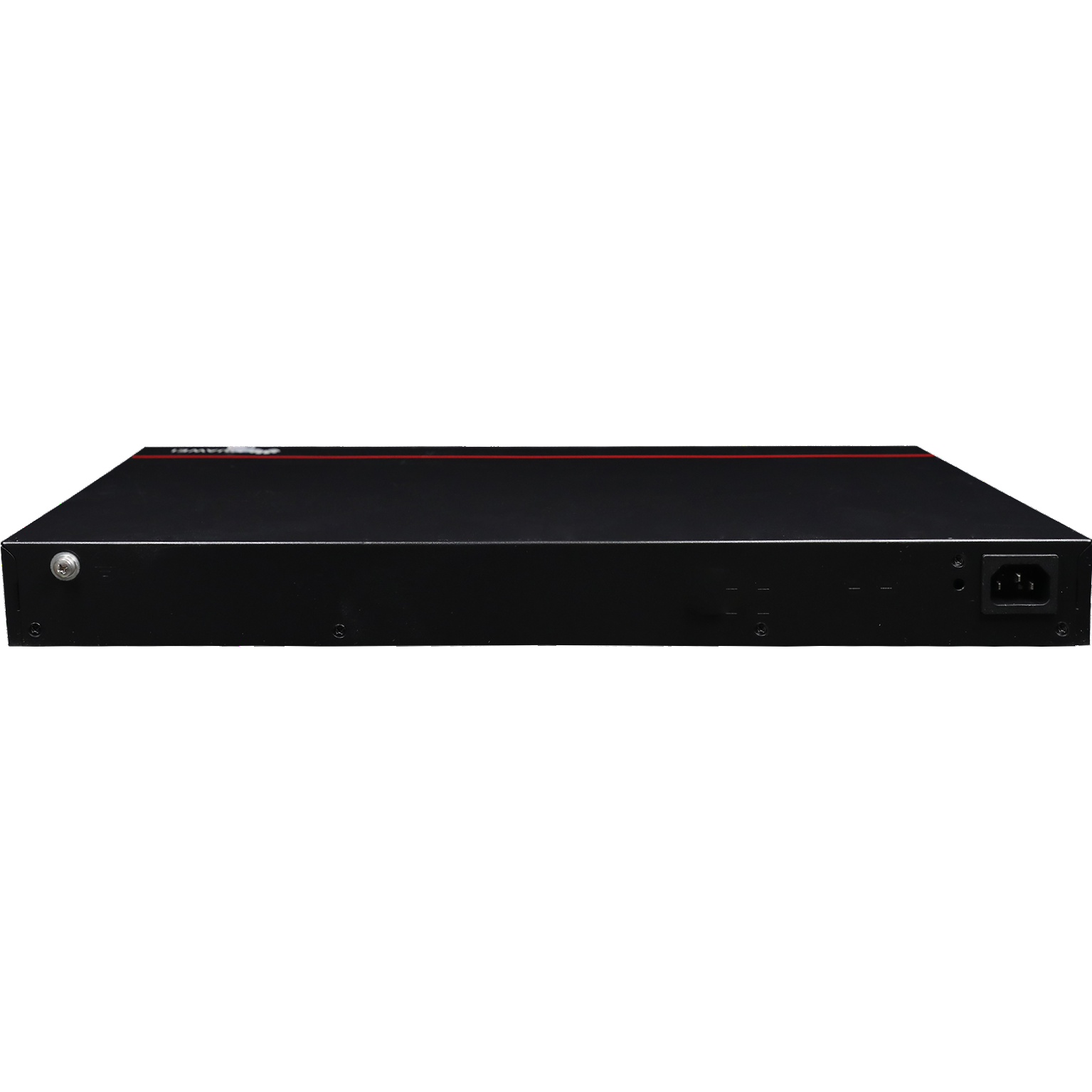

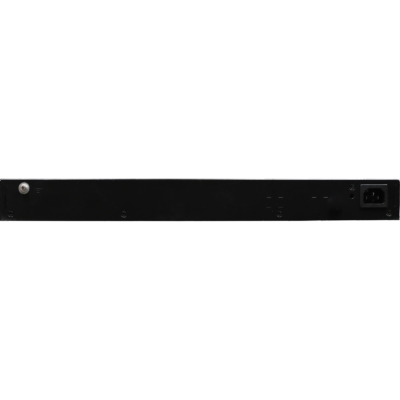

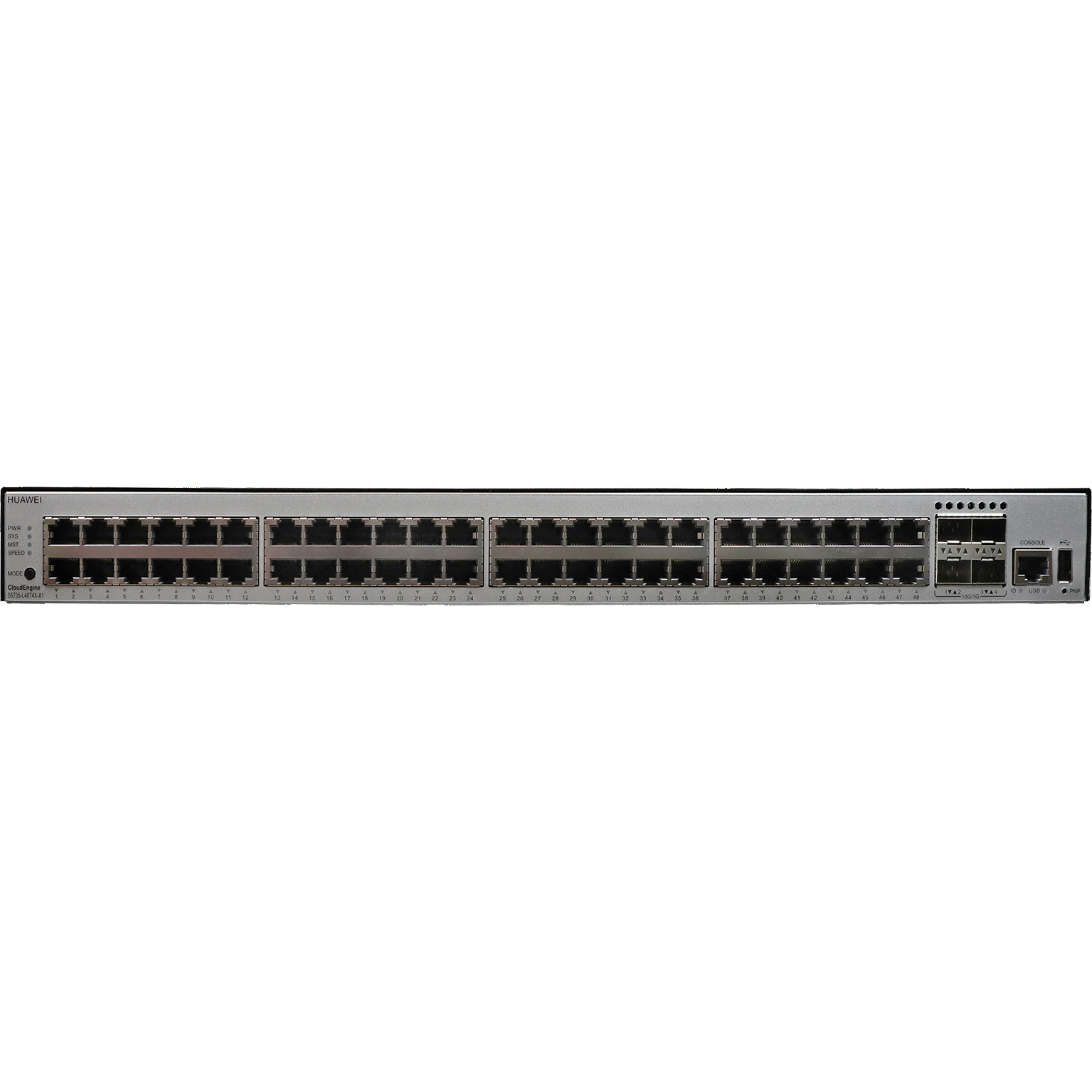

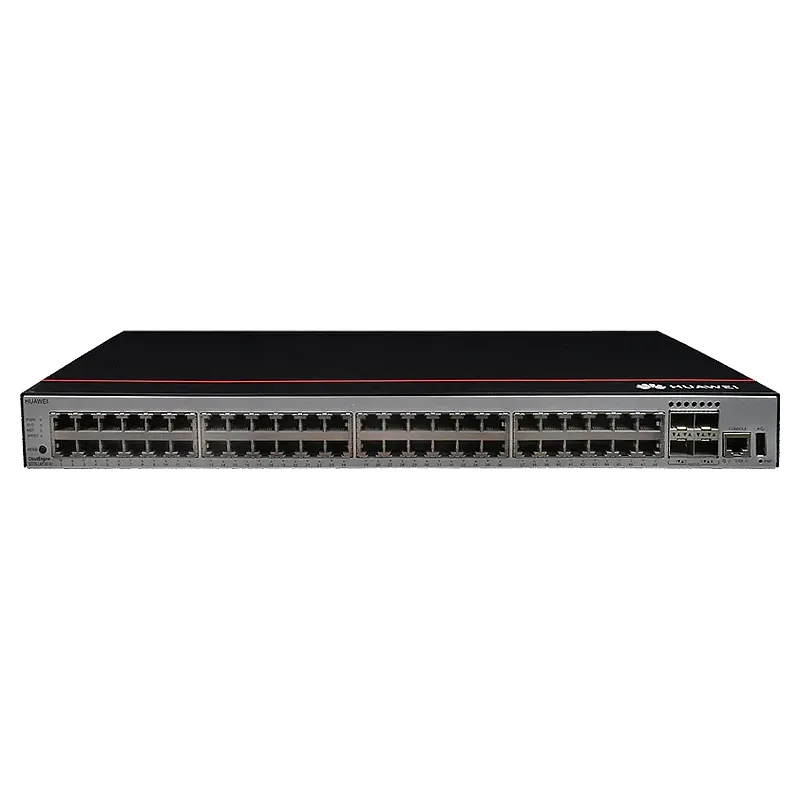

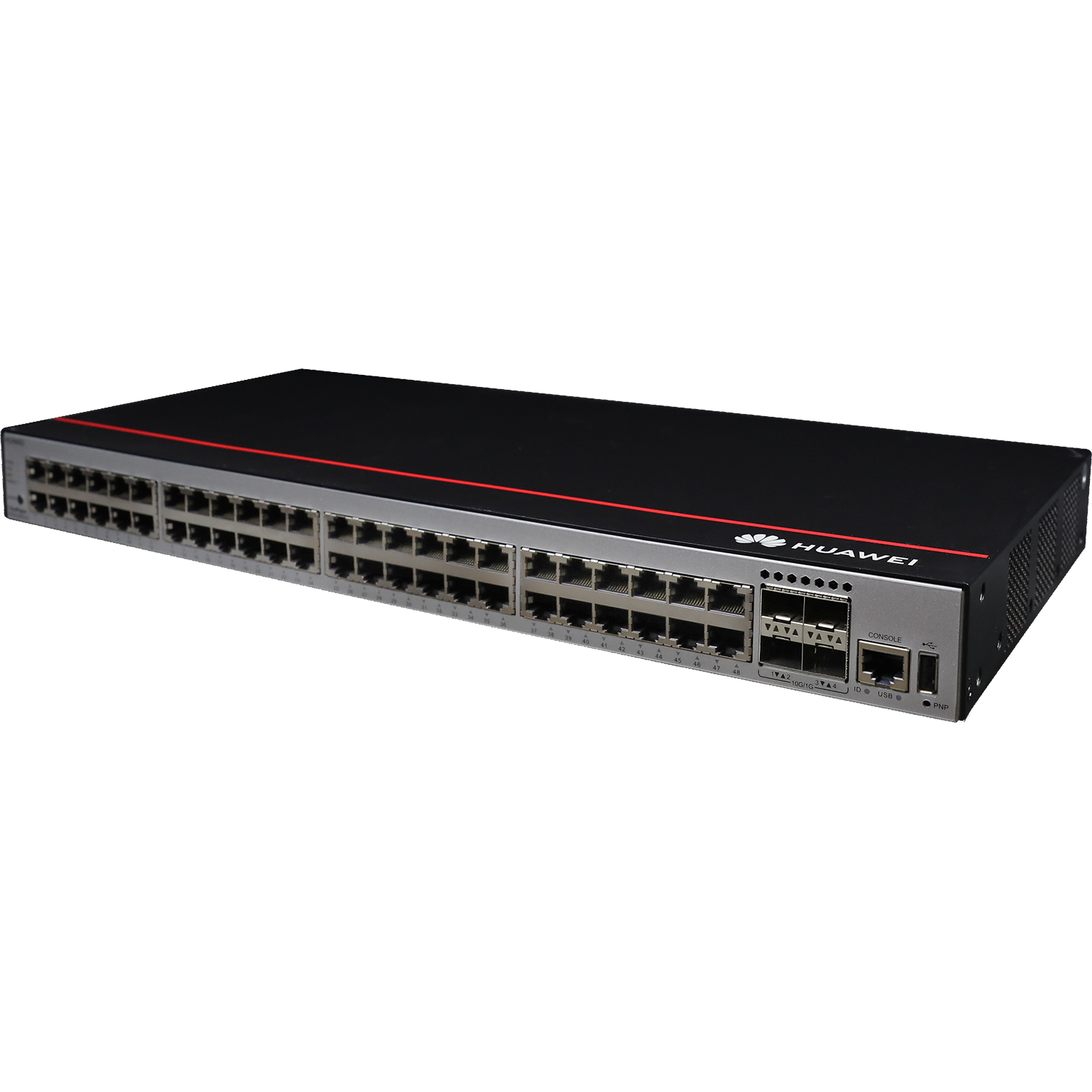

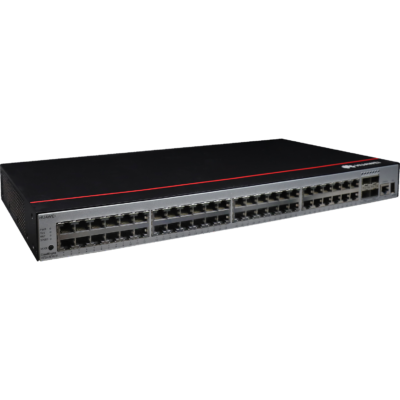

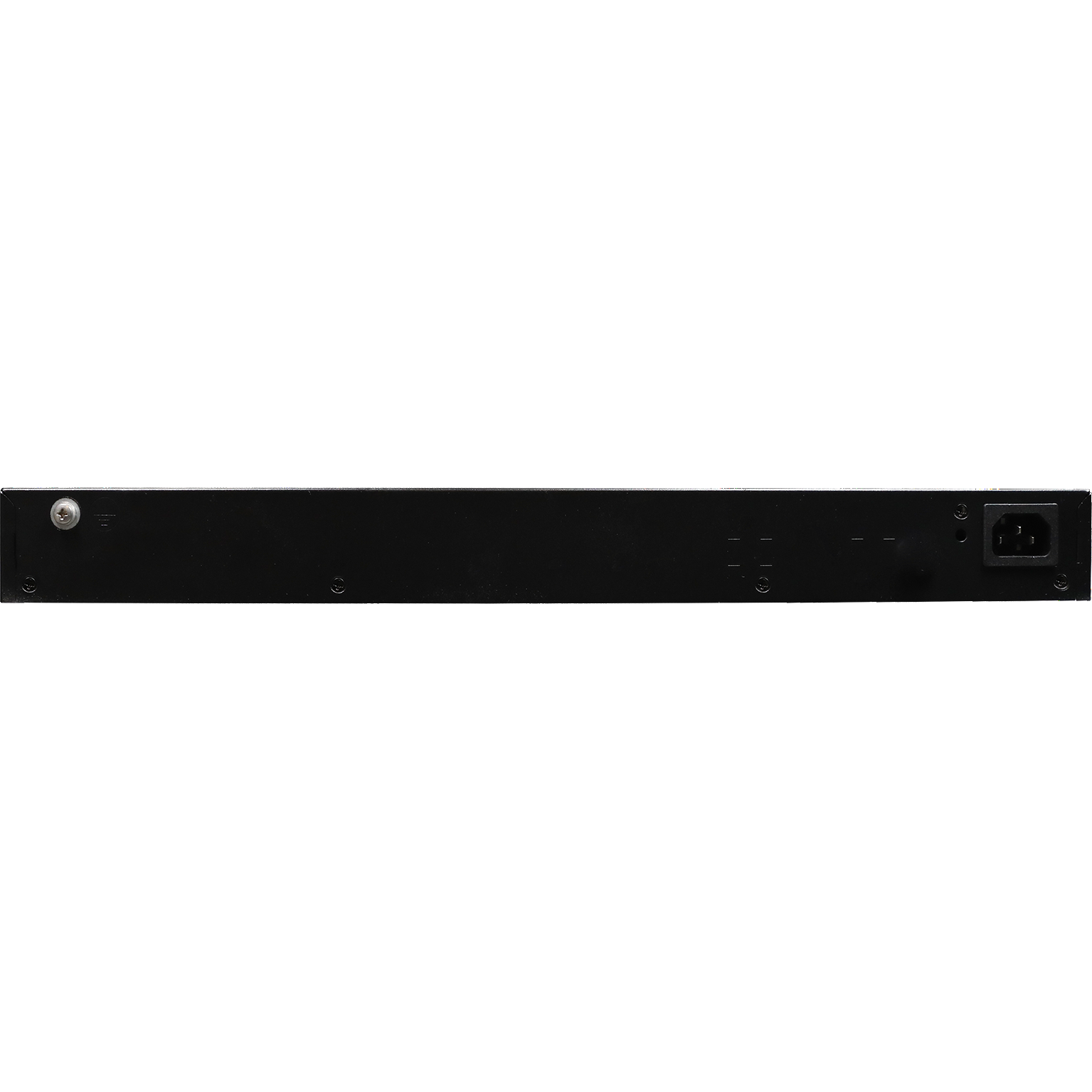

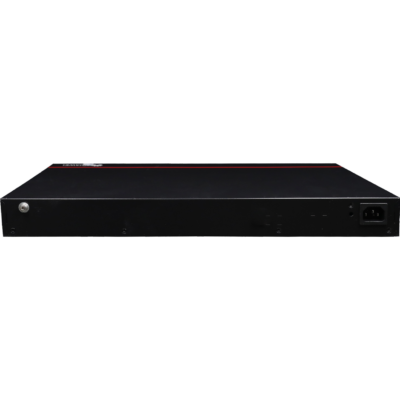

* NOTE: Image may not exactly match the product

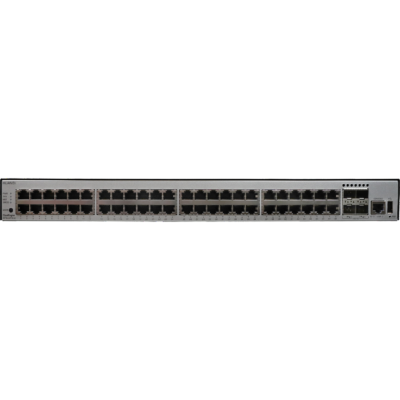

Huawei S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
The Huawei S5735-L48T4X-A1 is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports for scalable network connectivity. This AC-powered switch features advanced Layer 2/3 switching capabilities, comprehensive security protocols, and intelligent traffic management. Key benefits include simplified network deployment through zero-touch provisioning, energy-efficient design reducing operational costs, and robust QoS ensuring optimal performance for critical applications. Its stackable architecture supports up to 9 units for seamless expansion, while built-in redundancy and hardware-based forwarding guarantee 99.9% network reliability. Ideal for medium to large enterprises requiring future-proof networking infrastructure with exceptional port density and enterprise-grade features at competitive pricing.
