| Brand | Huawei |
|---|---|
| Model | S5735-L48T4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
| PN | 98010936 |
| Availability | >0.99999 |
| RTC | Not supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | 6 kV" differential mode, 6 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC |
| Maximum voltage range | AC"put: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC"put: 190 V DC to 290 V DC |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). The operating temperature of the switch is -5C to +45C (23F to 113F) when it uses 10GE SFP+ optical modules with 40 km or longer transmission distances. |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable" V200R019C10 and later versions) |
| Noise under normal temperature (27C, sound power) | < 53.3 dB(A) |
| Depth [mm] | 220.0mm |
| Maximum Power | 54W |
| Weight (with packaging) | 4.42 kg (9.75 lb) |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 50C (122F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |

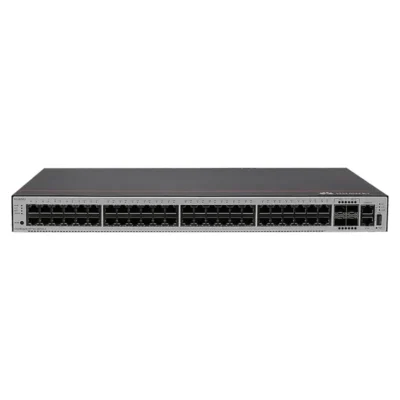

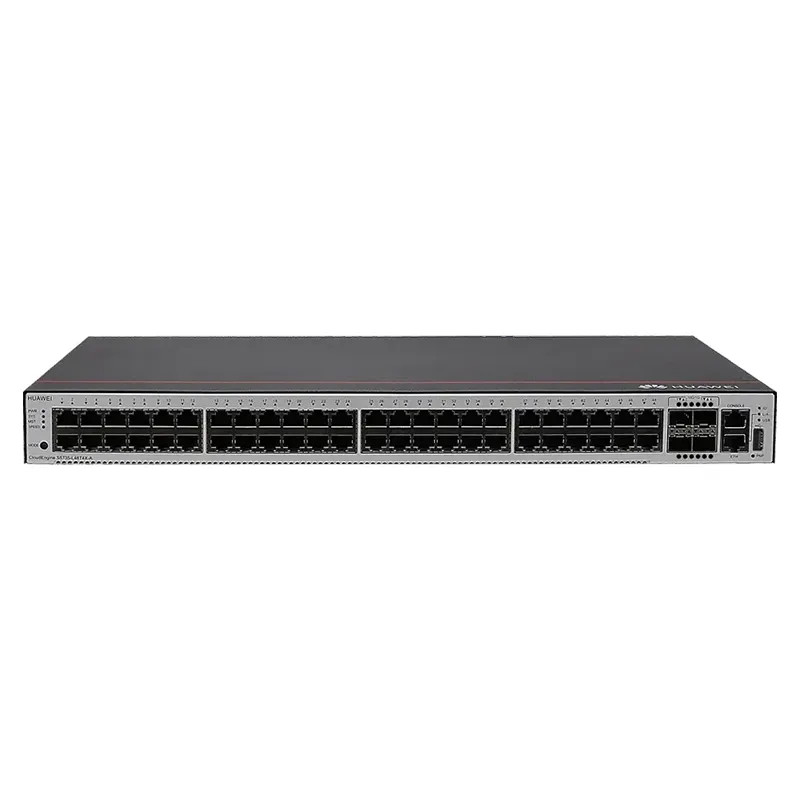

* NOTE: Image may not exactly match the product
Huawei S5735-L48T4X-A (48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports)
The Huawei S5735-L48T4X-A is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports plus 4 10GE SFP+ uplink ports for superior network connectivity. This Layer 3 managed switch features advanced security with comprehensive access control, robust Quality of Service (QoS) for traffic prioritization, and energy-efficient design reducing power consumption by up to 30%. Key benefits include simplified network management through Huawei’s eSight platform, flexible stacking capabilities supporting up to 9 units, and comprehensive IPv6 readiness for future-proof networking. The switch offers exceptional value with enterprise-grade reliability, zero-touch deployment, and intelligent operations that reduce maintenance costs while ensuring 99.99% uptime for mission-critical business applications.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-L48T4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
