| PN | 98011334 |
|---|---|
| Model | S5735-L48T4S-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.76 kg (6.09 lb) |
| Weight with packaging [kg(lb)] | 3.74 kg (8.25 lb) |
| Typical power consumption [W] | 43.3 W |
| Typical heat dissipation [BTU/hour] | 147.74 BTU/hour |
| Maximum power consumption [W] | 50.4 W |
| Maximum heat dissipation [BTU/hour] | 171.97 BTU/hour |
| Static power consumption [W] | 20.3 W |
| MTBF [year] | 56.7 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 48 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 36.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

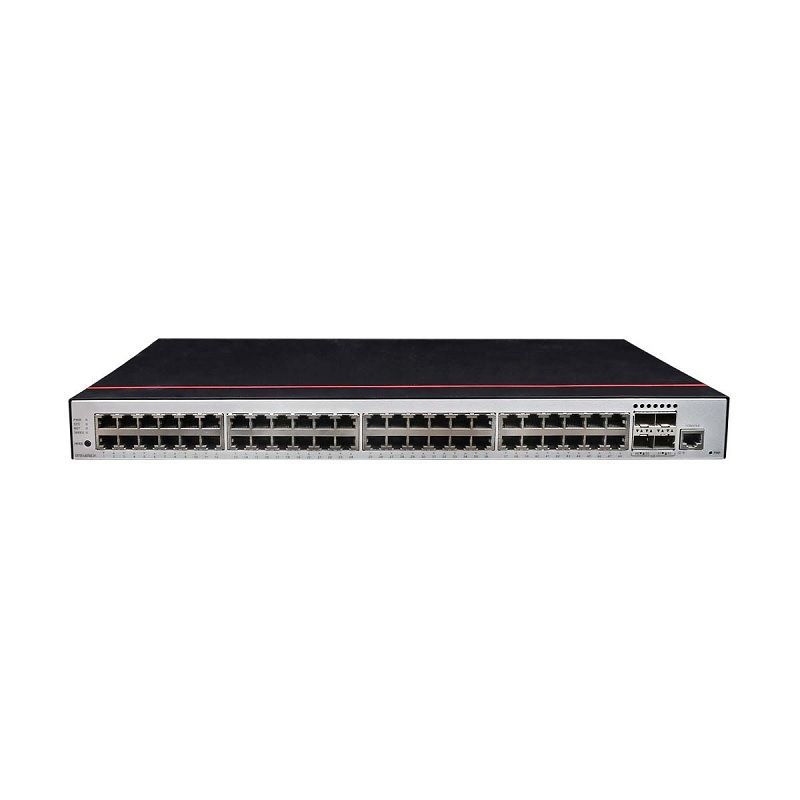

Huawei S5735-L48T4S-A1 (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
The Huawei S5735-L48T4S-A1 is a high-performance enterprise-grade managed switch delivering robust network connectivity with 48 Gigabit Ethernet ports and 4 SFP uplink ports. This versatile switch supports advanced Layer 2/3 features including VLAN management, QoS prioritization, and comprehensive security protocols. Key benefits include simplified network management through Huawei’s intuitive web interface, energy-efficient design reducing operational costs, and reliable AC power supply ensuring consistent uptime. The switch excels in medium to large enterprise environments, offering exceptional port density, flexible fiber connectivity options, and enterprise-class reliability backed by Huawei’s proven networking expertise. Its stackable architecture and comprehensive management capabilities make it ideal for businesses requiring scalable, secure, and high-performance network infrastructure.
