| PN | 98012120 |
|---|---|
| Model | S5735-L48P4XE-A-V2 |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 8.90 (19.62) |
| Weight without packaging | 6.10 (13.45) |
| Maximum power consumption [W] | – Without PoE: 76.66 W/- Full PoE load: 993.74 W (PoE: 846 W) |
| Typical power consumption [W] | 54.78 |
| Maximum heat dissipation [BTU/h] | – Without PoE: 261.57/- Full PoE load: 3390.74 |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 186.91 |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | AC input: 90?C290 V AC; 45?C65 Hz |
| Rated input voltage [V] | AC input: 100?C240 V AC; 50/60 Hz |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 1 |
| Number of card slots | 0 |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Noise at normal temperature (acoustic pressure) | 55 |
| Noise at normal temperature (acoustic power) | 67 |
| Airflow direction | Air intake from left, front, and right and air exhaust from rear |
| Long-term operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage temperature | ?C40??C to +70??C (?C40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0?C5000 m (0?C16404 ft.) |
| MTBF [year] | 46.89 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 54 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 4 |
| Maximum number of GE ports | 52 |
| Maximum number of FE ports | 48 |
| 10GE optical interface | 4 |
| 1000M electrical interface | 48 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | Differential mode: ??6 kV; common mode: ??6 kV |
| RPS input | Not supported |
| PoE | Supported |
| PoE power supply | Supported |

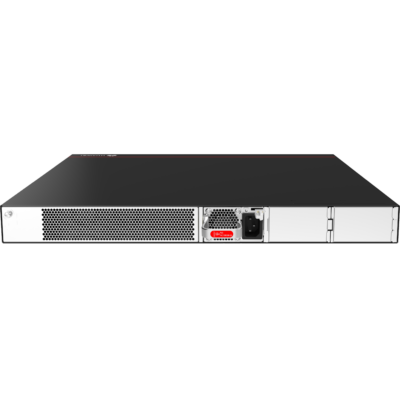

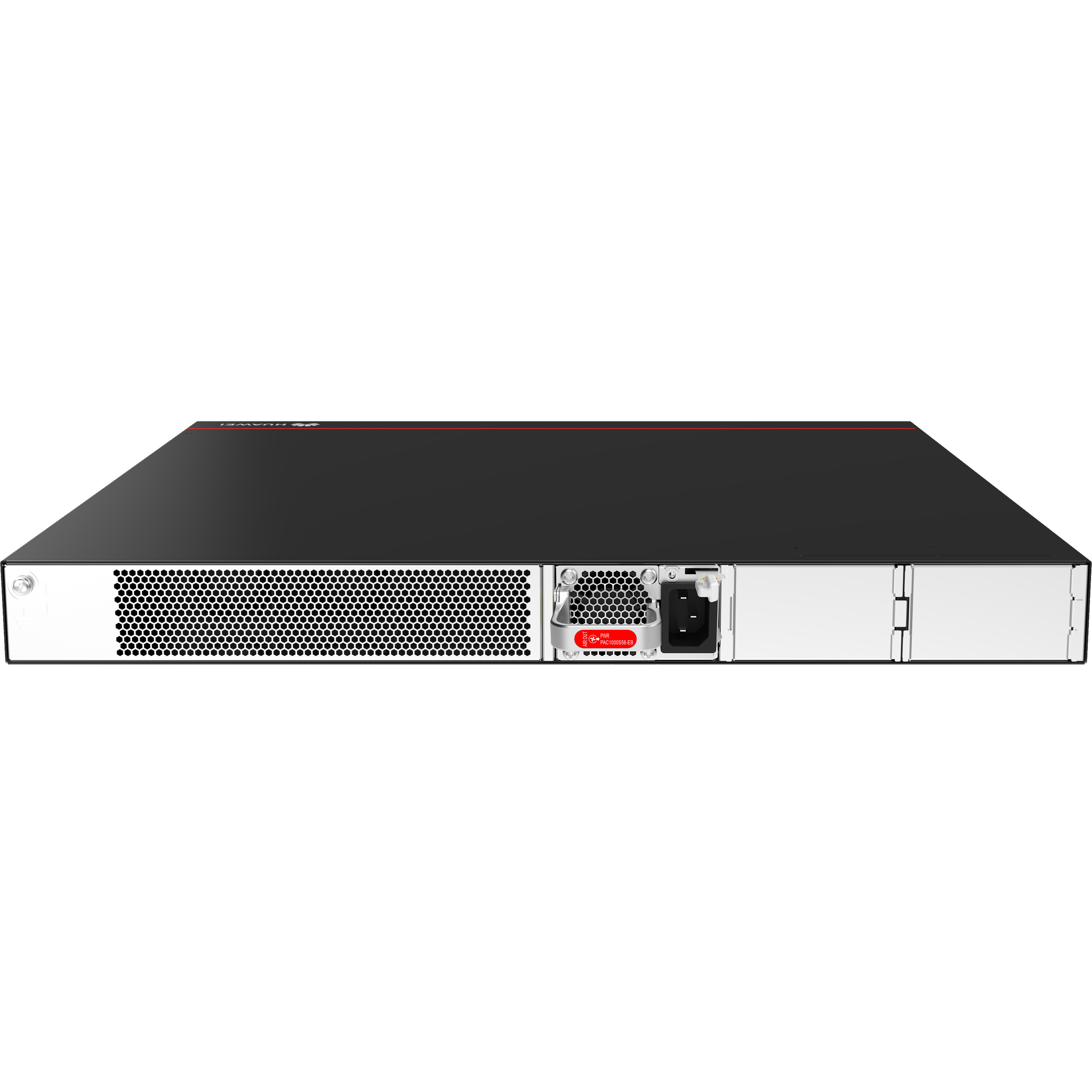

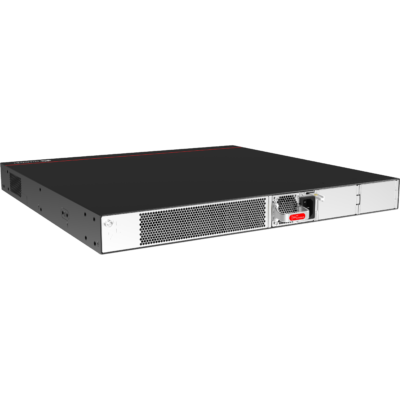

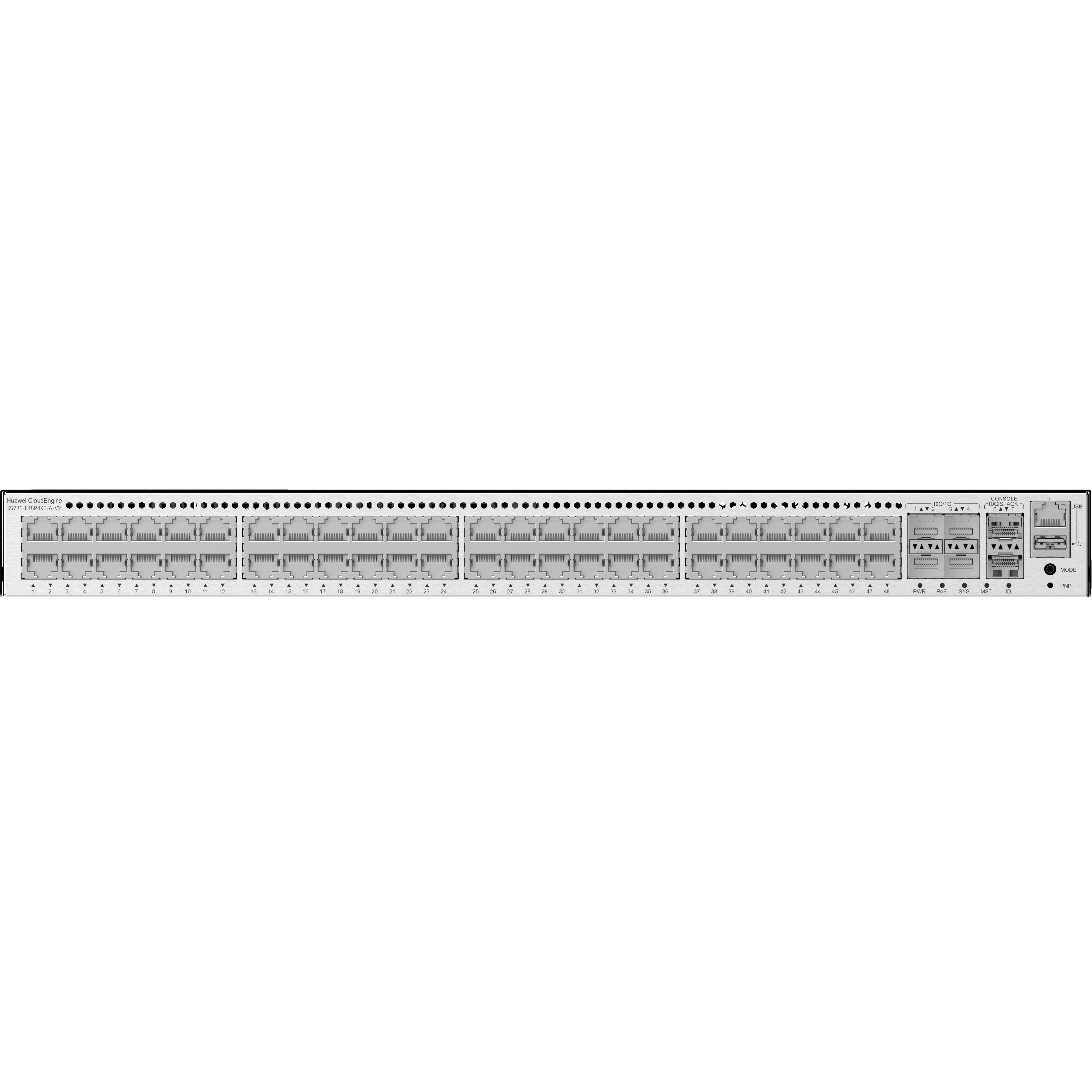

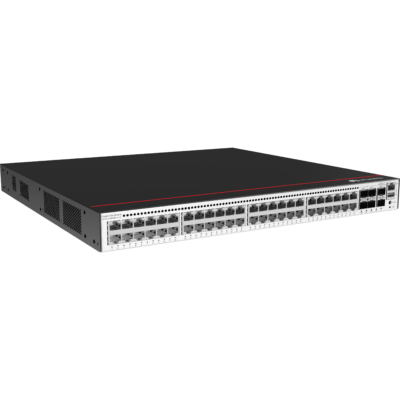

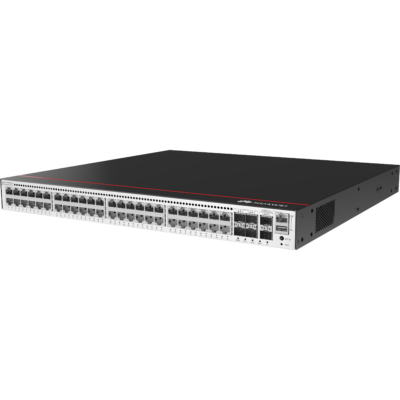

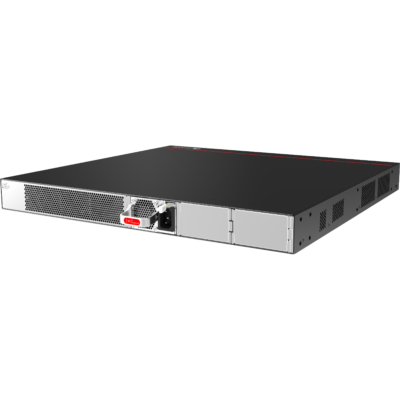

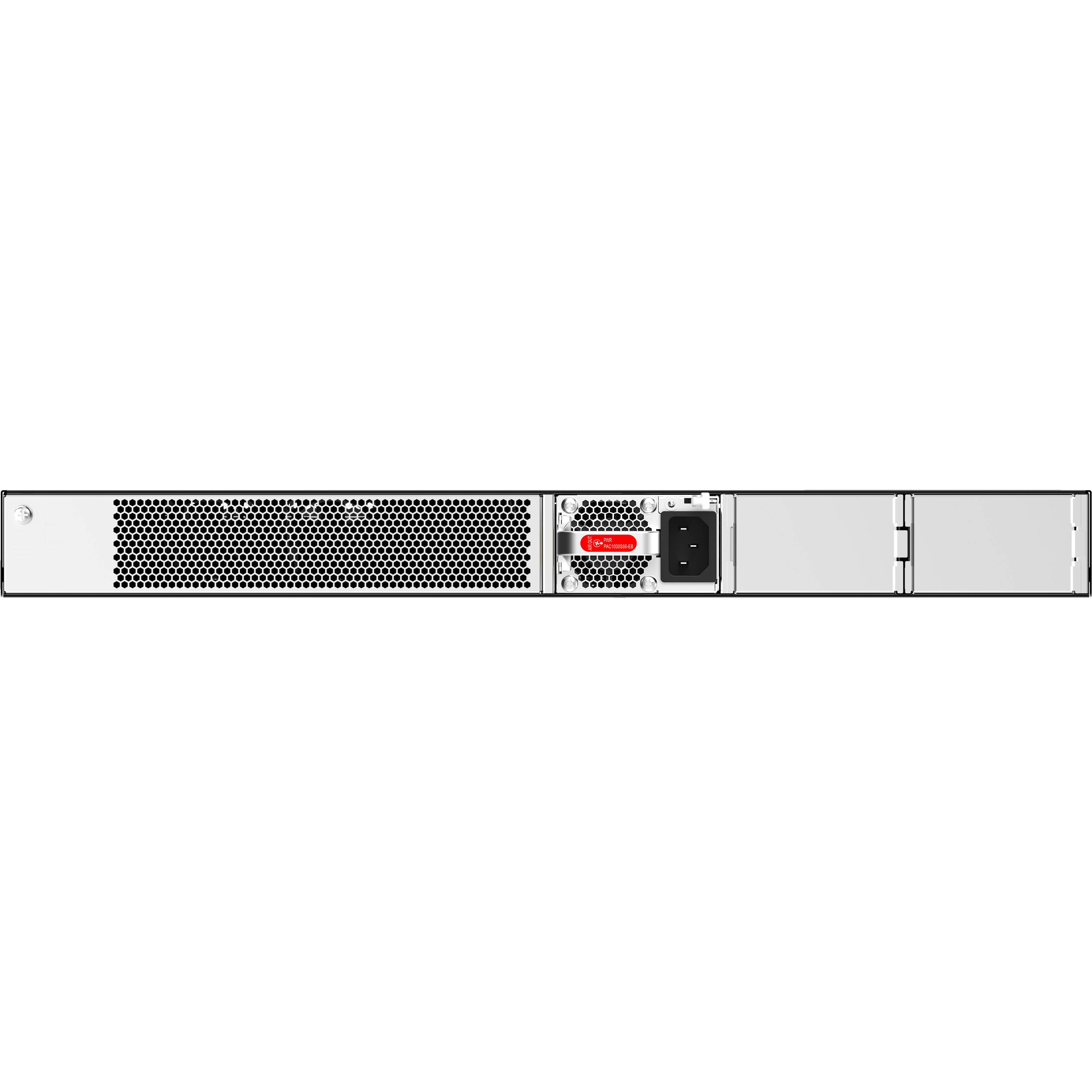

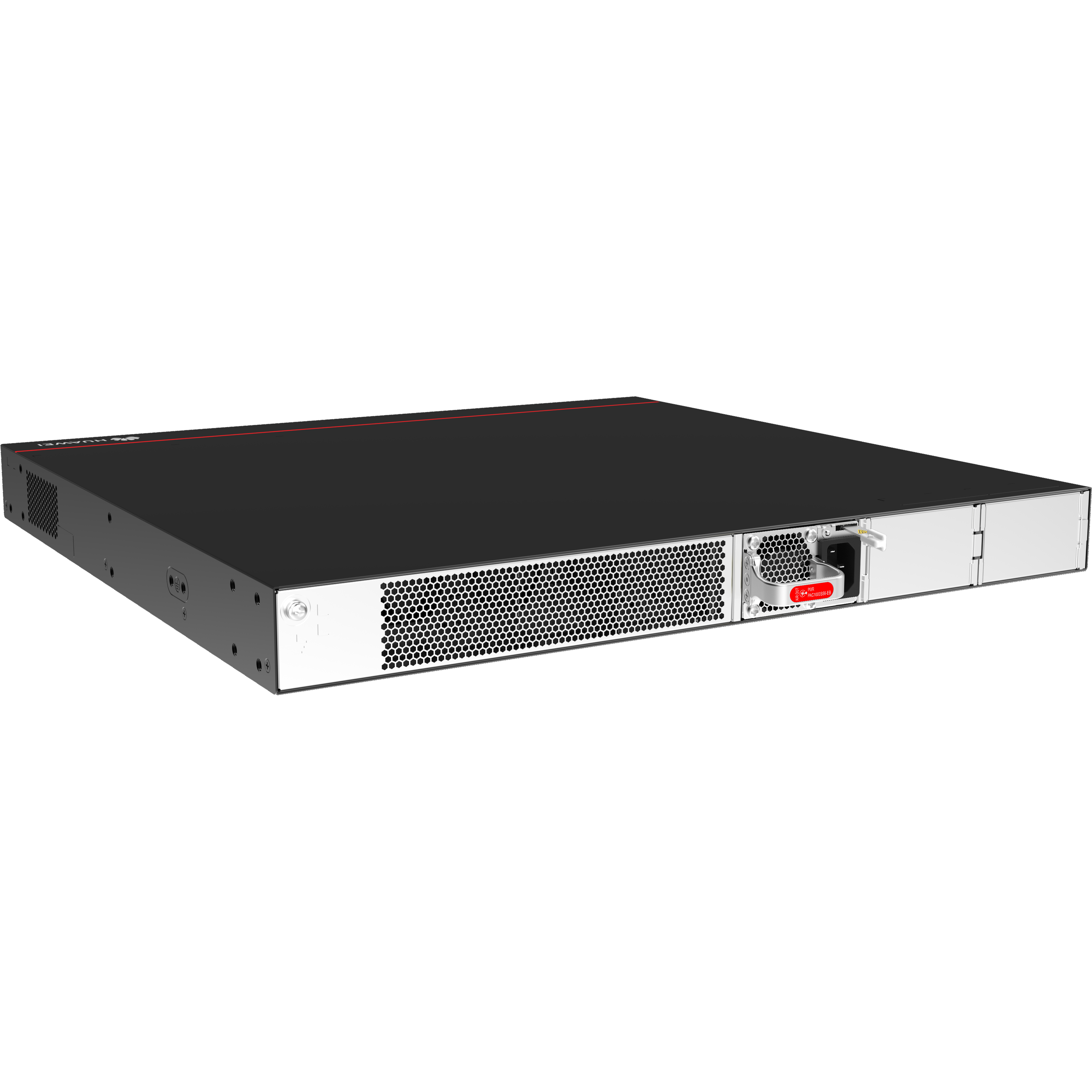

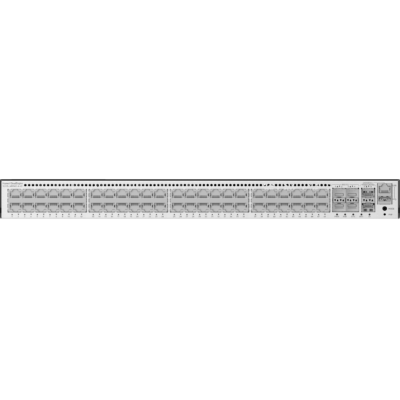

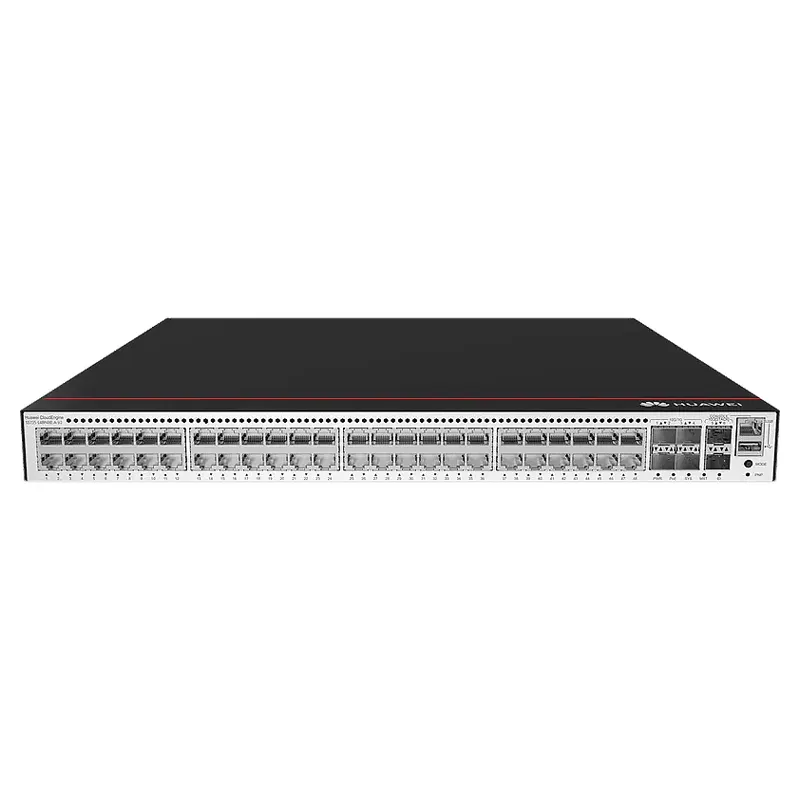

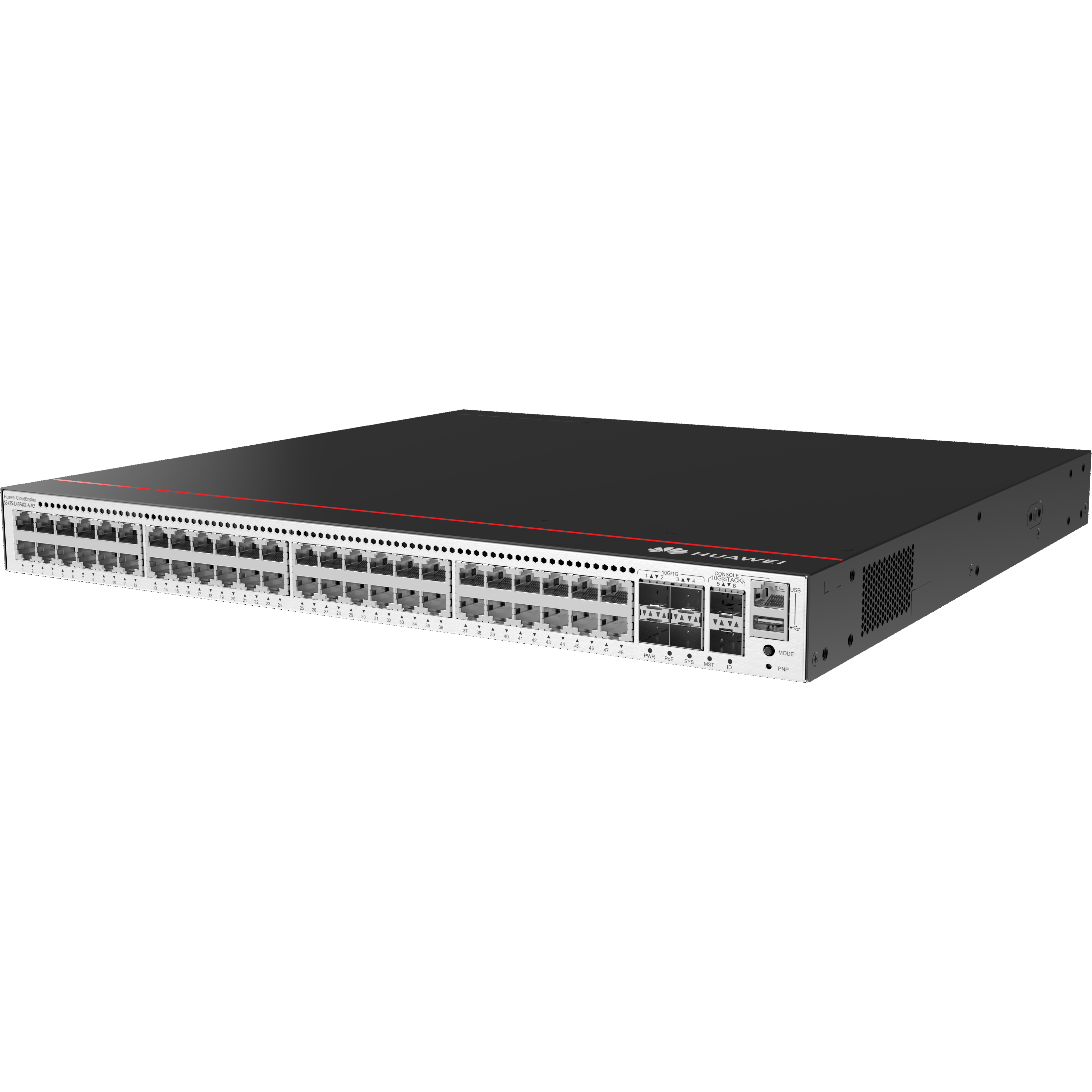

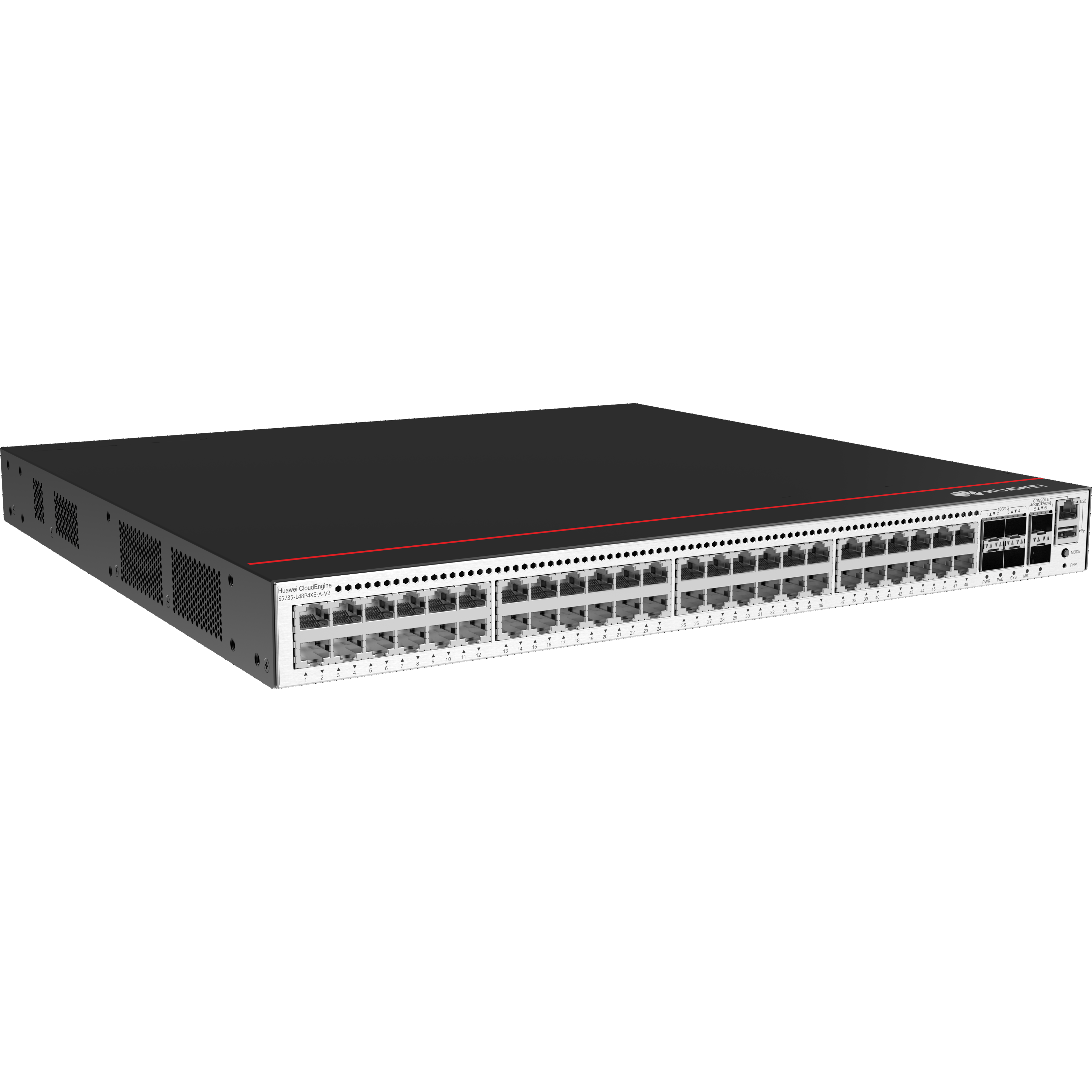

* NOTE: Image may not exactly match the product
Huawei S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power)
The Huawei S5735-L48P4XE-A-V2 is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE+) capability, 4 dedicated 10GE SFP+ uplink ports, and 2 stacking ports for seamless network expansion. This versatile switch provides up to 740W PoE power budget to support IP phones, wireless access points, and IoT devices without additional power infrastructure. Key advantages include simplified cable management through PoE integration, high-density connectivity for growing networks, 10Gbps uplinks for backbone connectivity, and stackable architecture supporting up to 9 units for centralized management. The switch features advanced Layer 2/3 switching capabilities, comprehensive security protocols, and energy-efficient design, making it ideal for enterprise campus networks, SMB deployments, and access layer applications requiring reliable performance and future-proof scalability.
