| Brand | Huawei |
|---|---|
| Model | S5735-L48P4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
| PN | 98010944 |
| Availability | >0.99999 |
| RTC | Not supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode, Using DC power modules: 2 kV" differential mode, 4 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC, DC"put: -48 V DC to -60 V DC |
| Maximum voltage range | AC"put: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC"put: 190 V DC to 290 V DC, DC"put: -38.4 V DC to -72 V DC |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable" V200R019C10 and later versions) |
| Noise under normal temperature (27C, sound power) | < 58.9 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum Power | NotprovidingthePoEfunction:80W, 100%PoEloads:914W(PoE:874W) |
| Weight (with packaging) | 8.7 kg (19.18 lb) |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 50C (122F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |
* NOTE: Image may not exactly match the product

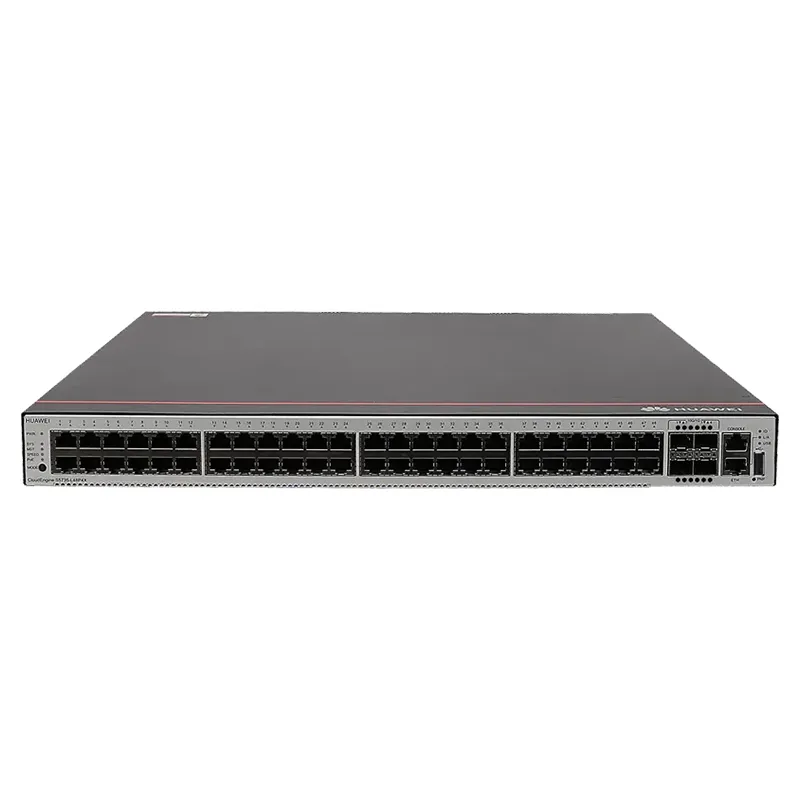

Huawei S5735-L48P4X-A (48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+)
The Huawei S5735-L48P4X-A is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 dedicated 10GE SFP+ uplink ports. This switch provides comprehensive power and connectivity for IP phones, wireless access points, and security cameras through its PoE functionality, eliminating the need for separate power infrastructure. The 10GE uplinks ensure high-speed backbone connectivity and future-proof network scalability. Key advantages include simplified cable management, reduced installation costs, centralized power management, and robust performance for medium to large enterprise networks. Its stackable design and advanced Layer 2/3 features make it ideal for access layer deployment in campus networks, offering reliable, cost-effective connectivity with enterprise-grade security and management capabilities.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-L48P4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.49" |
| Flash | 512MB |
