| PN | 98011345 |
|---|---|
| Model | S5735-L48P4S-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 3.23 kg (7.12 lb) |
| Weight with packaging [kg(lb)] | 4.28 kg (9.44 lb) |
| Typical power consumption [W] | 58.7 W |
| Typical heat dissipation [BTU/hour] | 200.29 BTU/hour |
| Maximum power consumption [W] | Not providing the PoE function: 76.1 W, 100% PoE loads: 456.1 W (PoE: 380 W) |
| Maximum heat dissipation [BTU/hour], 100% PoE loads: 1556.26 | Not providing the PoE function: 259.66 |
| Static power consumption [W] | 35.3 W |
| MTBF [year] | 44.9 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 38.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 6 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |

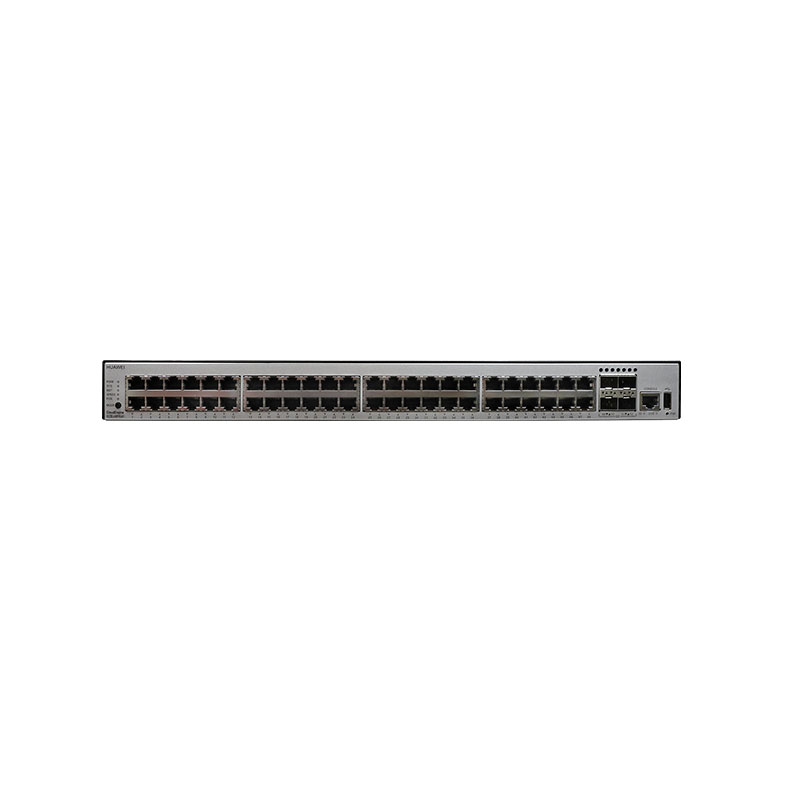

* NOTE: Image may not exactly match the product
Huawei S5735-L48P4S-A1 (48*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
The Huawei S5735-L48P4S-A1 is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 SFP uplink ports. This managed switch provides comprehensive network connectivity for medium to large businesses, supporting up to 52 simultaneous device connections while powering IP phones, wireless access points, and security cameras directly through the network cable. Key advantages include advanced Layer 2/3 switching capabilities, robust security features, intelligent traffic management, and energy-efficient design. The PoE functionality eliminates the need for separate power adapters, reducing installation costs and cable clutter. With its stackable architecture, redundant power options, and Huawei’s enterprise-grade reliability, this switch offers exceptional scalability and uptime for mission-critical network infrastructure. The combination of high port density, integrated power delivery, and professional management features makes it an ideal backbone solution for growing organizations requiring reliable, cost-effective network expansion.
