* NOTE: Image may not exactly match the product

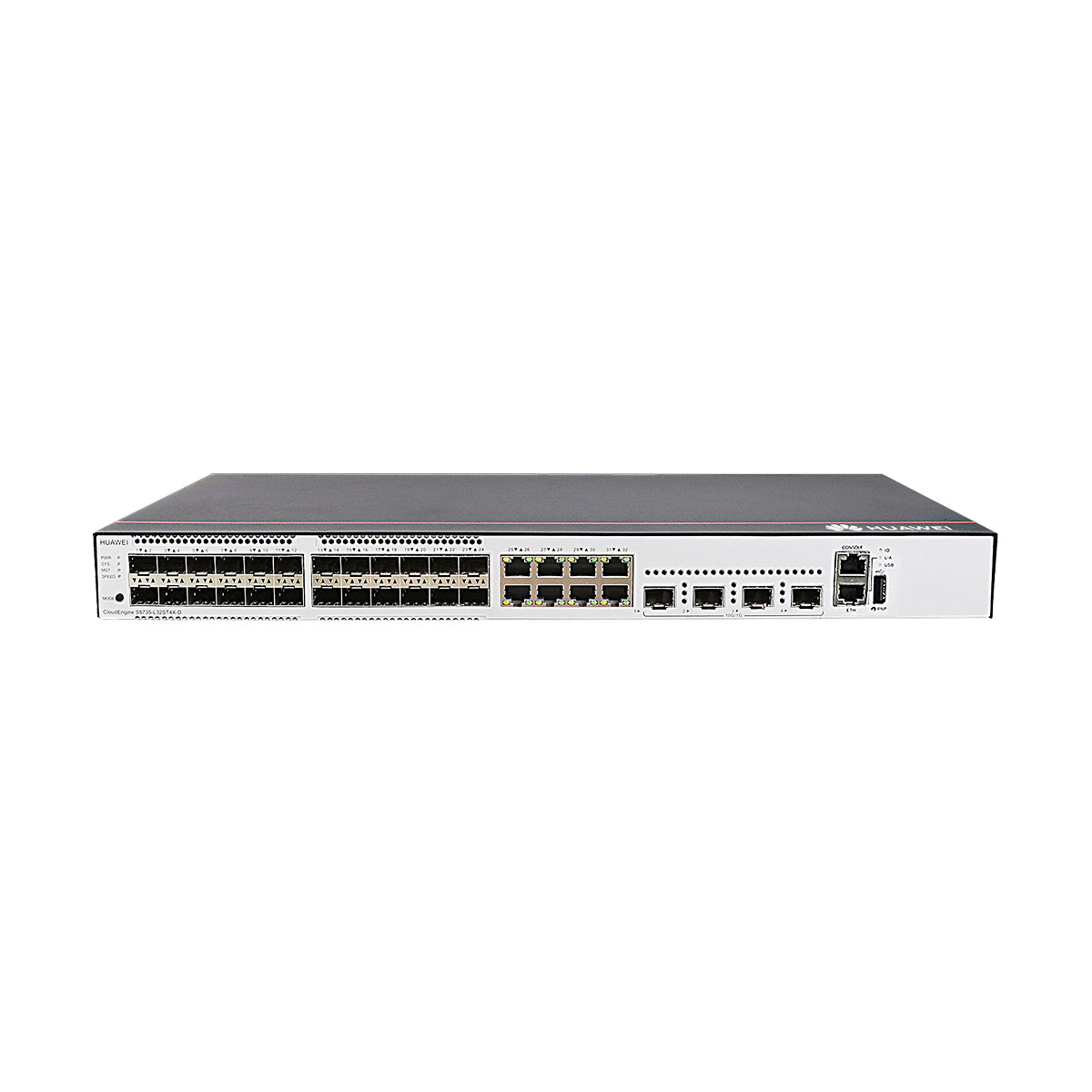

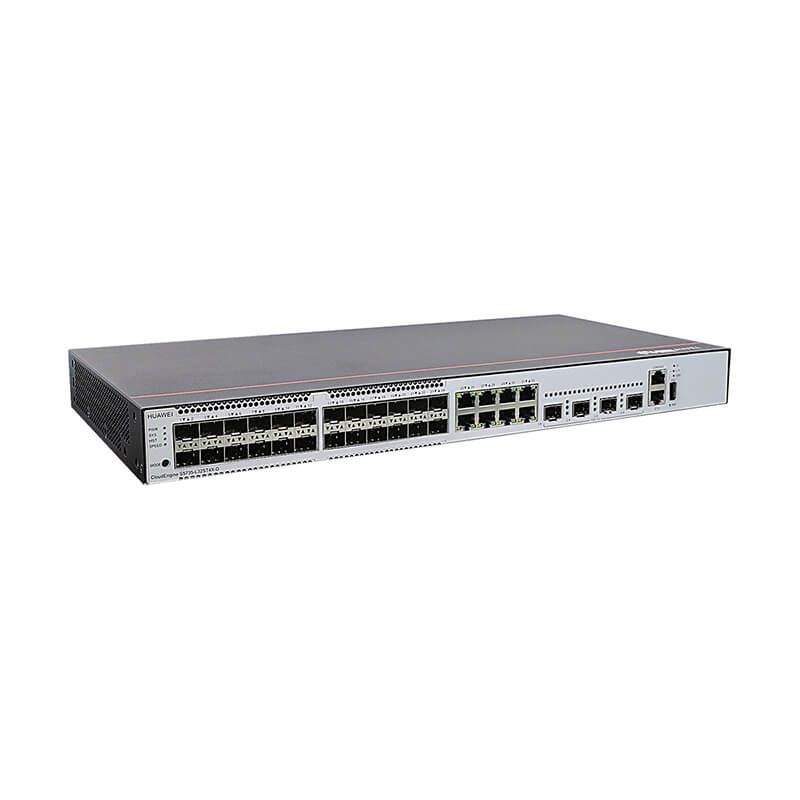

Huawei S5735-L32ST4X-D (24-ports GE SFP, 8-ports 1000BASE-T, 4-ports 10GE SFP+, 1 DC power fixed)

The Huawei S5735-L32ST4X-D is a high-performance enterprise switch delivering exceptional network flexibility with 24 Gigabit Ethernet SFP ports for fiber connectivity, 8 copper Gigabit ports for local device connections, and 4 10-Gigabit SFP+ uplink ports for high-speed backbone connectivity. This DC-powered switch offers superior port density and mixed-media support, making it ideal for data centers, enterprise networks, and industrial environments requiring reliable power options. Key advantages include simplified network architecture through diverse connectivity options, future-proof 10GE uplinks for bandwidth scalability, energy-efficient DC power operation, and Huawei’s advanced switching technology for enhanced security and management capabilities. Perfect for organizations seeking a robust, scalable switching solution that bridges fiber and copper infrastructures while supporting high-bandwidth applications.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

PN98010965
ModelS5735-L32ST4X-D
BrandHuawei
Warranty1 Year
Products StatusNew
PN

98010965

Model

S5735-L32ST4X-D

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

220.0mm

Wide [mm]

442.0mm

Chassis height [U]

1

Weight (with packaging)

4.31 kg (9.5 lb)

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run thedisplay versioncommand.

Mean time between failures (MTBF)

85.87 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: 7 kV

Power supply surge protection

2 kV in differential mode, 4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Stack ports

Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

-48 V DC to -60 V DC

Maximum voltage range

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

65 W

Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption

46 W

Operating temperature

-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F).

Short-term operating temperature

-5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50C (122F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature

-40C to +70C (-40F to +158F)

Noise under normal temperature (27C, sound power)

< 53.3 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification
