| PN | 98011396 |
|---|---|
| Model | S5735-L32ST4X-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.88 kg (6.35 lb) |
| Weight with packaging [kg(lb)] | 4.03 kg (8.89 lb) |
| Typical power consumption [W] | 53.2 W |
| Typical heat dissipation [BTU/hour] | 181.52 BTU/hour |
| Maximum power consumption [W] | 66.8 W |
| Maximum heat dissipation [BTU/hour] | 227.93 BTU/hour |
| Static power consumption [W] | 39.3 W |
| MTBF [year] | 58.44 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.8 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

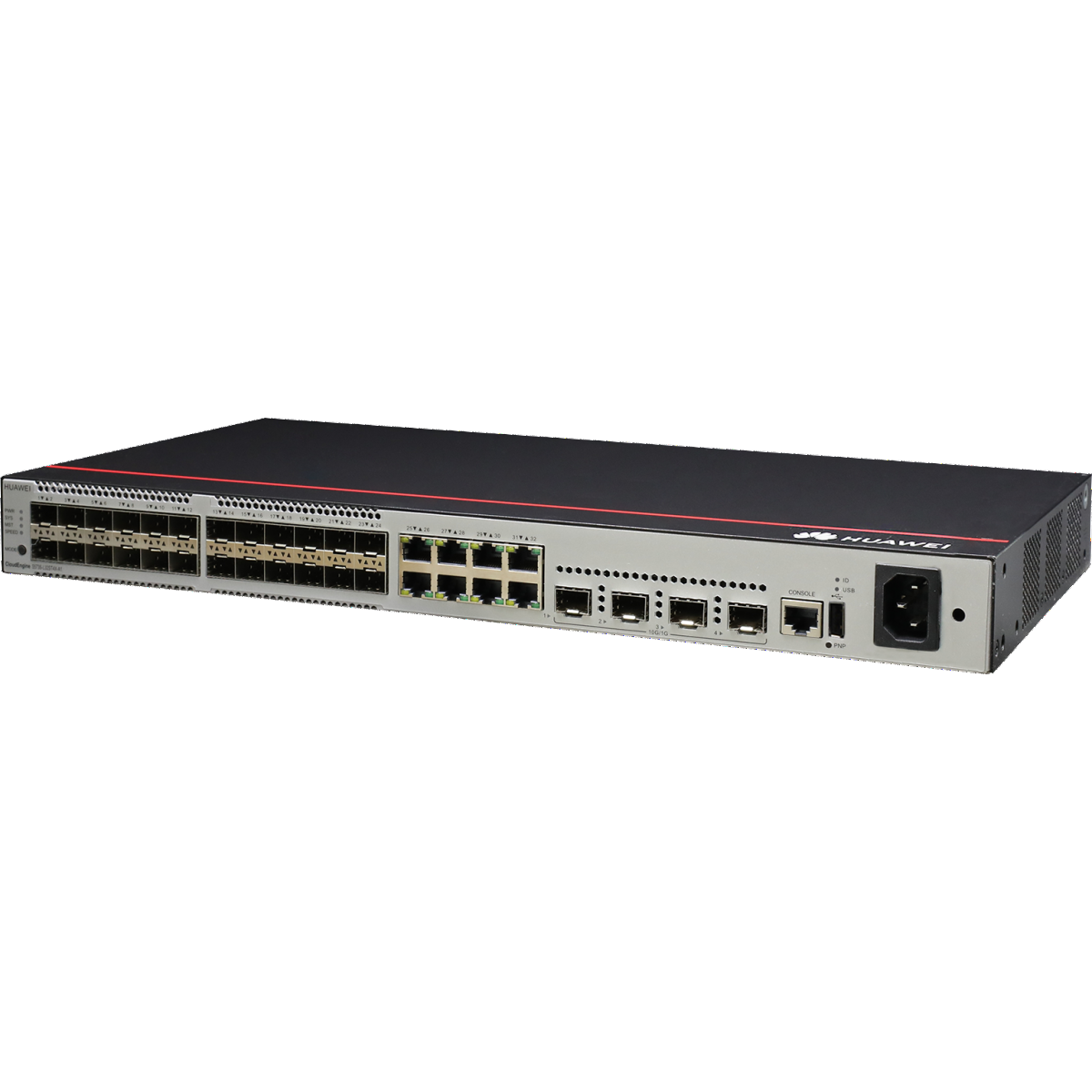

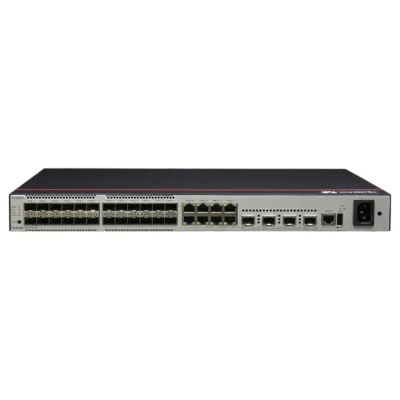

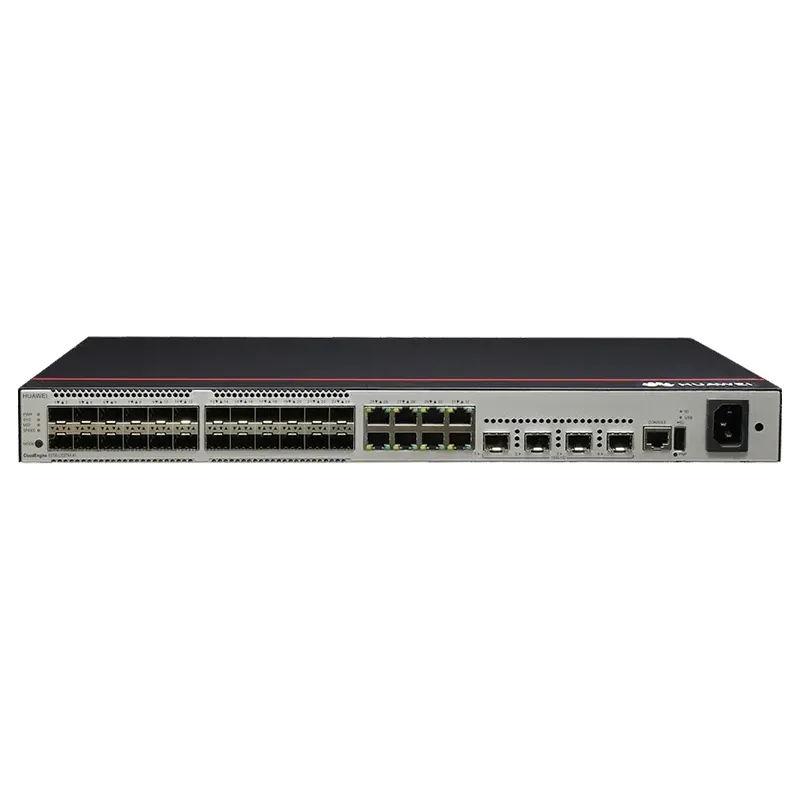

Huawei S5735-L32ST4X-A1 (24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access)
The Huawei S5735-L32ST4X-A1 is a high-performance enterprise switch delivering exceptional network flexibility with 24 Gigabit SFP ports for fiber connectivity, 8 copper Gigabit ports for local devices, and 4 10-Gigabit SFP+ uplink ports for backbone connections. Its front-access design enables easy deployment in space-constrained environments while AC power ensures reliable operation. Key benefits include superior port density for mixed fiber/copper networks, scalable 10GE uplinks for future growth, simplified cable management through front-panel access, and enterprise-grade reliability. This switch excels in scenarios requiring high-density fiber connectivity with flexible copper access, making it ideal for data centers, campus cores, and aggregation layers where performance, scalability, and operational efficiency are critical.
