| PN | 98010929 |
|---|---|
| Model | S5735-L32ST4X-A |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Weight (with packaging) | 4.31 kg (9.5 lb) |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the?display version?command. |
| Mean time between failures (MTBF) | 85.87 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Stack ports | Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 65 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 46 W |
| Operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Short-term operating temperature | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50??C (122??F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50??C (122??F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50??C (122??F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0??C (32??F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 53.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

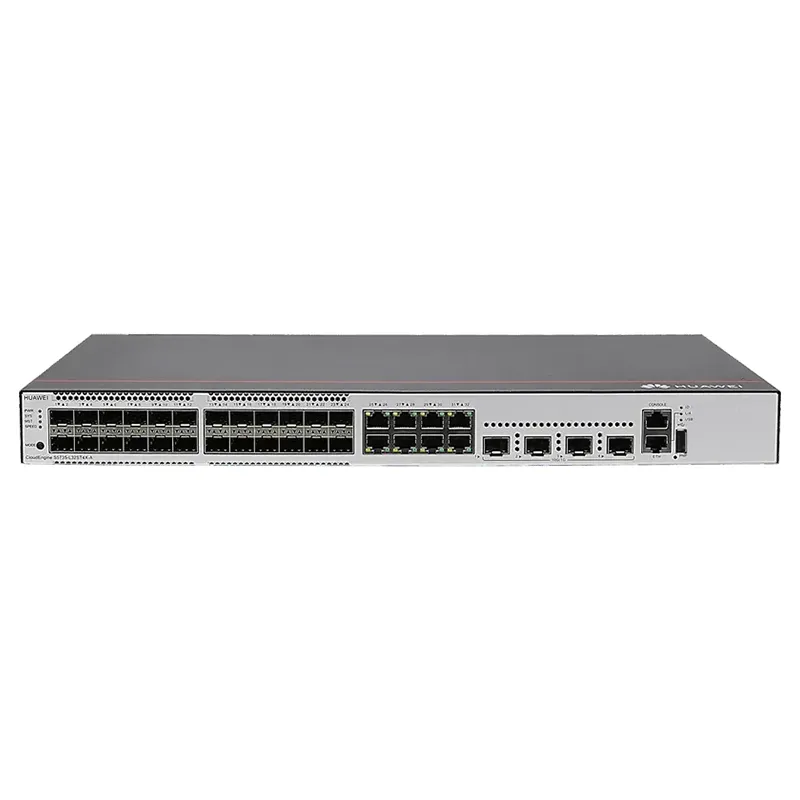

Huawei S5735-L32ST4X-A (24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports)
The Huawei S5735-L32ST4X-A is a high-performance enterprise switch delivering exceptional network flexibility with 24 Gigabit SFP ports, 8 copper Gigabit ports, and 4 10-Gigabit SFP+ uplink ports. This versatile switching solution provides seamless fiber and copper connectivity options, making it ideal for campus networks, data centers, and enterprise environments requiring reliable high-speed connectivity. Key advantages include advanced Layer 2/3 switching capabilities, comprehensive security features, energy-efficient design, and simplified management through Huawei’s intelligent network management system. The switch supports advanced protocols, VLAN segmentation, and Quality of Service (QoS) prioritization, ensuring optimal network performance and scalability. Its robust port configuration eliminates network bottlenecks while providing future-proof 10GE uplinks for backbone connectivity, making it an excellent choice for organizations seeking reliable, high-density switching with superior price-to-performance ratio.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| PN | 98010929 |
|---|---|
| Model | S5735-L32ST4X-A |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
