| PN | 98011583 |
|---|---|
| Model | S5735-L24T4X-QA1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 3.69 kg (8.14 lb) |
| Weight with packaging [kg(lb)] | 4.45 kg (9.81 lb) |
| Typical power consumption [W] | 30.8 W |
| Typical heat dissipation [BTU/hour] | 105.09 BTU/hour |
| Maximum power consumption [W] | 34 W |
| Maximum heat dissipation [BTU/hour] | 116.01 BTU/hour |
| Static power consumption [W] | 17.4 W |
| MTBF [year] | 62.05 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | ?C5??C to +45??C (23??F to 113??F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

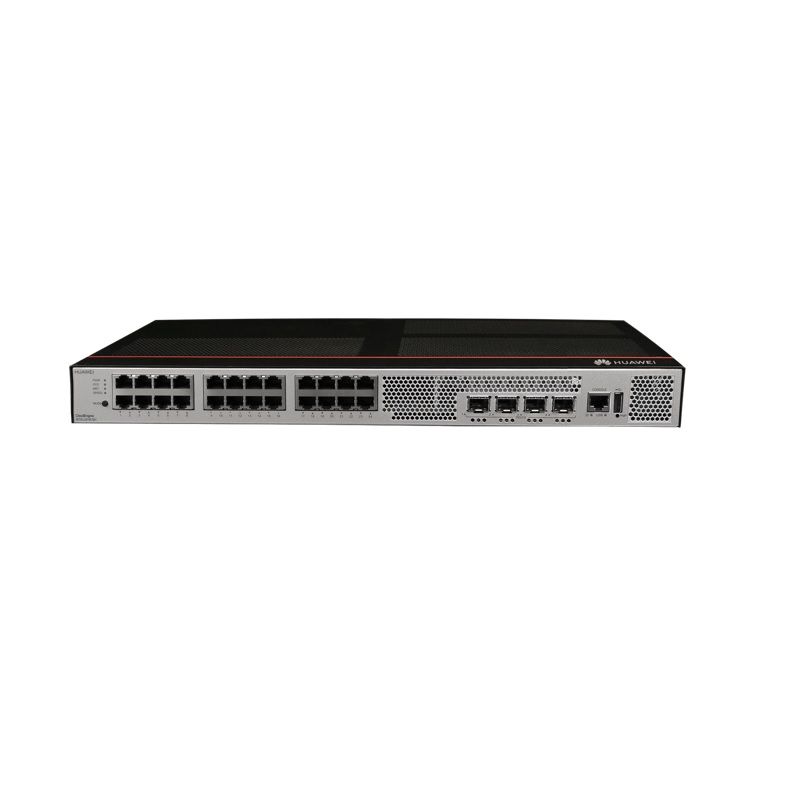

Huawei S5735-L24T4X-QA1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, Fanless)
The Huawei S5735-L24T4X-QA1 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports for superior network connectivity. Its fanless design ensures silent operation ideal for office environments while reducing energy consumption and maintenance costs. The switch supports advanced Layer 2/3 features including VLAN, QoS, and security protocols, making it perfect for small to medium businesses requiring reliable, scalable network infrastructure. With AC power supply, plug-and-play deployment, and Huawei’s robust build quality, this switch offers exceptional value for organizations seeking enterprise-grade performance without the complexity and noise of traditional managed switches.
